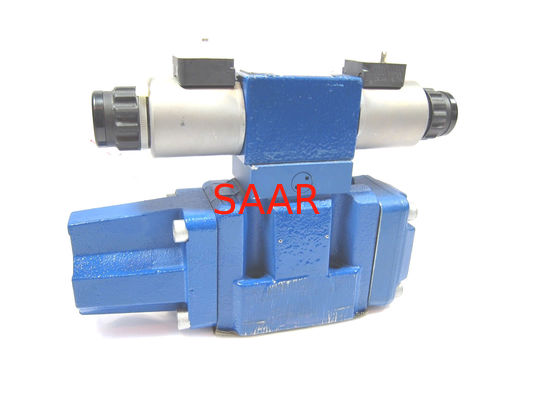

New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock

I'm Online Chat Now

New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock

New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock
New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock

Large Image :  New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: 4WRZE10E85-72/EG24N9K31/A1D3M 4WRZE10W8-85-72/6EG24N9EK31/F1D3M 4WRZE10E50-72/6EG24N9ETK31/F1D3M 4WRZE10W50-72/6EG24N9K31/A1V 4WRZE10E85-7X/6EG24N9ETK31/A1D3M 4WRZE10W8-85-72/6EG24N9K31/F1D3M 4WRZE10E50-72/6EG24N9ETK31/A1M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Detailed Product Description
Model: 4WRZE10E1-50-7X/6EG24ETK31/A1D3M MNR: R900954564
Origin: Germany
High Light:

rexroth proportional valve

,

hydraulic solenoid valve

New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock 0Rexroth 4WRZE Proportional directional valves, pilot operated, without electrical position feedback, with integrated electronics (OBE)
Size 10, 16, 25, 32, 52
Component series 7X
Maximum operating pressure 350 bar
Maximum flow 2800 l/min



Features
Pilot-operated, 2-stage proportional directional valves with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Optional auxiliary operating device
Spring-centered control spool

For applications outside these parameters, please consult us!

Technical data

Type 4WRZE
Size 10 16 25 32 52
Installation position   any, preferably horizontal
Ambient temperature range °C -20 … +50
Storage temperature range °C -20 … +80
Weight For subplate mounting kg 8 12.1 18.4 42.2 79.7
for flange connection kg   77.7
with "D3" kg 8.5 12.6 18.9 42.7 80.2
Sine test according to DIN EN 60068-2-6   10 cycles, 10…2000.. 10 Hz with logarithmic frequency changing speed of 1 octave/min, 5 to 57 Hz, amplitude 1.5 mm (p-p), 57 to 2000 Hz, amplitude 10g, 3 axes
Noise test according to DIN EN 60068-2-64   20…2000 Hz, amplitude 0.05g2/Hz (10gRMS) 3 axes, testing time 30 min per axis
Shock test according to DIN EN 60068-2-27   Half-sine 15g / 11 ms, 3 times in positive and 3 times in negative direction per axis, 3 axes
Damp heat according to DIN EN 60068-2-30   Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours

Hydraulic

Size 10 16 25 32 52
Maximum operating pressure   bar 315 350
Operating pressure range External pilot oil supply bar 30 … 100 20 … 100
Pilot control valve without "D3", internal pilot oil return bar 30 … 100
Internal pilot oil supply bar 100 … 315 100 … 350
Maximum return flow pressure Port T and R, external pilot oil return bar 315 250 150 250
Port T, internal pilot oil return bar 30
Port Y bar 30
Maximum flow   l/min 170 460 870 1600 2800
Nominal flow   l/min 25
50
85
100
125
150
180
220
325
360
520
1000
Pilot flow input signal 0 → 100% Port X and Y l/min 3.5 5.5 7 15.9 7
Pilot volume switching process 0 → 100% cm³ 1.7 4.6 10 26.5 54.3
Hydraulic fluid temperature range   °C -20 … +80
preferably °C -40 … +50
Viscosity range   mm²/s 20 … 380
preferably mm²/s 30 … 46
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) Pilot control valve   Class 18/16/13 according to ISO 4406 (c)
Main valve   Class 20/18/15 according to ISO 4406 (c)
Hysteresis   % ≤ 6
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Electrical

Size 10 16 25 32 52
Voltage type   Direct voltage
Command value overlap   % 15
Maximum solenoid current   A 2.5
Maximum current consumption of the amplifier A 1.8
of the amplifier (impulse current) A 3
Solenoid coil resistance Cold value at 20 °C Ω 2
Maximum hot value Ω 3
Actuated time   % 100
Maximum coil temperature 1)   °C + 150
Protection class according to DIN EN 60529   IP65 (with mating connector mounted and locked)
Power supply   V 24
Supply voltage range   V 19.4 … 35
Earthing (GND)   V 0
Command value input "A1" V 10
Command value input range "F1" mA 4 … 20
1) Due to the surface temperatures occurring at the solenoid coils, the European standards ISO 13732-1 and EN 982 need to be adhered to.
Hydraulic fluid Classification Suitable sealing materials Standards
Mineral oils and related hydrocarbons HL, HLP NBR / FKM DIN 51524
Flame-resistant - containing water HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) NBR ISO 12922

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids please contact us.

There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.

Flame-resistant - containing water:
Maximum pressure differential per control edge 175 bar
Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation
Life cycle as compared to operation with mineral oil HL, HLP 50 % to 100 %



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRZE10EA 4WRZE10R 4WRZE10E 4WRZE10W6 4WRZE10W8 4WRZE10W9 Proportional Directional Valves​ on Sale, Short lead time, Best price!!!

R900954563 4WRZE10E1-25-7X/6EG24ETK31/A1D3M
R901166107 4WRZE10E1-25-7X/6EG24K31/A1D3M
R901347556 4WRZE10E1-25-7X/6EG24N9ETK31/A1D3M
R901210031 4WRZE10E1-25-7X/6EG24N9ETK31/F1D3M
R901364263 4WRZE10E1-25-7X/6EG24TK31/A1D3M
R901299978 4WRZE10E1-50-7X/6EG24EK31/A1D3M
R900954564 4WRZE10E1-50-7X/6EG24ETK31/A1D3M
R900751754 4WRZE10E1-50-7X/6EG24K31/A1M
R901310122 4WRZE10E1-50-7X/6EG24N9EK31/A1M
R901211848 4WRZE10E1-50-7X/6EG24N9EK31/A1V
R901089796 4WRZE10E1-50-7X/6EG24N9EK31/F1D3M
R900954439 4WRZE10E1-50-7X/6EG24N9EK31/F1V
R900776399 4WRZE10E1-50-7X/6EG24N9ETK31/A1D3M
R900966306 4WRZE10E1-50-7X/6EG24N9ETK31/A1D3V
R900966139 4WRZE10E1-50-7X/6EG24N9ETK31/A1V
R901173903 4WRZE10E1-50-7X/6EG24N9ETK31/F1D3M
R901332591 4WRZE10E1-50-7X/6EG24N9ETK31/F1D3V
R901124428 4WRZE10E1-50-7X/6EG24N9ETK31/F1M
R900754103 4WRZE10E1-50-7X/6EG24N9ETK31/F1V
R901274796 4WRZE10E1-50-7X/6EG24N9K31/A1D3V
R901037553 4WRZE10E1-50-7X/6EG24N9K31/A1M
R900976428 4WRZE10E1-50-7X/6EG24N9K31/A1V
R900932675 4WRZE10E1-50-7X/6EG24N9TK31/A1D3V
R900954565 4WRZE10E1-85-7X/6EG24ETK31/A1D3M
R900749718 4WRZE10E1-85-7X/6EG24ETK31/A1M
R901311318 4WRZE10E1-85-7X/6EG24ETK31/A1V
R901300734 4WRZE10E1-85-7X/6EG24ETK31/F1D3V
R901261704 4WRZE10E1-85-7X/6EG24ETK31/F1M
R900775508 4WRZE10E1-85-7X/6EG24K31/A1D3M
R901178507 4WRZE10E1-85-7X/6EG24K31/A1M
R900959705 4WRZE10E1-85-7X/6EG24N9EK31/A1D3V
R900756162 4WRZE10E1-85-7X/6EG24N9EK31/A1M
R901198231 4WRZE10E1-85-7X/6EG24N9EK31/F1D3M
R901130247 4WRZE10E1-85-7X/6EG24N9EK31/F1M
R900728950 4WRZE10E1-85-7X/6EG24N9ETK31/A1D3M
R900947696 4WRZE10E1-85-7X/6EG24N9ETK31/A1D3V
R900948275 4WRZE10E1-85-7X/6EG24N9ETK31/A1V
R900706513 4WRZE10E1-85-7X/6EG24N9ETK31/F1D3M
R900953732 4WRZE10E1-85-7X/6EG24N9ETK31/F1D3V
R901143702 4WRZE10E1-85-7X/6EG24N9ETK31/F1M
R901169581 4WRZE10E1-85-7X/6EG24N9ETK31/F1V
R901015076 4WRZE10E1-85-7X/6EG24N9K31/A1D3M
R901024369 4WRZE10E1-85-7X/6EG24N9K31/A1M
R900975835 4WRZE10E1-85-7X/6EG24N9K31/A1V
R901012988 4WRZE10E1-85-7X/6EG24N9K31/F1D3M
R901006527 4WRZE10E1-85-7X/6EG24N9K31/F1D3V
R900948330 4WRZE10E1-85-7X/6EG24N9TK31/A1V
R901140328 4WRZE10E1-85-7X/6EG24N9TK31/F1M
R901380475 4WRZE10E1-85-7X/6EG24TK31/A1M
R900954566 4WRZE10E25-7X/6EG24ETK31/A1D3M
R900767097 4WRZE10E25-7X/6EG24ETK31/F1D3M
R901405265 4WRZE10E25-7X/6EG24ETK31/F1D3V
R901056851 4WRZE10E25-7X/6EG24K31/A1D3M
R901408934 4WRZE10E25-7X/6EG24K31/A1D3V
R901057479 4WRZE10E25-7X/6EG24K31/A1M
R900925705 4WRZE10E25-7X/6EG24N9EK31/A1D3V
R901019878 4WRZE10E25-7X/6EG24N9EK31/F1M
R900963799 4WRZE10E25-7X/6EG24N9ETK31/A1D3M
R900942135 4WRZE10E25-7X/6EG24N9ETK31/A1D3V
R900941288 4WRZE10E25-7X/6EG24N9ETK31/A1D3WG152V
R901110779 4WRZE10E25-7X/6EG24N9ETK31/F1D3M
R900955586 4WRZE10E25-7X/6EG24N9ETK31/F1D3V
R901233936 4WRZE10E25-7X/6EG24N9K31/A1D3M
R901218074 4WRZE10E25-7X/6EG24N9K31/A1D3V
R901155530 4WRZE10E25-7X/6EG24N9TK31/A1D3M
R978024668 4WRZE10E25-7X/6EG24N9TK31/A1D3V
R901172250 4WRZE10E25-7X/6EG24N9TK31/A1M
R901416846 4WRZE10E3-25-7X/6EG24N9K31/A1V
R901111290 4WRZE10E3-50-7X/6EG24N9K31/F1D3V
R901036567 4WRZE10E3-85-7X/6EG24ETK31/A1D3M
R901186993 4WRZE10E3-85-7X/6EG24N9ETK31/A1D3M
R900945098 4WRZE10E3-85-7X/6EG24N9ETK31/A1V
R900786837 4WRZE10E3-85-7X/6EG24N9ETK31/F1D3V
R901253344 4WRZE10E3-85-7X/6EG24N9ETK31/F1V
R901049340 4WRZE10E3-85-7X/6EG24N9K31/A1D3M
R901146849 4WRZE10E3-85-7X/6EG24N9TK31/A1D3V
R901036239 4WRZE10E3-85-7X/6EG24N9TK31/F1D3V
R978917439 4WRZE10E50-7X/6EG24EK31/A1D3M
R900245483 4WRZE10E50-7X/6EG24EK31/A1M
R901286297 4WRZE10E50-7X/6EG24EK31/A1V
R901328008 4WRZE10E50-7X/6EG24EK31/F1M
R900954567 4WRZE10E50-7X/6EG24ETK31/A1D3M
R901266401 4WRZE10E50-7X/6EG24ETK31/A1M
R900750129 4WRZE10E50-7X/6EG24N9EK31/A1D3M
R900717756 4WRZE10E50-7X/6EG24N9EK31/A1D3V
R900758292 4WRZE10E50-7X/6EG24N9EK31/A1M
R900968830 4WRZE10E50-7X/6EG24N9EK31/A1V
R900753994 4WRZE10E50-7X/6EG24N9EK31/F1D3M
R900949758 4WRZE10E50-7X/6EG24N9EK31/F1D3V
R901246615 4WRZE10E50-7X/6EG24N9EK31/F1M
R901122587 4WRZE10E50-7X/6EG24N9EK31/F1V
R900787093 4WRZE10E50-7X/6EG24N9ETK31/A1D3M
R900955065 4WRZE10E50-7X/6EG24N9ETK31/A1D3V
R900736828 4WRZE10E50-7X/6EG24N9ETK31/A1M
R900763181 4WRZE10E50-7X/6EG24N9ETK31/A1V
R901023668 4WRZE10E50-7X/6EG24N9ETK31/F1D3M
R900945726 4WRZE10E50-7X/6EG24N9ETK31/F1D3V
R901310123 4WRZE10E50-7X/6EG24N9ETK31/F1M
R900769052 4WRZE10E50-7X/6EG24N9K31/A1D3M
R901378712 4WRZE10E50-7X/6EG24N9K31/A1D3V
R900734524 4WRZE10E50-7X/6EG24N9K31/A1M
R978911132 4WRZE10E50-7X/6EG24N9K31/A1V
R901022076 4WRZE10E50-7X/6EG24N9K31/F1D3M
R901022077 4WRZE10E50-7X/6EG24N9K31/F1D3V
R901225527 4WRZE10E50-7X/6EG24N9K31/F1M
R900961394 4WRZE10E50-7X/6EG24N9K31/F1V
R900755753 4WRZE10E50-7X/6EG24N9TK31/A1M
R901372982 4WRZE10E50-7X/6EG24N9TK31/F1D3M
R901204396 4WRZE10E50-7X/6EG24TK31/F1D3M
R901072867 4WRZE10E85-7X/6EG24EK31/A1D3M
R901054604 4WRZE10E85-7X/6EG24EK31/A1M
R900954568 4WRZE10E85-7X/6EG24ETK31/A1D3M
R900758515 4WRZE10E85-7X/6EG24ETK31/A1M
R901005622 4WRZE10E85-7X/6EG24ETK31/F1D3M
R901059342 4WRZE10E85-7X/6EG24ETK31/F1M
R901059070 4WRZE10E85-7X/6EG24K31/A1D3M
R900954602 4WRZE10E85-7X/6EG24K31/A1M
R901091965 4WRZE10E85-7X/6EG24K31/F1D3M
R900760047 4WRZE10E85-7X/6EG24N9EK31/A1D3M
R900956542 4WRZE10E85-7X/6EG24N9EK31/A1D3V
R901048979 4WRZE10E85-7X/6EG24N9EK31/A1M
R900959831 4WRZE10E85-7X/6EG24N9EK31/A1V
R901152586 4WRZE10E85-7X/6EG24N9EK31/F1D3M
R901144249 4WRZE10E85-7X/6EG24N9EK31/F1D3V
R901213532 4WRZE10E85-7X/6EG24N9EK31/F1M
R900717050 4WRZE10E85-7X/6EG24N9EK31/F1V
R900617676 4WRZE10E85-7X/6EG24N9ETK31/A1D3M
R900947697 4WRZE10E85-7X/6EG24N9ETK31/A1D3V
R900941289 4WRZE10E85-7X/6EG24N9ETK31/A1D3WG152V
R901017351 4WRZE10E85-7X/6EG24N9ETK31/A1M
R900244929 4WRZE10E85-7X/6EG24N9ETK31/A1V
R901048582 4WRZE10E85-7X/6EG24N9ETK31/F1D3M
R900943818 4WRZE10E85-7X/6EG24N9ETK31/F1D3V
R901026885 4WRZE10E85-7X/6EG24N9ETK31/F1M
R900958946 4WRZE10E85-7X/6EG24N9ETK31/F1V
R900763138 4WRZE10E85-7X/6EG24N9K31/A1D3M
R900948133 4WRZE10E85-7X/6EG24N9K31/A1D3V
R901028488 4WRZE10E85-7X/6EG24N9K31/A1M
R900969955 4WRZE10E85-7X/6EG24N9K31/A1V
R901068387 4WRZE10E85-7X/6EG24N9K31/F1D3M
R900939930 4WRZE10E85-7X/6EG24N9K31/F1D3V
R901009559 4WRZE10E85-7X/6EG24N9K31/F1M
R901342771 4WRZE10E85-7X/6EG24N9TK31/A1D3M
R900950368 4WRZE10E85-7X/6EG24N9TK31/A1D3V
R901142193 4WRZE10E85-7X/6EG24N9TK31/F1D3M
R901219140 4WRZE10E85-7X/6EG24N9TK31/F1M
R900245885 4WRZE10EA25-7X/6EG24EK31/A1D3M
R900758572 4WRZE10EA25-7X/6EG24ETK31/A1D3M
R901204383 4WRZE10EA25-7X/6EG24TK31/F1D3M
R900954603 4WRZE10EA50-7X/6EG24EK31/A1D3M
R901079054 4WRZE10EA50-7X/6EG24N9EK31/A1D3M
R900965045 4WRZE10EA50-7X/6EG24N9EK31/A1D3V
R901137620 4WRZE10EA50-7X/6EG24N9ETK31/A1V
R900942768 4WRZE10EA50-7X/6EG24N9K31/A1V
R901204381 4WRZE10EA50-7X/6EG24TK31/F1D3M
R900248640 4WRZE10EA85-7X/6EG24EK31/A1D3M
R900244289 4WRZE10EA85-7X/6EG24EK31/A1M
R901030197 4WRZE10EA85-7X/6EG24EK31/A1V
R900954605 4WRZE10EA85-7X/6EG24ETK31/A1D3M
R978918476 4WRZE10EA85-7X/6EG24N9EK31/A1D3M
R900961118 4WRZE10EA85-7X/6EG24N9EK31/A1D3V
R901208374 4WRZE10EA85-7X/6EG24N9EK31/F1D3M
R978912401 4WRZE10EA85-7X/6EG24N9ETK31/A1V
R900970171 4WRZE10EA85-7X/6EG24N9K31/A1D3V
R901409432 4WRZE10EA85-7X/6EG24N9K31/A1M
R901244450 4WRZE10EA85-7X/6EG24N9K31/F1D3M
R900971233 4WRZE10EA85-7X/6EG24N9K31/F1V
R901396897 4WRZE10EA85-7X/6EG24N9TK31/A1M
R900773487 4WRZE10EA85-7X/6EG24TK31/A1D3M
R901204384 4WRZE10EA85-7X/6EG24TK31/F1D3M
R978919620 4WRZE10EB85-7X/6EG24ETK31/A1M
R978919634 4WRZE10EB85-7X/6EG24ETK31/F1M
R900721770 4WRZE10EB85-7X/6EG24N9EK31/A1D3V
R978030170 4WRZE10EB85-7X/6EG24N9EK31/A1M
R978032130 4WRZE10EB85-7X/6EG24N9EK31/A1V
R900731722 4WRZE10EB85-7X/6EG24N9ETK31/A1D3V
R978028313 4WRZE10EB85-7X/6EG24N9K31/A1M
R900732954 4WRZE10M50-7X/6EG24N9EK31/A1D3V
R901238594 4WRZE10M50-7X/6EG24N9K31/A1D3M
R901262113 4WRZE10M85-7X/6EG24N9EK31/A1M
R901262410 4WRZE10M85-7X/6EG24N9EK31/F1M
R900722058 4WRZE10R3-85-7X/6EG24N9EK31/A1D3V
R901094961 4WRZE10R3-85-7X/6EG24N9ETK31/A1M
R901168282 4WRZE10R3-85-7X/6EG24N9ETK31/F1M
R900913984 4WRZE10R5-85-6X/6AG24ETK31/D3M
R900912458 4WRZE10R5-85-7X/6EG24ETK31/A1D3V
R900951550 4WRZE10R5-85-7X/6EG24N9ETK31/A1D3V
R901045804 4WRZE10R85-7X/6EG24N9EK31/A1D3V
R900958534 4WRZE10W4-85-7X/6EG24N9ETK31/A1D3V
R900729920 4WRZE10W50-7X/6EG24N9EK31/A1D3V
R900979025 4WRZE10W50-7X/6EG24N9ETK31/A1D3V
R900966488 4WRZE10W50-7X/6EG24N9ETK31/A1V
R901151204 4WRZE10W50-7X/6EG24N9ETK31/F1V
R978915676 4WRZE10W50-7X/6EG24N9K31/A1V
R900775563 4WRZE10W6-25-7X/6EG24ETK31/A1D3M
R901021785 4WRZE10W6-25-7X/6EG24K31/A1D3M
R901079515 4WRZE10W6-25-7X/6EG24N9EK31/A1D3M
R901270796 4WRZE10W6-25-7X/6EG24N9EK31/F1D3M
R900961418 4WRZE10W6-25-7X/6EG24N9EK31/F1D3V
R901044779 4WRZE10W6-25-7X/6EG24N9ETK31/A1D3M
R978009885 4WRZE10W6-25-7X/6EG24N9ETK31/A1D3V
R978910857 4WRZE10W6-25-7X/6EG24N9ETK31/A1V
R901100109 4WRZE10W6-25-7X/6EG24N9ETK31/F1D3M
R900966711 4WRZE10W6-25-7X/6EG24N9ETK31/F1D3V
R900958568 4WRZE10W6-25-7X/6EG24N9ETK31/F1V
R901205255 4WRZE10W6-25-7X/6EG24N9K31/F1D3V
R901112533 4WRZE10W6-25-7X/6EG24N9K31/F1V
R901158295 4WRZE10W6-25-7X/6EG24N9TK31/A1D3M
R900246126 4WRZE10W6-25-7X/6EG24TK31/A1V
R901410723 4WRZE10W6-25-7X=6EG24N9ETK31/A1D3M
R900775562 4WRZE10W6-50-7X/6EG24EK31/A1D3M
R900954649 4WRZE10W6-50-7X/6EG24ETK31/A1D3M
R901352708 4WRZE10W6-50-7X/6EG24ETK31/A1M
R901292942 4WRZE10W6-50-7X/6EG24ETK31/F1D3M
R901204400 4WRZE10W6-50-7X/6EG24ETK31/F1D3V
R901024330 4WRZE10W6-50-7X/6EG24K31/A1D3M
R901012297 4WRZE10W6-50-7X/6EG24K31/A1M
R901075375 4WRZE10W6-50-7X/6EG24K31/F1D3M
R901291356 4WRZE10W6-50-7X/6EG24N6K31/A1D3M
R900751835 4WRZE10W6-50-7X/6EG24N9EK31/A1D3M
R900724553 4WRZE10W6-50-7X/6EG24N9EK31/A1D3V
R900751838 4WRZE10W6-50-7X/6EG24N9EK31/F1D3M
R901179323 4WRZE10W6-50-7X/6EG24N9EK31/F1D3V
R900965019 4WRZE10W6-50-7X/6EG24N9EK31/F1V
R900725318 4WRZE10W6-50-7X/6EG24N9ETK31/A1D3M
R900921152 4WRZE10W6-50-7X/6EG24N9ETK31/A1D3V
R900715543 4WRZE10W6-50-7X/6EG24N9ETK31/A1M
R900965946 4WRZE10W6-50-7X/6EG24N9ETK31/A1V
R901355471 4WRZE10W6-50-7X/6EG24N9ETK31/A1V-983
R901006547 4WRZE10W6-50-7X/6EG24N9ETK31/F1D3M
R900952143 4WRZE10W6-50-7X/6EG24N9ETK31/F1D3V
R900721525 4WRZE10W6-50-7X/6EG24N9ETK31/F1M
R900979444 4WRZE10W6-50-7X/6EG24N9ETK31/F1V
R900763192 4WRZE10W6-50-7X/6EG24N9K31/A1D3M
R900720440 4WRZE10W6-50-7X/6EG24N9K31/A1D3V
R901115824 4WRZE10W6-50-7X/6EG24N9K31/A1V
R978017301 4WRZE10W6-50-7X/6EG24N9K31/A1V
R901214430 4WRZE10W6-50-7X/6EG24N9K31/F1D3M
R900939922 4WRZE10W6-50-7X/6EG24N9K31/F1D3V
R901067668 4WRZE10W6-50-7X/6EG24N9K31/F1M
R901035807 4WRZE10W6-50-7X/6EG24N9K31/F1V
R900979518 4WRZE10W6-50-7X/6EG24N9TK31/A1D3M
R901091373 4WRZE10W6-50-7X/6EG24N9TK31/A1D3V
R901046893 4WRZE10W6-85-7X/6EG24EK31/A1D3M
R900248950 4WRZE10W6-85-7X/6EG24EK31/A1M
R901004023 4WRZE10W6-85-7X/6EG24EK31/F1D3M
R900954650 4WRZE10W6-85-7X/6EG24ETK31/A1D3M
R900744834 4WRZE10W6-85-7X/6EG24ETK31/A1M
R901100936 4WRZE10W6-85-7X/6EG24ETK31/F1D3M
R900954651 4WRZE10W6-85-7X/6EG24K31/A1D3M
R901075373 4WRZE10W6-85-7X/6EG24K31/F1D3M
R901144124 4WRZE10W6-85-7X/6EG24K31/F1D3V
R900776501 4WRZE10W6-85-7X/6EG24N9EK31/A1D3M
R900722664 4WRZE10W6-85-7X/6EG24N9EK31/A1D3V
R901028487 4WRZE10W6-85-7X/6EG24N9EK31/A1M
R900935675 4WRZE10W6-85-7X/6EG24N9EK31/A1V
R900961306 4WRZE10W6-85-7X/6EG24N9EK31/F1D3M
R900949750 4WRZE10W6-85-7X/6EG24N9EK31/F1D3V
R901213530 4WRZE10W6-85-7X/6EG24N9EK31/F1M
R900765029 4WRZE10W6-85-7X/6EG24N9ETK31/A1D3M
R900932993 4WRZE10W6-85-7X/6EG24N9ETK31/A1D3V
R900704379 4WRZE10W6-85-7X/6EG24N9ETK31/A1D3V=MG
R900737464 4WRZE10W6-85-7X/6EG24N9ETK31/A1M
R900978823 4WRZE10W6-85-7X/6EG24N9ETK31/A1V
R900705138 4WRZE10W6-85-7X/6EG24N9ETK31/F1D3M
R900925737 4WRZE10W6-85-7X/6EG24N9ETK31/F1D3V
R901034260 4WRZE10W6-85-7X/6EG24N9ETK31/F1M
R900954641 4WRZE10W6-85-7X/6EG24N9ETK31/F1V
R900618374 4WRZE10W6-85-7X/6EG24N9K31/A1D3M
R978917015 4WRZE10W6-85-7X/6EG24N9K31/A1D3V
R901028802 4WRZE10W6-85-7X/6EG24N9K31/A1D3V
R900705877 4WRZE10W6-85-7X/6EG24N9K31/A1M
R901092270 4WRZE10W6-85-7X/6EG24N9K31/A1V
R978917544 4WRZE10W6-85-7X/6EG24N9K31/A1V
R901014935 4WRZE10W6-85-7X/6EG24N9K31/F1D3M
R900705328 4WRZE10W6-85-7X/6EG24N9K31/F1D3V
R901302127 4WRZE10W6-85-7X/6EG24N9K31/F1M
R900970560 4WRZE10W6-85-7X/6EG24N9K31/F1V
R901067638 4WRZE10W6-85-7X/6EG24N9TK31/A1D3M
R978009993 4WRZE10W6-85-7X/6EG24N9TK31/A1D3M
R900951429 4WRZE10W6-85-7X/6EG24N9TK31/A1D3V
R900729788 4WRZE10W6-85-7X/6EG24N9TK31/A1M
R900929342 4WRZE10W6-85-7X/6EG24N9TK31/A1V
R900736694 4WRZE10W6-85-7X/6EG24N9TK31/F1D3M
R987004233 4WRZE10W6-85-7X/6EG24N9TK31/F1D3V
R901116103 4WRZE10W6-85-7X/6EG24N9TK31/F1M
R900716434 4WRZE10W6-85-7X/6EG24TK31/A1D3M
R900756136 4WRZE10W6A50-7X/6EG24N9ETK31/A1D3M
R901208711 4WRZE10W6A85-7X/6EG24N9ETK31/A1D3M
R900975945 4WRZE10W6B85-7X/6EG24N9EK31/A1D3V
R900975862 4WRZE10W6B85-7X/6EG24N9K31/F1V
R901004135 4WRZE10W8-25-7X/6EG24ETK31/A1V
R901231829 4WRZE10W8-25-7X/6EG24ETK31/F1D3M
R901011741 4WRZE10W8-25-7X/6EG24N9EK31/A1D3M
R901004131 4WRZE10W8-25-7X/6EG24N9EK31/A1V
R978911144 4WRZE10W8-25-7X/6EG24N9EK31/A1V
R900961299 4WRZE10W8-25-7X/6EG24N9EK31/F1D3M
R900961513 4WRZE10W8-25-7X/6EG24N9EK31/F1D3V
R900956014 4WRZE10W8-25-7X/6EG24N9EK31/F1V
R900727751 4WRZE10W8-25-7X/6EG24N9ETK31/A1D3M
R900730730 4WRZE10W8-25-7X/6EG24N9ETK31/A1D3V
R900787912 4WRZE10W8-25-7X/6EG24N9ETK31/A1M
R900977526 4WRZE10W8-25-7X/6EG24N9ETK31/A1V
R900746822 4WRZE10W8-25-7X/6EG24N9ETK31/F1D3M
R900703327 4WRZE10W8-25-7X/6EG24N9ETK31/F1D3V
R901269015 4WRZE10W8-25-7X/6EG24N9ETK31/F1M
R900958853 4WRZE10W8-25-7X/6EG24N9ETK31/F1V
R900769051 4WRZE10W8-25-7X/6EG24N9K31/A1D3M
R901088012 4WRZE10W8-25-7X/6EG24N9K31/F1D3M
R901302621 4WRZE10W8-25-7X/6EG24N9K31/F1V
R901158877 4WRZE10W8-25-7X/6EG24N9TK31/A1D3M
R901035079 4WRZE10W8-50-7X/6EG24EK31/A1M
R901405882 4WRZE10W8-50-7X/6EG24EK31/A1V
R900954647 4WRZE10W8-50-7X/6EG24ETK31/A1D3M
R901245658 4WRZE10W8-50-7X/6EG24ETK31/A1M
R901046936 4WRZE10W8-50-7X/6EG24ETK31/F1D3M
R983031570 4WRZE10W8-50-7X/6EG24K31/A1D3M
R900976964 4WRZE10W8-50-7X/6EG24K31/A1V
R900760644 4WRZE10W8-50-7X/6EG24N9EK31/A1D3M
R900712725 4WRZE10W8-50-7X/6EG24N9EK31/A1D3V
R901063710 4WRZE10W8-50-7X/6EG24N9EK31/A1M
R900977339 4WRZE10W8-50-7X/6EG24N9EK31/A1V
R900751839 4WRZE10W8-50-7X/6EG24N9EK31/F1D3M
R900949749 4WRZE10W8-50-7X/6EG24N9EK31/F1D3V
R900971168 4WRZE10W8-50-7X/6EG24N9EK31/F1V
R900776400 4WRZE10W8-50-7X/6EG24N9ETK31/A1D3M
R901001208 4WRZE10W8-50-7X/6EG24N9ETK31/A1D3V
R901096116 4WRZE10W8-50-7X/6EG24N9ETK31/A1M
R900925011 4WRZE10W8-50-7X/6EG24N9ETK31/A1V
R900938296 4WRZE10W8-50-7X/6EG24N9ETK31/A1V=LB
R900751933 4WRZE10W8-50-7X/6EG24N9ETK31/F1D3M
R900925700 4WRZE10W8-50-7X/6EG24N9ETK31/F1D3V
R901144325 4WRZE10W8-50-7X/6EG24N9ETK31/F1M
R900737039 4WRZE10W8-50-7X/6EG24N9ETK31/F1V
R901013826 4WRZE10W8-50-7X/6EG24N9K31/A1D3M
R900729094 4WRZE10W8-50-7X/6EG24N9K31/A1D3V
R901094067 4WRZE10W8-50-7X/6EG24N9K31/A1M
R901014944 4WRZE10W8-50-7X/6EG24N9K31/F1D3M
R901342141 4WRZE10W8-50-7X/6EG24N9K31/F1D3V
R901090238 4WRZE10W8-50-7X/6EG24N9K31/F1M
R901258597 4WRZE10W8-50-7X/6EG24N9K31/F1V
R901017042 4WRZE10W8-50-7X/6EG24N9TK31/A1D3M
R901071135 4WRZE10W8-50-7X/6EG24N9TK31/F1D3M
R901208561 4WRZE10W8-50-7X/6EG24N9TK31/F1D3V
R900723478 4WRZE10W8-50-7X/6EG24N9TK31/F1V
R901430239 4WRZE10W8-50-7X/6EG24TK31/A1V
R901051368 4WRZE10W8-85-7X/6EG24EK31/A1D3M
R900974754 4WRZE10W8-85-7X/6EG24EK31/A1M
R900758293 4WRZE10W8-85-7X/6EG24EK31/A1V
R900954648 4WRZE10W8-85-7X/6EG24ETK31/A1D3M
R901072669 4WRZE10W8-85-7X/6EG24ETK31/A1D3V
R901245654 4WRZE10W8-85-7X/6EG24ETK31/A1M
R901008981 4WRZE10W8-85-7X/6EG24ETK31/F1D3M
R901040923 4WRZE10W8-85-7X/6EG24ETK31/F1D3V
R901015408 4WRZE10W8-85-7X/6EG24ETK31/F1M
R901008733 4WRZE10W8-85-7X/6EG24K31/A1D3M
R901050470 4WRZE10W8-85-7X/6EG24K31/F1M
R901439998 4WRZE10W8-85-7X/6EG24N5ETK31/A1D3M
R900750047 4WRZE10W8-85-7X/6EG24N9EK31/A1D3M
R900974142 4WRZE10W8-85-7X/6EG24N9EK31/A1D3V
R900935674 4WRZE10W8-85-7X/6EG24N9EK31/A1V
R900750556 4WRZE10W8-85-7X/6EG24N9EK31/F1D3M
R900949753 4WRZE10W8-85-7X/6EG24N9EK31/F1D3V
R900958571 4WRZE10W8-85-7X/6EG24N9EK31/F1M
R900956013 4WRZE10W8-85-7X/6EG24N9EK31/F1V
R900979517 4WRZE10W8-85-7X/6EG24N9ETK31/A1D3M
R900753834 4WRZE10W8-85-7X/6EG24N9ETK31/A1D3V
R900730929 4WRZE10W8-85-7X/6EG24N9ETK31/A1M
R978916358 4WRZE10W8-85-7X/6EG24N9ETK31/A1V
R900724781 4WRZE10W8-85-7X/6EG24N9ETK31/F1D3M
R900925699 4WRZE10W8-85-7X/6EG24N9ETK31/F1D3V
R900764372 4WRZE10W8-85-7X/6EG24N9ETK31/F1M
R900960149 4WRZE10W8-85-7X/6EG24N9ETK31/F1V
R901013820 4WRZE10W8-85-7X/6EG24N9K31/A1D3M
R900964180 4WRZE10W8-85-7X/6EG24N9K31/A1D3V
R900774169 4WRZE10W8-85-7X/6EG24N9K31/A1M
R901136640 4WRZE10W8-85-7X/6EG24N9K31/A1V
R901094002 4WRZE10W8-85-7X/6EG24N9K31/F1D3M
R900723003 4WRZE10W8-85-7X/6EG24N9K31/F1D3V
R900741766 4WRZE10W8-85-7X/6EG24N9K31/F1M
R901011154 4WRZE10W8-85-7X/6EG24N9K31/F1V
R901148877 4WRZE10W8-85-7X/6EG24N9TK31/A1D3M
R901200462 4WRZE10W8-85-7X/6EG24N9TK31/A1V
R901054349 4WRZE10W8-85-7X/6EG24N9TK31/F1D3M
R900771252 4WRZE10W8-85-7X/6EG24NJEK31/A1D3M
R901423347 4WRZE10W8-85-7X/6EG24NJETK31/A1D3M
R901022954 4WRZE10W85-7X/6EG24N9EK31/A1D3M
R978916200 4WRZE10W85-7X/6EG24N9ETK31/A1D3V
R978911283 4WRZE10W85-7X/6EG24N9ETK31/A1V
R901126618 4WRZE10W85-7X/6EG24N9K31/A1D3M
R978914159 4WRZE10W85-7X/6EG24N9K31/A1D3V
R901084629 4WRZE10W85-7X/6EG24N9TK31/A1D3M
R978007197 4WRZE10W85-7X/6EG24N9TK31/A1D3V
R901211061 4WRZE10W9-25-7X/6EG24N9EK31/A1D3M
R901179154 4WRZE10W9-25-7X/6EG24N9ETK31/A1V
R901241615 4WRZE10W9-25-7X/6EG24N9K31/A1D3M
R901081368 4WRZE10W9-50-7X/6EG24ETK31/F1D3M
R901032843 4WRZE10W9-50-7X/6EG24N9EK31/A1D3M
R901220794 4WRZE10W9-50-7X/6EG24N9ETK31/A1D3M
R901035429 4WRZE10W9-50-7X/6EG24N9ETK31/F1D3M
R901238292 4WRZE10W9-50-7X/6EG24N9K31/A1D3M
R900972615 4WRZE10W9-85-7X/6EG24ETK31/A1D3M
R987001389 4WRZE10W9-85-7X/6EG24K31/F1D3V
R900720749 4WRZE10W9-85-7X/6EG24K31/F1D3V
R900750045 4WRZE10W9-85-7X/6EG24N9EK31/A1D3M
R900736830 4WRZE10W9-85-7X/6EG24N9EK31/A1D3V
R901018548 4WRZE10W9-85-7X/6EG24N9EK31/F1D3M
R901262080 4WRZE10W9-85-7X/6EG24N9ETK31/A1D3M
R901053128 4WRZE10W9-85-7X/6EG24N9ETK31/F1D3M
R901311256 4WRZE10W9-85-7X/6EG24N9ETK31/F1D3V
R901443964 4WRZE10W9-85-7X/6EG24N9ETK31/F1M
R901057127 4WRZE10W9-85-7X/6EG24N9K31/A1D3M
R901327589 4WRZE10W9-85-7X/6EG24N9K31/A1M
R901015566 4WRZE10W9-85-7X/6EG24N9K31/F1D3M
R900733703 4WRZE10W9-85-7X/6EG24N9K31/F1D3V
R901327591 4WRZE10W9-85-7X/6EG24N9K31/F1M

Contact Details
Saar HK Electronic Limited

Contact Person: jason

Tel: +8613918187448

Send your inquiry directly to us (0 / 3000)
