Vickers Mobile Triple Pumps 4525VQSV10

Vickers Mobile Triple Pumps 4525VQSV10
Vickers Mobile Triple Pumps 4525VQSV10 Vickers Mobile Triple Pumps 4525VQSV10 Vickers Mobile Triple Pumps 4525VQSV10 Vickers Mobile Triple Pumps 4525VQSV10

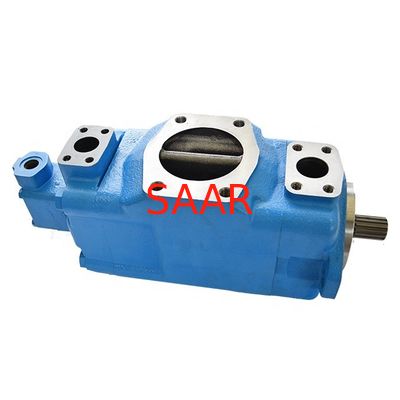

Large Image :  Vickers Mobile Triple Pumps 4525VQSV10

Product Details:
Place of Origin: USA
Brand Name: Eaton Vickers
Model Number: (F3) 4525VQSV10 F - 42 A 12 S - 1 S 297 * * * 3 A - 20 L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Paper or wooden carton
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100/Month
Detailed Product Description
Type No.: (F3) 4525VQSV10 F - 42 A 12 S - 1 S 297 * * * 3 A - 20 L
High Light:

eaton vickers piston pumps

,

eaton vickers vane pump

Vickers Mobile Triple Pumps 4525VQSV10 0Vane pumps, triple fixed displacement type
2520VQSV10
3520VQSV10
3525VQSV10
4525VQSV10
4535VQSV10
Vickers fixed displacement triple pumps offer: displacements from 61,3 to 336,8 cm3/r
(3.75 to 20.6 in3/r); continuous pressures to 210 bar (3000 psi); speeds to 2700 r/min. All
models can be provided with integral valving to limit flow to the operating system, to limit
maximum system pressure, and to divide flow between two circuits.




Vickers 4525VQSV10 Vane Pumps
(F3) 4525VQSV10 F - 42 A 12 S - 1 S 297 * * * 3 A - 20 L
(F3) VITON SEALS
4525VQSV10 PUMP SERIES DESIGNATION
45**VQ Shaft End Pump
**25VQ Center Pump
BODY MOUNTING FLANGE
S - SAE Mounting Per J-744 101-2
PUMP SERIES DESIGNATION
V10 - Cover End Pump
F- V10 PUMP COVER OPTIONS
S - Standard Cover
F - Flow & Relief Cover
P - Priority Valve & Relief Cover
42 SAE RATED CAPACITY - ( VQ-SHAFT END CARTRIDGE )
42 - 42 US Gpm 57 - 57 US Gpm
47 - 47 US Gpm 60 - 60 US Gpm
50 - 50 US Gpm
A VQ PORT CONNECTIONS - ( INLET & OUTLET #1 & #2 )
A - 4 - Bolt Flange ( Inch Thread)
AM - 4 - Bolt Flange ( Metric Thread)
12 SAE RATED CAPACITY - ( VQ CENTER CARTRIDGE )
12 - 12 US Gpm 19 - 19 US Gpm
14 - 14 US Gpm 21 - 21 US Gpm
17 - 17 US Gpm
S V10 PORT CONNECTIONS
V10 STANDARD COVERS & OUTLET #3
S - .750-16 STR. THD
P - 1/2" - NPT THD
Y - .875 - 14 STR. THD
R - 1.062 - 12 STR. THDV10F FLOW/ RELIEF CONTROL COVER
CODE OUTLET #3 TANK PORT
T - .750 -16 STR. THD .750 - 16 STR. THD
P - .750 -16 STR. THD 1/2" - NPT THD
V10P PRIORITY CONTROL COVER
CODE PRIM. PORT STR. THD SECOND. PORT STR. THD TANK PORT
STR. THD
K - .5625 -18 .750 - 16 .5625 - 18
1 SAE RATED CAPACITY - V10 COVER END CARTRIDGE
1 - 1 US Gpm 5 - 5 US Gpm
2 - 2 US Gpm 6 - 6 US Gpm
3 - 3 US Gpm 7 - 7 US Gpm
4 - 4 US Gpm
S SHAFT SEAL
BLANK - Single Seal
S - Double Seal
297 SHAFT TYPE
297 - All Series
* PORT ORIENTATION (OUTLET #1) - Viewed From Cover End Of The Pump
* PORT ORIENTATION (OUTLET #2) - Viewed From Cover End Of The Pump
* PORT ORIENTATION ( OUTLET #3 OR PRIMARY OUTLET)
- Viewed From Cover End Of The Pump
3 CONTROLLED FLOW RATE, V10F & V10P - OMIT FOR STANDARD COVER
3 - 3 US Gpm 6 - 6 US Gpm
4 - 4 US Gpm 7 - 7 US Gpm
5 - 5 US Gpm 8 - 8 US Gpm
A- RELIEF VALVE PESSURE SETTING V10F & V10P
OMIT - FOR STANDARD COVER
A - 250 Psi E - 1250 Psi J - 2250 Psi
B - 500 Psi F - 1500 Psi K - 2500 Psi
C - 750 Psi G - 1750 Psi
D - 1000 Psi H - 2000 Psi
20 DESIGN - SUBJECT TO CHANGE
L ROTATION
L - Left Hand Counter Clockwise
R - Right Hand Clockwise
