Name: Vickers 02-322233, 2520VQSV10S-21A11S5-297ACC20L-C20L Mobile Triple Pumps 2520VQSV10S
Brand: Saar HK Electronic Limited
SKU: 02-322233, 2520VQSV10S-21A11S5-297ACC20L-C20L
Price: 950.00 USD
Availability: InStock

Home Products Eaton Vickers Hydraulic Pump

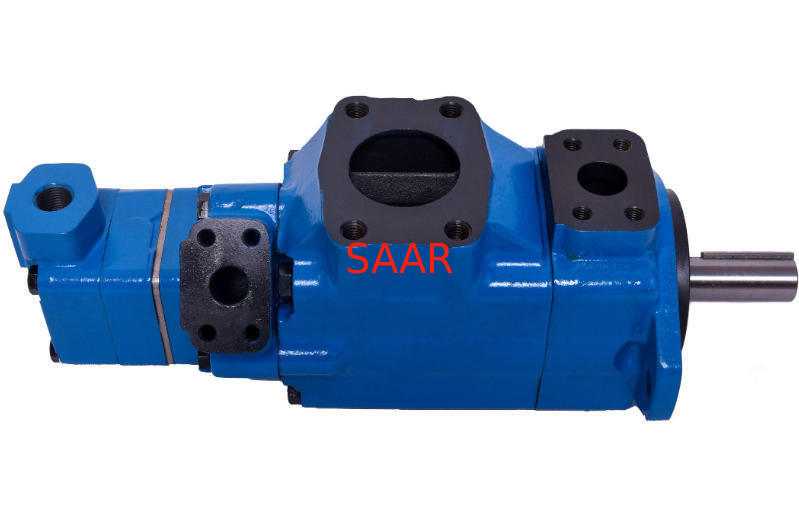

Vickers 02-322233, 2520VQSV10S-21A11S5-297ACC20L-C20L Mobile Triple Pumps 2520VQSV10S

Product Details:

Place of Origin:	USA
Brand Name:	Eaton Vickers
Model Number:	02-322233, 2520VQSV10S-21A11S5-297ACC20L-C20L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Paper or wooden carton
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100/Month

Contact Now

Detailed Product Description

Email:	Jason@hydraulicpumpvalve.com

Vickers Vane pumps, triple fixed displacement type

2520VQSV10
3520VQSV10
3525VQSV10
4525VQSV10
4535VQSV10

VQ Series High Speed, High Presure Pumps

Design Features
In all pumps, except the rear pump of triple pumps, fluid flow is developed in a cartridge which consists principally of a cam ring, rotor, ten vanes, and unique side plates and support plates. The bimetallic flexible side plates are located on each side of the rotor with their bronze face toward the rotor and their steel face toward the support plate. Two cavities in each support plate hold high pressure oil against the flexible side plate, thereby hydrostatically balancing the flexible plate and providing optimum clearance with the rotor.

Performance
For a combination of maximum horsepower in a small package, high efficiency, serviceability and economy, Vickers “high output” pumps are unequalled anywhere in industry.

Durability
Vickers high speed-high pressure pumps give more staying power – they last. Their workhorse ruggedness has been proved on the newest types of giant earth-moving equipment.

Reliability & Efficiency
Axial and radial running clearances, along with lubricating oil film on the rotor and vanes, are optimized over the entire operating pressure range. Excellent cold-start capability and superior resistance to seizure make Vickers VQ pumps highly reliable and efficient.

Vickers	02-341370	2520VQSV10P-21A12K6S-297CBC5H-BC5H20R
Vickers	02-335419	2520VQSV10S-12A11S7-297AAA20R-A20R
Vickers	02-334007	2520VQSV10S-14A14S5S-297BBB-20BB20L
Vickers	02-322306	2520VQSV10S-17A11S5-297ADA20R-A20R
Vickers	02-318872	2520VQSV10S-17A11S5-297CCB20L-B20L
Vickers	02-345408	2520VQSV10S-17C11S4-298CCC20L-C20L
Vickers	02-306371	2520VQSV10S-17C11S6-297CCC20L-C20L
Vickers	02-345148	2520VQSV10S-17C11S6-298CCC20L-C20L
Vickers	02-322233	2520VQSV10S-21A11S5-297ACC20L-C20L
Vickers	02-315001	2520VQSV10S-21A11S5-297CCB20L-B20L
Vickers	02-314873	2520VQSV10S-21A11S5-297DBB20L-B20L
Vickers	02-345395	2520VQSV10S-21A12S7-297AAA20R-A20R
Vickers	02-465601	2520VQSV10S-21A14A4S297AAA-20RAA20R
Vickers	02-334140	2520VQSV10S-21A14S5-297ADA20R-A20R
Vickers	02-345451	2520VQSV10S-21A8S6S-297BAB-20LB-20L
Vickers	02-348205	2520VQSV10S12A11S3-297DDD20L-D20L
Vickers	02-466901	2520VQSV10S-14A14S5-297BBB20L-BB20L
Vickers	02-466983	2520VQSV10S14C11S6-297BCC20L-C20L
Vickers	02-328495	2520VQSV10S17A11S1-297CCC20R-C20R
Vickers	02-348965	2520VQSV10S17A11S4-297CCB20R-B-20R
Vickers	02-466673	2520VQSV10S17A14S5S-297AAA20R-AA20R
Vickers	02-465602	2520VQSV10S17C11S5-298CCC20L-CC20L
Vickers	02-466505	2520VQSV10S17C8S7-298CCC20L-20L
Vickers	02-346298	2520VQSV10S21A11S7-297ACC20L-C20L
Vickers	02-346767	2520VQSV10S21A12S5-297BAA20R-A20R
Vickers	718AR00006A	2520VQSV10S21A14S7-297DBB20L-B20L
Vickers	875467	2520VQV10S-14A8S5-77DBB20L-L
Vickers	02-159820	2520VQV10S-17C11S4-77CCC20L-L
Vickers	584372	2520VQV10S-21A11S5-77DBB20L-0L
Vickers	574704	2520VQV10S-21A14S4-77CCC20R-20R
Vickers	818119	2520VQV10S17A11S4-77CCC20L-320-20L-320
Vickers	02-466311	2520VQV10S17C11S4-77CCC20R-0-R
Vickers	02-348946	2520VQV10S21A11S7-77DBB20L-0L
Vickers	02-346776	2520VQV10S21A14S7-77CCC20R-20R
Vickers	02-315001	2520VQSV10S21A11S5-297CC-B20L
Vickers	02-322086-4	2520VQS10C9-297DD20
Vickers	02-322086-7	2520VQS10C9-297CC20L
Vickers	02-322086-X	2520VQS10C9-297DA20-LH
Vickers	02-322233	2520VQSV10S21A11S5-297AC-C20L
Vickers	02-322233-R1	2520VQSV10S21A11S5-297AC-C20
Vickers	02-322306	2520VQSV10S17A11S5-297AD-A20R
Vickers	02-328495	2520VQSV10S17A11S1-297CCC20R
Vickers	02-334140	2520VQSV10S21A14S5-297AD-A20R
Vickers	02-335419	2520VQSV10S12A11S7-297AA-A20R
Vickers	02-341370	2520VQSV10P21A12K6S-297C-BC5H20R
Vickers	02-465619-P	2520VQS10C5-297CB20-RH
Vickers	02-466232-P	2520VQS10C8-297CB20R
Vickers	02-466901	2520VQSV10S-14A14S5-297B-BB20L
Vickers	718AR00006A	2520VQSV10S21A14S7-297DBB20L
Vickers	718AR00017A	2520VQHV10S21A11S5-197-DCC30L-359
Vickers	718AR00018A	2520VQHV10S21A11S5-197-BBC30L-359
Vickers	718AR00019A	2520VQHV10S21A11S5-197-ACD30L-359
Vickers	718AR00020A	2520VQHV10S21A11S5-197-CCC30R-359
Vickers	718AR00074A	2520VQSV10S17C11S7-297CC-C20R
Vickers	718AR00190A	2520VQSV10S17A11S4-297CC-C20L
Vickers	718AR00366A	2520VQHV10S21A14S5-197
Vickers	718AR00367A	2520VQHV10S21A14S5-197-ACD30L-359-
Vickers	718AR00368A	2520VQSV10S21A11S5-297CB-B20L
Vickers	718AR00376A	2520VQHV10S21A14S7-197-CCC30L-373
Vickers	718AR00377A	2520VQHV10S21A14S7-197-CCC30-373
Vickers	718AR00385A	2520VQS10C3-297DA20LH
