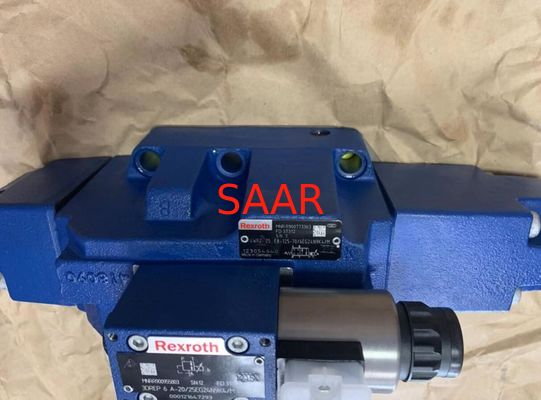

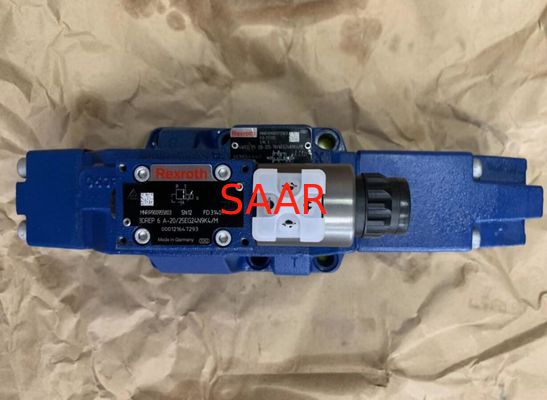

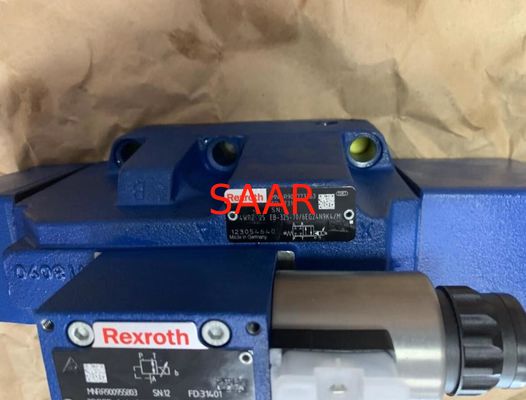

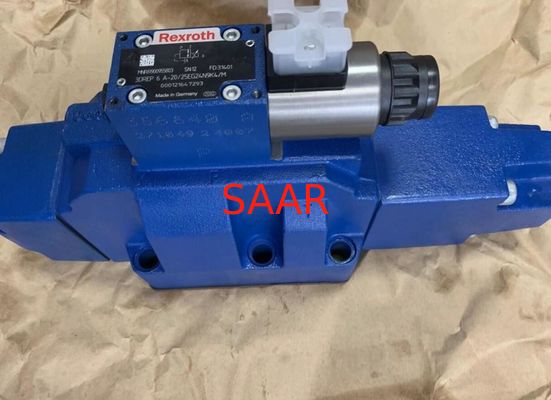

Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves

Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves

  • Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves
  • Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves
  • Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves
  • Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves
Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: Rexroth 4WRZ25E1/4WRZ25E/4WRZ25EA/4WRZ25EB/4WRZ25W150/4WRZ25W6/4WRZ25W8/4WRZ25W9 Proportional Directional Valves
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
High Light:

rexroth proportional valve

,

hydraulic solenoid valve

Pilot Operated Rexroth Hydraulic Valves , 4WRZ25 Proportional Directional Valves 0

Rexroth 4WRZ Series Proportional directional valves, pilot operated, without electrical position feedback, without integrated electronics (OBE)

Size 10, 16, 25, 32, 52
Component series 7X
Maximum operating pressure 350 bar
Maximum flow 2800 l/min



Features
Pilot-operated, 2-stage proportional directional valves with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Optional auxiliary operating device
Spring-centered control spool

For applications outside these parameters, please consult us!

Technical data

General

Type 4WRZ
Size 10 16 25 32 52
Installation position   any, preferably horizontal
Ambient temperature range °C -20 … +70
Storage temperature range °C -20 … +80
Weight For subplate mounting kg 7.8 11.9 18.2 42.2 79.5
for flange connection kg   77.5
with "D3" kg 8.3 12.4 18.7 42.7 80
Sine test according to DIN EN 60068-2-6   10 cycles, 10…2000.. 10 Hz with logarithmic frequency changing speed of 1 octave/min, 5 to 57 Hz, amplitude 1.5 mm (p-p), 57 to 2000 Hz, amplitude 10g, 3 axes
Noise test according to DIN EN 60068-2-64   20…2000 Hz, amplitude 0.05g2/Hz (10gRMS) 3 axes, testing time 30 min per axis
Shock test according to DIN EN 60068-2-27   Half-sine 15g / 11 ms, 3 times in positive and 3 times in negative direction per axis, 3 axes
Damp heat according to DIN EN 60068-2-30   Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours

Hydraulic

Size 10 16 25 32 52
Maximum operating pressure   bar 315 350
Operating pressure range External pilot oil supply bar 30 … 100 20 … 100
Pilot control valve without "D3", internal pilot oil return bar 30 … 100
Internal pilot oil supply bar 100 … 315 100 … 350
Maximum return flow pressure Port T and R, external pilot oil return bar 315 250 150 250
Port T, internal pilot oil return bar 30
Port Y bar 30
Maximum flow   l/min 170 460 870 1600 2800
Nominal flow   l/min 25
50
85
100
125
150
180
220
325
360
520
1000
Pilot flow input signal 0 → 100% Port X and Y l/min 3.5 5.5 7 15.9 7
Pilot volume switching process 0 → 100% cm³ 1.7 4.6 10 26.5 54.3
Hydraulic fluid temperature range   °C -20 … +80
preferably °C -40 … +50
Viscosity range   mm²/s 20 … 380
preferably mm²/s 30 … 46
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) Pilot control valve   Class 18/16/13 according to ISO 4406 (c)
Main valve   Class 20/18/15 according to ISO 4406 (c)
Hysteresis   % ≤ 6
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Electrical

Size 10 16 25 32 52
Voltage type   Direct voltage
Command value overlap   % 15
Maximum solenoid current   A 1.5
Solenoid coil resistance Cold value at 20 °C Ω 4.8
Maximum hot value Ω 7.2
Actuated time   % 100
Maximum coil temperature 1)   °C + 150
Protection class according to DIN EN 60529   IP65 (with mating connector mounted and locked)
Power supply   V 24
Supply voltage range   V 19.4 … 35
1) Due to the surface temperatures occurring at the solenoid coils, the European standards ISO 13732-1 and EN 982 need to be adhered to.
Hydraulic fluid Classification Suitable sealing materials Standards
Mineral oils and related hydrocarbons HL, HLP NBR / FKM DIN 51524
Flame-resistant - containing water HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) NBR ISO 12922

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids please contact us.

There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.

Flame-resistant - containing water:
Maximum pressure differential per control edge 175 bar
Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation
Life cycle as compared to operation with mineral oil HL, HLP 50 % to 100 %


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRZ25E1/4WRZ25E/4WRZ25EA/4WRZ25EB/4WRZ25W150/4WRZ25W6/4WRZ25W8/4WRZ25W9 Proportional Directional Valves​ on Sale, Short lead time, Best price!!!

R900776398 4WRZ25E1-220-7X/6EG24N9EK4/D3M
R901005163 4WRZ25E1-220-7X/6EG24N9EK4/D3V
R978916191 4WRZ25E1-220-7X/6EG24N9EK4/D3V
R901295416 4WRZ25E1-220-7X/6EG24N9EK4/M
R900975486 4WRZ25E1-220-7X/6EG24N9ETK4/D3M
R901060744 4WRZ25E1-220-7X/6EG24N9ETK4/D3V
R901212661 4WRZ25E1-220-7X/6EG24N9ETK4/M
R900246464 4WRZ25E1-220-7X/6EG24N9K4/D3M
R900964717 4WRZ25E1-220-7X/6EG24N9K4/D3V
R900244673 4WRZ25E1-220-7X/6EG24N9K4/M
R900957218 4WRZ25E1-220-7X/6EG24N9K4/V
R901067284 4WRZ25E1-220-7X/6EG24N9TK4/D3M
R901228398 4WRZ25E1-220-7X/6EG24N9TK4/D3M-674
R900969316 4WRZ25E1-220-7X/6EG24N9TK4/D3V
R900977678 4WRZ25E1-220-7X/6EG24N9TK4/M
R900960943 4WRZ25E1-325-7X//M
R900973574 4WRZ25E1-325-7X/6EG24N9EK4/D3M
R901294374 4WRZ25E1-325-7X/6EG24N9EK4/D3M-674
R900956738 4WRZ25E1-325-7X/6EG24N9EK4/D3V
R900967416 4WRZ25E1-325-7X/6EG24N9EK4/M
R901174913 4WRZ25E1-325-7X/6EG24N9EK4/V
R900974294 4WRZ25E1-325-7X/6EG24N9ETK4/D3M
R900963586 4WRZ25E1-325-7X/6EG24N9ETK4/D3V
R900968023 4WRZ25E1-325-7X/6EG24N9ETK4/M
R900943491 4WRZ25E1-325-7X/6EG24N9ETK4/V
R900249748 4WRZ25E1-325-7X/6EG24N9K4/D3M
R900964715 4WRZ25E1-325-7X/6EG24N9K4/D3V
R900977926 4WRZ25E1-325-7X/6EG24N9K4/M
R901350563 4WRZ25E1-325-7X/6EG24N9K4/M-674
R900962403 4WRZ25E1-325-7X/6EG24N9K4/V
R900740261 4WRZ25E1-325-7X/6EG24N9TK4/D3M
R900969318 4WRZ25E1-325-7X/6EG24N9TK4/D3V
R901055916 4WRZ25E1-325-7X/6EG24N9TK4/M
R901114018 4WRZ25E1-325-7X/6EG24NJETK31/D3M
R901396379 4WRZ25E1-325-7X/6EG24NJTK31/D3M
R900961662 4WRZ25E1-325-7X/E/M
R900716046 4WRZ25E220-7X//M
R901418762 4WRZ25E220-7X/6EG24EK4/M
R901035659 4WRZ25E220-7X/6EG24ETK4/D3M
R900959247 4WRZ25E220-7X/6EG24N9EK4/D3M
R901308567 4WRZ25E220-7X/6EG24N9EK4/D3M-674
R900949223 4WRZ25E220-7X/6EG24N9EK4/D3V
R900742288 4WRZ25E220-7X/6EG24N9EK4/M
R978918767 4WRZ25E220-7X/6EG24N9EK4/V
R900968779 4WRZ25E220-7X/6EG24N9ETK4/D3M
R900948085 4WRZ25E220-7X/6EG24N9ETK4/D3V
R900751423 4WRZ25E220-7X/6EG24N9ETK4/M
R900954640 4WRZ25E220-7X/6EG24N9ETK4/V
R900786994 4WRZ25E220-7X/6EG24N9K4/D3M
R900971595 4WRZ25E220-7X/6EG24N9K4/D3V
R900964784 4WRZ25E220-7X/6EG24N9K4/M
R900973420 4WRZ25E220-7X/6EG24N9K4/V
R901279369 4WRZ25E220-7X/6EG24N9K4/V-674
R900732452 4WRZ25E220-7X/6EG24N9TK4/D3M
R900966472 4WRZ25E220-7X/6EG24N9TK4/M
R901070672 4WRZ25E220-7X/6EG24N9TK4/V
R978007574 4WRZ25E220-7X/6EG24N9TK4/V
R901136543 4WRZ25E220-7X/6EG24XEJE/D3V
R978001042 4WRZ25E220-7X/ET/M
R900719603 4WRZ25E2-325-7X/6EG24K4/D3M
R901348811 4WRZ25E2-325-7X/6EG24N9EK4/D3M
R901444579 4WRZ25E2-325-7X/6EG24N9K4/D3M-674
R900753831 4WRZ25E2-325-7X/6EG24N9K4/D3M-727=PL
R901008975 4WRZ25E2-325-7X/6EG24NK4/D3M-727=PL
R901049036 4WRZ25E2-325-7X/6EG24NK4/D3M-728=PL
R900729159 4WRZ25E3-220-7X/6EG24N9EK4/D3V
R901437707 4WRZ25E3-220-7X/6EG24N9ETK4/M
R901056767 4WRZ25E3-220-7X/6EG24N9K4/M
R900962462 4WRZ25E325-7X//M
R901266853 4WRZ25E325-7X/6EG24EK4/D3M
R900732622 4WRZ25E325-7X/6EG24ETK4/D3M
R900711716 4WRZ25E325-7X/6EG24ETK4/M
R901309512 4WRZ25E325-7X/6EG24K4/M
R901432518 4WRZ25E325-7X/6EG24N6ETK4/D3V
R900970810 4WRZ25E325-7X/6EG24N9EK4/D3M
R900948083 4WRZ25E325-7X/6EG24N9EK4/D3V
R900618223 4WRZ25E325-7X/6EG24N9EK4/M
R900955196 4WRZ25E325-7X/6EG24N9EK4/V
R900979510 4WRZ25E325-7X/6EG24N9ETK4/D3M
R901283089 4WRZ25E325-7X/6EG24N9ETK4/D3M-674
R900948084 4WRZ25E325-7X/6EG24N9ETK4/D3V
R900617075 4WRZ25E325-7X/6EG24N9ETK4/M
R900945338 4WRZ25E325-7X/6EG24N9ETK4/V
R900712186 4WRZ25E325-7X/6EG24N9K4/D3M
R900959579 4WRZ25E325-7X/6EG24N9K4/D3V
R900976145 4WRZ25E325-7X/6EG24N9K4/M
R900945775 4WRZ25E325-7X/6EG24N9K4/V
R900709344 4WRZ25E325-7X/6EG24N9TK4/D3M
R900753903 4WRZ25E325-7X/6EG24N9TK4/D3M=PL
R901237616 4WRZ25E325-7X/6EG24N9TK4/D3M-674
R978020649 4WRZ25E325-7X/6EG24N9TK4/D3VSO43A-1622
R900619076 4WRZ25E325-7X/6EG24N9TK4/M
R900962245 4WRZ25E325-7X/6EG24N9TK4/V
R901125226 4WRZ25E325-7X/6EG24NJETK31/M
R901149647 4WRZ25E325-7X/6EG24NJK31/D3M
R901008964 4WRZ25E325-7X/6EG24NK4/D3M-20=PL
R900740130 4WRZ25E325-7X/6EG24TK4/M
R901192727 4WRZ25E325-7X/6EG24XEJ/D3V
R901208305 4WRZ25E325-7X/6EG24XEJET/D3V
R900976274 4WRZ25E3-325-7X//M
R901026450 4WRZ25E3-325-7X/6EG24N9EK4/D3M
R978918821 4WRZ25E3-325-7X/6EG24N9EK4/D3M
R901228881 4WRZ25E3-325-7X/6EG24N9EK4/D3M-674
R900785802 4WRZ25E3-325-7X/6EG24N9EK4/M
R978013086 4WRZ25E3-325-7X/6EG24N9EK4/V
R901017910 4WRZ25E3-325-7X/6EG24N9ETK4/D3M
R901045157 4WRZ25E3-325-7X/6EG24N9ETK4/D3V
R978916794 4WRZ25E3-325-7X/6EG24N9ETK4/D3V
R901086140 4WRZ25E3-325-7X/6EG24N9ETK4/M
R900778053 4WRZ25E3-325-7X/6EG24N9ETK4/V
R900729632 4WRZ25E3-325-7X/6EG24N9K4/D3V
R900247748 4WRZ25E3-325-7X/6EG24N9K4/M
R901107378 4WRZ25E3-325-7X/6EG24N9TK4/M
R901444292 4WRZ25E3-325-7X/6EG24XEJE/D3V
R901410771 4WRZ25E5-325-7X/6EG24ETK4/D3V
R900501480 4WRZ25EA220-5X/6A24NZ4/M
R901177945 4WRZ25EA220-7X/6EG24N9EK4/M
R901101425 4WRZ25EA220-7X/6EG24N9ETK4/D3M
R987051257 4WRZ25EA220-7X/6EG24N9K4/D3M
R900971231 4WRZ25EA220-7X/6EG24N9K4/M
R900960537 4WRZ25EA220-7X/6EG24N9K4/V
R901068534 4WRZ25EA220-7X/6EG24N9TK4/D3M
R900738671 4WRZ25EA325-7X/6EG24N9EK4/D3M
R901412994 4WRZ25EA325-7X/6EG24N9EK4/D3WG152M-68
R901001626 4WRZ25EA325-7X/6EG24N9EK4/M
R901117253 4WRZ25EA325-7X/6EG24N9EK4/V
R901199870 4WRZ25EA325-7X/6EG24N9ETK4/D3M
R901206919 4WRZ25EA325-7X/6EG24N9K4/D3M
R901121947 4WRZ25EA325-7X/6EG24N9K4/D3V
R900975580 4WRZ25EA325-7X/6EG24N9K4/M
R901033313 4WRZ25EA325-7X/6EG24N9TK4/D3M
R901089200 4WRZ25EA325-7X/6EG24N9TK4/M
R901058812 4WRZ25EA325-7X/6EG24NJK31/M
R900970992 4WRZ25EB220-7X/6EG24K4/M
R901016937 4WRZ25EB220-7X/6EG24N9K4/M
R900967415 4WRZ25EB220-7X/6EG24N9K4/V
R900768913 4WRZ25EB220-7X/6EG24N9TK4/M
R901124934 4WRZ25EB325-7X/6EG24K4/M
R901099388 4WRZ25EB325-7X/6EG24N9EK4/M
R900958722 4WRZ25EB325-7X/6EG24N9ETK4/V
R900702202 4WRZ25EB325-7X/6EG24N9K4/D3M
R900969319 4WRZ25EB325-7X/6EG24N9K4/D3V
R900773363 4WRZ25EB325-7X/6EG24N9K4/M
R900952976 4WRZ25EB325-7X/6EG24N9K4/V
R900742087 4WRZ25EB325-7X/6EG24N9TK4/D3M
R900720551 4WRZ25R1-325-7X/6EG24N9EK4/D3M
R900939506 4WRZ25R1-325-7X/6EG24N9K4/D3V
R901063843 4WRZ25R3-220-7X/6EG24N9K4/V
R900968815 4WRZ25R325-7X/6EG24N9EK4/D3V
R900963588 4WRZ25R325-7X/6EG24N9K4/D3V
R900249420 4WRZ25R325-7X/6EG24N9K4/D3WG152V-68
R901173865 4WRZ25R3-325-7X/6EG24N9ETK4/D3M
R900976305 4WRZ25R3-325-7X/6EG24N9K4/V
R901002881 4WRZ25R5-325-7X/6EG24TK4/D3M
R901136484 4WRZ25W1-000-7X/6EG24N9JETK10/D3M-908
R978910650 4WRZ25W1-220-7X/6EG24N9ETK4/D3V
R901300586 4WRZ25W1-325-7X/6EG24N9EK4/M
R901152100 4WRZ25W325-7X/6EG24N9EK4/D3V
R900762267 4WRZ25W325-7X/6EG24N9ETK4/D3M
R901133825 4WRZ25W325-7X/6EG24N9ETK4/M
R901138888 4WRZ25W325-7X/6EG24N9K4/M
R901066060 4WRZ25W325-7X/ET/M
R900539583 4WRZ25W3-325-5X/6A24NEZ4/D3MR
R900515865 4WRZ25W3-325-5X/6A24NZ4/M
R900976275 4WRZ25W3-325-7X//M
R900755686 4WRZ25W3-325-7X/6EG24K4/D3M
R900616960 4WRZ25W3-325-7X/6EG24N9EK4/D3M
R901101804 4WRZ25W3-325-7X/6EG24N9K4/M
R900708710 4WRZ25W4-325-7X/6EG24N9TK4/D3M
R900573045 4WRZ25W5-220-5X/6A24N9ETZ4/M
R900518219 4WRZ25W5-325-5X/6A24NETZ4/D3M
R900505063 4WRZ25W5-325-5X/6A24NZ4/D3M
R901100206 4WRZ25W5-325-7X/6EG24N9ETK4/D3M
R901210485 4WRZ25W5-325-7X/6EG24N9ETK4/D3V
R978031003 4WRZ25W5-325-7X/6EG24N9ETK4/V
R901170300 4WRZ25W5-325-7X/6EG24N9K4/D3M
R900966130 4WRZ25W6-220-7X//M
R901183469 4WRZ25W6-220-7X/6E24K4/M
R900738167 4WRZ25W6-220-7X/6EG24EK4/D3M
R901363326 4WRZ25W6-220-7X/6EG24ETK4/D3M
R978908323 4WRZ25W6-220-7X/6EG24ETK4/V
R901049257 4WRZ25W6-220-7X/6EG24K4/D3M
R901302990 4WRZ25W6-220-7X/6EG24N5K4/D3M
R900248412 4WRZ25W6-220-7X/6EG24N9EK4/D3M
R901283328 4WRZ25W6-220-7X/6EG24N9EK4/D3M-674
R900952914 4WRZ25W6-220-7X/6EG24N9EK4/D3V
R900975571 4WRZ25W6-220-7X/6EG24N9EK4/M
R901438979 4WRZ25W6-220-7X/6EG24N9EK4/M-674
R900950174 4WRZ25W6-220-7X/6EG24N9EK4/V
R900978732 4WRZ25W6-220-7X/6EG24N9ETK4/D3M
R900947183 4WRZ25W6-220-7X/6EG24N9ETK4/D3V
R900730272 4WRZ25W6-220-7X/6EG24N9ETK4/M
R900948667 4WRZ25W6-220-7X/6EG24N9ETK4/V
R900977903 4WRZ25W6-220-7X/6EG24N9K4/D3M
R900957450 4WRZ25W6-220-7X/6EG24N9K4/D3V
R900975103 4WRZ25W6-220-7X/6EG24N9K4/M
R900947116 4WRZ25W6-220-7X/6EG24N9K4/V
R900949823 4WRZ25W6-220-7X/6EG24N9K4/V-589
R901402643 4WRZ25W6-220-7X/6EG24N9K4/V-674
R900726580 4WRZ25W6-220-7X/6EG24N9TK4/D3M
R900966671 4WRZ25W6-220-7X/6EG24N9TK4/D3V
R901094372 4WRZ25W6-220-7X/6EG24N9TK4/M
R900758995 4WRZ25W6-220-7X/6EG24NJETK31/D3M
R901018943 4WRZ25W6-220-7X/6EG24NJETK31/D3V
R901275195 4WRZ25W6-220-7X/ET/M
R987098643 4WRZ25W6-220-7X/ET/V
R900738166 4WRZ25W6-325-7X/6EG24EK4/D3M
R900956681 4WRZ25W6-325-7X/6EG24EK4/D3V
R900753816 4WRZ25W6-325-7X/6EG24ETK4/M
R900706794 4WRZ25W6-325-7X/6EG24K4/D3M
R900248411 4WRZ25W6-325-7X/6EG24N9EK4/D3M
R901257287 4WRZ25W6-325-7X/6EG24N9EK4/D3M-674
R900947184 4WRZ25W6-325-7X/6EG24N9EK4/D3V
R900977993 4WRZ25W6-325-7X/6EG24N9EK4/M
R900946218 4WRZ25W6-325-7X/6EG24N9EK4/V
R900244765 4WRZ25W6-325-7X/6EG24N9ETK4/D3M
R901417577 4WRZ25W6-325-7X/6EG24N9ETK4/D3M-674
R900949376 4WRZ25W6-325-7X/6EG24N9ETK4/D3V
R987011846 4WRZ25W6-325-7X/6EG24N9ETK4/M
R900618409 4WRZ25W6-325-7X/6EG24N9ETK4/M
R901335444 4WRZ25W6-325-7X/6EG24N9ETK4/M-674
R900764101 4WRZ25W6-325-7X/6EG24N9ETK4/V
R901278196 4WRZ25W6-325-7X/6EG24N9ETK4/V-674
R900958570 4WRZ25W6-325-7X/6EG24N9K4/D3M
R901263257 4WRZ25W6-325-7X/6EG24N9K4/D3M-674
R900957451 4WRZ25W6-325-7X/6EG24N9K4/D3V
R900771950 4WRZ25W6-325-7X/6EG24N9K4/D3V
R900973562 4WRZ25W6-325-7X/6EG24N9K4/M
R900944187 4WRZ25W6-325-7X/6EG24N9K4/V
R900949609 4WRZ25W6-325-7X/6EG24N9K4/V-589
R978914401 4WRZ25W6-325-7X/6EG24N9K4/VSO43A-1648
R900775783 4WRZ25W6-325-7X/6EG24N9TK4/D3M
R900959662 4WRZ25W6-325-7X/6EG24N9TK4/M
R900953921 4WRZ25W6-325-7X/6EG24N9TK4/V
R901362137 4WRZ25W6-325-7X/6EG24NJEK31/D3V
R900959201 4WRZ25W6-325-7X/6EG24NJETK31/D3M
R900966151 4WRZ25W6-325-7X/6EG24NJETK31/D3V
R901235735 4WRZ25W6-325-7X/6EG24XEJ/D3V
R901154715 4WRZ25W6-325-7X/6EG24XEJE/D3V
R901214437 4WRZ25W6-325-7X/6EG24XEJET/D3V
R901036548 4WRZ25W6-325-7X/6EG24XEJT/D3V
R901176733 4WRZ25W6A220-7X/6EG24N9ETK4/M
R901025256 4WRZ25W6A325-7X/6EG24N9ETK4/D3M
R901033526 4WRZ25W6A325-7X/6EG24N9ETK4/M
R901058715 4WRZ25W6A325-7X/6EG24N9TK4/D3M
R901334449 4WRZ25W6A325-7X/6EG24NJK31/M
R901421826 4WRZ25W6A-325-7X/6EG24XEJE/D3V
R900725325 4WRZ25W8-220-7X/6EG24EK4/M
R900976329 4WRZ25W8-220-7X/6EG24K4/D3M
R900968534 4WRZ25W8-220-7X/6EG24N9EK4/D3M
R901278969 4WRZ25W8-220-7X/6EG24N9EK4/D3M-674
R900948536 4WRZ25W8-220-7X/6EG24N9EK4/D3V
R900972499 4WRZ25W8-220-7X/6EG24N9EK4/M
R900943859 4WRZ25W8-220-7X/6EG24N9EK4/V
R900975898 4WRZ25W8-220-7X/6EG24N9ETK4/D3M
R900954450 4WRZ25W8-220-7X/6EG24N9ETK4/D3V
R900978356 4WRZ25W8-220-7X/6EG24N9ETK4/M
R900951294 4WRZ25W8-220-7X/6EG24N9ETK4/V
R900978826 4WRZ25W8-220-7X/6EG24N9K4/D3M
R900951702 4WRZ25W8-220-7X/6EG24N9K4/D3V
R900945620 4WRZ25W8-220-7X/6EG24N9K4/D3V-589
R901303575 4WRZ25W8-220-7X/6EG24N9K4/D3V-674
R900969607 4WRZ25W8-220-7X/6EG24N9K4/M
R900958169 4WRZ25W8-220-7X/6EG24N9K4/V
R901309972 4WRZ25W8-220-7X/6EG24N9K4/V-674
R900772289 4WRZ25W8-220-7X/6EG24N9TK4/D3M
R901239775 4WRZ25W8-220-7X/6EG24N9TK4/D3V
R901067922 4WRZ25W8-220-7X/6EG24N9TK4/M
R901396638 4WRZ25W8-220-7X/6EG24NJTK31/D3M
R901387355 4WRZ25W8-220-7X/6EG24NJTK31/D3V
R901015955 4WRZ25W8-325-7X/6EG24ETK4/D3M
R901299792 4WRZ25W8-325-7X/6EG24ETK4/D3M-674
R901038864 4WRZ25W8-325-7X/6EG24JETK31/V
R900976328 4WRZ25W8-325-7X/6EG24K4/D3M
R901329901 4WRZ25W8-325-7X/6EG24K4/D3M-674
R900244923 4WRZ25W8-325-7X/6EG24K4/M
R900975899 4WRZ25W8-325-7X/6EG24N9EK4/D3M
R900947003 4WRZ25W8-325-7X/6EG24N9EK4/D3V
R900975643 4WRZ25W8-325-7X/6EG24N9EK4/M
R900943858 4WRZ25W8-325-7X/6EG24N9EK4/V
R900704477 4WRZ25W8-325-7X/6EG24N9ETK4/D3M
R901268903 4WRZ25W8-325-7X/6EG24N9ETK4/D3M-674
R900945912 4WRZ25W8-325-7X/6EG24N9ETK4/D3V
R900719985 4WRZ25W8-325-7X/6EG24N9ETK4/M
R900948281 4WRZ25W8-325-7X/6EG24N9ETK4/V
R900704606 4WRZ25W8-325-7X/6EG24N9K4/D3M
R900950967 4WRZ25W8-325-7X/6EG24N9K4/D3V
R900945619 4WRZ25W8-325-7X/6EG24N9K4/D3V-589
R900713034 4WRZ25W8-325-7X/6EG24N9K4/M
R901252244 4WRZ25W8-325-7X/6EG24N9K4/M-674
R900951703 4WRZ25W8-325-7X/6EG24N9K4/V
R901279370 4WRZ25W8-325-7X/6EG24N9K4/V-674
R900729870 4WRZ25W8-325-7X/6EG24N9TK4/D3M
R901124726 4WRZ25W8-325-7X/6EG24N9TK4/D3V
R900723646 4WRZ25W8-325-7X/6EG24N9TK4/M
R901130789 4WRZ25W8-325-7X/6EG24N9TK4/V
R901362141 4WRZ25W8-325-7X/6EG24NJEK31/D3V
R900712123 4WRZ25W8-325-7X/6EG24NJETK31/D3V
R901077282 4WRZ25W8-325-7X/6EG24TK4/M
R901295338 4WRZ25W9-220-7X/6EG24N9EK4/M
R901335483 4WRZ25W9-220-7X/6EG24N9ETK4/D3M
R901050902 4WRZ25W9-220-7X/6EG24N9ETK4/M
R900754779 4WRZ25W9-220-7X/6EG24N9K4/D3M
R900722083 4WRZ25W9-220-7X/6EG24N9K4/D3V
R901171690 4WRZ25W9-220-7X/6EG24N9K4/M
R900970661 4WRZ25W9-220-7X/6EG24N9K4/V
R901440600 4WRZ25W9-220-7X/6EG24N9TK4/M
R901182589 4WRZ25W9-325-7X//M
R900746671 4WRZ25W9-325-7X/6EG24K4/D3M
R900617749 4WRZ25W9-325-7X/6EG24N9EK4/D3M
R901263894 4WRZ25W9-325-7X/6EG24N9EK4/D3M-674
R901149511 4WRZ25W9-325-7X/6EG24N9EK4/M
R900975730 4WRZ25W9-325-7X/6EG24N9EK4/V
R978917790 4WRZ25W9-325-7X/6EG24N9ETK4/D3M
R901045065 4WRZ25W9-325-7X/6EG24N9ETK4/D3M
R900963896 4WRZ25W9-325-7X/6EG24N9ETK4/M
R900768316 4WRZ25W9-325-7X/6EG24N9K4/D3M
R901370949 4WRZ25W9-325-7X/6EG24N9K4/D3M-674
R901015324 4WRZ25W9-325-7X/6EG24N9K4/M
R901206766 4WRZ25W9-325-7X/6EG24N9TK4/M

Contact Details
Saar HK Electronic Limited

Contact Person: jason

Tel: +8613918187448

Send your inquiry directly to us (0 / 3000)

Other Products
