| RM 1902, EASEY BLDG., 253-261 HENNESSY ROAD, WANCHAI, HONGKONG | jason@hydraulicpumpvalve.com |
 |
| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | 4WRTE25E350L-43/6EG24K31/A1M 4WRTE25V350L-46/6EG24K31A5M |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| Material No.: | R901027356 | Type No.: | 4WRTE25E220L-4X/G24K31/F1M |
|---|---|---|---|
| High Light: | hydraulic pressure relief valve,hydraulic solenoid valve |
||

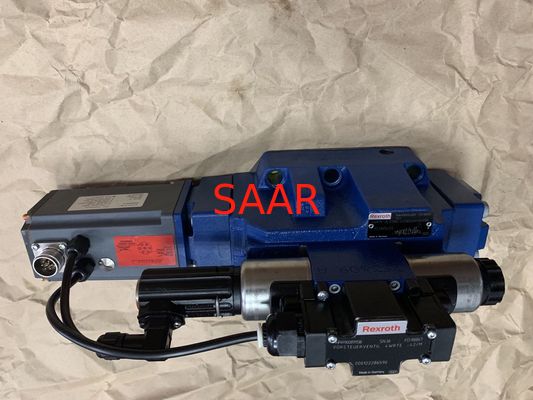

Rexroth High-response directional valves, pilot operated, with electrical position feedbackand integrated electronics (OBE) 4WRTE
Size 10 … 35
Component series 4X
Maximum operating pressure 350 bar
Maximum flow 3000 l/min
Nominal flow 25 … 1000 l/min
Features
Reliable - proven and robust design
Safe
- Automatic pressure compensation in the control chambers of the main stage bythe pilot controlvalve
- Control spool of the main stage in the springcentered centralposition and/or in the offset position
- Optionally with spool position monitoring
Flexible - suitable for position, velocity and pressure control
Precise - high response sensitivity and little hysteresis
| 01 | 4 main ports | 4 |
| 02 | High-response directional valve, pilot operated | WRT |
| 03 | With integrated electronics (OBE) | E |
| 04 | Without spool position monitoring | no code |
| With spool position monitoring (NG16 … NG35 only) | M | |
| 05 | Size 10 | 10 |
| Size 16 | 16 | |
| Size 25 | 25 | |
| Size 27 | 27 | |
| Size 32 | 32 | |
| Size 35 | 35 | |
| 06 | Symbols; for the possible version, see "Symbols/Circuit diagrams" | |
| Rated flow (Δp = 5 bar/control edge) | ||
| 07 | Size 10 | |
| 25l/min 1) | 25 | |
| 50l/min 2) | 50 | |
| 90 l/min | 100 | |
| Size 16 | ||
| 150l/min 3) | 150 | |
| 220l/min | 220 | |
| Size 25 | ||
| 220l/min | 220 | |
| 350 l/min | 350 | |
| Size 27 | ||
| 500 l/min | 500 | |
| Size 32 | ||
| 400 l/min | 400 | |
| 600 l/min | 600 | |
| Size 35 | ||
| 1000 l/min | 1000 | |
| Flow characteristic | ||
| 08 | Linear | L |
| Linear with fine control range | P | |
| 09 | Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) | 4X |
| Pilot control valve | ||
| 10 | Proportional solenoid with detachable coil (NG6) | 6E |
| Power supply | ||
| 11 | Direct voltage 24 V | G24 |
| Pilot oil flow | ||
| 12 | External pilot oil supply, external pilot oil return | no code |
| Internal pilot oil supply, external pilot oil return | E | |
| Pilot oil supply internal, pilot oil return internal | ET | |
| External pilot oil supply, internal pilot oil return | T | |
| Electrical connection | ||
| 13 | Without mating connector, connector according to DIN EN 175201-804 | K31 4) |
| Electrical interface | ||
| 14 | Command value/actual value ±10 V | A1 |
| Command value/actual value 4 … 20 mA | F1 | |
| Command value/actual value ±10 V, enable signal (pin C) | A5 5) | |
| Seal material | ||
| 15 | NBR seals | M |
| FKM seals | V | |
| 16 | Without electronics protection membrane | no code |
| With electronics protection membrane | -967 | |
| 17 | Further details in the plain text | * |
| R900711074 | 4WRTE25E1-220L-4X/6EG24EK31/A1M |
| R900763182 | 4WRTE25E1-220L-4X/6EG24EK31/A5M |
| R901098188 | 4WRTE25E1-220L-4X/6EG24EK31/F1M |
| R900730750 | 4WRTE25E1-220L-4X/6EG24ETK31/A5M |
| R901287218 | 4WRTE25E1-220L-4X/6EG24ETK31/F1M |
| R900246212 | 4WRTE25E1-220L-4X/6EG24K31/A1M |
| R901281728 | 4WRTE25E1-220L-4X/6EG24K31/A1WB15M |
| R900758575 | 4WRTE25E1-220L-4X/6EG24K31/A5M |
| R900979855 | 4WRTE25E1-220L-4X/6EG24K31/F1M |
| R900747513 | 4WRTE25E1-220P-4X/6EG24EK31/A1M |
| R900755719 | 4WRTE25E1-220S-4X/6EG24K31/A5WB08M |
| R900246200 | 4WRTE25E1-350L-4X/6EG24EK31/A1M |
| R900754378 | 4WRTE25E1-350L-4X/6EG24EK31/A5M |
| R900248714 | 4WRTE25E1-350L-4X/6EG24ETK31/A1M |
| R901050656 | 4WRTE25E1-350L-4X/6EG24ETK31/A5M |
| R901276449 | 4WRTE25E1-350L-4X/6EG24ETK31/A5M-280 |
| R901185519 | 4WRTE25E1-350L-4X/6EG24ETK31/A5WB15M |
| R901366874 | 4WRTE25E1-350L-4X/6EG24ETK31/F1M |
| R900954280 | 4WRTE25E1-350L-4X/6EG24K31/A1M |
| R901082243 | 4WRTE25E1-350L-4X/6EG24K31/A1WB15M |
| R900714379 | 4WRTE25E1-350L-4X/6EG24K31/A5M |
| R900978068 | 4WRTE25E1-350L-4X/6EG24K31/F1M |
| R901429088 | 4WRTE25E1-350L-4X/6EG24TK31/A5M |
| R901214477 | 4WRTE25E1-350P-4X/6EG24ETK31/A1M |
| R901022953 | 4WRTE25E1-350P-4X/6EG24ETK31/A1WB15M |
| R901022584 | 4WRTE25E1-350P-4X/6EG24ETK31/A5WB15M |
| R901259462 | 4WRTE25E1-350P-4X/6EG24ETK31/F1M |
| R901407512 | 4WRTE25E1-350P-4X/6EG24K31/A1M |
| R901031974 | 4WRTE25E1-350P-4X/6EG24K31/A1WB15M |
| R900705367 | 4WRTE25E1-350P-4X/6EG24K31/A5M |
| R901326977 | 4WRTE25E1-350P-4X/6EG24K31/F1M |
| R901322181 | 4WRTE25E1-350P-4X=6EG24K31/A5M |
| R900712762 | 4WRTE25E1-350S-4X/6EG24K31/A5M |
| R900977350 | 4WRTE25E220L-4X/6EG24EK31/A1M |
| R978031519 | 4WRTE25E220L-4X/6EG24EK31/A5V |
| R900248300 | 4WRTE25E220L-4X/6EG24EK31/F1M |
| R900957470 | 4WRTE25E220L-4X/6EG24ETK31/A1M |
| R900738494 | 4WRTE25E220L-4X/6EG24ETK31/A1V |
| R978011062 | 4WRTE25E220L-4X/6EG24ETK31/A5M |
| R901380698 | 4WRTE25E220L-4X/6EG24ETK31/F1M |
| R900954281 | 4WRTE25E220L-4X/6EG24K31/A1M |
| R901018299 | 4WRTE25E220L-4X/6EG24K31/A1M-280 |
| R978918792 | 4WRTE25E220L-4X/6EG24K31/A1V |
| R901443254 | 4WRTE25E220L-4X/6EG24K31/A1WB15M |
| R900976373 | 4WRTE25E220L-4X/6EG24K31/A5M |
| R978002287 | 4WRTE25E220L-4X/6EG24K31/A5V |
| R901377869 | 4WRTE25E220L-4X/6EG24K31/F1M |
| R900714462 | 4WRTE25E220L-4X/6EG24TK31/A1M |
| R901068882 | 4WRTE25E220L-4X/6EG24TK31/A5M |
| R901027356 | 4WRTE25E220L-4X/G24K31/F1M |
| R901365359 | 4WRTE25E220P-4X/6EG24ETK31/A1M |
| R900747238 | 4WRTE25E220P-4X/6EG24K31/A1M |
| R900747707 | 4WRTE25E220P-4X/6EG24K31/A5M |
| R901061142 | 4WRTE25E220S-4X/6EG24K31/A5WB08M |
| R900766968 | 4WRTE25E3-350L-4X/6EG24K31/A1M |
| R900246198 | 4WRTE25E3-350P-4X/6EG24TK31/A5M |
| R901006918 | 4WRTE25E350L-4X/6EG24EK31/A1M |
| R900729451 | 4WRTE25E350L-4X/6EG24EK31/A5M |
| R978035284 | 4WRTE25E350L-4X/6EG24EK31/A5M-280 |
| R901385029 | 4WRTE25E350L-4X/6EG24EK31/F1M |
| R900954282 | 4WRTE25E350L-4X/6EG24ETK31/A1M |
| R901060507 | 4WRTE25E350L-4X/6EG24ETK31/A5M |
| R901281604 | 4WRTE25E350L-4X/6EG24ETK31/A5M-280 |
| R978915811 | 4WRTE25E350L-4X/6EG24ETK31/A5V |
| R901125194 | 4WRTE25E350L-4X/6EG24ETK31/F1M |
| R900954283 | 4WRTE25E350L-4X/6EG24K31/A1M |
| R901349958 | 4WRTE25E350L-4X/6EG24K31/A1V |
| R900746001 | 4WRTE25E350L-4X/6EG24K31/A5M |
| R900978845 | 4WRTE25E350L-4X/6EG24K31/A5M=LB |
| R901318439 | 4WRTE25E350L-4X/6EG24K31/F1M |
| R978917234 | 4WRTE25E350L-4X/6EG24TK31/A1M |
| R901119127 | 4WRTE25E350L-4X/6EG24TK31/F1M |
| R901135448 | 4WRTE25E350P-4X/6EG24ETK31/A1V |
| R900772491 | 4WRTE25E350P-4X/6EG24K31/A1M |
| R900727839 | 4WRTE25E350P-4X/6EG24K31/A5M |
| R901229276 | 4WRTE25E350P-4X/6EG24K31/F1M |
| R900726651 | 4WRTE25E350P-4X/6EG24TK31/A1M |
| R900729353 | 4WRTE25E350P-4X/6EG24TK31/A1WB152M |
| R900745995 | 4WRTE25E350P-4X/6EG24TK31/A1WB15M |
| R901443449 | 4WRTE25E350P-4X/6EG24TK31/F1M |
| R901051898 | 4WRTE25E350P-4X/6EG24TK31/F1WB15M |
| R901358772 | 4WRTE25E350R-4X/6EG24K31/A5M |
| R900783094 | 4WRTE25E350R-4X/6EG24K31/A5M=LB |
| R900967042 | 4WRTE25E4-350S-4X/6EG24K31/A1M |
| R900964305 | 4WRTE25E4-350S-4X/6EG24K31/A1WB152M |
| R900759341 | 4WRTE25E5-350L-4X/6EG24ETK31/A5M |
| R900973775 | 4WRTE25E500L-4XH/6EG24EK31/A1M |
| R900978847 | 4WRTE25E500L-4XH/6EG24EK31/A5M=LB |
| R900721832 | 4WRTE25Q1-350L-4X/6EG24ETK31/A5M |
| R901207542 | 4WRTE25Q1-350L-4X/6EG24TK31/A5M |
| R900723852 | 4WRTE25Q1-350P-4X/6EG24K31/A5M |
| R900765007 | 4WRTE25Q2-220L-4X/6EG24EK31/A1M |
| R900958055 | 4WRTE25Q2-220L-4X/6EG24ETK31/A1M |
| R900957813 | 4WRTE25Q2-220P-4X/6EG24ETK31/A1M |
| R900958056 | 4WRTE25Q2-350L-4X/6EG24ETK31/A1M |
| R900757951 | 4WRTE25Q2-350L-4X/6EG24K31/A1M |
| R978919627 | 4WRTE25Q2-350L-4X/6EG24K31/A5WB162M |
| R901001295 | 4WRTE25Q2-350L-4X/6EG24K31/A5WB16M |
| R900248654 | 4WRTE25Q2-350L-4X/6EG24TK31/A1M |
| R900731126 | 4WRTE25Q2-350L-4X/6EG24TK31/A5M |
| R987110683 | 4WRTE25Q2-350P-4X/6BG24EK31/A1WB15M |
| R900957814 | 4WRTE25Q2-350P-4X/6EG24ETK31/A1M |
| R901019532 | 4WRTE25Q2-350P-4X/6EG24ETK31/A5M |
| R901165591 | 4WRTE25Q2-350P-4X/6EG24K31/A1M |
| R900732447 | 4WRTE25Q2-350P-4X/6EG24K31/A5M |
| R901131249 | 4WRTE25Q2-350P-4X/6EG24K31/A5WB162M |
| R900772465 | 4WRTE25Q2-350P-4X/6EG24TK31/A1M |
| R900707964 | 4WRTE25Q2-350P-4X/6EG24TK31/A5M |
| R901007733 | 4WRTE25Q2-500L-4XH/6EG24ETK31/A1M |
| R901027806 | 4WRTE25Q2-500P-4XH/6EG24ETK31/A1V |
| R901018757 | 4WRTE25Q2-500P-4XH/6EG24ETK31/A5M |
| R901016591 | 4WRTE25Q2-500P-4XH/6EG24K31/A1WB16M |
| R900764010 | 4WRTE25Q2-500P-4XH/6EG24TK31/A1M |
| R901164412 | 4WRTE25R1-350L-4X/6EG24K31/A1WB15M |
| R901139640 | 4WRTE25R220L-4X/6EG24K31/A1M |
| R901386799 | 4WRTE25R3-350R-4X/6EG24K31/A5M |
| R901130652 | 4WRTE25R3-350R-4X/6EG24K31/A5M=LB |
| R900733295 | 4WRTE25R350L-4X/6EG24K31/A1M |
| R900759664 | 4WRTE25R350L-4X/6EG24K31/A5M |
| R900706793 | 4WRTE25R350L-4X/6EG24TK31/A1M |
| R901046560 | 4WRTE25R350L-4X/6EG24TK31/A5M |
| R901031751 | 4WRTE25R350L-4X/6EG24TK31/F1M |
| R901123775 | 4WRTE25R350P-4X/6EG24TK31/A5M |
| R901057129 | 4WRTE25R5-350L-4X/6EG24EK31/A1M |
| R900721588 | 4WRTE25R5-350L-4X/6EG24TK31/A5M |
| R900962046 | 4WRTE25V1-220L-4X/6EG24EK31/A1M |
| R900752970 | 4WRTE25V1-220L-4X/6EG24EK31/A5M |
| R901258098 | 4WRTE25V1-220L-4X/6EG24EK31/A5M-280 |
| R901208731 | 4WRTE25V1-220L-4X/6EG24EK31/F1M |
| R900737113 | 4WRTE25V1-220L-4X/6EG24ETK31/A1M |
| R901093962 | 4WRTE25V1-220L-4X/6EG24ETK31/A5M |
| R901154452 | 4WRTE25V1-220L-4X/6EG24ETK31/F1M |
| R900954287 | 4WRTE25V1-220L-4X/6EG24K31/A1M |
| R900723644 | 4WRTE25V1-220L-4X/6EG24K31/A5M |
| R901272302 | 4WRTE25V1-220L-4X/6EG24K31/A5M-280 |
| R901012980 | 4WRTE25V1-220L-4X/6EG24K31/F1M |
| R901144221 | 4WRTE25V1-220L-4X/6EG24K31/F1V |
| R901341547 | 4WRTE25V1-220L-4X/6EG24TK31/A1M |
| R901271687 | 4WRTE25V1-220P-4X/6EG24EK31/A1M |
| R901317685 | 4WRTE25V1-220P-4X/6EG24EK31/F1M |
| R901032936 | 4WRTE25V1-220P-4X/6EG24K31/A1M |
| R900779848 | 4WRTE25V1-220P-4X/6EG24K31/A5M |
| R900762449 | 4WRTE25V1-350L-4X/6EG24EK31/A1M |
| R901364023 | 4WRTE25V1-350L-4X/6EG24EK31/A1V |
| R901143740 | 4WRTE25V1-350L-4X/6EG24EK31/A5M-280 |
| R901093689 | 4WRTE25V1-350L-4X/6EG24EK31/F1M |
| R901060137 | 4WRTE25V1-350L-4X/6EG24ETK31/A1M |
| R900787927 | 4WRTE25V1-350L-4X/6EG24ETK31/A5M |
| R901355848 | 4WRTE25V1-350L-4X/6EG24ETK31/F1M |
| R901291879 | 4WRTE25V1-350L-4X/6EG24ETK31/F1V |
| R900972022 | 4WRTE25V1-350L-4X/6EG24K31/A1M |
| R901281490 | 4WRTE25V1-350L-4X/6EG24K31/A1V |
| R900707552 | 4WRTE25V1-350L-4X/6EG24K31/A5M |
| R900758531 | 4WRTE25V1-350L-4X/6EG24K31/A5WB15M |
| R900782489 | 4WRTE25V1-350L-4X/6EG24K31/F1M |
| R900954293 | 4WRTE25V1-350L-4X/6EG24TK31/A1M |
| R901271689 | 4WRTE25V1-350P-4X/6EG24EK31/A1M |
| R901372417 | 4WRTE25V1-350P-4X/6EG24EK31/A1V |
| R901046643 | 4WRTE25V1-350P-4X/6EG24K31/A1M |
| R900950304 | 4WRTE25V1-350P-4X/6EG24K31/A1V |
| R901403913 | 4WRTE25V1-350P-4X/6EG24K31/F1V |
| R900720673 | 4WRTE25V1-350P-4X/6EG24TK31/A5M=LB |
| R900616459 | 4WRTE25V1-500L-4XH/6EG24ETK31/A1M |
| R900763426 | 4WRTE25V1-500L-4XH/6EG24K31/A1M |
| R900739617 | 4WRTE25V1-500L-4XH/6EG24K31/A1V |
| R901036529 | 4WRTE25V1-500L-4XH/6EG24K31/A5M |
| R900758685 | 4WRTE25V1-500L-4XH/6EG24TK31/A1M |
| R900713548 | 4WRTE25V220L-4X/6EG24EK31/A1M |
| R900962457 | 4WRTE25V220L-4X/6EG24EK31/A1V |
| R901202456 | 4WRTE25V220L-4X/6EG24EK31/A5M |
| R900957471 | 4WRTE25V220L-4X/6EG24ETK31/A1M |
| R901417524 | 4WRTE25V220L-4X/6EG24ETK31/F1M |
| R900954294 | 4WRTE25V220L-4X/6EG24K31/A1M |
| R900727843 | 4WRTE25V220L-4X/6EG24K31/A1V |
| R901138769 | 4WRTE25V220L-4X/6EG24K31/A1WB15M |
| R900740566 | 4WRTE25V220L-4X/6EG24K31/A5M |
| R900616887 | 4WRTE25V220L-4X/6EG24K31/F1M |
| R901168171 | 4WRTE25V220L-4X/6EG24TK31/A1M |
| R901212530 | 4WRTE25V220P-4X/6EG24EK31/A1M |
| R901184457 | 4WRTE25V220P-4X/6EG24ETK31/A1V-280 |
| R900972531 | 4WRTE25V220P-4X/6EG24K31/A1M |
| R900745916 | 4WRTE25V220P-4X/6EG24K31/A5M |
| R901392994 | 4WRTE25V220P-4X/6EG24K31/A5V |
| R901063109 | 4WRTE25V220P-4X/6EG24TK31/A1M |
| R901353348 | 4WRTE25V220P-4X/6EG24TK31/F1M |
| R900970876 | 4WRTE25V350L-4X/6EG24EK31/A1M |
| R900769739 | 4WRTE25V350L-4X/6EG24EK31/A5M |
| R978915875 | 4WRTE25V350L-4X/6EG24EK31/A5M-280 |
| R901263616 | 4WRTE25V350L-4X/6EG24EK31/F1M |
| R900954295 | 4WRTE25V350L-4X/6EG24ETK31/A1M |
| R901012714 | 4WRTE25V350L-4X/6EG24ETK31/A1M-280 |
| R900734081 | 4WRTE25V350L-4X/6EG24ETK31/A5M |
| R901019947 | 4WRTE25V350L-4X/6EG24ETK31/F1M |
| R900954296 | 4WRTE25V350L-4X/6EG24K31/A1M |
| R901042382 | 4WRTE25V350L-4X/6EG24K31/A1M-280 |
| R901097361 | 4WRTE25V350L-4X/6EG24K31/A1WB15M |
| R900975549 | 4WRTE25V350L-4X/6EG24K31/A5M |
| R900720555 | 4WRTE25V350L-4X/6EG24K31/A5M-280 |
| R900977462 | 4WRTE25V350L-4X/6EG24K31/F1M |
| R900784593 | 4WRTE25V350L-4X/6EG24K31/F1V |
| R901322880 | 4WRTE25V350L-4X/6EG24TK31/A1M |
| R901048463 | 4WRTE25V350L-4X/6EG24TK31/A5M |
| R900617664 | 4WRTE25V350P-4X/6EG24EK31/A1M |
| R901268849 | 4WRTE25V350P-4X/6EG24EK31/F1M |
| R901301442 | 4WRTE25V350P-4X/6EG24EK31/F1V |
| R901044430 | 4WRTE25V350P-4X/6EG24ETK31/A1V |
| R901044830 | 4WRTE25V350P-4X/6EG24ETK31/A1V-280 |
| R901409258 | 4WRTE25V350P-4X/6EG24ETK31/F1M |
| R900972791 | 4WRTE25V350P-4X/6EG24K31/A1M |
| R900979449 | 4WRTE25V350P-4X/6EG24K31/A1M-280 |
| R901052494 | 4WRTE25V350P-4X/6EG24K31/A1WB15M |
| R901384714 | 4WRTE25V350P-4X/6EG24K31/A5M |
| R901055213 | 4WRTE25V350P-4X/6EG24K31/F1M |
| R901202521 | 4WRTE25V350P-4X/6EG24TK31/A1M-280 |
| R900720672 | 4WRTE25V350P-4X/6EG24TK31/A5M=LB |
| R901352984 | 4WRTE25V5-350P-4X/6EG24TK31/A5M |
| R900767360 | 4WRTE25V5-350P-4X/6EG24TK31/A5M=LB |
| R901003926 | 4WRTE25W6-220L-4X/6EG24EK31/A1M |
| R901179324 | 4WRTE25W6-220L-4X/6EG24EK31/A5M-280 |
| R901212956 | 4WRTE25W6-220L-4X/6EG24EK31/F1M |
| R900754085 | 4WRTE25W6-220L-4X/6EG24ETK31/A1M |
| R900245787 | 4WRTE25W6-220L-4X/6EG24ETK31/F1M |
| R900700274 | 4WRTE25W6-220L-4X/6EG24K31/A1M |
| R901417696 | 4WRTE25W6-220L-4X/6EG24K31/A1V |
| R901341954 | 4WRTE25W6-220L-4X/6EG24K31/F1M |
| R901342143 | 4WRTE25W6-220L-4X/6EG24K31/F1V |
| R900726558 | 4WRTE25W6-350L-4X/6EG24EK31/A1M |
| R900779191 | 4WRTE25W6-350L-4X/6EG24EK31/A5M |
| R901127122 | 4WRTE25W6-350L-4X/6EG24EK31/F1M |
| R900954298 | 4WRTE25W6-350L-4X/6EG24ETK31/A1M |
| R978007766 | 4WRTE25W6-350L-4X/6EG24ETK31/A5M |
| R901010894 | 4WRTE25W6-350L-4X/6EG24ETK31/A5M-280 |
| R901041760 | 4WRTE25W6-350L-4X/6EG24ETK31/F1M |
| R901207007 | 4WRTE25W6-350L-4X/6EG24ETK31/F1V |
| R901235033 | 4WRTE25W6-350L-4X/6EG24ETK31/F1WB15M |
| R900954299 | 4WRTE25W6-350L-4X/6EG24K31/A1M |
| R978919344 | 4WRTE25W6-350L-4X/6EG24K31/A5M |
| R901079443 | 4WRTE25W6-350L-4X/6EG24K31/F1M |
| R901215670 | 4WRTE25W6-350L-4X/6EG24K31/F1V |
| R987095989 | 4WRTE25W6-350L-4X/6EG24TK31/A1M |
| R978007209 | 4WRTE25W6-350L-4X/6EG24TK31/A5M |
| R900720981 | 4WRTE25W6-350P-4X/6EG24EK31/A5M |
| R901223160 | 4WRTE25W6-350P-4X/6EG24ETK31/A1M |
| R901045623 | 4WRTE25W6-350P-4X/6EG24ETK31/A5M-280 |
| R901006823 | 4WRTE25W6-350P-4X/6EG24K31/A5M |
| R901212529 | 4WRTE25W6-350P-4X/6EG24K31/F1M |
| R900703225 | 4WRTE25W8-220L-4X/6EG24EK31/A1M |
| R900974929 | 4WRTE25W8-220L-4X/6EG24EK31/A1M-280 |
| R901005994 | 4WRTE25W8-220L-4X/6EG24EK31/F1M |
| R901293999 | 4WRTE25W8-220L-4X/6EG24EK31/F1V |
| R900954297 | 4WRTE25W8-220L-4X/6EG24ETK31/A1M |
| R900758635 | 4WRTE25W8-220L-4X/6EG24ETK31/A5M |
| R901039675 | 4WRTE25W8-220L-4X/6EG24ETK31/F1M |
| R901093690 | 4WRTE25W8-220L-4X/6EG24K31/A1M |
| R901031706 | 4WRTE25W8-220L-4X/6EG24K31/A5M |
| R978005417 | 4WRTE25W8-220L-4X/6EG24K31/A5V |
| R901155089 | 4WRTE25W8-220L-4X/6EG24K31/F1M |
| R901403887 | 4WRTE25W8-220L-4X/6EG24K31/F1V |
| R900713241 | 4WRTE25W8-220L-4X/6EG24TK31/A1M |
| R901207350 | 4WRTE25W8-220L-4X/6EG24TK31/F1M |
| R900703226 | 4WRTE25W8-350L-4X/6EG24EK31/A1M |
| R901090630 | 4WRTE25W8-350L-4X/6EG24EK31/A1V |
| R901370619 | 4WRTE25W8-350L-4X/6EG24EK31/A5M-280 |
| R901091326 | 4WRTE25W8-350L-4X/6EG24EK31/A5V |
| R901005990 | 4WRTE25W8-350L-4X/6EG24EK31/F1M |
| R901363205 | 4WRTE25W8-350L-4X/6EG24EK31/F1V |
| R900709845 | 4WRTE25W8-350L-4X/6EG24ETK31/A1M |
| R901003648 | 4WRTE25W8-350L-4X/6EG24ETK31/A5M |
| R901322335 | 4WRTE25W8-350L-4X/6EG24ETK31/A5M=LB |
| R901121430 | 4WRTE25W8-350L-4X/6EG24ETK31/F1M |
| R901322980 | 4WRTE25W8-350L-4X/6EG24ETK31/F1V |
| R900979380 | 4WRTE25W8-350L-4X/6EG24K31/A1M |
| R901094207 | 4WRTE25W8-350L-4X/6EG24K31/A1V |
| R900619244 | 4WRTE25W8-350L-4X/6EG24K31/A5M |
| R901076888 | 4WRTE25W8-350L-4X/6EG24K31/F1M |
| R900976693 | 4WRTE25W8-350L-4X/6EG24TK31/A1M |
| R900721889 | 4WRTE25W8-350P-4X/6EG24EK31/A5M |
| R901011134 | 4WRTE25W8-350P-4X/6EG24EK31/F1M |
| R901180189 | 4WRTE25W8-350P-4X/6EG24K31/A1M |
| R900742050 | 4WRTE25W8-350P-4X/6EG24K31/A5M |
Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448
Contact Person: Mr. Jason
A10VSO18 Series Rexroth Hydraulic Pump , Variable Axial Piston Pump
Variable High Pressure Hydraulic Pump A10VSO45 Series With Long Service Life
Quick Speed Rexroth Hydraulic Pump , A10VSO71 Series Variable Piston Hydraulic Pump
Hydac Pressure Filter Element Replacement 0240D 0260D 0280D Series ISO Approved
Pressure Replacement Filter Element Hydac 0800D 0900D 1320D 1500D Series
Hydac 0240R Series Return Line Elements For Hydraulic Return Line Filter
Parker Denison Hydraulic Piston Pumps Variable Volume PVP16 Series
PVP41 Series Parker Denison Hydraulic Pumps Variable Volume Piston Pumps
PV140 PV180 Series Parker Hydraulic Pumps Axial Piston Pump On Hand
