Place of Origin: | Germany |
Brand Name: | Rexroth |

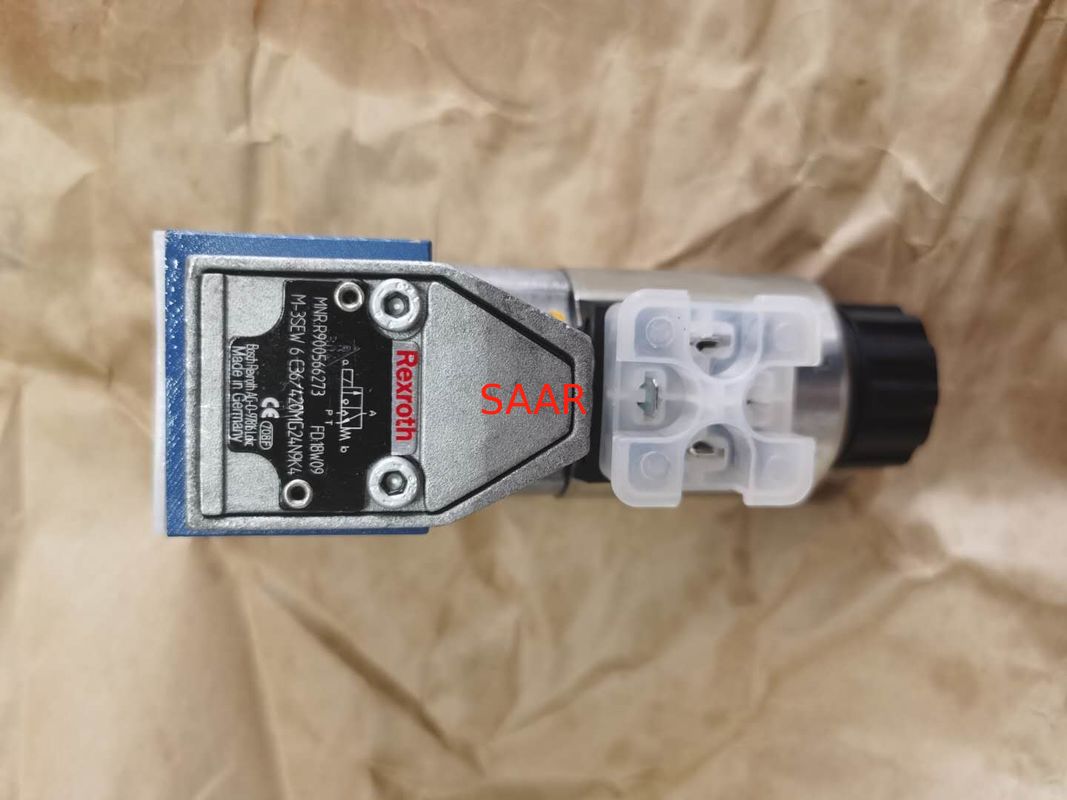

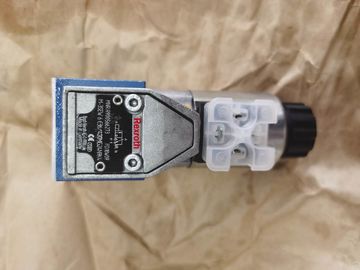

Model Number: | R900566273 M-3SEW6C36/420MG24N9K4 M-3SEW6C3X/420MG24N9K4 |
Minimum Order Quantity: | 1 |
---|---|
Price: | On request |
Packaging Details: | Standard paper box |
Delivery Time: | 7-10days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100PCS per month |
Model No.: | M-3SEW6C36/420MG24N9K4 M-3SEW6C3X/420MG24N9K4 | MNR: | R900566273 |
---|---|---|---|
High Light: | hydraulic pressure relief valve,hydraulic solenoid valve |
Directional poppet valves, directly operated, with solenoid actuation Type M-3SEW6
Size 6
Component series 3X
Maximum operating pressure 420 / 630 bar
Maximum flow 25 l/min
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | ||
M | – | SEW | 6 | 3X | / | M | K4 | / | * |
01 | Mineral oil | M | |||
02 | 2 main ports | 2 | |||
3 main ports | 3 | ||||
4 main ports | 4 | ||||
03 | Seat valve, direct operated | SEW | |||
04 | Size 6 | 6 | |||
05 | Symbols | Main ports | ● = available | ||
2 | 3 | 4 | |||
|
● | – | – | P | |
|
● | – | – | N | |
|
– | ● | – | U | |
|
– | ● | – | C | |
|
– | – | ● | D | |
|
– | – | ● | Y | |
06 | Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) | 3X | |||
07 | Operating pressure 420 bar | 420 bar | |||
Operating pressure 630 bar | 630 bar | ||||
08 | High-power solenoid (air-gap) with detachable coil | M | |||
09 | Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G96 | |||
Nominal voltage 110 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V – 50/60 Hz with an admissible voltage tolerance of +/-10 %) | G110 | ||||
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G205 | ||||
Connection to the AC voltage mains via control with rectifier. Further ordering codes for other voltages are provided in the Technical data | |||||
10 | With concealed manual override (standard) | N9 | |||
Without manual override | no code | ||||
Electrical connection | |||||
11 | Individual connection | ||||
Without mating connector; connector DIN EN 175301-803 | K41) | ||||
Spool position monitoring | |||||
12 | Without position switch | no code | |||
Inductive position switch type QM | |||||
Monitored spool position "a" | QMAG24 2) | ||||
Monitored spool position "b" | QMBG25 2) | ||||
13 | Without check valve insert, without throttle insert | no code | |||
With check valve insert | P | ||||
Throttle Ø 1.2 mm | B12 | ||||
Throttle Ø 1.5 mm | B15 | ||||
Throttle Ø 1.8 mm | B18 | ||||
Throttle Ø 2.0 mm | B20 | ||||
Throttle Ø 2.2 mm | B22 | ||||
Other orifices on request | |||||
Seal material | |||||
14 | NBR seals | no code | |||
FKM seals | V | ||||
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | |||||
15 | Without loSAARing hole | no code | |||
With loSAARing hole and locking pin ISO 8752-3x8-St | /62 | ||||
16 | Further details in the plain text | * |
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth M-3SEW6 Series Directional Seat Valve with Solenoid Actuation Valves on Sale, Short lead time, Best price!!!
R987019001 | M-3SEW6U3X/420MG125N9K4 |
R900991183 | M-3SEW6C3X/420MG110K4 |
R900993944 | M-3SEW6C3X/420MG110K4/B15 |
R900248678 | M-3SEW6C3X/420MG110N4K4 |
R901223486 | M-3SEW6C3X/420MG110N4K4/B12V |
R900064894 | M-3SEW6C3X/420MG110N4Z5L |
R900059240 | M-3SEW6C3X/420MG110N9K4 |
R900749129 | M-3SEW6C3X/420MG110N9K4/B08 |
R900703257 | M-3SEW6C3X/420MG110N9K4/B08V |
R900210121 | M-3SEW6C3X/420MG110N9K4/B10 |
R900987938 | M-3SEW6C3X/420MG110N9K4/B10V |
R900703262 | M-3SEW6C3X/420MG110N9K4/B12V |
R900059239 | M-3SEW6C3X/420MG110N9K4/B15 |
R901182947 | M-3SEW6C3X/420MG110N9K4/B15=CSA |
R900229401 | M-3SEW6C3X/420MG110N9K4/B15V |
R901020296 | M-3SEW6C3X/420MG110N9K4/B20 |
R900226188 | M-3SEW6C3X/420MG110N9K4/P |
R900205805 | M-3SEW6C3X/420MG110N9K4/PV |
R900210349 | M-3SEW6C3X/420MG110N9K4/V |
R901298675 | M-3SEW6C3X/420MG110N9K4/V=CSA |
R900739142 | M-3SEW6C3X/420MG110N9K4=CSA |
R900570604 | M-3SEW6C3X/420MG110N9Z4 |
R900061800 | M-3SEW6C3X/420MG110N9Z4/B08 |
R900570605 | M-3SEW6C3X/420MG110N9Z4/P |
R900069303 | M-3SEW6C3X/420MG110N9Z4/V |
R900570796 | M-3SEW6C3X/420MG110N9Z5 |
R900570706 | M-3SEW6C3X/420MG110N9Z5L |
R900073229 | M-3SEW6C3X/420MG110N9Z5L/P |
R900066585 | M-3SEW6C3X/420MG110N9Z5L/V |
R901119449 | M-3SEW6C3X/420MG110XEZ2/V |
R900572018 | M-3SEW6C3X/420MG110Z5L |
R901143875 | M-3SEW6C3X/420MG125N4K4 |
R900738360 | M-3SEW6C3X/420MG125N9EXZ2/V |
R900225704 | M-3SEW6C3X/420MG125N9K4 |
R900992044 | M-3SEW6C3X/420MG125N9K4/B08 |
R900719739 | M-3SEW6C3X/420MG125N9K4/B08V |
R901231662 | M-3SEW6C3X/420MG125N9K4/B10 |
R901341884 | M-3SEW6C3X/420MG125N9K4/B10V |
R900719740 | M-3SEW6C3X/420MG125N9K4/B12V |
R900987800 | M-3SEW6C3X/420MG125N9K4/B15 |
R901001123 | M-3SEW6C3X/420MG125N9K4/B15=CSA |
R978028081 | M-3SEW6C3X/420MG125N9K4/B15V |
R900218848 | M-3SEW6C3X/420MG125N9K4/P |
R900214243 | M-3SEW6C3X/420MG125N9K4/V |
R900992833 | M-3SEW6C3X/420MG125N9K4=CSA |
R900571535 | M-3SEW6C3X/420MG125N9Z4 |
R900029762 | M-3SEW6C3X/420MG125N9Z4/V |
R900071751 | M-3SEW6C3X/420MG125N9Z45/5 |
R900088076 | M-3SEW6C3X/420MG125NZ45/B12/5 |
R900994396 | M-3SEW6C3X/420MG12N9K4 |
R900781134 | M-3SEW6C3X/420MG12N9K4/B08 |
R900729690 | M-3SEW6C3X/420MG12N9K4/B12V |
R901154947 | M-3SEW6C3X/420MG12N9K4/B22 |
R900722778 | M-3SEW6C3X/420MG12N9K4=CSA |
R900570704 | M-3SEW6C3X/420MG12N9Z4 |
R900089691 | M-3SEW6C3X/420MG12N9Z5L |
R900571685 | M-3SEW6C3X/420MG12N9Z5L/B12 |
R900081239 | M-3SEW6C3X/420MG12Z4/B12 |
R901014027 | M-3SEW6C3X/420MG140N9K4/V |
R900786922 | M-3SEW6C3X/420MG180N9K4 |
R901072250 | M-3SEW6C3X/420MG180N9K4/V |
R900085269 | M-3SEW6C3X/420MG196N9K4 |
R900223106 | M-3SEW6C3X/420MG196N9K4/B08V |
R900082603 | M-3SEW6C3X/420MG196N9K4/B12 |
R900068702 | M-3SEW6C3X/420MG196N9K4/B22 |
R900084379 | M-3SEW6C3X/420MG196N9Z4 |
R900081438 | M-3SEW6C3X/420MG196N9Z5L |
R900726246 | M-3SEW6C3X/420MG205N9EXZ2 |
R900050514 | M-3SEW6C3X/420MG205N9K4 |
R900050124 | M-3SEW6C3X/420MG205N9K4/B08 |
R900739057 | M-3SEW6C3X/420MG205N9K4/B08V |
R900991592 | M-3SEW6C3X/420MG205N9K4/B10 |
R900211272 | M-3SEW6C3X/420MG205N9K4/B12 |
R900986855 | M-3SEW6C3X/420MG205N9K4/B12V |
R900218497 | M-3SEW6C3X/420MG205N9K4/B15 |
R900220610 | M-3SEW6C3X/420MG205N9K4/B15V |
R901055745 | M-3SEW6C3X/420MG205N9K4/B18 |
R900049952 | M-3SEW6C3X/420MG205N9K4/B20 |
R900990992 | M-3SEW6C3X/420MG205N9K4/B22 |
R900213542 | M-3SEW6C3X/420MG205N9K4/P |
R901329572 | M-3SEW6C3X/420MG205N9K4/PV |
R900987662 | M-3SEW6C3X/420MG205N9K4/V |
R900231366 | M-3SEW6C3X/420MG205N9K4=CSA |
R900750085 | M-3SEW6C3X/420MG220N4K4 |
R900220602 | M-3SEW6C3X/420MG220N4K4/B12 |
R900571540 | M-3SEW6C3X/420MG220N4Z5L/B15 |
R900202434 | M-3SEW6C3X/420MG220N9K4 |
R901327041 | M-3SEW6C3X/420MG220N9K4/B12 |
R901179989 | M-3SEW6C3X/420MG220N9K4/B15 |
R900243315 | M-3SEW6C3X/420MG220N9K4/P |
R900214676 | M-3SEW6C3X/420MG220N9K4/V |
R900570873 | M-3SEW6C3X/420MG220N9Z4 |
R900084981 | M-3SEW6C3X/420MG220N9Z4/B12 |
R900569733 | M-3SEW6C3X/420MG220N9Z4/B15 |
R900570527 | M-3SEW6C3X/420MG220N9Z4/V |
R900052105 | M-3SEW6C3X/420MG220N9Z5 |
R900053185 | M-3SEW6C3X/420MG220N9Z5L |
R900053912 | M-3SEW6C3X/420MG240N9K4 |
R900051263 | M-3SEW6C3X/420MG240N9K4/B15 |
R900754651 | M-3SEW6C3X/420MG240N9K4/V |
R900083155 | M-3SEW6C3X/420MG240N9Z4 |
R900570705 | M-3SEW6C3X/420MG240N9Z4/B15 |
R900069376 | M-3SEW6C3X/420MG240N9Z5L |
R900994504 | M-3SEW6C3X/420MG24K33L |
R900569890 | M-3SEW6C3X/420MG24K4 |
R900205012 | M-3SEW6C3X/420MG24K4/B08V |
R901380166 | M-3SEW6C3X/420MG24K4/B10 |
R901248538 | M-3SEW6C3X/420MG24K4/B12 |
R900205014 | M-3SEW6C3X/420MG24K4/B12V |
R900709143 | M-3SEW6C3X/420MG24K4/B18 |
R900228211 | M-3SEW6C3X/420MG24K4/B20 |
R901226278 | M-3SEW6C3X/420MG24K4/B20V |
R900022709 | M-3SEW6C3X/420MG24K4/P |
R901289116 | M-3SEW6C3X/420MG24K4/PV |
R900770802 | M-3SEW6C3X/420MG24K4/V |
R900215453 | M-3SEW6C3X/420MG24K4/V=CSA |
R901257174 | M-3SEW6C3X/420MG24K72L |
R901301408 | M-3SEW6C3X/420MG24K72L/B12 |
R900219228 | M-3SEW6C3X/420MG24N4K4 |
R900704327 | M-3SEW6C3X/420MG24N4K4/B08 |
R901361460 | M-3SEW6C3X/420MG24N4K4/B10 |
R901398464 | M-3SEW6C3X/420MG24N4K4/B10V |
R900784462 | M-3SEW6C3X/420MG24N4K4/B12 |
R901090250 | M-3SEW6C3X/420MG24N4K4/B12V |
R900990043 | M-3SEW6C3X/420MG24N4K4/B15 |
R900242940 | M-3SEW6C3X/420MG24N4K4/B20V |
R900205777 | M-3SEW6C3X/420MG24N4K4/B22 |
R901022188 | M-3SEW6C3X/420MG24N4K4/P |
R901016601 | M-3SEW6C3X/420MG24N4K4/V |
R900571539 | M-3SEW6C3X/420MG24N4Z4 |
R900087130 | M-3SEW6C3X/420MG24N4Z4/B12 |
R900031489 | M-3SEW6C3X/420MG24N4Z4/B22 |
R900086835 | M-3SEW6C3X/420MG24N4Z4/V |
R900571232 | M-3SEW6C3X/420MG24N4Z5L |
R900088937 | M-3SEW6C3X/420MG24N4Z5L/B15 |
R900030846 | M-3SEW6C3X/420MG24N4Z5L2/B20 |
R900566273 | M-3SEW6C3X/420MG24N9K4 |
R901006516 | M-3SEW6C3X/420MG24N9K4SO407 |
R900705792 | M-3SEW6C3X/420MG24N9K4/5 |
R900243911 | M-3SEW6C3X/420MG24N9K4/5=CSA |
R901235602 | M-3SEW6C3X/420MG24N9K4/62 |
R901068563 | M-3SEW6C3X/420MG24N9K4/B06 |
R900031509 | M-3SEW6C3X/420MG24N9K4/B07 |
R900020653 | M-3SEW6C3X/420MG24N9K4/B08 |
R900727248 | M-3SEW6C3X/420MG24N9K4/B08V |
R900061683 | M-3SEW6C3X/420MG24N9K4/B10 |
R900759982 | M-3SEW6C3X/420MG24N9K4/B10=CSA |
R901418188 | M-3SEW6C3X/420MG24N9K4/B10V |
R900029511 | M-3SEW6C3X/420MG24N9K4/B12 |
R900203589 | M-3SEW6C3X/420MG24N9K4/B12=CSA |
R900220648 | M-3SEW6C3X/420MG24N9K4/B12V |
R900070706 | M-3SEW6C3X/420MG24N9K4/B15 |
R900230048 | M-3SEW6C3X/420MG24N9K4/B15=CSA |
R900082565 | M-3SEW6C3X/420MG24N9K4/B15V |
R900988434 | M-3SEW6C3X/420MG24N9K4/B15V=CSA |
R900203376 | M-3SEW6C3X/420MG24N9K4/B18 |
R900202965 | M-3SEW6C3X/420MG24N9K4/B18V |
R900571656 | M-3SEW6C3X/420MG24N9K4/B20 |
R900087369 | M-3SEW6C3X/420MG24N9K4/B22 |
R901311325 | M-3SEW6C3X/420MG24N9K4/B22=CSA |
R901068564 | M-3SEW6C3X/420MG24N9K4/B25 |
R900741542 | M-3SEW6C3X/420MG24N9K4/B35 |
R901009116 | M-3SEW6C3X/420MG24N9K4/B40 |
R900569750 | M-3SEW6C3X/420MG24N9K4/P |
R901050180 | M-3SEW6C3X/420MG24N9K4/P=CSA |
R900205144 | M-3SEW6C3X/420MG24N9K4/PV |
R900049834 | M-3SEW6C3X/420MG24N9K4/V |
R900708451 | M-3SEW6C3X/420MG24N9K4/V=CSA |
R900059160 | M-3SEW6C3X/420MG24N9K4=CSA |
R901314241 | M-3SEW6C3X/420MG24N9K4K/B15V |
R901314240 | M-3SEW6C3X/420MG24N9K4K/V |
R900566275 | M-3SEW6C3X/420MG24N9Z5 |
R900074551 | M-3SEW6C3X/420MG24N9Z5/B15 |
R900020373 | M-3SEW6C3X/420MG24N9Z5/B15V |
R900020686 | M-3SEW6C3X/420MG24N9Z5/V |
R900571338 | M-3SEW6C3X/420MG24N9Z55L/B22 |
R900020962 | M-3SEW6C3X/420MG24N9Z55L1/B12 |
R900566277 | M-3SEW6C3X/420MG24N9Z5L |
R900066213 | M-3SEW6C3X/420MG24N9Z5L/B08 |
R900021774 | M-3SEW6C3X/420MG24N9Z5L/B10 |
R900570284 | M-3SEW6C3X/420MG24N9Z5L/B12 |
R900063114 | M-3SEW6C3X/420MG24N9Z5L/B12V |
R900570712 | M-3SEW6C3X/420MG24N9Z5L/B15 |
R900573563 | M-3SEW6C3X/420MG24N9Z5L/B15V |
R900573479 | M-3SEW6C3X/420MG24N9Z5L/B18 |
R900020601 | M-3SEW6C3X/420MG24N9Z5L/B20 |
R900571297 | M-3SEW6C3X/420MG24N9Z5L/B22 |
R900214802 | M-3SEW6C3X/420MG28N9K4 |
R900227604 | M-3SEW6C3X/420MG42N9K4 |
R900059390 | M-3SEW6C3X/420MG42N9K4/V |
R900088167 | M-3SEW6C3X/420MG42N9Z4 |
R900208947 | M-3SEW6C3X/420MG48N9K4 |
R900217500 | M-3SEW6C3X/420MG48N9K4/B12 |
R901394334 | M-3SEW6C3X/420MG48N9K4/B15 |
R900618958 | M-3SEW6C3X/420MG48N9K4/B20 |
R900021683 | M-3SEW6C3X/420MG48N9K4/B22 |
R900204107 | M-3SEW6C3X/420MG48N9K4/V |
R900033190 | M-3SEW6C3X/420MG48N9Z4 |
R900031012 | M-3SEW6C3X/420MG48N9Z4/B08 |
R900030670 | M-3SEW6C3X/420MG48N9Z4/B15 |
R900572241 | M-3SEW6C3X/420MG48N9Z4/B20 |
R900029347 | M-3SEW6C3X/420MG48N9Z4/V |
R900083926 | M-3SEW6C3X/420MG48N9Z5L |
R900076449 | M-3SEW6C3X/420MG48N9Z5L/B12 |
R901064426 | M-3SEW6C3X/420MG60N4K4 |
R900216084 | M-3SEW6C3X/420MG60N9K4 |
R901404363 | M-3SEW6C3X/420MG60N9K4/PV |
R900222357 | M-3SEW6C3X/420MG96K4 |
R901228335 | M-3SEW6C3X/420MG96K4/B15 |
R900738590 | M-3SEW6C3X/420MG96K4=CSA |
R900988490 | M-3SEW6C3X/420MG96N4K4 |
R901361044 | M-3SEW6C3X/420MG96N4K4/B10V |
R900051046 | M-3SEW6C3X/420MG96N4K4/B12 |
R901212751 | M-3SEW6C3X/420MG96N4K4/V |
R987245892 | M-3SEW6C3X/420MG96N9EXZ2/V |
R900570252 | M-3SEW6C3X/420MG96N9K4 |
R901154369 | M-3SEW6C3X/420MG96N9K4/B07 |
R900054784 | M-3SEW6C3X/420MG96N9K4/B08 |
R900216903 | M-3SEW6C3X/420MG96N9K4/B08/5 |
R900230922 | M-3SEW6C3X/420MG96N9K4/B08/5=CSA |
R901010359 | M-3SEW6C3X/420MG96N9K4/B08=CSA |
R978910160 | M-3SEW6C3X/420MG96N9K4/B08V |
R900209518 | M-3SEW6C3X/420MG96N9K4/B10V |
R900243100 | M-3SEW6C3X/420MG96N9K4/B10V/5=CSA |
R900058586 | M-3SEW6C3X/420MG96N9K4/B12 |
R900733260 | M-3SEW6C3X/420MG96N9K4/B12/5 |
R900986604 | M-3SEW6C3X/420MG96N9K4/B12/5=CSA |
R900210456 | M-3SEW6C3X/420MG96N9K4/B12=CSA |
R900707101 | M-3SEW6C3X/420MG96N9K4/B12V |
R900205053 | M-3SEW6C3X/420MG96N9K4/B15 |
R900049955 | M-3SEW6C3X/420MG96N9K4/B15V |
R900992622 | M-3SEW6C3X/420MG96N9K4/B18 |
R900203310 | M-3SEW6C3X/420MG96N9K4/B18V |
R900053117 | M-3SEW6C3X/420MG96N9K4/B20 |
R901130277 | M-3SEW6C3X/420MG96N9K4/B20=CSA |
R901361020 | M-3SEW6C3X/420MG96N9K4/B20V |
R900051638 | M-3SEW6C3X/420MG96N9K4/B22 |
R900205050 | M-3SEW6C3X/420MG96N9K4/P |
R900224246 | M-3SEW6C3X/420MG96N9K4/PV |
R900206773 | M-3SEW6C3X/420MG96N9K4/V |
R900986797 | M-3SEW6C3X/420MG96N9K4/V=CSA |
R900210455 | M-3SEW6C3X/420MG96N9K4=CSA |
R901176037 | M-3SEW6C3X/420MG96N9XEZ2/V |
R900079509 | M-3SEW6C3X/420MG96N9Z4 |
R900057829 | M-3SEW6C3X/420MG96N9Z4/V |
R900031135 | M-3SEW6C3X/420MW110RN9K4 |
R900566276 | M-3SEW6C3X/420MW110RN9Z5 |
R900077454 | M-3SEW6C3X/420MW110RN9Z5 |
R900205323 | M-3SEW6C3X/420MW110RN9Z5/B10 |
R900573634 | M-3SEW6C3X/420MW110RN9Z5/B12 |
R900084990 | M-3SEW6C3X/420MW110RN9Z5/B15 |
R900082303 | M-3SEW6C3X/420MW110RN9Z5/B15V |
R900067662 | M-3SEW6C3X/420MW110RN9Z5/B18 |
R900571901 | M-3SEW6C3X/420MW110RN9Z5/B20 |
R900070519 | M-3SEW6C3X/420MW110RN9Z5/P |
R900077703 | M-3SEW6C3X/420MW110RN9Z5/V |
R900051708 | M-3SEW6C3X/630MG110N9Z4/P |
R900570813 | M-3SEW6C3X/630MG110N9Z5L |
R900990705 | M-3SEW6C3X/630MG125N9K4 |
R900218786 | M-3SEW6C3X/630MG125N9K4/P |
R900739222 | M-3SEW6C3X/630MG125N9K4/PV |
R901023175 | M-3SEW6C3X/630MG12K4/V |
R900205383 | M-3SEW6C3X/630MG12N9K4 |
R900222077 | M-3SEW6C3X/630MG12N9K4/V |
R900569753 | M-3SEW6C3X/630MG12N9Z4 |
R900086949 | M-3SEW6C3X/630MG196N9K4 |
R900203759 | M-3SEW6C3X/630MG205K4 |
R901388946 | M-3SEW6C3X/630MG205N4K4/B08 |
R900053414 | M-3SEW6C3X/630MG205N9K4 |
R901003738 | M-3SEW6C3X/630MG205N9K4/B08 |
R900741895 | M-3SEW6C3X/630MG205N9K4/B10 |
R901245497 | M-3SEW6C3X/630MG205N9K4/B10V |
R900050768 | M-3SEW6C3X/630MG205N9K4/B12 |
R900216101 | M-3SEW6C3X/630MG205N9K4/B15 |
R900087441 | M-3SEW6C3X/630MG205N9K4/P |
R901037921 | M-3SEW6C3X/630MG205N9K4/PV |
R900753110 | M-3SEW6C3X/630MG205N9K4/V |
R900242609 | M-3SEW6C3X/630MG220N9K4 |
R900988583 | M-3SEW6C3X/630MG220N9K4/B08 |
R900217551 | M-3SEW6C3X/630MG220N9K4/PV |
R900224475 | M-3SEW6C3X/630MG220N9K4/V |
R900213567 | M-3SEW6C3X/630MG240N9K4 |
R901409086 | M-3SEW6C3X/630MG240N9K4/PV |
R900993956 | M-3SEW6C3X/630MG24K33L/B15 |
R900207279 | M-3SEW6C3X/630MG24K4 |
R901112937 | M-3SEW6C3X/630MG24K4/P |
R900776893 | M-3SEW6C3X/630MG24K4/V |
R901417985 | M-3SEW6C3X/630MG24K72L/B15 |
R900757292 | M-3SEW6C3X/630MG24N9EXZ2/V |
R900566279 | M-3SEW6C3X/630MG24N9K4 |
R900248429 | M-3SEW6C3X/630MG24N9K4/B07 |
R900201827 | M-3SEW6C3X/630MG24N9K4/B08 |
R900032229 | M-3SEW6C3X/630MG24N9K4/B10 |
R900737376 | M-3SEW6C3X/630MG24N9K4/B10V |
R900054123 | M-3SEW6C3X/630MG24N9K4/B12 |
R900715823 | M-3SEW6C3X/630MG24N9K4/B12V |
R900985457 | M-3SEW6C3X/630MG24N9K4/B15 |
R901277967 | M-3SEW6C3X/630MG24N9K4/B15V |
R900989850 | M-3SEW6C3X/630MG24N9K4/B18 |
R900020826 | M-3SEW6C3X/630MG24N9K4/B20 |
R900203592 | M-3SEW6C3X/630MG24N9K4/B22 |
R900030920 | M-3SEW6C3X/630MG24N9K4/P |
R900214727 | M-3SEW6C3X/630MG24N9K4/PV |
R900204628 | M-3SEW6C3X/630MG24N9K4/V |
R900033995 | M-3SEW6C3X/630MG24Z5L |
R900084879 | M-3SEW6C3X/630MG42N9Z5L |
R900210348 | M-3SEW6C3X/630MG48N4K4/B08 |
R900218368 | M-3SEW6C3X/630MG48N9K4 |
R901095852 | M-3SEW6C3X/630MG48N9K4/B10V |
R900225898 | M-3SEW6C3X/630MG48N9K4/B12 |
R901060699 | M-3SEW6C3X/630MG48N9K4/B20 |
R901269989 | M-3SEW6C3X/630MG48N9K4/P |
R900214403 | M-3SEW6C3X/630MG48N9K4/PV |
R901286856 | M-3SEW6C3X/630MG48N9K4/V |
R900083694 | M-3SEW6C3X/630MG48N9Z4 |
R900571434 | M-3SEW6C3X/630MG48N9Z5L |
R900222269 | M-3SEW6C3X/630MG60N9K4 |
R900051045 | M-3SEW6C3X/630MG96N9K4 |
R900780239 | M-3SEW6C3X/630MG96N9K4/B06 |
R900780449 | M-3SEW6C3X/630MG96N9K4/B07 |
R900054354 | M-3SEW6C3X/630MG96N9K4/B08 |
R978006432 | M-3SEW6C3X/630MG96N9K4/B08V |
R900229225 | M-3SEW6U3X/420MG110K4 |
R901416381 | M-3SEW6U3X/420MG110K4/P |
R901111556 | M-3SEW6U3X/420MG110N4K4 |
R900985537 | M-3SEW6U3X/420MG110N4K4/B20 |
R900205530 | M-3SEW6U3X/420MG110N9K4 |
R900749128 | M-3SEW6U3X/420MG110N9K4/B08 |
R901157719 | M-3SEW6U3X/420MG110N9K4/B08=CSA |
R900241768 | M-3SEW6U3X/420MG110N9K4/B10 |
R900222983 | M-3SEW6U3X/420MG110N9K4/B12 |
R900218394 | M-3SEW6U3X/420MG110N9K4/B12/5 |
R900989289 | M-3SEW6U3X/420MG110N9K4/B12=CSA |
R987033726 | M-3SEW6U3X/420MG110N9K4/B12V |
R900764364 | M-3SEW6U3X/420MG110N9K4/B12V |
R900773663 | M-3SEW6U3X/420MG110N9K4/B15 |
R901350174 | M-3SEW6U3X/420MG110N9K4/B15V |
R901256993 | M-3SEW6U3X/420MG110N9K4/B18 |
R901025079 | M-3SEW6U3X/420MG110N9K4/B22V |
R901215002 | M-3SEW6U3X/420MG110N9K4/P |
R901057240 | M-3SEW6U3X/420MG110N9K4/PV |
R900220093 | M-3SEW6U3X/420MG110N9K4/V |
R900760246 | M-3SEW6U3X/420MG110N9K4/V=CSA |
R900739842 | M-3SEW6U3X/420MG110N9K4=CSA |
R900570962 | M-3SEW6U3X/420MG110N9Z4 |
R900051707 | M-3SEW6U3X/420MG110N9Z4/B08V |
R900066644 | M-3SEW6U3X/420MG110N9Z4/V |
R900572017 | M-3SEW6U3X/420MG110N9Z5L |
R900052944 | M-3SEW6U3X/420MG110N9Z5L/B08 |
R900029892 | M-3SEW6U3X/420MG110Z4 |
R900020388 | M-3SEW6U3X/420MG110Z5L |
R900990965 | M-3SEW6U3X/420MG125K4/V |
R901143879 | M-3SEW6U3X/420MG125N4K4 |
R900049473 | M-3SEW6U3X/420MG125N9K4 |
R900219201 | M-3SEW6U3X/420MG125N9K4/B12 |
R901001126 | M-3SEW6U3X/420MG125N9K4/B15=CSA |
R900776191 | M-3SEW6U3X/420MG125N9K4/V |
R900088380 | M-3SEW6U3X/420MG125N9Z4 |
R900029362 | M-3SEW6U3X/420MG125N9Z5L |
R900573200 | M-3SEW6U3X/420MG125Z4 |
R900031605 | M-3SEW6U3X/420MG125Z5/V |
R900991112 | M-3SEW6U3X/420MG12N9K4 |
R901066427 | M-3SEW6U3X/420MG12N9K4/B12 |
R900986267 | M-3SEW6U3X/420MG12N9K4/P |
R900243395 | M-3SEW6U3X/420MG12N9K4/V=CSA |
R900062543 | M-3SEW6U3X/420MG12N9Z4 |
R900021762 | M-3SEW6U3X/420MG12N9Z4/P |
R900078058 | M-3SEW6U3X/420MG12N9Z5L |
R900763537 | M-3SEW6U3X/420MG180N9K4 |
R900080932 | M-3SEW6U3X/420MG196N9K4 |
R900082604 | M-3SEW6U3X/420MG196N9K4/B12 |
R900741607 | M-3SEW6U3X/420MG205K4 |
R900221869 | M-3SEW6U3X/420MG205K4/B12 |
R900227104 | M-3SEW6U3X/420MG205N4K4/B12 |
R900050515 | M-3SEW6U3X/420MG205N9K4 |
R900216413 | M-3SEW6U3X/420MG205N9K4/B08 |
R901410946 | M-3SEW6U3X/420MG205N9K4/B08V |
R900738743 | M-3SEW6U3X/420MG205N9K4/B10 |
R900208025 | M-3SEW6U3X/420MG205N9K4/B12 |
R900059389 | M-3SEW6U3X/420MG205N9K4/B15 |
R900225379 | M-3SEW6U3X/420MG205N9K4/B15V |
R900243511 | M-3SEW6U3X/420MG205N9K4/B18 |
R900049953 | M-3SEW6U3X/420MG205N9K4/B20 |
R901144779 | M-3SEW6U3X/420MG205N9K4/B40 |
R900057541 | M-3SEW6U3X/420MG205N9K4/P |
R900213405 | M-3SEW6U3X/420MG205N9K4/V |
R901240536 | M-3SEW6U3X/420MG205N9K4/V=CSA |
R900205804 | M-3SEW6U3X/420MG205N9K4=CSA |
R900059392 | M-3SEW6U3X/420MG205N9Z4/B20 |
R900767142 | M-3SEW6U3X/420MG220K4 |
R901116937 | M-3SEW6U3X/420MG220N4K4 |
R901119187 | M-3SEW6U3X/420MG220N4K4/B08 |
R900571541 | M-3SEW6U3X/420MG220N4Z5L/B15 |
R900225154 | M-3SEW6U3X/420MG220N9EXZ2 |
R900206563 | M-3SEW6U3X/420MG220N9K4 |
R901009861 | M-3SEW6U3X/420MG220N9K4/B12 |
R900206119 | M-3SEW6U3X/420MG220N9K4/B15 |
R901079328 | M-3SEW6U3X/420MG220N9K4/B18 |
R900225980 | M-3SEW6U3X/420MG220N9K4/V |
R900571182 | M-3SEW6U3X/420MG220N9Z4 |
R900084982 | M-3SEW6U3X/420MG220N9Z4/B12 |
R900032997 | M-3SEW6U3X/420MG220N9Z4/V |
R900082780 | M-3SEW6U3X/420MG220N9Z5L |
R900078300 | M-3SEW6U3X/420MG220Z4 |
R900054870 | M-3SEW6U3X/420MG240N9K4 |
R900051264 | M-3SEW6U3X/420MG240N9K4/B15 |
R901446219 | M-3SEW6U3X/420MG240N9K4/B22 |
R900021862 | M-3SEW6U3X/420MG240N9Z4 |
R900571224 | M-3SEW6U3X/420MG240N9Z4/B15 |
R900571688 | M-3SEW6U3X/420MG240Z4 |
R900571719 | M-3SEW6U3X/420MG240Z4 |
R900245209 | M-3SEW6U3X/420MG24K33L |
R900772968 | M-3SEW6U3X/420MG24K33LSO407 |
R900768345 | M-3SEW6U3X/420MG24K33L=AN |
R900569794 | M-3SEW6U3X/420MG24K4 |
R900203463 | M-3SEW6U3X/420MG24K4/B12 |
R901210538 | M-3SEW6U3X/420MG24K4/B12V |
R900049662 | M-3SEW6U3X/420MG24K4/B15 |
R900049664 | M-3SEW6U3X/420MG24K4/B18 |
R901226291 | M-3SEW6U3X/420MG24K4/B20V |
R900022708 | M-3SEW6U3X/420MG24K4/P |
R900986041 | M-3SEW6U3X/420MG24K4/V |
R900207790 | M-3SEW6U3X/420MG24N4K4 |
R901119183 | M-3SEW6U3X/420MG24N4K4/B08 |
R901312980 | M-3SEW6U3X/420MG24N4K4/B10 |
R901275151 | M-3SEW6U3X/420MG24N4K4/B10V |
R901034004 | M-3SEW6U3X/420MG24N4K4/B18 |
R901442752 | M-3SEW6U3X/420MG24N4K4/B20V |
R900228823 | M-3SEW6U3X/420MG24N4K4/V |
R900070527 | M-3SEW6U3X/420MG24N4Z4 |
R900035488 | M-3SEW6U3X/420MG24N4Z4/B22 |
R900031313 | M-3SEW6U3X/420MG24N4Z5L/B18 |
R900218845 | M-3SEW6U3X/420MG24N9EXZ2 |
R900240459 | M-3SEW6U3X/420MG24N9EXZ2/V |
R901168162 | M-3SEW6U3X/420MG24N9K33L/B15 |
R900566283 | M-3SEW6U3X/420MG24N9K4 |
R900707451 | M-3SEW6U3X/420MG24N9K4 |
R900205382 | M-3SEW6U3X/420MG24N9K4/B00 |
R901293091 | M-3SEW6U3X/420MG24N9K4/B06 |
R900049470 | M-3SEW6U3X/420MG24N9K4/B07 |
R900088200 | M-3SEW6U3X/420MG24N9K4/B08 |
R901264074 | M-3SEW6U3X/420MG24N9K4/B08V |
R900573247 | M-3SEW6U3X/420MG24N9K4/B10 |
R900214242 | M-3SEW6U3X/420MG24N9K4/B10=CSA |
R900243436 | M-3SEW6U3X/420MG24N9K4/B10V |
R900571657 | M-3SEW6U3X/420MG24N9K4/B12 |
R900227753 | M-3SEW6U3X/420MG24N9K4/B12V |
R900570516 | M-3SEW6U3X/420MG24N9K4/B15 |
R900770891 | M-3SEW6U3X/420MG24N9K4/B15/5 |
R900059161 | M-3SEW6U3X/420MG24N9K4/B15=CSA |
R900215185 | M-3SEW6U3X/420MG24N9K4/B15V |
R900988059 | M-3SEW6U3X/420MG24N9K4/B15V=CSA |
R900203314 | M-3SEW6U3X/420MG24N9K4/B18 |
R900077153 | M-3SEW6U3X/420MG24N9K4/B20 |
R900219598 | M-3SEW6U3X/420MG24N9K4/B20=CSA |
R901010364 | M-3SEW6U3X/420MG24N9K4/B20V |
R900206079 | M-3SEW6U3X/420MG24N9K4/B22 |
R901421438 | M-3SEW6U3X/420MG24N9K4/B25V |
R900572244 | M-3SEW6U3X/420MG24N9K4/P |
R901094596 | M-3SEW6U3X/420MG24N9K4/P=CSA |
R900752228 | M-3SEW6U3X/420MG24N9K4/P=PL |
R900053762 | M-3SEW6U3X/420MG24N9K4/PV |
R900570174 | M-3SEW6U3X/420MG24N9K4/V |
R900223433 | M-3SEW6U3X/420MG24N9K4/V=CSA |
R900203992 | M-3SEW6U3X/420MG24N9K4=CSA |
R901403910 | M-3SEW6U3X/420MG24N9K4=KM |
R901112756 | M-3SEW6U3X/420MG24N9K4K |
R900566284 | M-3SEW6U3X/420MG24N9Z4 |
R900068772 | M-3SEW6U3X/420MG24N9Z4/B00 |
R900572272 | M-3SEW6U3X/420MG24N9Z4/B08 |
R900070822 | M-3SEW6U3X/420MG24N9Z4/B10 |
R900570735 | M-3SEW6U3X/420MG24N9Z4/B12 |
R900031139 | M-3SEW6U3X/420MG24N9Z4/B12V |
R900568782 | M-3SEW6U3X/420MG24N9Z4/B15 |
R900571654 | M-3SEW6U3X/420MG24N9Z4/B15V |
R900075079 | M-3SEW6U3X/420MG24N9Z4/B18 |
R900573241 | M-3SEW6U3X/420MG24N9Z4/B20 |
R900079011 | M-3SEW6U3X/420MG24N9Z4/B20V |
R900030925 | M-3SEW6U3X/420MG24N9Z4/B22 |
R900569793 | M-3SEW6U3X/420MG24N9Z4/P |
R900030550 | M-3SEW6U3X/420MG24N9Z4/PV |
R900570989 | M-3SEW6U3X/420MG24N9Z4/V |
R900570250 | M-3SEW6U3X/420MG24N9Z4/V |
R900572871 | M-3SEW6U3X/420MG24N9Z45 |
R900079974 | M-3SEW6U3X/420MG24N9Z45/5 |
R900068354 | M-3SEW6U3X/420MG24N9Z4=LB |
R900566285 | M-3SEW6U3X/420MG24N9Z5 |
R900050290 | M-3SEW6U3X/420MG24N9Z5/B12 |
R900570748 | M-3SEW6U3X/420MG24N9Z5/B12V |
R900570739 | M-3SEW6U3X/420MG24N9Z5/V |
R900572121 | M-3SEW6U3X/420MG24N9Z55L |
R901396874 | M-3SEW6U3X/420MG26N9K40 |
R900755005 | M-3SEW6U3X/420MG26N9K4K |
R900214804 | M-3SEW6U3X/420MG28N9K4 |
R900088171 | M-3SEW6U3X/420MG42N9K4 |
R900227601 | M-3SEW6U3X/420MG42N9K4/B10 |
R900219072 | M-3SEW6U3X/420MG48K4 |
R900738969 | M-3SEW6U3X/420MG48K4/V |
R900059506 | M-3SEW6U3X/420MG48N9K4 |
R900059991 | M-3SEW6U3X/420MG48N9K4/B10 |
R900220594 | M-3SEW6U3X/420MG48N9K4/B12 |
R900777918 | M-3SEW6U3X/420MG48N9K4/B15 |
R900991328 | M-3SEW6U3X/420MG48N9K4/B20 |
R900219074 | M-3SEW6U3X/420MG48N9K4/PV |
R900211467 | M-3SEW6U3X/420MG48N9K4/V |
R900570740 | M-3SEW6U3X/420MG48N9Z4 |
R900050355 | M-3SEW6U3X/420MG48N9Z4/B15 |
R900031271 | M-3SEW6U3X/420MG48N9Z4/B20 |
R900570737 | M-3SEW6U3X/420MG48N9Z4/V |
R900033567 | M-3SEW6U3X/420MG48N9Z5 |
R900572901 | M-3SEW6U3X/420MG48N9Z5L |
R900029350 | M-3SEW6U3X/420MG48N9Z5L/B15 |
R900062468 | M-3SEW6U3X/420MG48N9Z5L/B20 |
R900029293 | M-3SEW6U3X/420MG48N9Z5L/P |
R900572217 | M-3SEW6U3X/420MG48N9Z5L/V |
R901063307 | M-3SEW6U3X/420MG60N4K4 |
R900216086 | M-3SEW6U3X/420MG60N9K4 |
R900083571 | M-3SEW6U3X/420MG96K4 |
R900209453 | M-3SEW6U3X/420MG96K4/B12=CSA |
R900738588 | M-3SEW6U3X/420MG96K4/P=CSA |
R900752446 | M-3SEW6U3X/420MG96K4/V |
R900986396 | M-3SEW6U3X/420MG96K4/V=CSA |
R900218131 | M-3SEW6U3X/420MG96K4=CSA |
R900988491 | M-3SEW6U3X/420MG96N4K4 |
R901354678 | M-3SEW6U3X/420MG96N4K4/B10V |
R901366168 | M-3SEW6U3X/420MG96N4K4/B12V |
R901147001 | M-3SEW6U3X/420MG96N4K4/V |
R900570744 | M-3SEW6U3X/420MG96N9K4 |
R901230798 | M-3SEW6U3X/630MG110N9K4/B10 |
R901190672 | M-3SEW6U3X/630MG110N9K4/B15 |
R901310776 | M-3SEW6U3X/630MG110N9K4/P |
R901039966 | M-3SEW6U3X/630MG110N9K4/V |
R987251307 | M-3SEW6U3X/630MG125N9K4/B08 |
R900573283 | M-3SEW6U3X/630MG12K4/V |
R901281938 | M-3SEW6U3X/630MG12N9K4/V |
R900765012 | M-3SEW6U3X/630MG180N9K4 |
R900220236 | M-3SEW6U3X/630MG196N9K4 |
R900230506 | M-3SEW6U3X/630MG196N9K4/B08 |
R900742941 | M-3SEW6U3X/630MG205K4/B15 |
R901201757 | M-3SEW6U3X/630MG205K4/P |
R900050446 | M-3SEW6U3X/630MG205N9K4 |
R987004784 | M-3SEW6U3X/630MG205N9K4 |
R900994639 | M-3SEW6U3X/630MG205N9K4/B08 |
R900219806 | M-3SEW6U3X/630MG205N9K4/B10 |
R900243814 | M-3SEW6U3X/630MG205N9K4/B12 |
R900738926 | M-3SEW6U3X/630MG205N9K4/B15 |
R900087438 | M-3SEW6U3X/630MG205N9K4/P |
R901292895 | M-3SEW6U3X/630MG205N9K4/V |
R900215489 | M-3SEW6U3X/630MG220N9K4 |
R900988582 | M-3SEW6U3X/630MG220N9K4/B08 |
R901043755 | M-3SEW6U3X/630MG220N9K4/B12 |
R901284868 | M-3SEW6U3X/630MG220N9K4/B20 |
R900030672 | M-3SEW6U3X/630MG24K4 |
R900032422 | M-3SEW6U3X/630MG24K4/P |
R900776892 | M-3SEW6U3X/630MG24K4/V |
R900990556 | M-3SEW6U3X/630MG24N9EXZ2/V |
R900566289 | M-3SEW6U3X/630MG24N9K4 |
R900248430 | M-3SEW6U3X/630MG24N9K4/B07 |
R900986447 | M-3SEW6U3X/630MG24N9K4/B08 |
R900572095 | M-3SEW6U3X/630MG24N9K4/B10 |
R900728500 | M-3SEW6U3X/630MG24N9K4/B10V |
R900054345 | M-3SEW6U3X/630MG24N9K4/B12 |
R900219798 | M-3SEW6U3X/630MG24N9K4/B12V |
R900213294 | M-3SEW6U3X/630MG24N9K4/B15 |
R978020803 | M-3SEW6U3X/630MG24N9K4/B18 |
R900219617 | M-3SEW6U3X/630MG24N9K4/B20 |
R900203593 | M-3SEW6U3X/630MG24N9K4/B22 |
R900030919 | M-3SEW6U3X/630MG24N9K4/P |
R900215782 | M-3SEW6U3X/630MG24N9K4/PV |
R900218867 | M-3SEW6U3X/630MG24N9K4/V |
R900705051 | M-3SEW6U3X/630MG24N9K4/V/5 |
R900222667 | M-3SEW6U3X/630MG24N9K4YAW/B10 |
R900566290 | M-3SEW6U3X/630MG24N9Z4 |
R900032536 | M-3SEW6U3X/630MG24N9Z4/B10 |
R900082542 | M-3SEW6U3X/630MG24N9Z4/B12 |
R900573644 | M-3SEW6U3X/630MG24N9Z4/P |
R900571337 | M-3SEW6U3X/630MG24N9Z4/V |
R978015035 | M-3SEW6U3X/630MG96N9K4/B08 |
R978910960 | M-3SEW6U3X/630MG96N9K4/B08V |
R900220158 | M-3SEW6U3X/630MG96N9K4/B10 |
R901100377 | M-3SEW6U3X/630MG96N9K4/B10V |
R900219797 | M-3SEW6U3X/630MG96N9K4/B12 |
R901392738 | M-3SEW6U3X/630MG96N9K4/B12V |
R900764469 | M-3SEW6U3X/630MG96N9K4/B15 |
R978913000 | M-3SEW6U3X/630MG96N9K4/B15V |
R978915901 | M-3SEW6U3X/630MG96N9K4/B18 |
R900987974 | M-3SEW6U3X/630MG96N9K4/B20 |
R900210770 | M-3SEW6U3X/630MG96N9K4/P |
R978914488 | M-3SEW6U3X/630MG96N9K4/PV |
R900054920 | M-3SEW6U3X/630MG96N9K4/V |
R900569756 | M-3SEW6U3X/630MW110RN9Z5 |
R900059162 | M-3SEW6U3X/630MW110RN9Z5/P |
R900569755 | M-3SEW6U3X/630MW110RN9Z5/V |
R900571263 | M-3SEW6U3X/630MW110RN9Z55 |
R900020776 | M-3SEW6U3X/630MW110RN9Z5L |
R900566292 | M-3SEW6U3X/630MW220RN9Z5 |
R900075954 | M-3SEW6U3X/630MW220RN9Z5/B08 |
R900034077 | M-3SEW6U3X/630MW220RN9Z5/P |
R900020464 | M-3SEW6U3X/630MW220RN9Z5/V |
R900571264 | M-3SEW6U3X/630MW220RN9Z55 |
R900020466 | M-3SEW6U3X/630MW220RN9Z5L |
R900029666 | M-3SEW6U3X/630MW220RN9Z5L/B08 |
Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448
Contact Person: Mr. Jason
A10VSO18 Series Rexroth Hydraulic Pump , Variable Axial Piston Pump
Variable High Pressure Hydraulic Pump A10VSO45 Series With Long Service Life
Quick Speed Rexroth Hydraulic Pump , A10VSO71 Series Variable Piston Hydraulic Pump
Hydac Pressure Filter Element Replacement 0240D 0260D 0280D Series ISO Approved
Pressure Replacement Filter Element Hydac 0800D 0900D 1320D 1500D Series
Hydac 0240R Series Return Line Elements For Hydraulic Return Line Filter
Parker Denison Hydraulic Piston Pumps Variable Volume PVP16 Series
PVP41 Series Parker Denison Hydraulic Pumps Variable Volume Piston Pumps
PV140 PV180 Series Parker Hydraulic Pumps Axial Piston Pump On Hand
