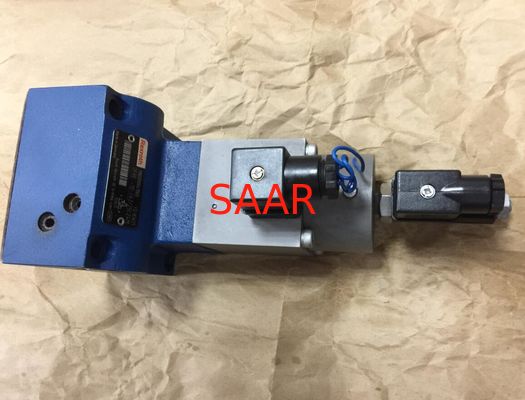

Name: R900411869 2FRE10-4X/25LZ4M 2FRE10-42/25LZ4M Proportional Flow Control Valve
Brand: Rexroth
SKU: R900411869 2FRE10-4X/25LZ4M 2FRE10-42/25LZ4M
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (178 reviews)

Home Products Rexroth Hydraulic Valves

R900411869 2FRE10-4X/25LZ4M 2FRE10-42/25LZ4M Proportional Flow Control Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900411869 2FRE10-4X/25LZ4M 2FRE10-42/25LZ4M
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900411869

Modeal No.:

2FRE10-4X/25LZ4M 2FRE10-42/25LZ4M

High Light:

R900411869

Proportional Flow Control Valve

Rexroth 2FRE Series Proportional flow control valve in 2-way version

Size 10, 16
Component series 4X
Max. operating pressure 315 bar
Flow, max. 160 l/min

Features
Valve with pressure compensator for pressure-compensated controlling of a flow
Proportional solenoid operation
For subplate mounting: Porting pattern according to ISO 6263

With electrical position control for the metering orifice
Axially movable position transducer coil, therefore an easy zero point calibration of the metering orifice is possible without having to interfere with the control electronics (electrical-hydraulic)
Low manufacturing tolerance of the valve and electric amplifier and amplifier module
Flow control in both directions through rectifier sandwich plate

Type Code:

01	02		03		04	05	06	07	08
2FRE		-	4X	/		B	K4		*

01	Proportional flow control valve in 2-way version		2FRE
02	Size 10		10
02	Size 16		16
03	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)		4X
Rated flow A → B, flow characteristics
04	Size 10
	Linear	Up to 10 l/min	10L
		Up to 16 l/min	16L
		Up to 25 l/min	25L
		Up to 50 l/min	50L
		Up to 60 l/min	60L
	Progressive with rapid traverse (fine control range)	With rapid traverse up to 40 l/min	5QE
		Up to 5 l/min	5Q
		Up to 10 l/min	10Q
		Up to 16 l/min	16Q
		Up to 25 l/min	25Q
	Size 16
	Linear	Up to 80 l/min	80L
		up to 100 l/min	100L
		Up to 125 l/min	125L
		Up to 160 l/min	160L
05	Withpressure compensator stroke limitation		B
Electrical connection
06	Without mating connector, connector DIN EN 175301-803-A (proportional solenoid) and GSA20 (position transducer)		K4
07	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524		M
07	FKM seals		V
08	Further details in the plain text		*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 2FRE Series Proportional flow control valve model list:

R900915817	2FRE10-4X/10LBK4M
R900785983	2FRE10-4X/10LBK4V
R900412644	2FRE10-4X/10LBZ4M
R900344246	2FRE10-4X/10LBZ4V
R900953546	2FRE10-4X/10LK4M
R900418015	2FRE10-4X/10LZ4M
R900487922	2FRE10-4X/10LZ4V
R900949575	2FRE10-4X/10QBK4M
R900496448	2FRE10-4X/10QBZ4M
R900963211	2FRE10-4X/10QK4M
R900496447	2FRE10-4X/10QZ4M
R900914429	2FRE10-4X/10QZ4M-220
R900536905	2FRE10-4X/10QZ4V
R900915825	2FRE10-4X/16LBK4M
R900963710	2FRE10-4X/16LBK4M=LB
R900760386	2FRE10-4X/16LBK4V
R900335244	2FRE10-4X/16LBV
R900417874	2FRE10-4X/16LBZ4M
R900558736	2FRE10-4X/16LBZ4M=LB
R900959337	2FRE10-4X/16LK4M
R900976050	2FRE10-4X/16LK4V
R900493805	2FRE10-4X/16LZ4M
R900340421	2FRE10-4X/16LZ4V
R900245908	2FRE10-4X/16QBK4M
R900496446	2FRE10-4X/16QBZ4M
R900768728	2FRE10-4X/16QK4M
R900496445	2FRE10-4X/16QZ4M
R900549112	2FRE10-4X/16QZ4M-220
R900915820	2FRE10-4X/25LBK4M
R900249888	2FRE10-4X/25LBK4V
R900591497	2FRE10-4X/25LBMK
R900488159	2FRE10-4X/25LBV
R900416551	2FRE10-4X/25LBZ4M
R900932728	2FRE10-4X/25LK4M
R900411869	2FRE10-4X/25LZ4M
R900520242	2FRE10-4X/25LZ4M-250
R900485279	2FRE10-4X/25LZ4V
R900962961	2FRE10-4X/25QBK4M
R900491479	2FRE10-4X/25QBZ4M
R900375533	2FRE10-4X/25QBZ4V
R900948692	2FRE10-4X/25QK4M
R900415342	2FRE10-4X/25QZ4M
R900584810	2FRE10-4X/25QZ4V
R900764820	2FRE10-4X/2QEBK4M
R900491645	2FRE10-4X/2QEBZ4M
R900963481	2FRE10-4X/2QEK4M
R900418854	2FRE10-4X/2QEZ4M
R900492604	2FRE10-4X/36L
R900535475	2FRE10-4X/36LBZ4M
R900454595	2FRE10-4X/50L-150
R900915815	2FRE10-4X/50LBK4M
R901021448	2FRE10-4X/50LBK4V
R900419483	2FRE10-4X/50LBZ4M
R900562129	2FRE10-4X/50LBZ4M-229
R900489933	2FRE10-4X/50LBZ4V
R900915813	2FRE10-4X/50LK4M
R900244809	2FRE10-4X/50LK4V
R900415446	2FRE10-4X/50LZ4M
R900520241	2FRE10-4X/50LZ4M-220
R900338655	2FRE10-4X/50LZ4V
R900488809	2FRE10-4X/50QB
R900931237	2FRE10-4X/5LBK4M
R900486100	2FRE10-4X/5LBV
R900496441	2FRE10-4X/5LBZ4M
R900942938	2FRE10-4X/5LK4M
R900962409	2FRE10-4X/5LK4V
R900415493	2FRE10-4X/5LZ4M
R900903885	2FRE10-4X/5LZ4V
R900946937	2FRE10-4X/5QBK4M
R900496442	2FRE10-4X/5QBZ4M
R900518324	2FRE10-4X/5QBZ4V
R900964806	2FRE10-4X/5QEBK4M
R900496443	2FRE10-4X/5QEBZ4M
R900962277	2FRE10-4X/5QEK4M
R900496440	2FRE10-4X/5QEZ4M
R900927423	2FRE10-4X/5QEZ4V
R900496439	2FRE10-4X/5QZ4M
R900485280	2FRE10-4X/5QZ4V
R900915823	2FRE10-4X/60LBK4M
R900976616	2FRE10-4X/60LBK4V
R900496444	2FRE10-4X/60LBZ4M
R900333574	2FRE10-4X/60LBZ4V
R900915821	2FRE10-4X/60LK4M
R900973066	2FRE10-4X/60LK4V
R900418109	2FRE10-4X/60LZ4M
R900487902	2FRE10-4X/60LZ4V
R900349166	2FRE10-4X/8LE
R901434134	2FRE10-4X=25LBK4M
R978016676	2FRE10-4X/25LK4/V
