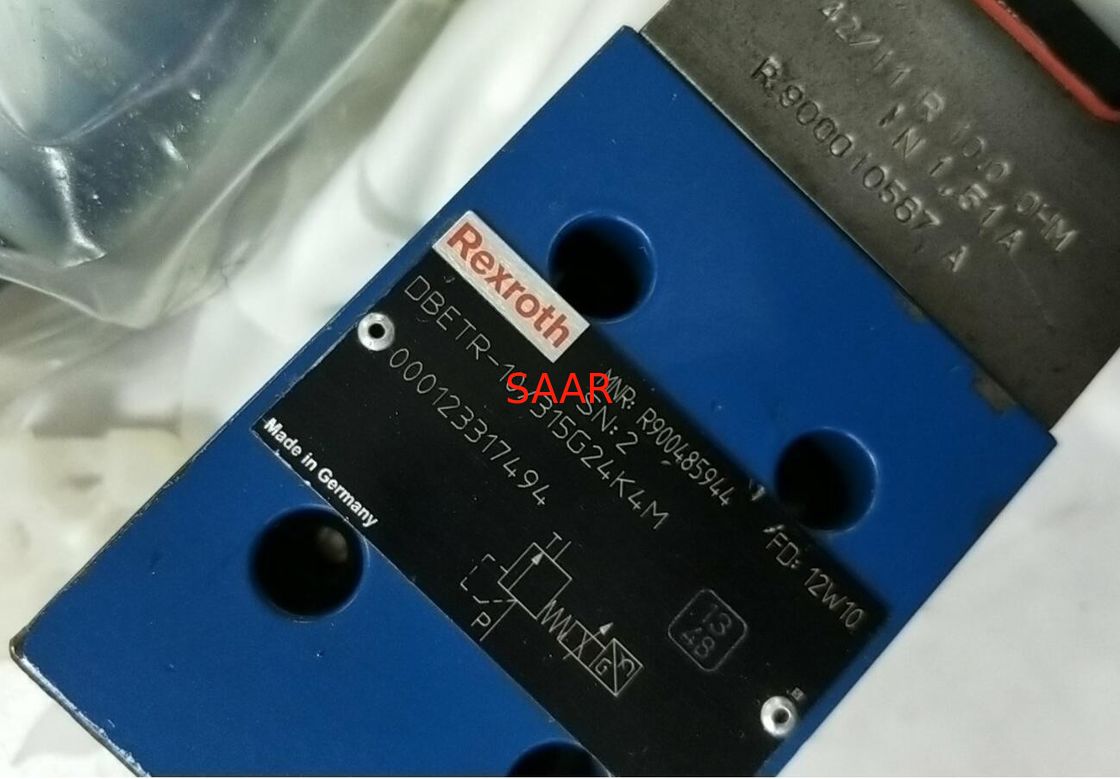

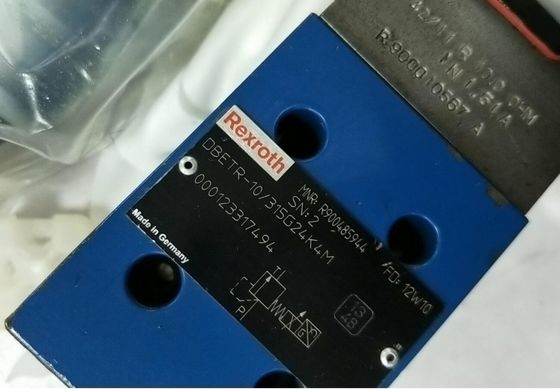

Rexroth R900485944 DBETR-1X/315G24K4M DBETR-10/315G24K4M Proportional Pressure Relief Valve

Rexroth DBETR-1X Series Proportional pressure relief valve

Nominal size 6
Component series 1X
Maximum operating pressure 350 bar
Maximum flow 3 l/min

Features


K4248-14 – Valve for electrical remote control of pressure
– Direct operated proportional pressure relief valve, of poppet design
– Proportional solenoid actuation with inductive position transducer (pressure balanced)
– For subplate mounting:
Porting pattern to ISO 4401-03-02-0-94
Subplates to SAARalogue sheet RE 45052
(separate order), see page 9
– Electrical closed loop position control of the spring pretension, hence low hysteresis
– Good repeatability
– Valve and electronic control from one source
– Control electronics:
• Analogue amplifier VT-VRPA1-100-1X/ in Eurocard format
(separate order),
• Analogue amplifier of modular design
VT-MRPA1-100-1X/V0/0 (separate order)
