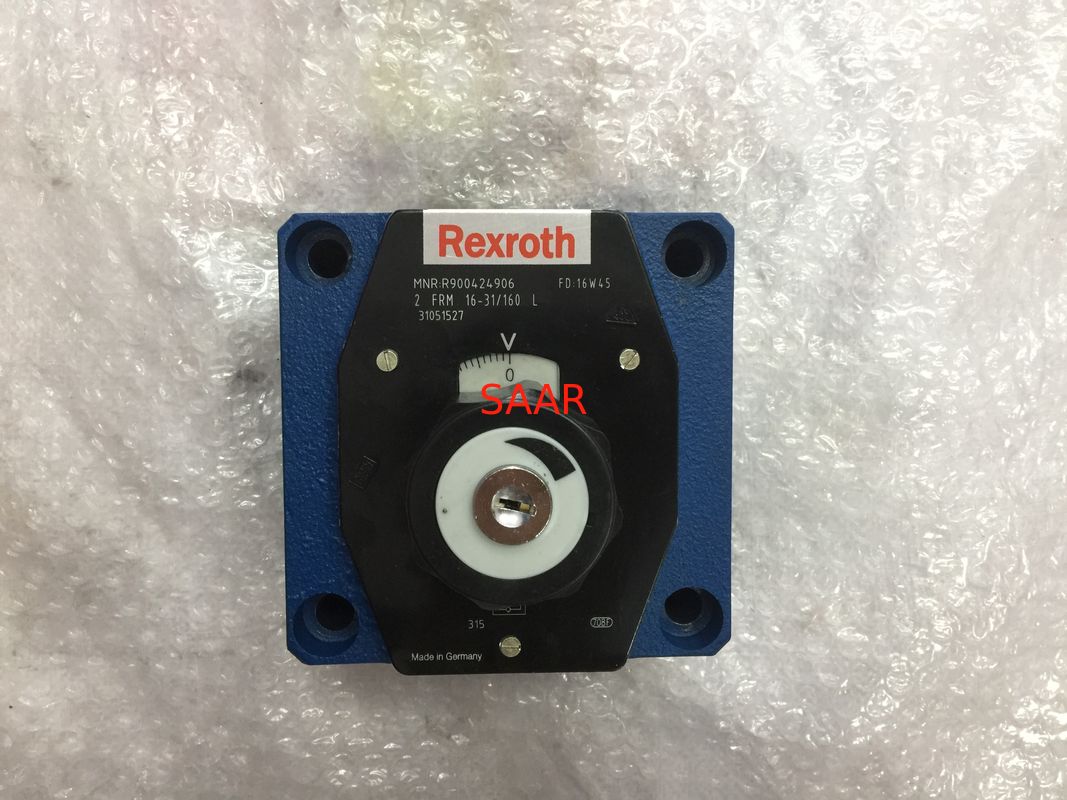

Name: R900424906 2FRM16-3X/160L 2FRM16-31/160L Flow Control Valve
Brand: Rexroth
SKU: R900424906 2FRM16-3X/160L 2FRM16-31/160L
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (129 reviews)

Home Products Rexroth Hydraulic Valves

R900424906 2FRM16-3X/160L 2FRM16-31/160L Flow Control Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900424906 2FRM16-3X/160L 2FRM16-31/160L
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900424906

MODEL:

2FRM16-3X/160L 2FRM16-31/160L

High Light:

R900424906

Rexroth Hydraulic Flow Control Valve

2FRM16-3X/160L

Rexroth 2-way flow control valve 2FRM

Size 10, 16
Component series 3X
Maximum operating pressure 315 bar
Maximum flow 160 l/min

For subplate mounting
Porting pattern according to DIN 24340 form G and ISO 6263
Mechanical actuation
Pressure compensator stroke limitation, optional
Start-up jump reduction
Flow control in both directions through rectifier sandwich plate

Type Code:

01	02	03		04		05	06	07	08	09	10	11
2FR			–	3X	/							*

01	2-way flow control valve	2FR
Type of actuation
02	Mechanical	M
	Hydraulic	H
	Electro-hydraulic	W
03	Size 10	10
03	Size 16	16
04	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Flow range A to B
05	Size 10, linear
	Up to 10 l/min	10L
	Up to 16 l/min	16L
	Up to 25 l/min	25L
	Up to 50 l/min	50L
	Size 16, linear
	Up to 60 l/min	60L
	Up to 100 l/min	100L
	Up to 160 l/min	160L
06	Without pressure compensator stroke limitation	no code
06	With pressure compensator stroke limitation	B
07	Without actual value potentiometer	no code
07	With actual value potentiometer (only types 2FRH and 2FRW)	P
08	With concealed manual override (standard)	N9
	With manual override	N
	Without manual override	no code
Electrical connection
09	Individual connection
09	Without mating connector; connector DIN EN 175301-803	K4¹⁾
Seal material
10	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used.
11	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 2-way flow control valve 2FRM Model List:

R900336496	2FRM16-3X/100LB/5
R900498494	2FRM16-3X/160L/5
R900336497	2FRM16-3X/160LB/5
R900458091	2FRM16-3X/16L
R900453941	2FRM16-3X/16LB
R900427525	2FRM16-3X/25LB
R900424905	2FRM16-3X/100L
R900420287	2FRM16-3X/100LB
R900411378	2FRM16-3X/100LBJ
R900471183	2FRM16-3X/100LBV
R900433570	2FRM16-3X/100LJ
R900429596	2FRM16-3X/100LV
R900456011	2FRM16-3X/100QB
R900447971	2FRM16-3X/125L
R900415315	2FRM16-3X/125LB
R900424906	2FRM16-3X/160L
R900574724	2FRM16-3X/160L=LB
R900424902	2FRM16-3X/160LB
R900416601	2FRM16-3X/160LBJ
R900534016	2FRM16-3X/160LBJV
R900424034	2FRM16-3X/160LBV
R900463601	2FRM16-3X/160LJ
R900427777	2FRM16-3X/160LV
R900424907	2FRM16-3X/25L
R978011611	2FRM16-3X/25LBV
R900443812	2FRM16-3X/40L
R900485839	2FRM16-3X/40LB
R900423271	2FRM16-3X/60L
R900424903	2FRM16-3X/60LB
R900411046	2FRM16-3X/60LBJ
R900428280	2FRM16-3X/60LBV
R900498326	2FRM16-3X/60LJ
R900424904	2FRM16-3X/60LV
R900437666	2FRM16-3X/60QB
R900463262	2FRM16-3X/80L
R900468913	2FRM16-3X/80LB
R900414597	2FRM16-3X/80LJ
R900993373	2FRM16-3X=100L=PL
R900081196	2FRM16-3X=100LB=PL
R901411199	2FRM16-3X=125LB
R900072937	2FRM16-3X=160L=PL
R901266648	2FRM16-3X=160LBV
