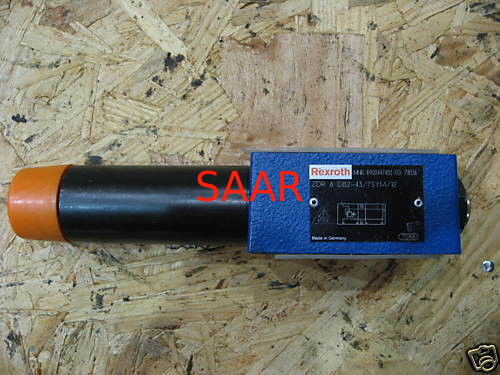

Name: R900447403 ZDR6DB2-4X/75YM/12 ZDR6DB2-43/75YM/12 Pressure Reducing Valve
Brand: Rexroth
SKU: R900447403 ZDR6DB2-4X/75YM/12 ZDR6DB2-43/75YM/12
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Home Products Rexroth Hydraulic Valves

R900447403 ZDR6DB2-4X/75YM/12 ZDR6DB2-43/75YM/12 Pressure Reducing Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900447403 ZDR6DB2-4X/75YM/12 ZDR6DB2-43/75YM/12
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Model:

R900447403

MNR:

ZDR6DB2-4X/75YM/12 ZDR6DB2-43/75YM/12

High Light:

R900447403

ZDR6DB2-4X/75YM/12

Rexroth Hydraulic Pressure Reducing Valve

Rexroth Pressure reducing valve, direct operated ZDR6D Series

Size 6
Component series 4X
Maximum operating pressure 350 bar
Maximum flow 50 l/min

Features

Sandwich plate valve
Porting pattern according to ISO 4401-03-02-0-05 (with or without loSAARing hole)
4 pressure ratings
4 adjustment types:
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
Pressure reduction in channel A, B or channel P
Check valve, optional (version “A” only)
Corrosion-protected design

Type Code

01	02	03	04	05	06		07		08	09	10	11	12	13	14
Z	DR	6	D			–	4X	/		Y					*

01	Sandwich plate valve	Z
02	Pressure reducing valve	DR
03	Size 6	6
04	Direct operated	D
05	Pressure reduction in channel A➁	A
	Pressure reduction in channel B➁	B
	Pressure reduction in channel P➁	P
Adjustment type
06	Rotary knob	1
	Sleeve with hexagon and protective cap ("J3" version without protective cap)	2
	Lockable rotary knob with scale	3 ¹⁾
	Rotary knob with scale	7
07	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
08	Secondary pressure up to 25 bar	25
	Secondary pressure up to 75 bar	75
	Secondary pressure up to 150 bar	150
	Secondary pressure 210 bar	210
	Secondary pressure up to 315 bar (only version "B", "P", and "2")	315
09	Internal pilot oil supply, external pilot oil return	Y
10	With check valve (only version "A")	no code
10	Without check valve	M
Corrosion resistance
11	None	no code
11	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Seal material
12	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used.
13	Without loSAARing hole	no code
	With loSAARing hole	/60²⁾
	With loSAARing hole and locking pin ISO 8752-3x8-St	/62
13	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Pressure reducing valve, direct operated ZDR6D Model List:

R900431556	ZDR6DB1-4X/150YM
R900738257	ZDR6DB1-4X/150YM/12
R901137880	ZDR6DB1-4X/150YMJ3
R900560196	ZDR6DB1-4X/150YMV
R901338688	ZDR6DB1-4X/150YMXC
R900583996	ZDR6DB1-4X/210YM
R900967537	ZDR6DB1-4X/210YMV
R901062016	ZDR6DB1-4X/210YMXCV
R900445343	ZDR6DB1-4X/25YM
R900469589	ZDR6DB1-4X/25YM/12
R900967538	ZDR6DB1-4X/25YMV
R900971183	ZDR6DB1-4X/75-30YM
R900441458	ZDR6DB1-4X/75YM
R900434486	ZDR6DB1-4X/75YM/12
R900967930	ZDR6DB1-4X/75YMV
R900756311	ZDR6DB2-4X/150-100YM
R900431172	ZDR6DB2-4X/150YM
R900509022	ZDR6DB2-4X/150YM/12
R900922761	ZDR6DB2-4X/150YM=LB
R901393919	ZDR6DB2-4X/150YM=NE
R901343167	ZDR6DB2-4X/150YMJ3V
R900510123	ZDR6DB2-4X/150YMV
R901144772	ZDR6DB2-4X/160YMV/60
R901308376	ZDR6DB2-4X/210P180YM
R900463269	ZDR6DB2-4X/210YM
R900593549	ZDR6DB2-4X/210YMSO611
R900929599	ZDR6DB2-4X/210YM/12
R901239019	ZDR6DB2-4X/210YM/60
R900949063	ZDR6DB2-4X/210YMJ3
R900599763	ZDR6DB2-4X/210YMV
R901043977	ZDR6DB2-4X/25-05YM
R901177583	ZDR6DB2-4X/25-10YM
R900900532	ZDR6DB2-4X/25-20YM
R901144764	ZDR6DB2-4X/250YMV/60
R900449839	ZDR6DB2-4X/25YM
R900533096	ZDR6DB2-4X/25YMMIL15
R900440306	ZDR6DB2-4X/25YM/12
R900911332	ZDR6DB2-4X/25YM/50
R901426047	ZDR6DB2-4X/25YM/60
R901468219	ZDR6DB2-4X/25YM/62
R900548486	ZDR6DB2-4X/25YMV
R900443164	ZDR6DB2-4X/25YMV/12
R901137855	ZDR6DB2-4X/30YMV/60
R901354713	ZDR6DB2-4X/315YMVSO4
R900409962	ZDR6DB2-4X/35YW13
R901225642	ZDR6DB2-4X/75-30YM
R901242770	ZDR6DB2-4X/75-50YM
R900579978	ZDR6DB2-4X/75-60YM
R900431771	ZDR6DB2-4X/75YM
R901293572	ZDR6DB2-4X/75YMW13
R900447403	ZDR6DB2-4X/75YM/12
R900911333	ZDR6DB2-4X/75YM/50
R901133187	ZDR6DB2-4X/75YM/60
R900749296	ZDR6DB2-4X/75YMJ3
R900586123	ZDR6DB2-4X/75YMV
R901038664	ZDR6DB2-4X/75YMV/60
R901137544	ZDR6DB2-4X/75YV
R901137856	ZDR6DB2-4X/80YMV/60
R901269775	ZDR6DB2-4X=210YM
R901274590	ZDR6DB2-4X=210YMV
R900428322	ZDR6DB3-4X/150YM
R900533628	ZDR6DB3-4X/150YMV
R901144924	ZDR6DB3-4X/160YMV/60
R900512864	ZDR6DB3-4X/210YM
R901110655	ZDR6DB3-4X/210YM/62
R901029565	ZDR6DB3-4X/210YMV
R900425957	ZDR6DB3-4X/25YM
R900463533	ZDR6DB3-4X/25YMV
R901137853	ZDR6DB3-4X/30YMV/60
R900432119	ZDR6DB3-4X/75YM
R900546353	ZDR6DB3-4X/75YMSO94
R901124936	ZDR6DB3-4X/75YM/62
R900573505	ZDR6DB3-4X/75YMV
R900427583	ZDR6DB3-4X/75YMV/12
R901137854	ZDR6DB3-4X/80YMV/60
R900426995	ZDR6DB7-4X/150YM
R900945090	ZDR6DB7-4X/150YMV/12
R900426994	ZDR6DB7-4X/210YM
R900583205	ZDR6DB7-4X/25YM
R900581382	ZDR6DB7-4X/75YM
R901284798	ZDR6DB7-4X/75YMV
R901137870	ZDR6DB7-4X/80YMV/60
R978863488	ZDR6DB1-4X/210YM/12
R978869964	ZDR6DB2-4X/150YMV/12
R978864402	ZDR6DB2-4X/210YMV/12
R978865862	ZDR6DB2-4X/75YMV/12
R978015590	ZDR6DB3-4X/25YM/12
R978917095	ZDR6DB7-4X/75YM/12
