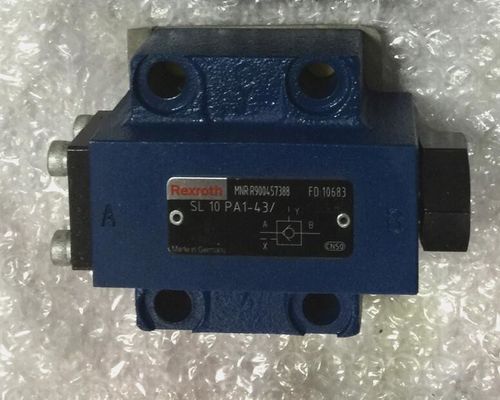

Rexroth R900457388 SL10PA1-43/ SL10PA1-4X/ Pilot Operated Check Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900457388 SL10PA1-43/ SL10PA1-4X/
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900457388

Model No.:

SL10PA1-43/ SL10PA1-4X/

High Light:

R900457388

Rexroth Hydraulic Pilot Check Valve

ISO Pilot Operated Check Valve

Check valves, pilot operated
SV 10...32

Size 10 … 32
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 550 l/min

Type Code:

01	02	03	04	05	06		07		08		09	10	11	12	13	14
S	V					–	4X	/		–						*

Pilot oil return internal = V Pilot oil return external = L

01	Check valve	S
02	Pilot oil return, internal	V
03	Size 10	10
	Size 20	20
	Size 32	30
Type of connection
04	Subplate mounting	P
04	Threaded connection	G
05	With pre-opening	A
05	Without pre-opening	B
Cracking pressure
06	See characteristic curves (A → B)	1
		2
		3
		4
07	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Spool position monitoring
08	Without position switch	no code
	With position switch ¹⁾	QMG24
	For more information see "Electrical connection"
Orifice fitting channel Y
09	Channel Y closed (standard)	Y99
09	Orifice Ø** in channel Y ²⁾	Y**
Seal material
10	NBR seals	N
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance
11	None	no code
11	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
12	Standard	no code
	Pilot pressure p_pilot from channel X	SO168
	Control open spool with shaft sealing (between channel X–Y and Y–A)	SO286
Connection thread (versions with threaded connection "G" only)
13	Pipe thread "G" according to ISO 228-1	no code
13	Pipe thread “UNF/UN” according to ANSI/ASME B 1.1	/12
14	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated SL10 Model List:

R900483370	SL10GA1-4X/
R900448378	SL10GA1-4X//12
R900429093	SL10GA1-4X//5
R900457618	SL10GA1-4X/J
R900599838	SL10GA1-4X/SO67
R900450160	SL10GA1-4X/V
R900062179	SL10GA1-4X/V/12
R900450776	SL10GA2-4X/
R900521462	SL10GA2-4X//12
R900502670	SL10GA2-4X/V
R978014265	SL10GA2-4X/V/12
R901363026	SL10GA2-4X=
R900454520	SL10GA3-4X/
R900591065	SL10GA3-4X/V
R900445826	SL10GA4-4X/
R900718605	SL10GA4-4X/V
R900451135	SL10GB1-4X/
R900507043	SL10GB1-4X//12
R900220757	SL10GB1-4X//5
R900580052	SL10GB1-4X/V
R900582730	SL10GB1-4X/V/12
R900474395	SL10GB2-4X/
R900511048	SL10GB2-4X/J
R900473900	SL10GB2-4X/V
R900447726	SL10GB3-4X/
R900520846	SL10GB3-4X/J
R900522041	SL10GB3-4X/V
R900536395	SL10GB4-4X/
R900550802	SL10GB4-4X/V/12
R900483371	SL10PA1-4X/
R988002099	SL10PA1-4X/
R988004505	SL10PA1-4X/
R900425616	SL10PA1-4X/J
R901430218	SL10PA1-4X/J3
R900207273	SL10PA1-4X/JV
R900537478	SL10PA1-4X/SO96
R900459576	SL10PA1-4X/SO113
R900440205	SL10PA1-4X/SO149
R900508232	SL10PA1-4X/SO251
R900586402	SL10PA1-4X/SO280
R900434337	SL10PA1-4X/SO67
R900079747	SL10PA1-4X/SO97
R900457388	SL10PA1-4X/V
R900425580	SL10PA1-4X/VSO113
R901402148	SL10PA1-4X/VJ50
R901406522	SL10PA1-4X=VJ50
R900442260	SL10PA2-4X/
R901031296	SL10PA2-4X/SO96
R900599830	SL10PA2-4X/SO251
R900586396	SL10PA2-4X/V
R900443418	SL10PA3-4X/
R901341937	SL10PA3-4X/J50
R900504957	SL10PA3-4X/V
R901429658	SL10PA3-4X/VJ3
R900419510	SL10PA4-4X/
R900020963	SL10PA4-4X/J
R901141208	SL10PA4-4X/JV
R900403579	SL10PA4-4X/V
R901430215	SL10PA4-4X/VJ3
R900443419	SL10PB1-4X/
R900058130	SL10PB1-4X/SO313
R900403795	SL10PB1-4X/J
R900532365	SL10PB1-4X/SO257
R900449987	SL10PB1-4X/SO96
R900079790	SL10PB1-4X/SO97
R900481121	SL10PB1-4X/SO97
R900406641	SL10PB1-4X/V
R900457386	SL10PB2-4X/
R900514645	SL10PB2-4X/V
R900438637	SL10PB3-4X/
R901121247	SL10PB3-4X/V
R901430220	SL10PB3-4X/VJ3
R901301264	SL10PB3-4X/VJ50
R900451335	SL10PB4-4X/
R900527575	SL10PB4-4X/V
R978878966	SL10GB2-4X/12
