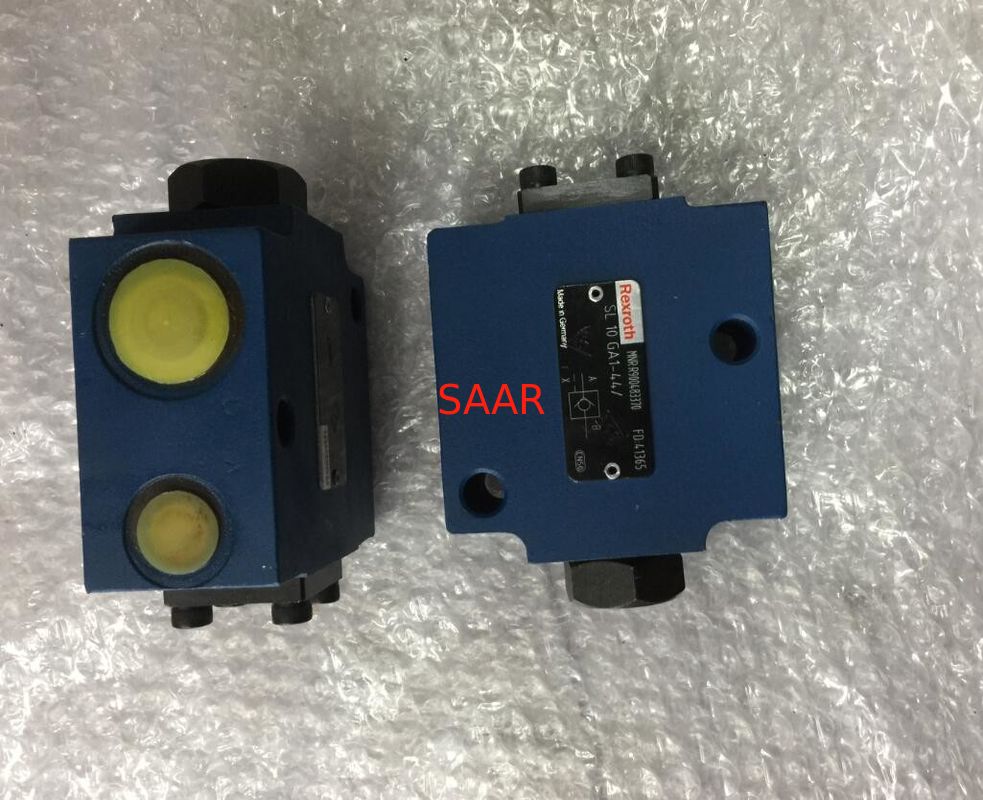

Rexroth R900483370 SL10GA1-44/ SL10GA1-4X/ Pilot Operated Check Valve

Rexroth R900483370 SL10GA1-44/ SL10GA1-4X/ Pilot Operated Check Valve

  • Rexroth R900483370 SL10GA1-44/  SL10GA1-4X/ Pilot Operated Check Valve
Rexroth R900483370 SL10GA1-44/  SL10GA1-4X/ Pilot Operated Check Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900483370 SL10GA1-44/ SL10GA1-4X/
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900483370 Model No.: SL10GA1-44/ SL10GA1-4X/
High Light:

R900483370

,

Rexroth Pilot Operated Check Valve

,

Rexroth Hydraulic Check Valve

Check valves, pilot operated
SV 10...32



Size 10 … 32
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 550 l/min



Type Code:

01 02 03 04 05 06   07   08   09 10 11 12 13 14
S V         4X /             *
Pilot oil return internal = V Pilot oil return external = L
01 Check valve S
02 Pilot oil return, internal V
03 Size 10 10
Size 20 20
Size 32 30
Type of connection
04 Subplate mounting P
Threaded connection G
05 With pre-opening A
Without pre-opening B
Cracking pressure
06 See characteristic curves (A → B) 1
2
3
4
07 Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) 4X
Spool position monitoring
08 Without position switch no code

With position switch

1)​

QMG24
For more information see "Electrical connection"
Orifice fitting channel Y
09 Channel Y closed (standard) Y99

Orifice Ø** in channel Y

2)

Y**
Seal material
10 NBR seals N
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance
11 None no code
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3
12 Standard no code
Pilot pressure ppilot from channel X SO168
Control open spool with shaft sealing (between channel X–Y and Y–A) SO286
Connection thread (versions with threaded connection "G" only)
13 Pipe thread "G" according to ISO 228-1 no code
Pipe thread “UNF/UN” according to ANSI/ASME B 1.1 /12
14 Further details in the plain text *

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated SL10 Model List:

R900483370 SL10GA1-4X/
R900448378 SL10GA1-4X//12
R900429093 SL10GA1-4X//5
R900457618 SL10GA1-4X/J
R900599838 SL10GA1-4X/SO67
R900450160 SL10GA1-4X/V
R900062179 SL10GA1-4X/V/12
R900450776 SL10GA2-4X/
R900521462 SL10GA2-4X//12
R900502670 SL10GA2-4X/V
R978014265 SL10GA2-4X/V/12
R901363026 SL10GA2-4X=
R900454520 SL10GA3-4X/
R900591065 SL10GA3-4X/V
R900445826 SL10GA4-4X/
R900718605 SL10GA4-4X/V
R900451135 SL10GB1-4X/
R900507043 SL10GB1-4X//12
R900220757 SL10GB1-4X//5
R900580052 SL10GB1-4X/V
R900582730 SL10GB1-4X/V/12
R900474395 SL10GB2-4X/
R900511048 SL10GB2-4X/J
R900473900 SL10GB2-4X/V
R900447726 SL10GB3-4X/
R900520846 SL10GB3-4X/J
R900522041 SL10GB3-4X/V
R900536395 SL10GB4-4X/
R900550802 SL10GB4-4X/V/12
R900483371 SL10PA1-4X/
R988002099 SL10PA1-4X/
R988004505 SL10PA1-4X/
R900425616 SL10PA1-4X/J
R901430218 SL10PA1-4X/J3
R900207273 SL10PA1-4X/JV
R900537478 SL10PA1-4X/SO96
R900459576 SL10PA1-4X/SO113
R900440205 SL10PA1-4X/SO149
R900508232 SL10PA1-4X/SO251
R900586402 SL10PA1-4X/SO280
R900434337 SL10PA1-4X/SO67
R900079747 SL10PA1-4X/SO97
R900457388 SL10PA1-4X/V
R900425580 SL10PA1-4X/VSO113
R901402148 SL10PA1-4X/VJ50
R901406522 SL10PA1-4X=VJ50
R900442260 SL10PA2-4X/
R901031296 SL10PA2-4X/SO96
R900599830 SL10PA2-4X/SO251
R900586396 SL10PA2-4X/V
R900443418 SL10PA3-4X/
R901341937 SL10PA3-4X/J50
R900504957 SL10PA3-4X/V
R901429658 SL10PA3-4X/VJ3
R900419510 SL10PA4-4X/
R900020963 SL10PA4-4X/J
R901141208 SL10PA4-4X/JV
R900403579 SL10PA4-4X/V
R901430215 SL10PA4-4X/VJ3
R900443419 SL10PB1-4X/
R900058130 SL10PB1-4X/SO313
R900403795 SL10PB1-4X/J
R900532365 SL10PB1-4X/SO257
R900449987 SL10PB1-4X/SO96
R900079790 SL10PB1-4X/SO97
R900481121 SL10PB1-4X/SO97
R900406641 SL10PB1-4X/V
R900457386 SL10PB2-4X/
R900514645 SL10PB2-4X/V
R900438637 SL10PB3-4X/
R901121247 SL10PB3-4X/V
R901430220 SL10PB3-4X/VJ3
R901301264 SL10PB3-4X/VJ50
R900451335 SL10PB4-4X/
R900527575 SL10PB4-4X/V
R978878966 SL10GB2-4X/12
