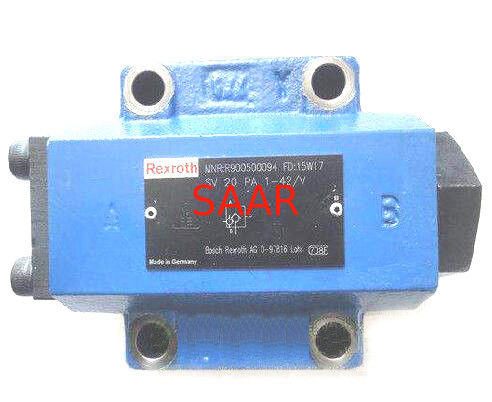

Rexroth R900500094 SV20PA1-42/V SV20PA1-4X/V Pilot Operated Check Valve

Rexroth R900500094 SV20PA1-42/V SV20PA1-4X/V Pilot Operated Check Valve

  • Rexroth R900500094 SV20PA1-42/V SV20PA1-4X/V Pilot Operated Check Valve
Rexroth R900500094 SV20PA1-42/V SV20PA1-4X/V Pilot Operated Check Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900500094 SV20PA1-42/V SV20PA1-4X/V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900500094 Model No.: SV20PA1-42/V SV20PA1-4X/V
High Light:

R900500094

,

Rexroth Pilot Operated Check Valve

,

SV20PA1-4X/V

Check valves, pilot operated
SV 10...32



Size 10 … 32
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 550 l/min



Type Code:

01 02 03 04 05 06   07   08   09 10 11 12 13 14
S V         4X /             *
Pilot oil return internal = V Pilot oil return external = L
01 Check valve S
02 Pilot oil return, internal V
03 Size 10 10
Size 20 20
Size 32 30
Type of connection
04 Subplate mounting P
Threaded connection G
05 With pre-opening A
Without pre-opening B
Cracking pressure
06 See characteristic curves (A → B) 1
2
3
4
07 Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) 4X
Spool position monitoring
08 Without position switch no code

With position switch

1)​

QMG24
For more information see "Electrical connection"
Orifice fitting channel Y
09 Channel Y closed (standard) Y99

Orifice Ø** in channel Y

2)

Y**
Seal material
10 NBR seals N
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance
11 None no code
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3
12 Standard no code
Pilot pressure ppilot from channel X SO168
Control open spool with shaft sealing (between channel X–Y and Y–A) SO286
Connection thread (versions with threaded connection "G" only)
13 Pipe thread "G" according to ISO 228-1 no code
Pipe thread “UNF/UN” according to ANSI/ASME B 1.1 /12
14 Further details in the plain text *

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated SV20 Model List:

R900587550 SV20GA1-4X/
R900508425 SV20GA1-4X//12
R900510860 SV20GA1-4X//5
R900500292 SV20GA1-4X/V
R900518477 SV20GA1-4X/V/12
R900072649 SV20GA1-4X=
R900500216 SV20GA2-4X/
R900518319 SV20GA2-4X//12
R900053412 SV20GA2-4X/V
R900599639 SV20GA3-4X/
R900203988 SV20GA3-4X//12
R900511197 SV20GA4-4X/
R900511371 SV20GA4-4X/V
R900598553 SV20GB1-4X/
R900074693 SV20GB1-4X//12
R900528413 SV20GB1-4X/V
R978872250 SV20GB1-4X/V/12
R901000277 SV20GB1-4X/V/12
R900599506 SV20GB2-4X/
R978897606 SV20GB2-4X//12
R900059115 SV20GB2-4X/J
R901318587 SV20GB2-4X/V
R900502808 SV20GB3-4X/
R900059482 SV20GB3-4X//12
R900020921 SV20GB3-4X/SO295
R900500842 SV20GB4-4X/
R900065256 SV20GB4-4X/V
R900587557 SV20PA1-4X/
R900077864 SV20PA1-4X/J
R901430270 SV20PA1-4X/J3
R900500094 SV20PA1-4X/V
R900599535 SV20PA2-4X/
R901170055 SV20PA2-4X/J3
R900566627 SV20PA2-4X/V
R900598342 SV20PA3-4X/
R900502113 SV20PA3-4X/V
R900532463 SV20PA4-4X/
R900987025 SV20PA4-4X/V
R900501701 SV20PB1-4X/
R900021845 SV20PB1-4X/V
R900501802 SV20PB2-4X/
R900517582 SV20PB2-4X/V
R900501468 SV20PB3-4X/
R900507740 SV20PB4-4X/
R901444120 SV20PB4-4X/V
R988002176 SV20PA1-4X/
R988002177 SV20PB1-4X/
