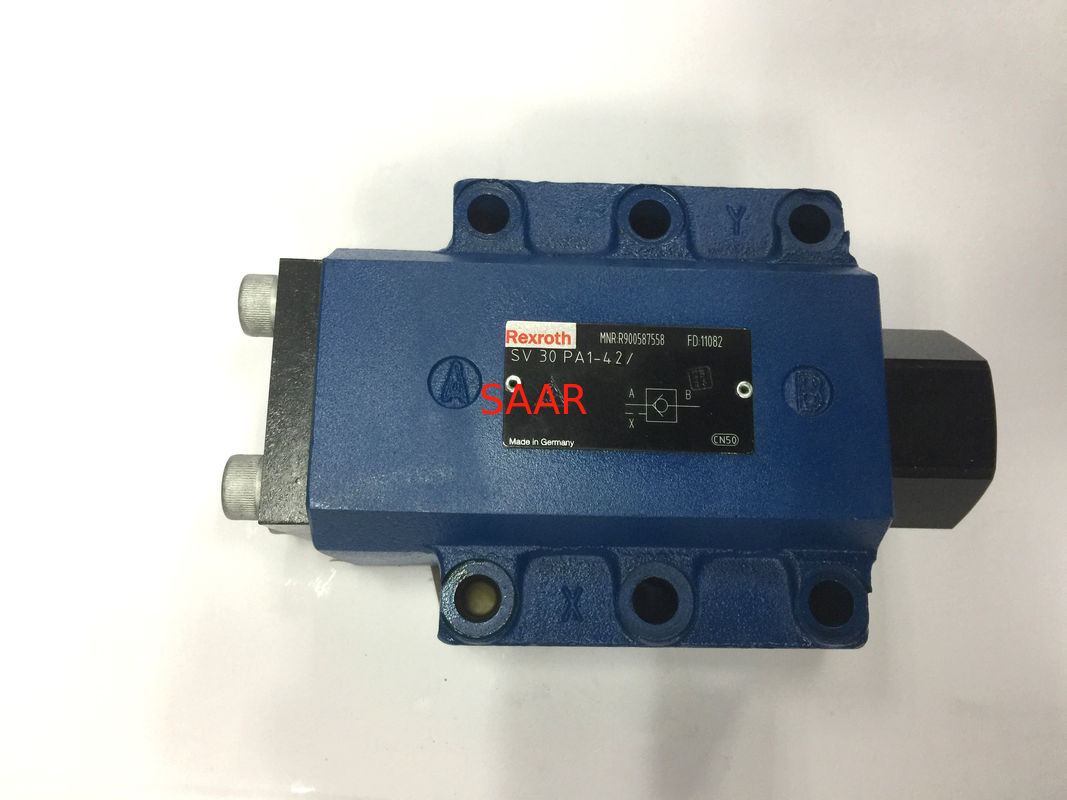

Name: R900587558 SV30PA1-42/ SV30PA1-4X/ Rexroth Pilot Operated Check Valve
Brand: Rexroth
SKU: R900587558 SV30PA1-42/ SV30PA1-4X/
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (190 reviews)

Home Products Rexroth Hydraulic Valves

R900587558 SV30PA1-42/ SV30PA1-4X/ Rexroth Pilot Operated Check Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900587558 SV30PA1-42/ SV30PA1-4X/
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900587558

Model No.:

SV30PA1-42/ SV30PA1-4X/

High Light:

Rexroth Pilot Operated Check Valve

R900587558

SV30PA1-4X/

Check valves, pilot operated
SV 10...32

Size 10 … 32
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 550 l/min

Type Code:

01	02	03	04	05	06		07		08		09	10	11	12	13	14
S	V					–	4X	/		–						*

Pilot oil return internal = V Pilot oil return external = L

01	Check valve	S
02	Pilot oil return, internal	V
03	Size 10	10
	Size 20	20
	Size 32	30
Type of connection
04	Subplate mounting	P
04	Threaded connection	G
05	With pre-opening	A
05	Without pre-opening	B
Cracking pressure
06	See characteristic curves (A → B)	1
		2
		3
		4
07	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Spool position monitoring
08	Without position switch	no code
	With position switch ¹⁾	QMG24
	For more information see "Electrical connection"
Orifice fitting channel Y
09	Channel Y closed (standard)	Y99
09	Orifice Ø** in channel Y ²⁾	Y**
Seal material
10	NBR seals	N
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance
11	None	no code
11	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
12	Standard	no code
	Pilot pressure p_pilot from channel X	SO168
	Control open spool with shaft sealing (between channel X–Y and Y–A)	SO286
Connection thread (versions with threaded connection "G" only)
13	Pipe thread "G" according to ISO 228-1	no code
13	Pipe thread “UNF/UN” according to ANSI/ASME B 1.1	/12
14	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated SV30 Model List:

R900587552	SV30GA1-4X/
R900517536	SV30GA1-4X//12
R900031560	SV30GA1-4X//5
R900527645	SV30GA1-4X/V
R900225857	SV30GA1-4X/V/12
R900501151	SV30GA2-4X/
R900528711	SV30GA2-4X//12
R900520649	SV30GA2-4X/V
R978906849	SV30GA2-4X/V/12
R900500091	SV30GA3-4X/
R900573238	SV30GA4-4X/
R978910038	SV30GA4-4X/V/12
R900599743	SV30GB1-4X/
R900560697	SV30GB1-4X//12
R901273399	SV30GB1-4X/V
R900504124	SV30GB2-4X/
R978899303	SV30GB2-4X//12
R900224095	SV30GB2-4X/V
R978903236	SV30GB2-4X/V/12
R900571302	SV30GB3-4X/
R900515510	SV30GB4-4X/
R900587558	SV30PA1-4X/
R900987806	SV30PA1-4X/J
R900500892	SV30PA1-4X/V
R900599456	SV30PA2-4X/
R900502112	SV30PA2-4X/V
R900599890	SV30PA3-4X/
R901137253	SV30PA3-4X/V
R978917483	SV30PA3-4X/V
R900505554	SV30PA4-4X/
R900525829	SV30PA4-4X/V
R900502240	SV30PB1-4X/
R901135580	SV30PB1-4X/V
R978868962	SV30PB1-4X/V
R900599647	SV30PB2-4X/
R900053091	SV30PB2-4X/V
R900515645	SV30PB3-4X/
R900572116	SV30PB3-4X/V
R900513203	SV30PB4-4X/
R900049469	SV30PB4-4X//50
R900240914	SV30PB4-4X/V
R988002178	SV30PA1-4X/
