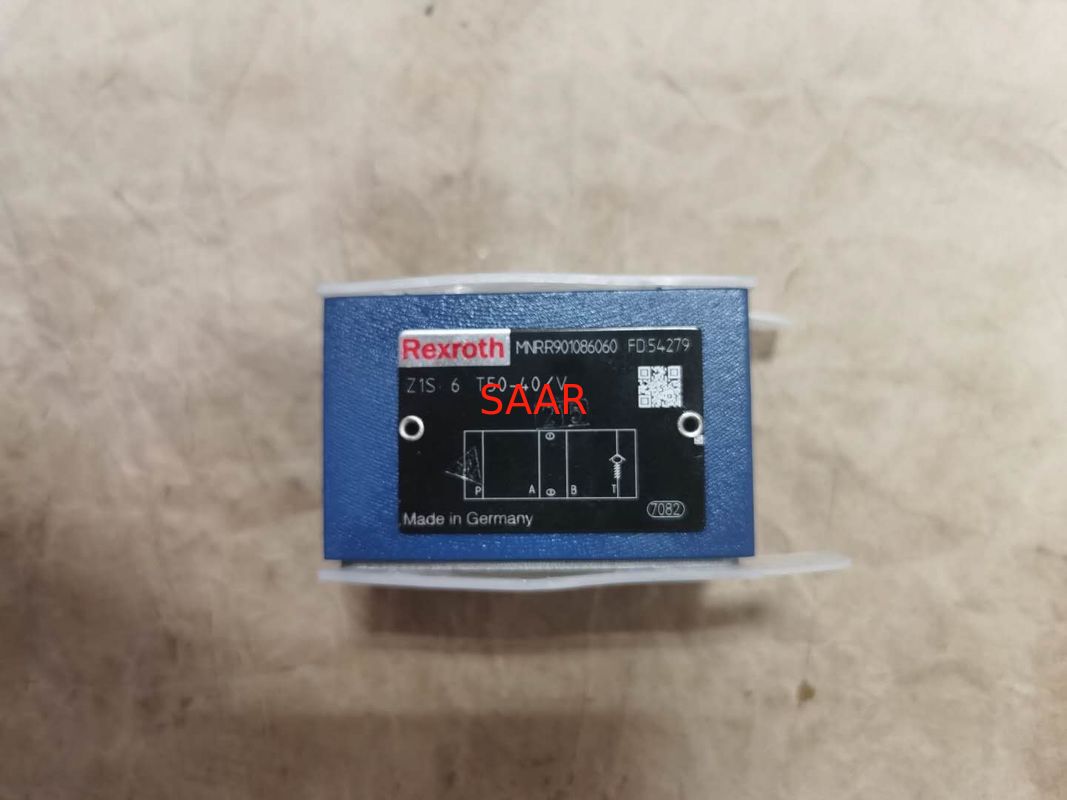

R901086060 Z1S6T50-40/V Z1S6T50-4X/V Rexroth Check Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901086060 Z1S6T50-40/V Z1S6T50-4X/V
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901086060

Model No.:

Z1S6T50-40/V Z1S6T50-4X/V

High Light:

R901086060

Z1S6T50-4X/V

350 Bar Rexroth Check Valve

Rexroth Check valve Z1S6

Size 6
Component series 4X
Maximum operating pressure 350 bar
Maximum flow 40 l/min

Features

Sandwich plate valve for use in vertical stackings
- as angle valve
- as straight-through valve
Porting pattern according to ISO 4401-03-02-0-05
Various one and two-channel blocking functions
Perfect leak-tightness due to poppet made of high-performance plastic
Corrosion-protected design
Easily adjustable to special hydraulic fluids by exchanging the external seal rings
With measuring ports, optional
As throttle check valve on request

Type Code:

01	02	03	04		05		06	07		08	09	10
Z1S	6			–	4X	/	V		/			*

01	Check valve, Sandwich plate design	Z1S
02	Size 6	6
Direction of flow
03	Straight-through valve (in the channel)
	A (A2 → A1)	A
	B (B2 → B1)	B
	A (A1 → A2)	C
	B (B1 → B2)	D
	A and B (A1 → A2) and (B1 → B2)	E
	P and T (P2 → P1) and (T1 → T2)	F
	P (P2 → P1)	P
	T (T1 → T2)	T
	Angle valve
	B → A	B-A
	T → P	T-P
	AB → P	AB-P
	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Cracking pressure
04	0,5 bar	05
	1,5 bar	15
	3,0 bar	30
	5,0 bar	50
05	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Seal material
06	FKM seals	V
06	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance (outside; thick film passivated according to DIN 50979 Fe//Zn8//Cn//T0)
07	None (valve housing primed)	no code
07	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
08	Without loSAARing hole	no code
	With loSAARing hole	/60¹⁾
	With loSAARing hole and locking pin ISO 8752-3x8-St	/62
Special version
09	Standard version	no code
	Measuring port in P (G1/4; on channel B side)	SO68
	Measuring port in P (G1/4; on channel A side)	SO118
	Measuring ports A and B (G1/4)	SO90
	Measuring port T (G1/4	SO2
	Direction of flow P1 → P2 (opposite to version "P")	SO104
	Symbols (examples) see "Symbols/Circuit diagrams"
10	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valve Z1S6 Model List:

R901086542	Z1S6A05-4X/JV
R901176008	Z1S6A05-4X/N
R901086070	Z1S6A05-4X/V
R901214122	Z1S6A15-4X/V
R901086073	Z1S6A30-4X/V
R901086547	Z1S6A50-4X/JV
R901086075	Z1S6A50-4X/V
R901140893	Z1S6AB-P05-4X/V
R901140895	Z1S6B-A05-4X/V
R901337456	Z1S6B-A15-4X/V
R901441519	Z1S6B05-4X/N
R901086077	Z1S6B05-4X/V
R901298613	Z1S6B15-4X/V
R901086078	Z1S6B30-4X/V
R901086079	Z1S6B50-4X/V
R901212363	Z1S6C05-4X/JV
R901179389	Z1S6C05-4X/N
R901086081	Z1S6C05-4X/V
R901188060	Z1S6C05-4X/VSO68
R901112636	Z1S6C05-4X/V/62
R901086582	Z1S6C05-4X/V=LB
R901288124	Z1S6C05-4X/VJ3
R901220126	Z1S6C15-4X/V
R901099624	Z1S6C30-4X/JV
R901256969	Z1S6C30-4X/N
R901086086	Z1S6C30-4X/V
R901186313	Z1S6C30-4X/VSO68
R901086087	Z1S6C50-4X/V
R901086585	Z1S6D05-4X/JV
R901248533	Z1S6D05-4X/N
R901086090	Z1S6D05-4X/V
R901393676	Z1S6D05-4X/V=NE
R901253883	Z1S6D05-4X=V
R901248203	Z1S6D15-4X/V
R901465066	Z1S6D30-4X/N
R901086092	Z1S6D30-4X/V
R901086096	Z1S6D50-4X/V
R901413595	Z1S6E05-4X/N
R901239414	Z1S6E05-4X/SO710
R901085992	Z1S6E05-4X/V
R901160944	Z1S6E15-4X/V
R901086018	Z1S6E30-4X/V
R901086032	Z1S6E50-4X/V
R901441521	Z1S6F05-4X/N
R901086037	Z1S6F05-4X/V
R901176222	Z1S6F05-4X=V
R901299430	Z1S6F15-4X/V
R901086039	Z1S6F30-4X/V
R901086041	Z1S6F50-4X/V
R901434696	Z1S6F50-4X/VJ3
R901086588	Z1S6P05-4X/JV
R901152381	Z1S6P05-4X/N
R901086051	Z1S6P05-4X/V
R901086597	Z1S6P05-4X/VSO2
R901086600	Z1S6P05-4X/VSO68
R901086602	Z1S6P05-4X/V/60
R901112643	Z1S6P05-4X/V/62
R901115403	Z1S6P05-4X/V/62SO68
R901446469	Z1S6P05-4X/VJ3
R901086669	Z1S6P05-4X/VL
R901100901	Z1S6P05-4X=V
R901219725	Z1S6P15-4X/N
R901104197	Z1S6P15-4X/V
R901248016	Z1S6P15-4X=N
R901416890	Z1S6P30-4X/N
R901086052	Z1S6P30-4X/V
R901086610	Z1S6P30-4X/VSO68
R901086055	Z1S6P50-4X/V
R901216796	Z1S6P99-4X/VSO90
R901140890	Z1S6T-P05-4X/V
R901099630	Z1S6T05-4X/JV
R901312739	Z1S6T05-4X/N
R901086058	Z1S6T05-4X/V
R901416138	Z1S6T05-4X/VSO68
R901107146	Z1S6T05-4X/V/62
R901440909	Z1S6T05-4X/VJ3
R901100004	Z1S6T05-4X=V
R901124305	Z1S6T15-4X/V
R901367091	Z1S6T15-4X/VSO68
R901263879	Z1S6T15-4X/V/62
R901152370	Z1S6T30-4X/N
R901086059	Z1S6T30-4X/V
R901441526	Z1S6T50-4X/N
R901086060	Z1S6T50-4X/V
