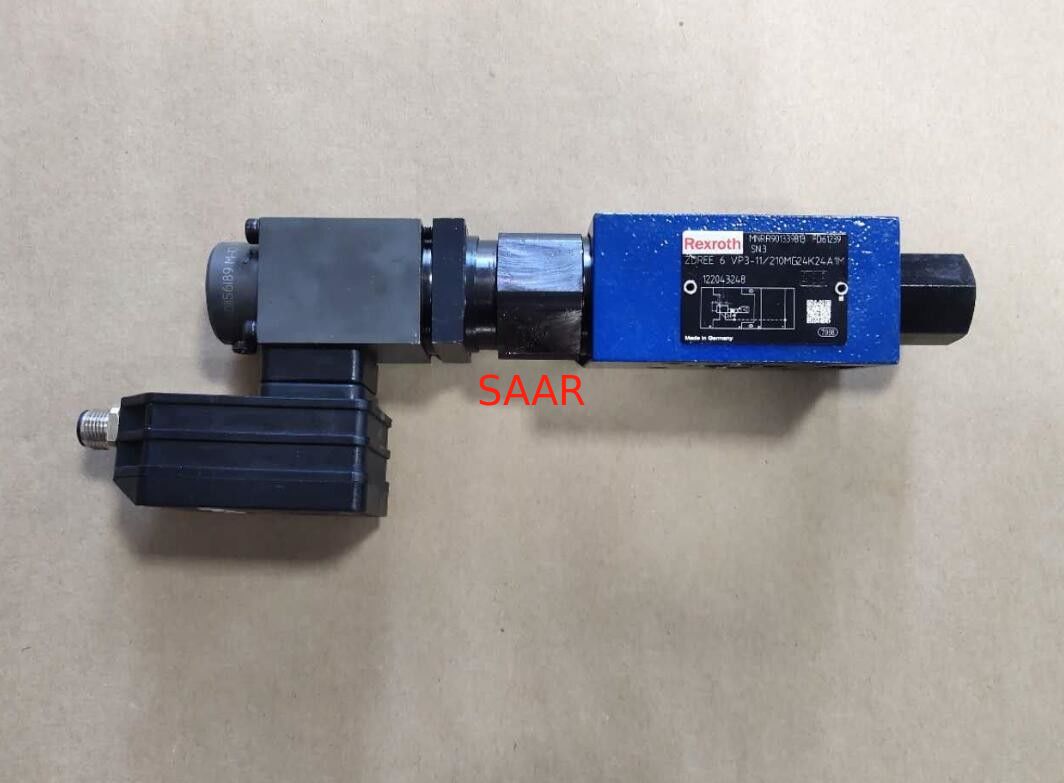

R901339813 ZDREE6VP3-11/210MG24K24A1M ZDREE6VP3-1X/210MG24K24A1M Proportional Pressure Reducing Valve

01	Sandwich plate	Z
02	Proportional pressure reducing valve	DRE
03	For external analog electronics	no code
	With integrated electronics (OBE)	E
04	Size 6	6
Pressure reduction
05	in channel A (subplate mounting)	no code
	In channel P (sandwich plate valve)	VP
Position of the mating connector (omitted in case of subplate mounting)
06		1
		2
		3
		4
07	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
Pressure rating
08	50 bar	50
	100 bar	100
		210
	315 bar	315 1)
09	Without check valve	M
Power supply
10	Direct voltage 24 V	G24
11	With manual override	N9
	Without manual override	no code
Electrical connection
12	For type ZDRE:
	Without mating connector; connector DIN EN 175301-803	K4
	For type ZDREE:
	Without mating connector; connector M12	K24
Electrical interface
13	Command value 0 … 10 V	A1
	Command value 4 to 20 mA	F1
	For type ZDRE:	no code
Seal material
14	NBR seals	M
	FKM seals	V
15	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Proportional pressure reducing valve, pilot-operated ZDRE6, ZDREE6 Model List:
