| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R900504003 FD16FB21/300B03V FD16FB2X/300B03V |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-200 per month |
| MNR: | R900504003 | Model No.: | FD16FB21/300B03V FD16FB2X/300B03V |
|---|---|---|---|
| High Light: | R900504003,350 Bar Rexroth Hydraulic Valves,Rexroth Pilot Operated Check Valve |
||

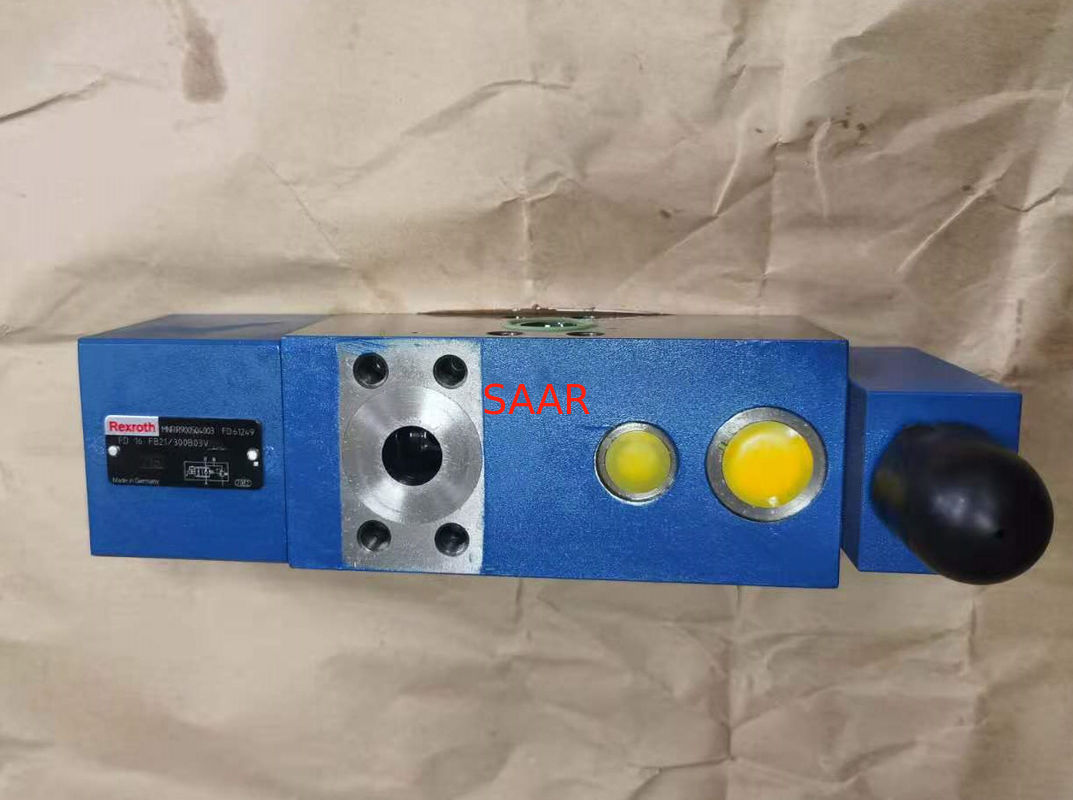

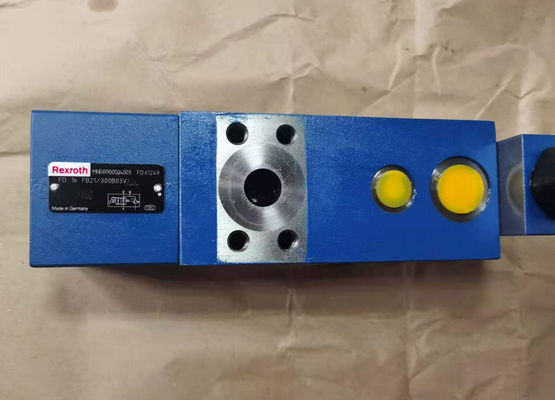

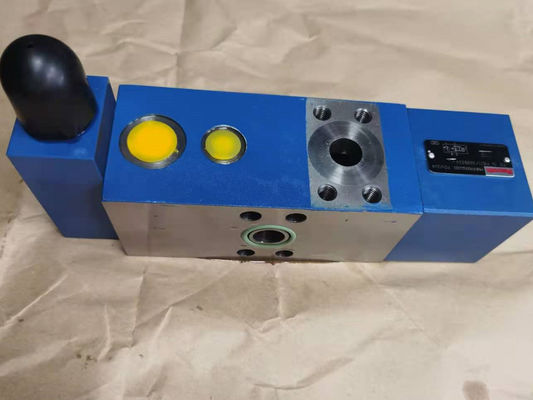

Check-Q-meter FD Series
To prevent acceleration of hydraulic motors and cylinders at pulling loads
Pilot operated check valve (leak-free) for installation in manifolds (cartridge valve), for sub plate mounting or with SAE flanged ports
Size 12 … 32
Nominal pressure up to 350 bar
Maximum flow 80 … 560 l/min
Features
Outflow controlled in accordance with the inflow on the side opposite the consumer
Load-independent speed control
Free flow in the opposite direction
Optional with secondary relief valve
Ratio of control pressure : load pressure = 1 : 20
Variation of the opening time by orifice preselection
Variation of the closing time is possible by an external throttle check valve when being used at cylinders
Series 2x
| R900507278 | FD16FA2X/B00V |
| R900503670 | FD16FA2X/B00V-006 |
| R900062504 | FD16FA2X/B00V-016 |
| R900566344 | FD16FA2X/B00V-054 |
| R901475630 | FD16FA2X/B03M |
| R900500189 | FD16FA2X/B03V |
| R900510538 | FD16FA2X/B03V-006 |
| R900525884 | FD16FA2X/B03V12 |
| R900505675 | FD16FA2X/B04V |
| R900537390 | FD16FA2X/B04V-016 |
| R900549565 | FD16FA2X/B04V-023 |
| R900518480 | FD16FA2X/B05V |
| R900505674 | FD16FA2X/B06V |
| R900510333 | FD16FA2X/B08V |
| R900510332 | FD16FA2X/B08V-006 |
| R900747831 | FD16FA2X/B08V-023 |
| R900072372 | FD16FA2X=B05V-005=PL |
| R900503975 | FD16FB2X/000B05V-020 |
| R901493806 | FD16FB2X/200B00M |
| R900500755 | FD16FB2X/200B00V |
| R900509912 | FD16FB2X/200B00V-012 |
| R901474737 | FD16FB2X/200B03M |
| R900504053 | FD16FB2X/200B03V |
| R900757404 | FD16FB2X/200B03V-006 |
| R900514160 | FD16FB2X/200B03V12 |
| R901055497 | FD16FB2X/200B04V |
| R900504315 | FD16FB2X/200B06V |
| R900503579 | FD16FB2X/300B00V |
| R900504003 | FD16FB2X/300B03V |
| R900538317 | FD16FB2X/300B03V-006 |
| R900512756 | FD16FB2X/300B03V12 |
| R900506957 | FD16FB2X/300B04V |
| R900509690 | FD16FB2X/300B06V |
| R900511059 | FD16FB2X/300JB03V |
| R901536119 | FD16FB2X/400-180B03V |
| R901329290 | FD16FB2X/400-250B03V |
| R900230188 | FD16FB2X/400-320B03V |
| R900503372 | FD16FB2X/400B00V |
| R900079239 | FD16FB2X/400B00V12 |
| R900783012 | FD16FB2X/400B03M |
| R900599660 | FD16FB2X/400B03V |
| R900512606 | FD16FB2X/400B03V-006 |
| R901027234 | FD16FB2X/400B03V-078 |
| R900503977 | FD16FB2X/400B03V12 |
| R900506196 | FD16FB2X/400B04V |
| R900776987 | FD16FB2X/400B05V |
| R900227420 | FD16FB2X/400B05V-075 |
| R901494943 | FD16FB2X/400B06V-100 |
| R900519777 | FD16FB2X/400B08V-064 |
| R901056572 | FD16FB2X=400-320B03V=MG |
| R900505673 | FD16KA2X/B00V |
| R900503974 | FD16KA2X/B03V |
| R900537292 | FD16KA2X/B03V12 |
| R900534240 | FD16KA2X/B03V12-006 |
| R900506079 | FD16KA2X/B06V |
| R900519406 | FD16KA2X/JB03V |
| R900503671 | FD16PA2X/B00V |
| R900536674 | FD16PA2X/B00V-003 |
| R900510437 | FD16PA2X/B00V-006 |
| R900506101 | FD16PA2X/B00V12 |
| R901070179 | FD16PA2X/B03M |
| R900500190 | FD16PA2X/B03V |
| R900533002 | FD16PA2X/B03V-003 |
| R900509442 | FD16PA2X/B03V-006 |
| R900503489 | FD16PA2X/B03V12 |
| R900503411 | FD16PA2X/B04V |
| R900519900 | FD16PA2X/B05V |
| R900517537 | FD16PA2X/B06V |
| R900503370 | FD16PA2X/B06V-006 |
| R900538757 | FD16PA2X/JB00V |
| R900068701 | FD16PA2X/JB03V |
| R900248814 | FD16PA2X/JB04V |
