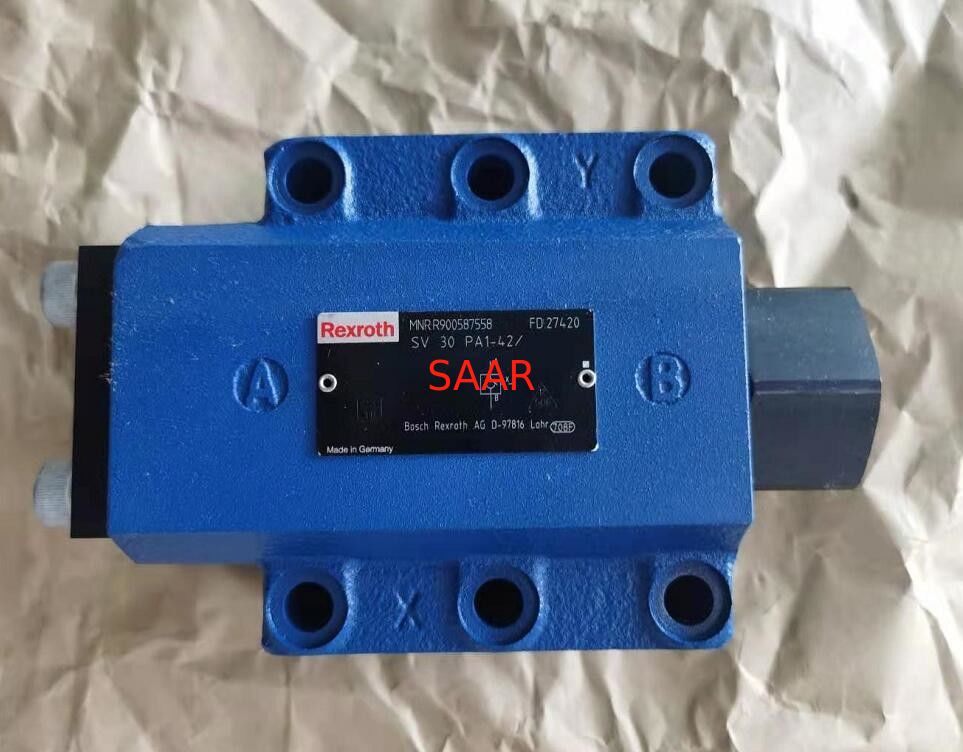

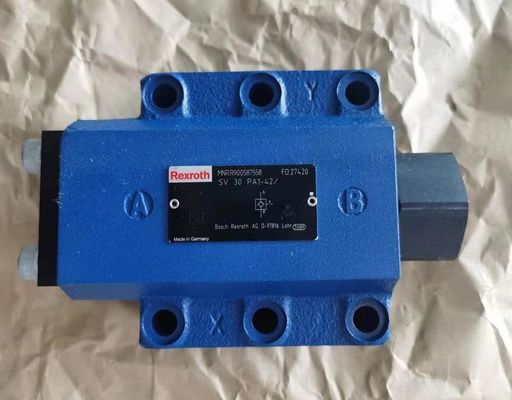

R900587558 SV30PA1-42/ SV30PA1-4X/ Rexroth Pilot Operated Check Valve

R900587558 SV30PA1-42/ SV30PA1-4X/ Rexroth Pilot Operated Check Valve

  • R900587558 SV30PA1-42/ SV30PA1-4X/ Rexroth Pilot Operated Check Valve
R900587558 SV30PA1-42/ SV30PA1-4X/ Rexroth Pilot Operated Check Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900587558 SV30PA1-42/ SV30PA1-4X/
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900587558 Model No.: SV30PA1-42/ SV30PA1-4X/
High Light:

R900587558

,

SV30PA1-4X/

,

Rexroth Pilot Operated Check Valve

Check valves, pilot operated
SV 10...32



Size 10 … 32
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 550 l/min



Type Code:

01 02 03 04 05 06   07   08   09 10 11 12 13 14
S V         4X /             *
Pilot oil return internal = V Pilot oil return external = L
01 Check valve S
02 Pilot oil return, internal V
03 Size 10 10
Size 20 20
Size 32 30
Type of connection
04 Subplate mounting P
Threaded connection G
05 With pre-opening A
Without pre-opening B
Cracking pressure
06 See characteristic curves (A → B) 1
2
3
4
07 Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) 4X
Spool position monitoring
08 Without position switch no code

With position switch

1)​

QMG24
For more information see "Electrical connection"
Orifice fitting channel Y
09 Channel Y closed (standard) Y99

Orifice Ø** in channel Y

2)

Y**
Seal material
10 NBR seals N
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance
11 None no code
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3
12 Standard no code
Pilot pressure ppilot from channel X SO168
Control open spool with shaft sealing (between channel X–Y and Y–A) SO286
Connection thread (versions with threaded connection "G" only)
13 Pipe thread "G" according to ISO 228-1 no code
Pipe thread “UNF/UN” according to ANSI/ASME B 1.1 /12
14 Further details in the plain text *

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated SV30 Model List:

R900587552 SV30GA1-4X/
R900517536 SV30GA1-4X//12
R900031560 SV30GA1-4X//5
R900527645 SV30GA1-4X/V
R900225857 SV30GA1-4X/V/12
R900501151 SV30GA2-4X/
R900528711 SV30GA2-4X//12
R900520649 SV30GA2-4X/V
R978906849 SV30GA2-4X/V/12
R900500091 SV30GA3-4X/
R900573238 SV30GA4-4X/
R978910038 SV30GA4-4X/V/12
R900599743 SV30GB1-4X/
R900560697 SV30GB1-4X//12
R901273399 SV30GB1-4X/V
R900504124 SV30GB2-4X/
R978899303 SV30GB2-4X//12
R900224095 SV30GB2-4X/V
R978903236 SV30GB2-4X/V/12
R900571302 SV30GB3-4X/
R900515510 SV30GB4-4X/
R900587558 SV30PA1-4X/
R900987806 SV30PA1-4X/J
R900500892 SV30PA1-4X/V
R900599456 SV30PA2-4X/
R900502112 SV30PA2-4X/V
R900599890 SV30PA3-4X/
R901137253 SV30PA3-4X/V
R978917483 SV30PA3-4X/V
R900505554 SV30PA4-4X/
R900525829 SV30PA4-4X/V
R900502240 SV30PB1-4X/
R901135580 SV30PB1-4X/V
R978868962 SV30PB1-4X/V
R900599647 SV30PB2-4X/
R900053091 SV30PB2-4X/V
R900515645 SV30PB3-4X/
R900572116 SV30PB3-4X/V
R900513203 SV30PB4-4X/
R900049469 SV30PB4-4X//50
R900240914 SV30PB4-4X/V
R988002178 SV30PA1-4X/
