RM 1902, EASEY BLDG., 253-261 HENNESSY ROAD, WANCHAI, HONGKONG | jason@hydraulicpumpvalve.com |
Place of Origin: | Germany |
Brand Name: | Rexroth |
Model Number: | 0811404613 4WRPEH6C4B40L-2X/G24K0/A1M 4WRPEH6C4B40L-2X/G24K0/A1M |
Minimum Order Quantity: | 1 |
---|---|
Price: | On request |
Packaging Details: | Standard paper box |
Delivery Time: | 7-10days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100PCS per month |
MNR: | 0811404613 | Model No.: | 4WRPEH6C4B40L-2X/G24K0/A1M 4WRPEH6C4B40L-20/G24K0/A1M |
---|---|---|---|
High Light: | Rexroth Directional Control Valve,0811404613 Directional Control Valve,40l/Min Directional Control Valve |

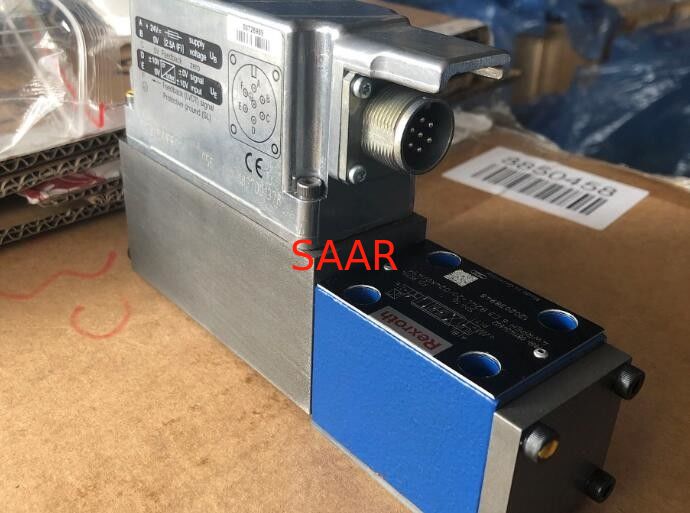

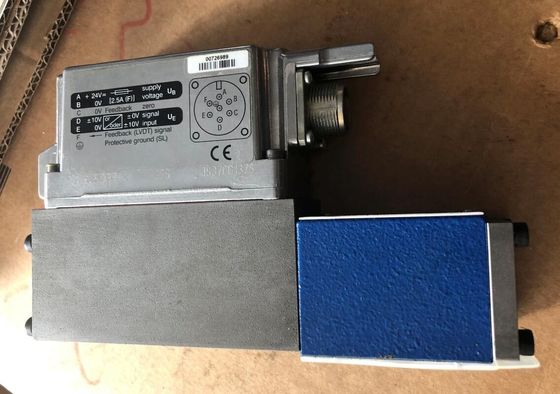

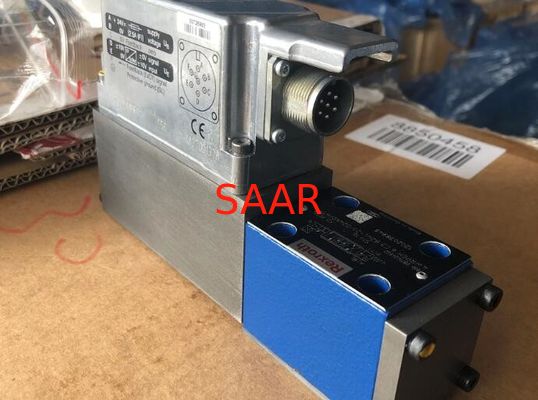

4WRPEH6 and 4WRPEH10 Series Valves
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)
4WRPEH Size 6
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 2 … 40 l/min
4WRPEH Size 10
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 50 … 100 l/min
Features
4/4 directional design
With control spool and sleeve in servo quality
Operated on one side, 4/4 fail-safe position in switched-off condition
Electric position feedback and integrated electronics (OBE), calibrated in the factory
Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
Use for electro-hydraulic controls in production and test systems
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | |||
4 | WRP | E | H | 6/10 | B | ‒ | 2X | / | G24 | K0 | / | M | * |
01 | 4 main ports | 4 |
02 | High-response directional valve, direct operated | WRP |
03 | With integrated electronics (OBE) | E |
04 | Control spool/sleeve | H |
05 | Size 10 | 10 |
06 | Symbols; for the possible version, see "Symbols/Circuit diagrams" | |
Installation side of the inductive position transducer | ||
07 | Valve side B (standard) (see "Symbols/Circuit diagrams") | B |
Rated flow at 70 bar valve pressure differential (35 bar/control edge) | ||
08 | 50 l/min | 50 |
100 l/min | 100 | |
Flow characteristic | ||
09 | Linear | L |
Inflected characteristic curve | P | |
10 | Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6 | 2X |
Supply voltage of the control electronics | ||
11 | Direct voltage 24 V | G24 |
Electrical connection | ||
12 |
Without mating connector; connector DIN 43563-AM6 Mating connectors, separate order |
K0 |
Control electronics interface | ||
13 | Command value input ±10 V | A1 |
Command value input 4 ... 20 mA | F1 | |
Seal material | ||
14 | NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 | M |
15 | Further details in the plain text | * |
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
4WRPEH6 and 4WRPEH10 Series Valves Model List:
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)
0811404603 | 4WRPEH6C3B40L-2X/G24K0/A1M |
0811404744 | 4WRPEH6C3B02L-2X/G24K0/A1M |
0811404600 | 4WRPEH6C3B04L-2X/G24K0/A1M |
0811404601 | 4WRPEH6C3B12L-2X/G24K0/A1M |
0811404602 | 4WRPEH6C3B24L-2X/G24K0/A1M |
0811404746 | 4WRPEH6C5B40L-2X/G24K0/A1M |
0811404642 | 4WRPEH6C3B15P-2X/G24K0/A1M |
0811404643 | 4WRPEH6C3B25P-2X/G24K0/A1M |
0811404644 | 4WRPEH6C3B40P-2X/G24K0/A1M |
0811404648 | 4WRPEH6C5B40P-2X/G24K0/A1M |
0811404631 | 4WRPEH6C3B04L-2X/G24K0/F1M |
0811404632 | 4WRPEH6C3B12L-2X/G24K0/F1M |
0811404633 | 4WRPEH6C3B24L-2X/G24K0/F1M |
0811404634 | 4WRPEH6C3B40L-2X/G24K0/F1M |
0811404749 | 4WRPEH6C5B40L-2X/G24K0/F1M |
0811404641 | 4WRPEH6C4B02L-2X/G24K0/A1M |
0811404610 | 4WRPEH6C4B04L-2X/G24K0/A1M |
0811404611 | 4WRPEH6C4B12L-2X/G24K0/A1M |
0811404612 | 4WRPEH6C4B24L-2X/G24K0/A1M |
0811404613 | 4WRPEH6C4B40L-2X/G24K0/A1M |
0811404738 | 4WRPEH6C1B40L-2X/G24K0/A1M |
0811404645 | 4WRPEH6C4B15P-2X/G24K0/A1M |
0811404646 | 4WRPEH6C4B25P-2X/G24K0/A1M |
0811404647 | 4WRPEH6C4B40P-2X/G24K0/A1M |
0811404601 | 4WRPEH6C3B12L-2X/G24KO/A1M |
0811404600 | 4WRPEH6C3B04L-2X/G24KO/A1M |
0811404602 | 4WRPEH6C3B24L-2X/G24KO/A1M |
0811404604 | 4WRPEH6KB50P-2X/G24KO/A1M |
0811404610 | 4WRPEH6C4B04L-2X/G24KO/A1M |
0811404611 | 4WRPEH6C4B12L-2X/G24KO/A1M |
0811404612 | 4WRPEH6C4B24L-2X/G24KO/A1M |
0811404613 | 4WRPEH6C4B40L-2X/G24KO/A1M |
0811404621 | 4WRPEH6C3B04L-2X/G24KO/B5M |
0811404622 | 4WRPEH6C3B24L-2X/G24KO/B5M |
0811404623 | 4WRPEH6C4B12L-2X/G24KO/B5M |
0811404626 | 4WRPEH6C3B15P-2X/G24KO/B5M |
0811104628 | 4WRPEH6K3B50P-2X/G24KO/A1M |
0811404631 | 4WRPEH6C3B04L-2X/G24KO/F1M |
0811404633 | 4WRPEH6C3B24L-2X/G24KO/F1M |
0811404634 | 4WRPEH6C3B40L-2X/G24KO/F1M |
0811404635 | 4WRPEH6C3B25P-2X/G24KO/B5M |
0811404637 | 4WRPEH6C3B40P-2X/G24KO/B5M |
0811404638 | 4WRPEH6C4B40L-2X/G24KO/A1V |
0811404639 | 4WRPEH6CB40L-2X/G24KO/A1M |
0811404640 | 4WRPEH6CB40L-2X/G24KO/F1M |
0811404641 | 4WRPEH6C4B02L-2X/G24KO/A1M |
0811404642 | 4WRPEH6C3B15P-2X/G24KO/A1M |
0811404644 | 4WRPEH6C3B40P-2X/G24KO/A1M |
0811404645 | 4WRPEH6C4B15P-2X/G24KO/A1M |
0811404646 | 4WRPEH6C4B25P-2X/G24KO/A1M |
0811404647 | 4WRPEH6C4B40P-2X/G24KO/A1M |
0811404801 | 4WRPEH10C3B100L-2X/G24KO/A1M |
0811404802 | 4WRPEH10C4B50L-2X/G24KO/A1M |
0811404803 | 4WRPEH10C4B100L-2X/G24KO/A1M |
0811404806 | 4WRPEH10CB100L-2X/G24KO/F1M |
0811404808 | 4WRPEH10C3B50L-2X/G24KO/B5M |
0811404809 | 4WRPEH10CB100L-2X/G24KO/A1M |
0811404812 | 4WRPEH10C4B50L-2X/G24KO/B5M |
0811404813 | 4WRPEH10C3B100L-2X/G24KO/B5M |
0811404816 | 4WRPEH10CB50P-2X/G24KO/F1M |
0811404817 | 4WRPEH10C3B100L-2X/G24KO/F1M |
0811404819 | 4WRPEH10C3B50L-2X/G24KO/F1M |
0811404820 | 4WRPEH10C1B50L-2X/G24KO/A1M |
0811404821 | 4WRPEH10C1B100L-2X/G24KO/A1M |
0811404822 | 4WRPEH10C3B5CP-2X/G24KO/A1M |
0811404823 | 4WRPEH10C3B100P-2X/G24KO/A1M |
