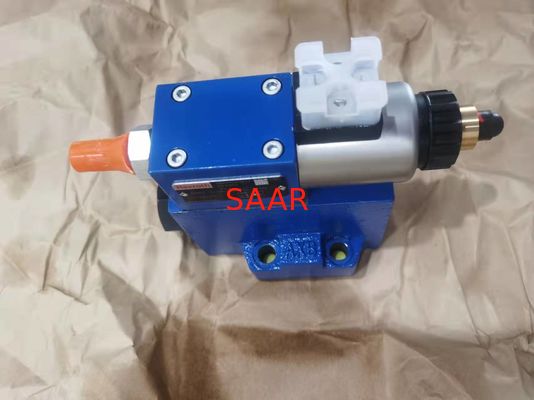

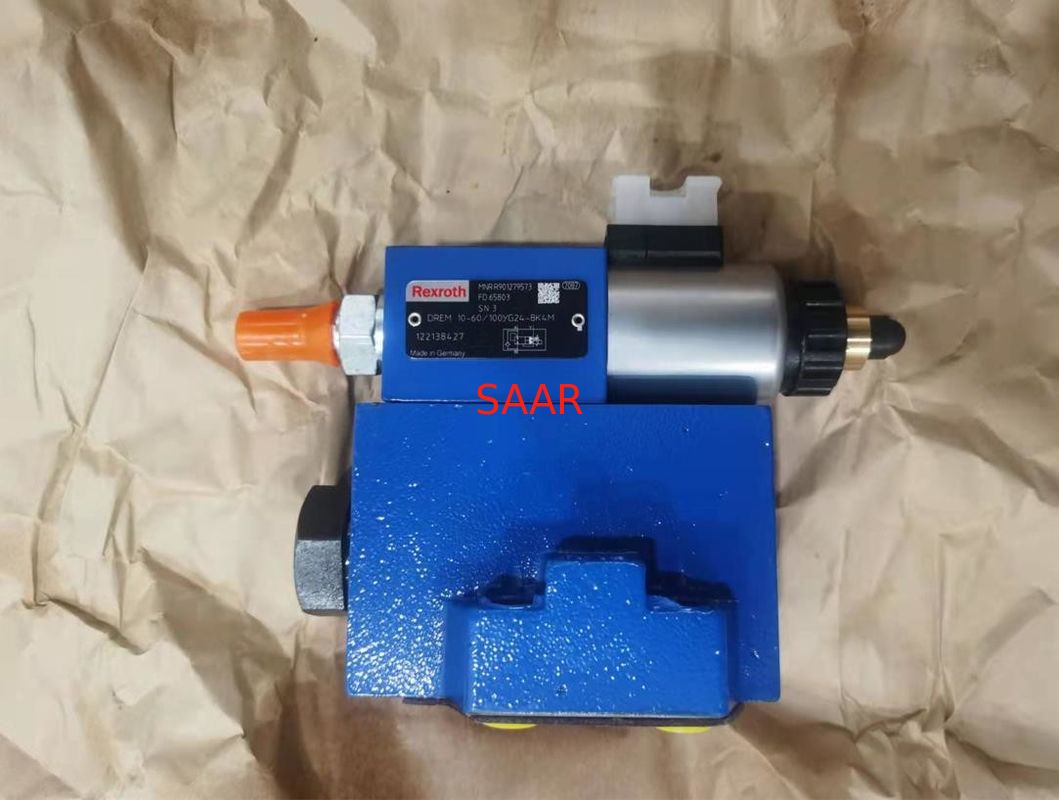

Name: Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve
Brand: Rexroth
SKU: R901279573 DREM10-60/100YG24 DREM10-6X/100YG24
Rating: 4.8 (144 reviews)

Home Products Rexroth Hydraulic Valves

Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901279573 DREM10-60/100YG24 DREM10-6X/100YG24

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901279573

Model No.:

DREM10-60/100YG24 DREM10-6X/100YG24

High Light:

Pressure Reducing Rexroth Hydraulic Valves

300L/Min Rexroth Hydraulic Valves

315 Bar Rexroth Hydraulic Valves

Rexroth Proportional pressure reducing valve, pilot-operated DRE(M) 10, DRE(M) 20

Size 10, 25
Component series 6X
Max. operating pressure 315 bar
Flow, max. 300 l/min

Features

Valve for reducing a system pressure
Operation by means of a proportional solenoid
Proportional solenoid with rotatable and detachable coil
For subplate mounting: porting pattern according to ISO 5781
Third way A to Y (Ø 7.5 mm)
Linearized pressure/command value characteristic curve
Good transient response
Optional check valve between A and B
Optional maximum pressure limitation

Type Code:

01	02	03		04		05	06	07	08	09	10	11	12
DRE			‒	6X	/		Y		G24		K4		*

01	Proportional pressure reducing valve, pilot-operated, with external control electronics	DRE
02	Without maximum pressure limitation	no code
02	With maximum pressure limitation	M¹⁾
03	Size 10	10
03	Size 25	20
04	Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions)	6X
Pressure rating
05	50 bar	50
	100 bar	100
	200 bar	200
	315 bar	315
06	Pilot oil return always external, separate and depressurized to the tank	Y
07	With check valve between A and B	no code
07	Without check valve	M
Supply voltage of the control electronics
08	Direct voltage 24 V	G24
09	1600 mA version	no code
09	800 mA version	-8²⁾
Electrical connection
10	Without mating connector; connector DIN EN 175301-803	K4
Seal material
11	NBR seals	M
11	FKM seals	V
12	Further details in the plain text	*
¹⁾	The maximum pressure limitation only serves as protection against overpressure in case of an error in the pilot valve (e. g. in case of contamination or over-current).
²⁾	Replacement for series 5X. (Attention! External amplifiers only suitable for G24 = 1.6 A solenoid),

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Proportional pressure reducing valve DREM10 on Sale, Short lead time, Best price!!!

R901279573	DREM10-6X/100YG24-8K4M
R901279575	DREM10-6X/100YG24-8K4V
R901277135	DREM10-6X/100YG24K4M
R901277136	DREM10-6X/100YG24K4V
R901335080	DREM10-6X/100YMG24-8K4M
R901341154	DREM10-6X/100YMG24K4M
R901279577	DREM10-6X/200YG24-8K4M
R901279578	DREM10-6X/200YG24-8K4V
R901277137	DREM10-6X/200YG24K4M
R901277138	DREM10-6X/200YG24K4V
R901308586	DREM10-6X/200YMG24-8K4M
R901317613	DREM10-6X/200YMG24K4M
R901279579	DREM10-6X/315YG24-8K4M
R901279580	DREM10-6X/315YG24-8K4V
R901277139	DREM10-6X/315YG24K4M
R901277140	DREM10-6X/315YG24K4V
R901298568	DREM10-6X/315YMG24-8K4M
R901298578	DREM10-6X/315YMG24K4M
R901394447	DREM10-6X/315YMG24K4V
R901349368	DREM10-6X/315YMG24NK4M
R901279570	DREM10-6X/50YG24-8K4M
R901279572	DREM10-6X/50YG24-8K4V
R901277131	DREM10-6X/50YG24K4M
R901277134	DREM10-6X/50YG24K4V
R901312671	DREM10-6X/50YMG24-8K4M
R901312402	DREM10-6X/50YMG24K4M
R901395820	DREM10-6X/50YMG24K4V
R901279583	DREM20-6X/100YG24-8K4M
R901279585	DREM20-6X/100YG24-8K4V
R901277143	DREM20-6X/100YG24K4M
R901277144	DREM20-6X/100YG24K4V
R901325676	DREM20-6X/100YMG24-8K4M
R901358389	DREM20-6X/100YMG24-8K4V
R901279587	DREM20-6X/200YG24-8K4M
R901279589	DREM20-6X/200YG24-8K4V
R901277145	DREM20-6X/200YG24K4M
R901277146	DREM20-6X/200YG24K4V
R901412371	DREM20-6X/200YMG24-8K4M
R901321265	DREM20-6X/200YMG24-8K4V
R901358457	DREM20-6X/200YMG24K4M
R901332777	DREM20-6X/200YMG24K4V
R901279590	DREM20-6X/315YG24-8K4M
R901279591	DREM20-6X/315YG24-8K4V
R901277148	DREM20-6X/315YG24K4M
R901277150	DREM20-6X/315YG24K4V
R901298577	DREM20-6X/315YMG24-8K4M
R901308861	DREM20-6X/315YMG24-8K4V
R901335461	DREM20-6X/315YMG24K4M
R901309198	DREM20-6X/315YMG24K4V
R901279581	DREM20-6X/50YG24-8K4M
R901279582	DREM20-6X/50YG24-8K4V
R901277141	DREM20-6X/50YG24K4M
R901277142	DREM20-6X/50YG24K4V
