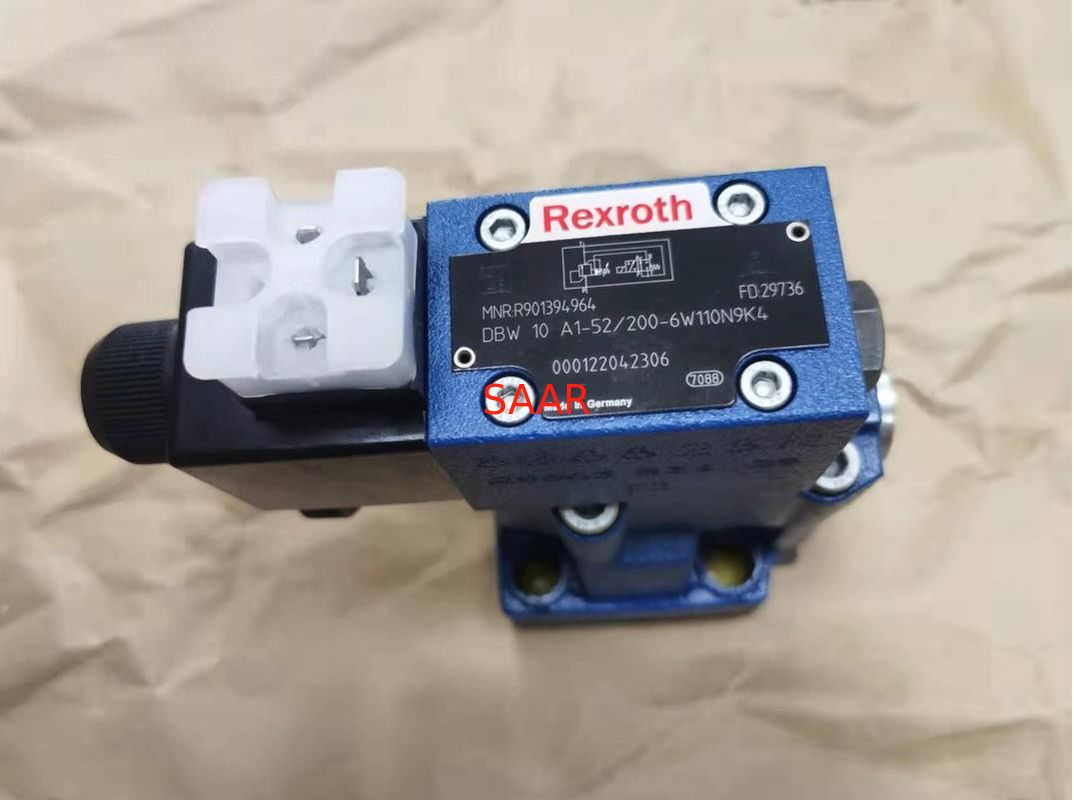

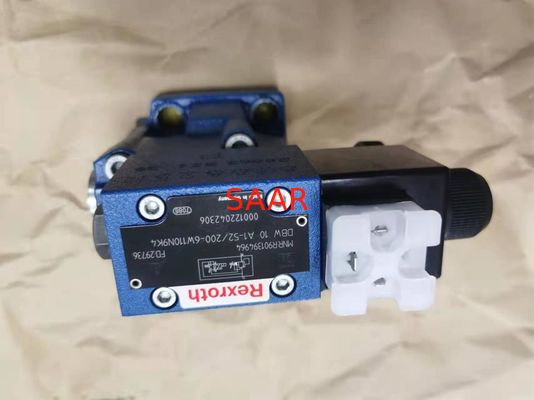

Name: Rexroth R901394964 DBW10A1-52/200-6EW110N9K4 DBW10A1-5X/200-6EW110N9K4 Pressure Relief Valve
Brand: Rexroth
SKU: R901394964 DBW10A1-52/200-6EW110N9K4 DBW10A1-5X/200-6EW110N9K4
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (190 reviews)

Home Products Rexroth Hydraulic Valves

Rexroth R901394964 DBW10A1-52/200-6EW110N9K4 DBW10A1-5X/200-6EW110N9K4 Pressure Relief Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901394964 DBW10A1-52/200-6EW110N9K4 DBW10A1-5X/200-6EW110N9K4
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Type No.:

R901394964

Model No.:

DBW10A1-52/200-6EW110N9K4 DBW10A1-5X/200-6EW110N9K4

High Light:

DBW10A1-52/200-6EW110N9K4

Rexroth Pressure Relief Valve

650l/min Pressure Relief Valve

Rexroth Pressure relief valve, pilot controlled DBW Series

Size 10 … 32
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 650 l/min

Features
For subplate mounting
Porting pattern according to ISO 6264-06-09 (NG10), ISO 6264-08-13 (NG25) and ISO 6264-10-17 (NG32)
For threaded connection
As screw-in cartridge valve (cartridge)
4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
5 pressure ratings
Solenoid-operated unloading via built-on directional spool valve or directional poppet valve
High-power solenoid
Switching shock damping, optional

Type Code:

01	Pressure relief valve	DB
02	With attached directional valve	W
03	Pilot-operated valve (complete)	no code
	Pilot control valve without main spool insert (do not enter any size)	C
	Pilot control valve with main spool insert (enter size 10 or 30)	C
	Pilot control valve without main spool insert for subplate mounting (do not enter any size)	T ¹⁾
04	Size 10
	Subplate mounting "no code"	10
	Threaded connection "G"	10 (G1/2)
	Size 16
	Threaded connection "G"	15 (G3/4)
	Size 25
	Subplate mounting "no code"	20
	Threaded connection "G"	20 (G1)
	Threaded connection "G"	25 (G1 1/4)
	Size 32
	Subplate mounting "no code"	30
	Threaded connection "G"	30 (G1 1/2)
05	Normally closed	A
05	Normally open	B
Type of connection
06	Subplate mounting or cartridge valve	no code
06	For threaded connection	G
Adjustment type for pressure adjustment
07	Rotary knob (not for version "C" and "T")	1
	Sleeve with hexagon and protective cap	2
	Lockable rotary knob with scale	3 ²⁾
	Rotary knob with scale	7
08	Main spool Ø24 mm (all sizes)	–
08	Main spool Ø28 mm (only for NG32)	N
09	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
10	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
	Set pressure up to 350 bar	350
Pilot oil flow
11	External pilot oil supply, internal pilot oil return	X³⁾
	Internal pilot oil supply, external pilot oil return	Y
	Pilot oil supply and pilot oil return external	XY³⁾
12	Standard version	no code
12	Valve for minimum cracking pressure (not for versions "without main spool insert" and not suitable for mutual relief)	U ⁴⁾
13	Without switching shock damping	no code
13	With switching shock damping	S
14	With directional spool valve (data sheet 23178)	6E
14	With directional seat valve (data sheet 22058)	6SM
15	Direct voltage 24 V	G24
15	Alternating voltage 230 V, 50/60 Hz	W230
16	Without manual override	no code
	With concealed manual override	N9
	With manual override	N
Electrical connection
17	Connector DIN EN 175301-803	K4 ⁵⁾
18	Nozzle Ø1,2 mm in channel B of the directional spool valve (version "6E")	R12⁶⁾
18	Nozzle Ø1,2 mm in channel P of the directional seat valve (version "6SM")	B12⁶⁾
Corrosion resistance
19	None	no code
Seal material
20	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Equipment Directive
21	Without type-examination procedure	no code
21	Type-examination tested safety valve according to Pressure Equipment Directive 2014/68/EU	E
22	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Pressure relief valve, pilot controlled DBW Model List:

R900774247	DBW10A1-5X/100-6EW100N9DL
R900771781	DBW10A1-5X/100-6EW100N9K4
R901149400	DBW10A1-5X/100-6EW200N9DL
R900778046	DBW10A1-5X/100-6EW230N9K4
R900918359	DBW10A1-5X/100-6EW230N9Z4
R901012089	DBW10A1-5X/100T6EW100N9DL
R901045800	DBW10A1-5X/100U6EW100N9K4
R901377052	DBW10A1-5X/100X6EW100N9DL
R901033518	DBW10A1-5X/200-6EW100N9DL
R901394964	DBW10A1-5X/200-6EW110N9K4
R900912508	DBW10A1-5X/200-6EW110N9Z4
R900777911	DBW10A1-5X/200-6EW230N9DL
R901014775	DBW10A1-5X/200-6EW230N9K4
R901137538	DBW10A1-5X/200T6EW100N9DL
R901338792	DBW10A1-5X/200T6EW200N9K4
R900775538	DBW10A1-5X/200U6EW230N9K4
R901278290	DBW10A1-5X/200X6EW100N9DL
R901079346	DBW10A1-5X/200X6EW230N9DL
R901370001	DBW10A1-5X/200XT6EW100N9DL
R900925964	DBW10A1-5X/315-6EW110N9K4
R900758205	DBW10A1-5X/315-6EW110N9K4V
R900908481	DBW10A1-5X/315-6EW110N9Z4
R900969379	DBW10A1-5X/315-6EW230N9K4
R900905609	DBW10A1-5X/315-6EW230N9Z4
R901206203	DBW10A1-5X/315U6EW230N9K4
R900786914	DBW10A1-5X/315XU6EW110N9K4
R901214562	DBW10A1-5X/315XYUT6EW100N9K4
R900758700	DBW10A1-5X/350-6EW100N9DL
R900758700	DBW10A1-5X/350-6EW100N9DL
R900748947	DBW10A1-5X/350-6EW100N9K4
R901013333	DBW10A1-5X/350-6EW110N9K4
R900761863	DBW10A1-5X/350-6EW200N9DL
R901214115	DBW10A1-5X/350-6EW200N9DLV
R901056902	DBW10A1-5X/350-6EW200N9K4
R901464564	DBW10A1-5X/350S6EW100N9DLR12
R901016418	DBW10A1-5X/350T6EW100N9DL
R901038214	DBW10A1-5X/350T6EW200N9DL
R901241698	DBW10A1-5X/350T6EW230N9DL
R901085646	DBW10A1-5X/350X6EW100N9DL
R901464566	DBW10A1-5X/350XS6EW100N9DLR12
R901041685	DBW10A1-5X/350XT6EW100N9DL
R901085785	DBW10A1-5X/350XUT6EW100N9K4
R901080866	DBW10A1-5X/50-6EW230N9K4
R978891991	DBW10A1-5X/100-6EW110N9K4/12
