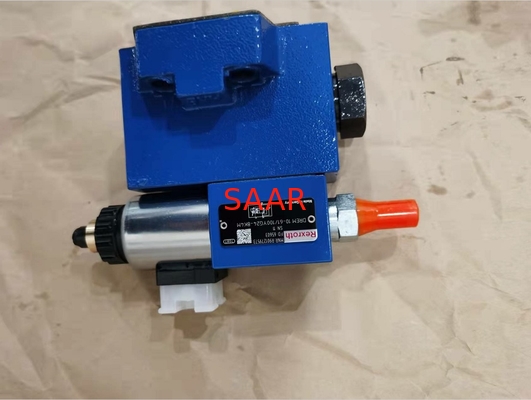

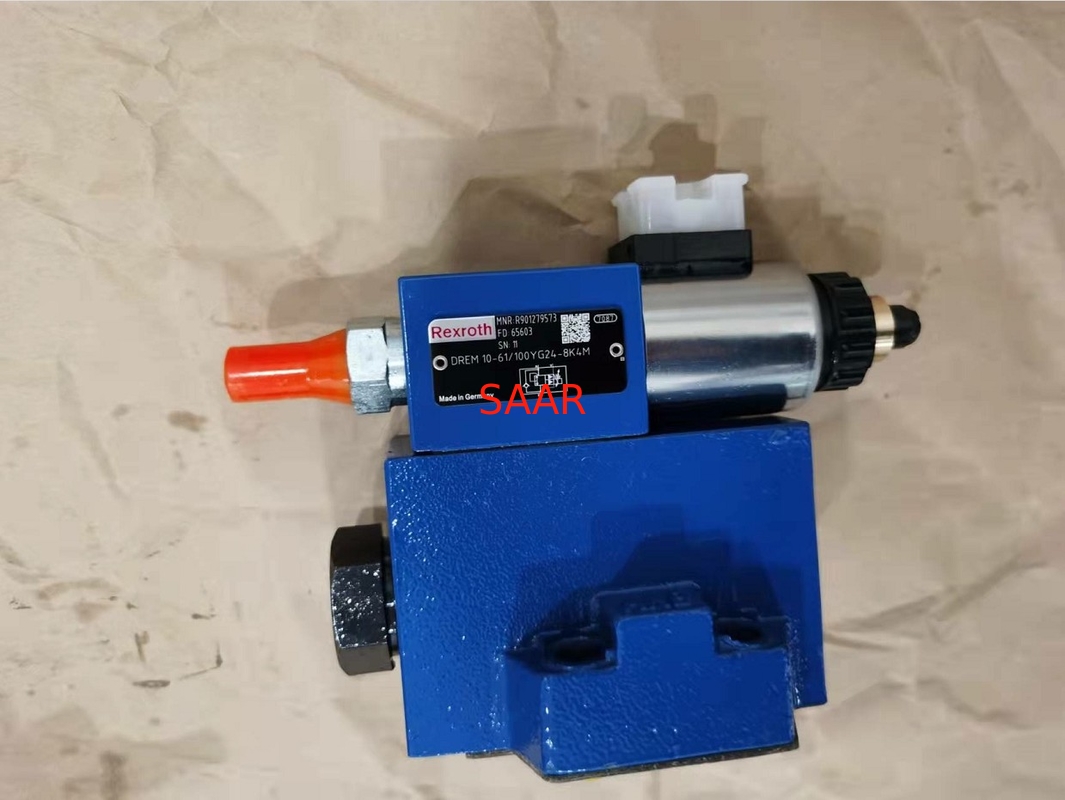

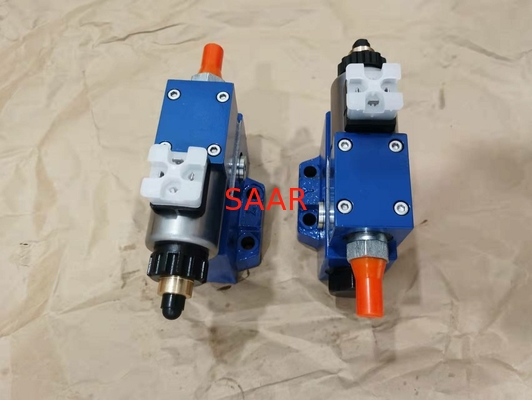

Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve

Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve

  • Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve
  • Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve
  • Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve
Rexroth R901279573 DREM10-60/100YG24 DREM10-6X/100YG24 Proportional Pressure Reducing Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R901279573 DREM10-60/100YG24 DREM10-6X/100YG24
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R901279573 Model No.: DREM10-60/100YG24 DREM10-6X/100YG24
High Light:

Size 10 Proportional Pressure Reducing Valve

,

Rexroth Proportional Pressure Reducing Valve

,

300l/Min Proportional Pressure Reducing Valve

Rexroth Proportional pressure reducing valve, pilot-operated DRE(M) 10, DRE(M) 20



Size 10, 25
Component series 6X
Max. operating pressure 315 bar
Flow, max. 300 l/min



Features


Valve for reducing a system pressure
Operation by means of a proportional solenoid
Proportional solenoid with rotatable and detachable coil
For subplate mounting: porting pattern according to ISO 5781
Third way A to Y (Ø 7.5 mm)
Linearized pressure/command value characteristic curve
Good transient response
Optional check valve between A and B
Optional maximum pressure limitation



Type Code:

01 02 03   04   05 06 07 08 09 10 11 12
DRE     6X /   Y   G24   K4   *
01 Proportional pressure reducing valve, pilot-operated, with external control electronics DRE
02 Without maximum pressure limitation no code
With maximum pressure limitation M 1)
03 Size 10 10
Size 25 20
04 Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 6X
Pressure rating
05 50 bar 50
100 bar 100
200 bar 200
315 bar 315
06 Pilot oil return always external, separate and depressurized to the tank Y
07 With check valve between A and B no code
Without check valve M
Supply voltage of the control electronics
08 Direct voltage 24 V G24
09 1600 mA version no code
800 mA version -8 2)
Electrical connection
10 Without mating connector; connector DIN EN 175301-803 K4
Seal material
11 NBR seals M
FKM seals V
12 Further details in the plain text *
1) The maximum pressure limitation only serves as protection against overpressure in case of an error in the pilot valve (e. g. in case of contamination or over-current).
2) Replacement for series 5X. (Attention! External amplifiers only suitable for G24 = 1.6 A solenoid),



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.


Rexroth Proportional pressure reducing valve DREM10 on Sale, Short lead time, Best price!!!



R901279573 DREM10-6X/100YG24-8K4M
R901279575 DREM10-6X/100YG24-8K4V
R901277135 DREM10-6X/100YG24K4M
R901277136 DREM10-6X/100YG24K4V
R901335080 DREM10-6X/100YMG24-8K4M
R901341154 DREM10-6X/100YMG24K4M
R901279577 DREM10-6X/200YG24-8K4M
R901279578 DREM10-6X/200YG24-8K4V
R901277137 DREM10-6X/200YG24K4M
R901277138 DREM10-6X/200YG24K4V
R901308586 DREM10-6X/200YMG24-8K4M
R901317613 DREM10-6X/200YMG24K4M
R901279579 DREM10-6X/315YG24-8K4M
R901279580 DREM10-6X/315YG24-8K4V
R901277139 DREM10-6X/315YG24K4M
R901277140 DREM10-6X/315YG24K4V
R901298568 DREM10-6X/315YMG24-8K4M
R901298578 DREM10-6X/315YMG24K4M
R901394447 DREM10-6X/315YMG24K4V
R901349368 DREM10-6X/315YMG24NK4M
R901279570 DREM10-6X/50YG24-8K4M
R901279572 DREM10-6X/50YG24-8K4V
R901277131 DREM10-6X/50YG24K4M
R901277134 DREM10-6X/50YG24K4V
R901312671 DREM10-6X/50YMG24-8K4M
R901312402 DREM10-6X/50YMG24K4M
R901395820 DREM10-6X/50YMG24K4V
R901279583 DREM20-6X/100YG24-8K4M
R901279585 DREM20-6X/100YG24-8K4V
R901277143 DREM20-6X/100YG24K4M
R901277144 DREM20-6X/100YG24K4V
R901325676 DREM20-6X/100YMG24-8K4M
R901358389 DREM20-6X/100YMG24-8K4V
R901279587 DREM20-6X/200YG24-8K4M
R901279589 DREM20-6X/200YG24-8K4V
R901277145 DREM20-6X/200YG24K4M
R901277146 DREM20-6X/200YG24K4V
R901412371 DREM20-6X/200YMG24-8K4M
R901321265 DREM20-6X/200YMG24-8K4V
R901358457 DREM20-6X/200YMG24K4M
R901332777 DREM20-6X/200YMG24K4V
R901279590 DREM20-6X/315YG24-8K4M
R901279591 DREM20-6X/315YG24-8K4V
R901277148 DREM20-6X/315YG24K4M
R901277150 DREM20-6X/315YG24K4V
R901298577 DREM20-6X/315YMG24-8K4M
R901308861 DREM20-6X/315YMG24-8K4V
R901335461 DREM20-6X/315YMG24K4M
R901309198 DREM20-6X/315YMG24K4V
R901279581 DREM20-6X/50YG24-8K4M
R901279582 DREM20-6X/50YG24-8K4V
R901277141 DREM20-6X/50YG24K4M
R901277142 DREM20-6X/50YG24K4V
