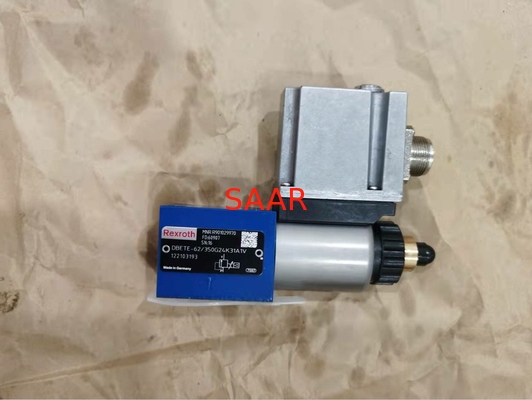

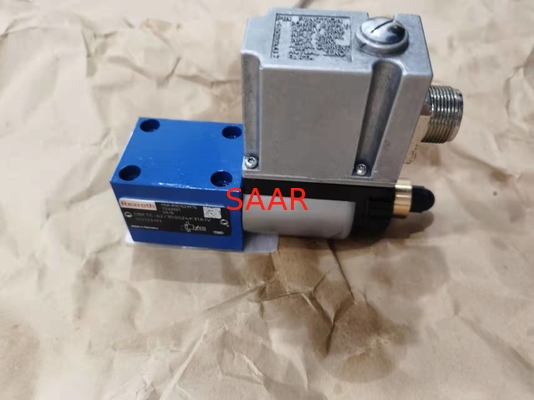

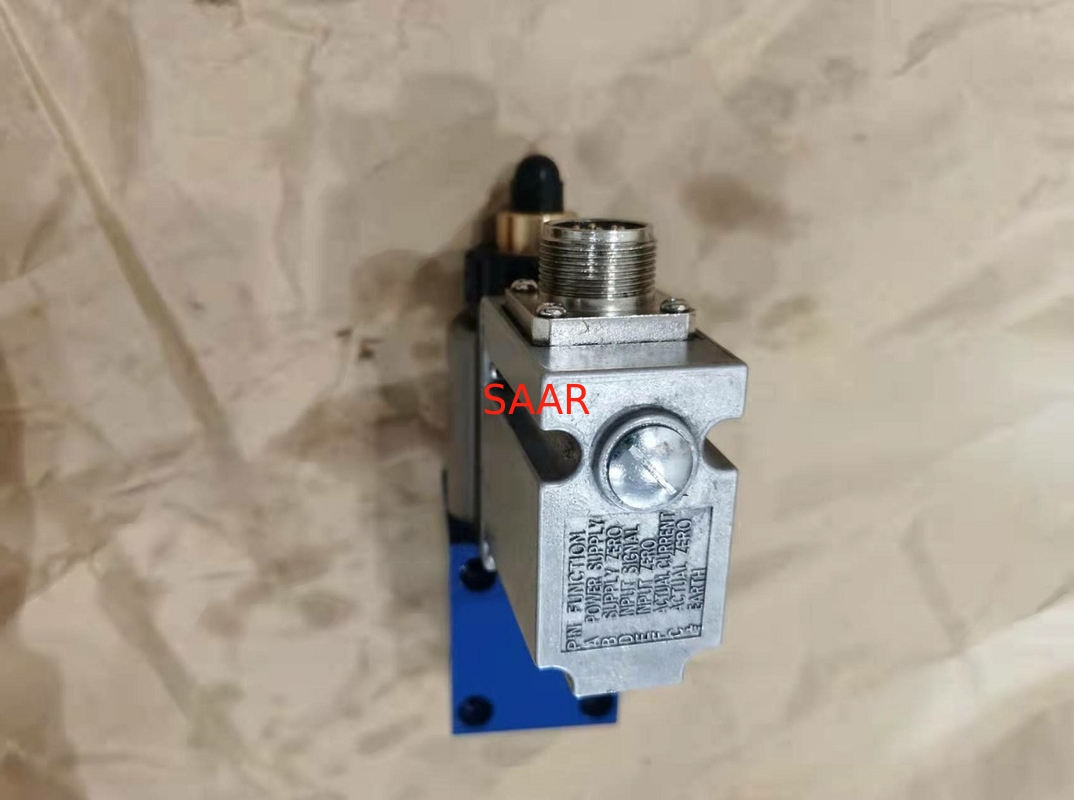

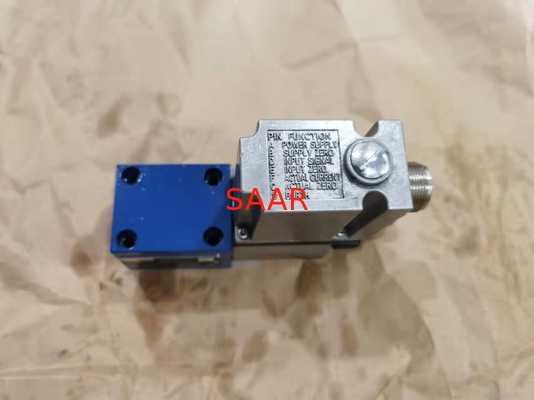

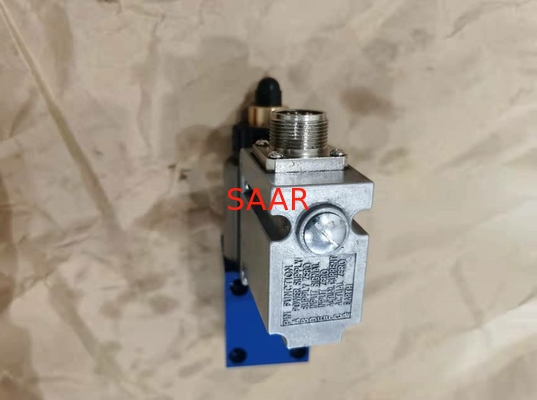

Name: R901029970 DBETE-6X/350G24K31A1V DBETE-62/350G24K31A1V Proportional Pressure Relief Valve
Brand: Rexroth
SKU: R901029970 DBETE-6X/350G24K31A1V DBETE-62/350G24K31A1V
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (149 reviews)

Home Products Rexroth Hydraulic Valves

R901029970 DBETE-6X/350G24K31A1V DBETE-62/350G24K31A1V Proportional Pressure Relief Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901029970 DBETE-6X/350G24K31A1V DBETE-62/350G24K31A1V
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901029970

Model No.:

DBETE-6X/350G24K31A1V DBETE-62/350G24K31A1V

High Light:

Hydraulic Proportional Pressure Relief Valve

Rexroth Proportional Pressure Relief Valve

DBETE-6X/350G24K31A1V

Proportional pressure relief valve, direct operated, with integrated electronics (OBE) DBETE

Size 6
Component series 6X
Maximum operating pressure 420 bar
Maximum flow 2 l/min

Features

Direct operated valve for limiting a system pressure
Proportional solenoid operation
Proportional solenoid with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401

Type Code:

01		02		03		04	05	06	07	08	09	10
DBET	‒		‒	6X	/			G24	XE	J	V	*

01	Proportional pressure relief valve with integrated electronics	DBETE
02	Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions)	6X
Maximum pressure rating
03	Up to 50 bar	50
	Up to 100 bar	100
	Up to 200 bar	200
	Up to 315 bar	315
	Up to 350 bar	350
	Up to 420 bar	420
04	Pilot oil return, internal	no code
04	Pilot oil return, external	Y
05	Direct voltage 24 V	G24
06	1600 mA coil	no code
Electrical connection
07	Without mating connector; connector DIN EN 175201-804	K31
Electrical interface
08	Command value 0 … 10 V	A1
08	Command value 4 to 20 mA	F1
Seal material
09	NBR seals	M
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
10	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Proportional pressure relief valve, direct operated, with integrated electronics (OBE) DBETE Series Valves Model List:

R901029967	DBETE-6X/100G24K31A1V
R901423919	DBETE-6X/100G24K31F1M
R901045242	DBETE-6X/100G24K31F1V
R901064545	DBETE-6X/100YG24K31A1V
R901150563	DBETE-6X/100YG24K31F1V
R988003769	DBETE-6X/100YG24K31F1V-1
R901093993	DBETE-6X/200G24K31A1M
R901029968	DBETE-6X/200G24K31A1V
R901064705	DBETE-6X/200G24K31A1V=LB
R901415729	DBETE-6X/200G24K31F1M
R901045243	DBETE-6X/200G24K31F1V
R901064677	DBETE-6X/200YG24K31A1V
R901103801	DBETE-6X/200YG24K31F1V
R901039512	DBETE-6X/250G24K31A1V
R901045244	DBETE-6X/250G24K31F1V
R901433959	DBETE-6X/250YG24K31A1M
R901064546	DBETE-6X/250YG24K31A1V
R901137745	DBETE-6X/315G24K31A1M
R901029969	DBETE-6X/315G24K31A1V
R901362533	DBETE-6X/315G24K31F1M
R901045246	DBETE-6X/315G24K31F1V
R901194830	DBETE-6X/315YG24K31A1M
R901348398	DBETE-6X/315YG24K31A1M
R901064278	DBETE-6X/315YG24K31A1V
R901348401	DBETE-6X/315YG24K31F1M
R901119906	DBETE-6X/315YG24K31F1V
R901029970	DBETE-6X/350G24K31A1V
R901064699	DBETE-6X/350G24K31A1V=LB
R901045248	DBETE-6X/350G24K31F1V
R901197016	DBETE-6X/350YG24K31A1M
R901064548	DBETE-6X/350YG24K31A1V
R901209459	DBETE-6X/350YG24K31F1V
R901198613	DBETE-6X/420G24K31A1V
R901411345	DBETE-6X/420G24K31F1M
R901121103	DBETE-6X/420G24K31F1V
R901425911	DBETE-6X/420YG24K31A1M
R901104476	DBETE-6X/420YG24K31A1V
R901236003	DBETE-6X/420YG24K31F1V
R901529943	DBETE-6X/50G24K31A1M
R901029966	DBETE-6X/50G24K31A1V
R901048602	DBETE-6X/50G24K31A1V=DE
R901045240	DBETE-6X/50G24K31F1V
R901064544	DBETE-6X/50YG24K31A1V
R901533611	DBETE-6X/50YG24K31F1V
R901344569	DBETE-6X=350G24K31F1V
R901322756	DBETE-6X=350YG24K31F1V-320
