| RM 1902, EASEY BLDG., 253-261 HENNESSY ROAD, WANCHAI, HONGKONG | jason@hydraulicpumpvalve.com |
 |
| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R900933198 4WEH16H72/6EG24N9K4 4WEH16H7X/6EG24N9K4 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| MNR: | R900933198 | Model No.: | 4WEH16H72/6EG24N9K4 4WEH16H7X/6EG24N9K4 |
|---|---|---|---|
| Usage: | Hydraulic System | Voltage: | 12V And 24V |
| Name: | Rexroth Hydraulic Relief Valve DZ Series | Flow: | 1-91L/min |
| High Light: | Pilot Control Proportional Directional Valve,NG10 Rexroth Directional Valve,Subplate Mounting Hydraulic Pilot Check Valve |
||

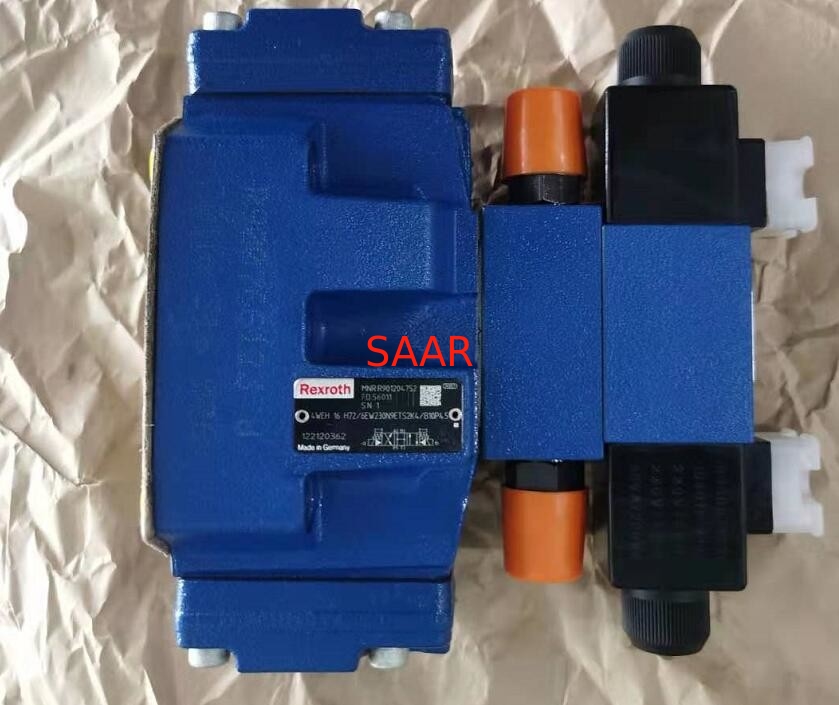

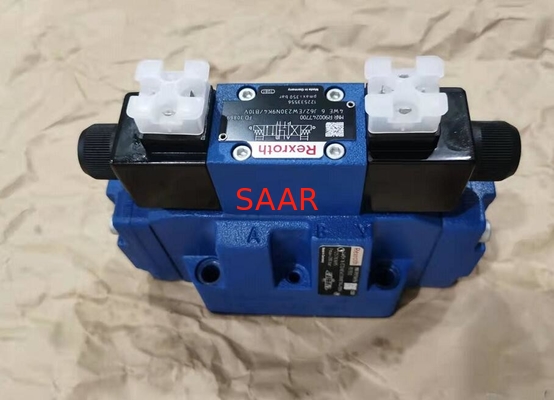

Type 4WEH Directional Spool Valves, Pilot Operated, With electro-hydraulic Actuation
Size 10, 16, 25 (WEH22), 25 (WEH25), 32
Component series 4X, 7X, 6X
Maximum operating pressure 280 bar
Maximum flow 1100 l/min
Features:
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | ||
| WEH | / | K4 | / | * |
| 01 | up to 280 bar | no code |
| 02 | 3-way version | 3 |
| 4-way version | 4 | |
| Types of actuation | ||
| 03 | electro-hydraulic | WEH |
| Size | ||
| 04 | NG10 | 10 |
| NG16 | 16 | |
| NG25 (version "WEH 22") | 22 | |
| NG25 (version "WEH 25") | 25 | |
| Size 32 | 32 | |
| Spool return in the main valve | ||
| 05 | by means of springs | no code |
|
hydraulic 1) |
H | |
| 06 | Symbols; for the possible version, see "Symbols/Circuit diagrams" | |
| 07 | Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10 | 4X |
| Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("WEH 25") and NG32 | 6X | |
| Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("WEH 22") | 7X | |
| Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols C, D, K, Z and hydraulic control spool return in the main valve) | ||
| 08 | With spring return | no code |
| Without spring return | O | |
|
Without spring return with detent 2) |
OF | |
|
Pilot control valve 2) |
||
| 09 | High-power valve | 6E |
| 10 |
Direct voltage 24 V 2) |
G24 |
|
Alternating voltage 230 V, 50/60 Hz 2) |
W230 | |
| For other voltages, frequencies and electric data, see data sheet of high-power valve | ||
| 11 | Without manual override | no code |
| With manual override | N | |
| With concealed manual override | N9 | |
| Pilot oil flow | ||
| 12 |
External pilot oil supply, external pilot oil return 3) |
no code |
|
Internal pilot oil supply, external pilot oil return 3; 4) |
E | |
|
Pilot oil supply internal, pilot oil return internal 4) |
ET | |
|
External pilot oil supply, internal pilot oil return 3) |
T | |
| version “ET” and “T” with 3-spool position valve, pressure-centered, only possible if ppilot ≥ 2 x ptank + ppilot min!) | ||
| Switching time adjustment | ||
| 13 | without switching time adjustment | no code |
| Switching time adjustment as supply control | S | |
| Switching time adjustment as discharge control | S2 | |
| Corrosion resistance | ||
| 14 | None (valve housing primed) | no code |
| Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 | |
|
Electrical connection 2) |
||
| 15 | Individual connection | |
| Without mating connector; connector DIN EN 175301-803 | K4 6) | |
| For further electrical connections, see data sheet 23178 and 08010 | ||
| Spool position monitoring | ||
| 16 | Without position switch | no code |
| Monitored spool position "a" | QMAG24 | |
| Monitored spool position "b" | QMBG24 | |
| Monitored spool position "a" and "b" | QMABG24 | |
| Monitored rest position | QM0G24 | |
| Stroke setting | ||
| 17 | For ordering code, see stroke setting | |
|
Throttle insert 2) |
||
| 18 | Without throttle insert | no code |
| Throttle Ø 0.8 mm | B08 | |
| Throttle Ø 1.0 mm | B10 | |
| Throttle Ø 1.2 mm | B12 | |
| Throttle Ø 1.5 mm | B15 | |
| Throttle Ø 2.0 mm | B20 | |
| Throttle Ø 2.5 mm | B25 | |
|
preload valve (not for NG10) 2) |
||
| 19 | without preload valve | no code |
| with preload valve (pö = 4.5 bar) | P4,5 | |
| 20 | without pressure reducing valve | no code |
| with pressure reducing valve | D3 5) | |
| Seal material | ||
| 21 | NBR seals | no code |
| FKM seals | V | |
| Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||
| 22 | Further details in the plain text | * |
| R900926098 | 4WEH16H7X/6AG24NEK4/P4,5 |
| R900925317 | 4WEH16H7X/6AG24NEK4/P4,5 |
| R900938346 | 4WEH16H7X/6EG110N9ETSK4 |
| R900926093 | 4WEH16H7X/6EG110N9ETSK4/P4,5 |
| R901225161 | 4WEH16H7X/6EG12N9ETDA/B10 |
| R901279318 | 4WEH16H7X/6EG12N9ETDA/B10P4,5 |
| R978901661 | 4WEH16H7X/6EG12N9TDA |
| R901167468 | 4WEH16H7X/6EG205N9ETS2K4/P4,5 |
| R900742731 | 4WEH16H7X/6EG24N9DJL1 |
| R900762877 | 4WEH16H7X/6EG24N9EDJL1/B10P4,5 |
| R900941913 | 4WEH16H7X/6EG24N9EK4 |
| R987144679 | 4WEH16H7X/6EG24N9EK4/B08P4,5 |
| R900926593 | 4WEH16H7X/6EG24N9EK4/P4,5 |
| R900705892 | 4WEH16H7X/6EG24N9EK4K/P4,5 |
| R900771909 | 4WEH16H7X/6EG24N9ES2DJL/B10 |
| R978911682 | 4WEH16H7X/6EG24N9ES2K4/B10P4,5D3 |
| R900763608 | 4WEH16H7X/6EG24N9ETDJL/B10 |
| R900948226 | 4WEH16H7X/6EG24N9ETDL/B10P7,0 |
| R900926207 | 4WEH16H7X/6EG24N9ETK4 |
| R978918984 | 4WEH16H7X/6EG24N9ETK4/B08D3V |
| R900937397 | 4WEH16H7X/6EG24N9ETK4/P4,5 |
| R978934541 | 4WEH16H7X/6EG24N9ETK4/P4,5=CSA |
| R900943481 | 4WEH16H7X/6EG24N9ETK4/P4,5D3 |
| R900943206 | 4WEH16H7X/6EG24N9ETS2K4 |
| R900931624 | 4WEH16H7X/6EG24N9ETS2K4/P4,5 |
| R978910820 | 4WEH16H7X/6EG24N9ETS2K4/P4,5=CSA |
| R900760509 | 4WEH16H7X/6EG24N9ETSDL/B10 |
| R978918430 | 4WEH16H7X/6EG24N9ETSK4/B10P4,5D3V |
| R900925862 | 4WEH16H7X/6EG24N9ETSK4QMABG24/P4,5 |
| R978906586 | 4WEH16H7X/6EG24N9K4/P4,5=CSA |
| R901043348 | 4WEH16H7X/6EG24N9S2C101D |
| R978914290 | 4WEH16H7X/6EG24N9S2DA |
| R900777626 | 4WEH16H7X/6EG24N9S2DJL |
| R901039103 | 4WEH16H7X/6EG24N9S2DJL1 |
| R978002505 | 4WEH16H7X/6EG24N9SDA |
| R900750726 | 4WEH16H7X/6EG24N9TDJL |
| R978000466 | 4WEH16H7X/6EG24N9TK4/P4,5=CSA |
| R978910758 | 4WEH16H7X/6EG24N9TK4/V |
| R901122066 | 4WEH16H7X/6EG24N9TS2DJL1 |
| R900952616 | 4WEH16H7X/6EG24NES2K4/P4,5 |
| R900939849 | 4WEH16H7X/6EG24NETDL/P4,5 |
| R900959811 | 4WEH16H7X/6EG24NETK4/P4,5 |
| R900956194 | 4WEH16H7X/6EG24NETSK4/P4,5 |
| R900748029 | 4WEH16H7X/6EG24NEXETZ2/B10 |
| R901022366 | 4WEH16H7X/6EG24NEXETZ2/B10P4,5 |
| R978019331 | 4WEH16H7X/6EG96N9ETS2K4/B10P4,5D3 |
| R978020795 | 4WEH16H7X/6EG96NETS2K4/B10P4,5D3 |
| R900740072 | 4WEH16H7X/6EW100N9DJL/B10 |
| R900753073 | 4WEH16H7X/6EW100N9DJL1 |
| R901232463 | 4WEH16H7X/6EW100N9EDJL/B10P4,5 |
| R900945585 | 4WEH16H7X/6EW100N9ESK4/10B08 |
| R901008619 | 4WEH16H7X/6EW100N9ETDJL/B10P4,5 |
| R900777896 | 4WEH16H7X/6EW100N9ETDJL1/B10 |
| R900755863 | 4WEH16H7X/6EW100N9K4 |
| R901020561 | 4WEH16H7X/6EW100N9K4/B10P4,5 |
| R900755797 | 4WEH16H7X/6EW100N9TS2DJL |
| R978904339 | 4WEH16H7X/6EW110N9DA |
| R978918050 | 4WEH16H7X/6EW110N9DAL/V |
| R901271251 | 4WEH16H7X/6EW110N9DJL1 |
| R978913167 | 4WEH16H7X/6EW110N9EDA=CSA |
| R978004982 | 4WEH16H7X/6EW110N9EK4 |
| R901143234 | 4WEH16H7X/6EW110N9EK4 |
| R901225159 | 4WEH16H7X/6EW110N9ES2DA/B10 |
| R978915894 | 4WEH16H7X/6EW110N9ETDA=CSA |
| R900967144 | 4WEH16H7X/6EW110N9ETK4 |
| R978919911 | 4WEH16H7X/6EW110N9ETK4=CSA |
| R978913001 | 4WEH16H7X/6EW110N9K4/B10 |
| R978022260 | 4WEH16H7X/6EW110N9K4=CSA |
| R978902171 | 4WEH16H7X/6EW110N9S2DA |
| R978916316 | 4WEH16H7X/6EW110N9S2DK25/V |
| R978904203 | 4WEH16H7X/6EW110N9S2DK25L |
| R978910089 | 4WEH16H7X/6EW110N9S2K4 |
| R978919412 | 4WEH16H7X/6EW110N9TK4=CSA |
| R978912045 | 4WEH16H7X/6EW110N9TS2DA=CSA |
| R978904272 | 4WEH16H7X/6EW110N9TS2DAL/D1 |
| R978011165 | 4WEH16H7X/6EW110N9TS2DAL/D1=CSA |
| R978023358 | 4WEH16H7X/6EW110NETS2K4/B10P4,5D3 |
| R901056692 | 4WEH16H7X/6EW110RN9EDJL1/B10P4,5D3 |
| R901234193 | 4WEH16H7X/6EW110RN9TDJL |
| R901052523 | 4WEH16H7X/6EW200N9ETSDJL/B10P4,5 |
| R901264849 | 4WEH16H7X/6EW200N9ETSK4/B10P4,5 |
| R900777389 | 4WEH16H7X/6EW200N9TS2DJL |
| R901163432 | 4WEH16H7X/6EW230N9EK4 |
| R900931985 | 4WEH16H7X/6EW230N9ES2K4 |
| R900924568 | 4WEH16H7X/6EW230N9ETK4 |
| R900705682 | 4WEH16H7X/6EW230N9ETK4/B10P4,5 |
| R900929269 | 4WEH16H7X/6EW230N9ETS2K4 |
| R900927852 | 4WEH16H7X/6EW230N9ETS2K4/P4,5 |
| R901051534 | 4WEH16H7X/6EW42N9K4 |
| R901137948 | 4WEH16H7X/6HG24N9ETK4 |
| R978900990 | 4WEH16H7X/E |
| R901133156 | 4WEH16H7X/UE |
| R901104063 | 4WEH16H7X/UET |
| R901127460 | 4WEH16H7X/UT |
| R900246525 | 4WEH16H7X/6EG110N9ETK4/B10 |
| R900762359 | 4WEH16H7X/6EG110N9ETK4/B10P4,5 |
| R901252485 | 4WEH16H7X/6EG110N9ETSK4/B10P4,5 |
| R901131359 | 4WEH16H7X/6EG110N9K4 |
| R978916329 | 4WEH16H7X/6EG12N9EDA |
| R978903421 | 4WEH16H7X/6EG12N9ETDA |
| R978916779 | 4WEH16H7X/6EG12N9ETDAL |
| R978912875 | 4WEH16H7X/6EG12N9ETK4 |
| R900757013 | 4WEH16H7X/6EG12N9ETK4/B10 |
| R901009569 | 4WEH16H7X/6EG12N9ETK4/B10P4,5 |
| R901130161 | 4WEH16H7X/6EG12N9K4 |
| R900248099 | 4WEH16H7X/6EG12N9TC4/B10 |
| R978911017 | 4WEH16H7X/6EG12N9TK4 |
| R900775911 | 4WEH16H7X/6EG12N9TK4 |
| R900935609 | 4WEH16H7X/6EG12N9TK4/B10 |
| R901235152 | 4WEH16H7X/6EG205N9ETK4/B10 |
| R900704653 | 4WEH16H7X/6EG205N9ETK4/B10P4,5 |
| R901220322 | 4WEH16H7X/6EG205N9ETS2K4/B10P4,5 |
| R901287579 | 4WEH16H7X/6EG205N9S2K4 |
| R900974006 | 4WEH16H7X/6EG24N4ETK4/B08P4,5 |
| R901017122 | 4WEH16H7X/6EG24N4K4 |
| R901205628 | 4WEH16H7X/6EG24N9DJL |
| R978913677 | 4WEH16H7X/6EG24N9EDA |
| R901274380 | 4WEH16H7X/6EG24N9EDJL/B10P4,5 |
| R901535644 | 4WEH16H7X/6EG24N9EK4/B08 |
| R900939188 | 4WEH16H7X/6EG24N9EK4/B10 |
| R901193572 | 4WEH16H7X/6EG24N9EK4/B10V |
| R901211793 | 4WEH16H7X/6EG24N9EK4K/B10P4,5 |
| R978911435 | 4WEH16H7X/6EG24N9ES2K4 |
| R901185832 | 4WEH16H7X/6EG24N9ES2K4/B10D3 |
| R901065517 | 4WEH16H7X/6EG24N9ES2K4/B10P4,5 |
| R901128557 | 4WEH16H7X/6EG24N9ESK4/B10P4,5 |
| R901242721 | 4WEH16H7X/6EG24N9ESK4/B10P4,5V |
| R978900993 | 4WEH16H7X/6EG24N9ETDA/P4,5 |
| R901207847 | 4WEH16H7X/6EG24N9ETDAL/B10P4,5 |
| R900763611 | 4WEH16H7X/6EG24N9ETDJL/B10P4,5 |
| R901041197 | 4WEH16H7X/6EG24N9ETDL/B10P4,5 |
| R900945300 | 4WEH16H7X/6EG24N9ETK4/B08P4,5D3 |
| R901045618 | 4WEH16H7X/6EG24N9ETK4/B10 |
| R901185046 | 4WEH16H7X/6EG24N9ETK4/B10D3 |
| R900701184 | 4WEH16H7X/6EG24N9ETK4/B10P4,5 |
| R900943510 | 4WEH16H7X/6EG24N9ETK4/B10P4,5D3 |
| R901032414 | 4WEH16H7X/6EG24N9ETK4/B10P4,5V |
| R978915526 | 4WEH16H7X/6EG24N9ETK4/X10D3 |
| R978012973 | 4WEH16H7X/6EG24N9ETS2DA/P4,5 |
| R901245685 | 4WEH16H7X/6EG24N9ETS2K4/B10 |
| R901267017 | 4WEH16H7X/6EG24N9ETS2K4/B10D3V |
| R900976238 | 4WEH16H7X/6EG24N9ETS2K4/B10P4,5 |
| R978029807 | 4WEH16H7X/6EG24N9ETS2K4/B10P4,5D3 |
| R978912748 | 4WEH16H7X/6EG24N9ETS2K4/B10P7.0D3 |
| R900707119 | 4WEH16H7X/6EG24N9ETSK4/B10P4,5 |
| R900933198 | 4WEH16H7X/6EG24N9K4 |
| R900716161 | 4WEH16H7X/6EG24N9K4/B10 |
| R900924731 | 4WEH16H7X/6EG24N9K4/P4,5 |
| R900960031 | 4WEH16H7X/6EG24N9K4/P4,5V |
| R901040699 | 4WEH16H7X/6EG24N9S2DAL |
| R900945712 | 4WEH16H7X/6EG24N9S2K4 |
| R900925307 | 4WEH16H7X/6EG24N9SK4 |
| R900933953 | 4WEH16H7X/6EG24N9TK4 |
| R901339238 | 4WEH16H7X/6EG24N9TK4/B08 |
| R900977135 | 4WEH16H7X/6EG24N9TK4/B10 |
| R901550060 | 4WEH16H7X/6EG24N9TK4/B15 |
| R900952123 | 4WEH16H7X/6EG24N9TS2K4 |
| R900750730 | 4WEH16H7X/6EG24N9TSK4 |
| R900966125 | 4WEH16H7X/6EG24NESK4/B10 |
| R901109021 | 4WEH16H7X/6EG24NESK4/B12P4,5 |
| R901437708 | 4WEH16H7X/6EG24NETK4/B10 |
| R978915964 | 4WEH16H7X/6EG24NETS2DA/P4,5 |
| R978915116 | 4WEH16H7X/6EG24NETS2DA/P7.0 |
| R978910968 | 4WEH16H7X/6EG24NETS2K4/P4,5 |
| R901063337 | 4WEH16H7X/6EG24NTK4 |
| R900963420 | 4WEH16H7X/6EG24NTSK4 |
| R900787965 | 4WEH16H7X/6EG48N9ETK4/B10P4,5 |
| R901270785 | 4WEH16H7X/6EG48N9ETSK4/B10P4,5 |
| R901340331 | 4WEH16H7X/6EG96N9DJL/B10 |
| R900752338 | 4WEH16H7X/6EG96N9ETK4/B10P4,5 |
| R978914152 | 4WEH16H7X/6EG96N9ETS2K4/B10P7.0D3 |
| R978910713 | 4WEH16H7X/6EG96N9ETS2K4/P4,5 |
| R978911722 | 4WEH16H7X/6EG96NETS2K4 |
| R978913436 | 4WEH16H7X/6EG96NETS2K4/B10P7.0D3 |
| R978910958 | 4WEH16H7X/6EG96NETS2K4/P7.0 |
| R900742680 | 4WEH16H7X/6EW100N9DJL |
| R901314993 | 4WEH16H7X/6EW100N9DJL/P4,5 |
| R901292800 | 4WEH16H7X/6EW100N9EK4/B10P4,5 |
| R901180773 | 4WEH16H7X/6EW100N9S2DJL |
| R901028528 | 4WEH16H7X/6EW100N9SDJL |
| R901552401 | 4WEH16H7X/6EW100N9TDJL |
| R900771901 | 4WEH16H7X/6EW100N9TDJL1 |
| R978915948 | 4WEH16H7X/6EW110EK4/P4,5 |
| R901401606 | 4WEH16H7X/6EW110N9DL |
| R978910088 | 4WEH16H7X/6EW110N9EDK25/P4,5 |
| R901247906 | 4WEH16H7X/6EW110N9EDK25L/B10P4,5 |
| R900955184 | 4WEH16H7X/6EW110N9EK4/B08P4,5 |
| R901359369 | 4WEH16H7X/6EW110N9EK4/B10 |
| R978913926 | 4WEH16H7X/6EW110N9EK4/P4,5 |
| R978909697 | 4WEH16H7X/6EW110N9ES2DA |
| R900976188 | 4WEH16H7X/6EW110N9ESK4/B10P4,5 |
| R978900873 | 4WEH16H7X/6EW110N9ETDA |
| R978913303 | 4WEH16H7X/6EW110N9ETDA/P4,5 |
| R978914769 | 4WEH16H7X/6EW110N9ETDA/P7.0 |
| R901186043 | 4WEH16H7X/6EW110N9ETDAL/B10 |
| R978919899 | 4WEH16H7X/6EW110N9ETDAL/P4,5 |
| R978905128 | 4WEH16H7X/6EW110N9ETDK25L/P4,5 |
| R900745726 | 4WEH16H7X/6EW110N9ETK4/B10P4,5 |
| R978910295 | 4WEH16H7X/6EW110N9ETK4/P4,5 |
| R901064534 | 4WEH16H7X/6EW110N9ETS2K4/B10 |
| R901024307 | 4WEH16H7X/6EW110N9ETS2K4/B10P4,5 |
| R978024119 | 4WEH16H7X/6EW110N9ETSDA/P4,5 |
| R901064528 | 4WEH16H7X/6EW110N9ETSK4/B10 |
| R978915675 | 4WEH16H7X/6EW110N9ETSK4/P4,5 |
| R900929439 | 4WEH16H7X/6EW110N9K4 |
| R901101921 | 4WEH16H7X/6EW110N9K4=CSA |
| R901313903 | 4WEH16H7X/6EW110N9S2K4/B10D3 |
| R901112222 | 4WEH16H7X/6EW110N9S2K4/V |
| R901228507 | 4WEH16H7X/6EW110N9TS2DAL/B10D3 |
| R901228321 | 4WEH16H7X/6EW110N9TS2DAL/B10D3=CSA |
| R987035602 | 4WEH16H7X/6EW110N9TS2K4 |
| R900741009 | 4WEH16H7X/6EW110NETK4/B10P4,5 |
| R978913552 | 4WEH16H7X/6EW110NETS2K4/P4.5 |
| R901321108 | 4WEH16H7X/6EW110RN9EDJL/B10P4,5D3 |
| R900740073 | 4WEH16H7X/6EW200N9DJL |
| R901226920 | 4WEH16H7X/6EW200N9ETDJL/B10P4,5 |
| R901549789 | 4WEH16H7X/6EW200N9TDJL |
| R978001261 | 4WEH16H7X/6EW220N9DA |
| R978906554 | 4WEH16H7X/6EW220N9ETDA/P4,5 |
| R978918568 | 4WEH16H7X/6EW220N9S2K4 |
| R900745959 | 4WEH16H7X/6EW230N9EK4/B10 |
| R900741301 | 4WEH16H7X/6EW230N9EK4/B10P4,5 |
| R901114585 | 4WEH16H7X/6EW230N9ESK4/B12P4,5 |
| R901296890 | 4WEH16H7X/6EW230N9ETK4/B10 |
| R900959067 | 4WEH16H7X/6EW230N9ETK4/B10P4,5 |
| R901103182 | 4WEH16H7X/6EW230N9ETS2K4/B10 |
| R901204752 | 4WEH16H7X/6EW230N9ETS2K4/B10P4,5 |
| R900759038 | 4WEH16H7X/6EW230N9ETSK4/B10 |
| R901015153 | 4WEH16H7X/6EW230N9ETSK4/B10P4,5 |
| R901294760 | 4WEH16H7X/6EW230N9ETSK4/B10SO118 |
| R900927530 | 4WEH16H7X/6EW230N9K4 |
| R901237745 | 4WEH16H7X/6EW230N9K4/V |
| R900246847 | 4WEH16H7X/6EW230N9S2DL |
| R900931217 | 4WEH16H7X/6EW230N9S2K4 |
| R900953499 | 4WEH16H7X/6EW230N9SK4 |
| R901359376 | 4WEH16H7X/6EW230N9TDJL |
| R900937643 | 4WEH16H7X/6EW230N9TK4 |
| R900768827 | 4WEH16H7X/6EW230N9TS2K4/B10 |
| R900953742 | 4WEH16H7X/6EW230N9TSK4 |
| R900923804 | 4WEH16H7X/U |
| R978015444 | 4WEH16H7X/UT |
| R901173202 | H-4WEH16H7X/6EG12N9EK4 |
| R901038693 | H-4WEH16H7X/6EG24N9DJL/B10D3 |
| R900740279 | H-4WEH16H7X/6EG24N9DJL1 |
| R900938635 | H-4WEH16H7X/6EG24N9ES2K4/P4,5 |
| R900939300 | H-4WEH16H7X/6EG24N9ETK4/P4,5 |
| R901229879 | H-4WEH16H7X/6EG24N9ETSK4/B10P4,5D2V |
| R978934542 | H-4WEH16H7X/6EG24N9K4/P4,5=CSA |
| R978909435 | H-4WEH16H7X/6EG24N9K4=CSA |
| R901116712 | H-4WEH16H7X/6EG24N9TC101D |
| R901038066 | H-4WEH16H7X/6EW100N9DJL |
| R901015048 | H-4WEH16H7X/6EW100N9DJL/B10 |
| R900786434 | H-4WEH16H7X/6EW100N9DJL1 |
| R901056818 | H-4WEH16H7X/6EW100N9DJL1/B10D3 |
| R900752592 | H-4WEH16H7X/6EW100N9EDJL1/B10 |
| R978919641 | H-4WEH16H7X/6EW110N9TDA |
| R901228633 | H-4WEH16H7X/6EW110NETDA/B10P4,5D3 |
| R901228633 | H-4WEH16H7X/6EW110NETDA/B10P4,5D3 |
| R900758962 | H-4WEH16H7X/6EW200N9DJL |
| R901031277 | H-4WEH16H7X/6EW200N9EDJL/B10D3 |
| R901078590 | H-4WEH16H7X/6EW200N9EDJL/B10P4,5 |
| R901038058 | H-4WEH16H7X/6EW200N9EDJL1/B10 |
| R901069090 | H-4WEH16H7X/6EW200N9SDJL |
| R900952807 | H-4WEH16H7X/6EW230N9ESK4/B10P7,0D3 |
| R901212271 | H-4WEH16H7X/6EG12N9EK4/B10D3 |
| R901251855 | H-4WEH16H7X/6EG12N9ETSK4/B10P4,5D3 |
| R901426215 | H-4WEH16H7X/6EG12N9ETSK4/B10P4,5D3V |
| R901130520 | H-4WEH16H7X/6EG12N9K4 |
| R901052043 | H-4WEH16H7X/6EG24N9ES2K4/B10P4,5D3 |
| R901042135 | H-4WEH16H7X/6EG24N9ETK4/B10D3 |
| R901231189 | H-4WEH16H7X/6EG24N9ETK4/B10P4,5D3 |
| R901356092 | H-4WEH16H7X/6EG24N9ETS2K4/B10P4,5D3 |
| R901112994 | H-4WEH16H7X/6EG24N9ETSK4/B10D3 |
| R978012449 | H-4WEH16H7X/6EG24N9ETSK4/B10P4,5D3V |
| R900248276 | H-4WEH16H7X/6EG24N9K4 |
| R901124228 | H-4WEH16H7X/6EG24N9K4/B08 |
| R901440956 | H-4WEH16H7X/6EG24N9K4/B10P4,5D3 |
| R978934542 | H-4WEH16H7X/6EG24N9K4/P4,5=CSA |
| R901170296 | H-4WEH16H7X/6EG24N9K4/V |
| R901036143 | H-4WEH16H7X/6EG24N9S2K4/B10D3 |
| R901106172 | H-4WEH16H7X/6EG24N9SK4/B10 |
| R900775585 | H-4WEH16H7X/6EG24N9TK4 |
| R901276122 | H-4WEH16H7X/6EG24N9TK4/B10D3 |
| R901104358 | H-4WEH16H7X/6EG24NETS2K4/B10P4,5D3 |
| R901564101 | H-4WEH16H7X/6EG24NXES2Z2/B10D3 |
| R901080892 | H-4WEH16H7X/6EG24NXETZ2 |
| R900957324 | H-4WEH16H7X/6EG48N9ESK4/B10P4,5D3 |
| R900774239 | H-4WEH16H7X/6EW100N9DJL/B10D3 |
| R901086633 | H-4WEH16H7X/6EW100N9EK4/B10D3 |
| R900761829 | H-4WEH16H7X/6EW100N9ETSDJL/B10P4,5D3 |
| R900748812 | H-4WEH16H7X/6EW100N9TDJL1 |
| R901031273 | H-4WEH16H7X/6EW100N9TDJL1/N08 |
| R901086883 | H-4WEH16H7X/6EW110N9DAL/P4,5V |
| R901261521 | H-4WEH16H7X/6EW110N9EK4/B10P4,5D3 |
| R978903572 | H-4WEH16H7X/6EW110N9ETDA/P4,5V |
| R901121802 | H-4WEH16H7X/6EW110N9ETDAL/B10P4,5D3V |
| R901229487 | H-4WEH16H7X/6EW110N9ETSDAL/B10P4,5D3 |
| R978914274 | H-4WEH16H7X/6EW110N9ETSDAL/P4,5D1 |
| R901063743 | H-4WEH16H7X/6EW110N9K4 |
| R900957327 | H-4WEH16H7X/6EW110N9K4/V |
| R901212019 | H-4WEH16H7X/6EW110N9S2K4/B10P4,5D3 |
| R978908932 | H-4WEH16H7X/6EW110NETDA/P4,5D1 |
| R901549279 | H-4WEH16H7X/6EW200N9EK4/B10D3 |
| R901069077 | H-4WEH16H7X/6EW200N9S2DJL |
| R978901989 | H-4WEH16H7X/6EW220N9S2DA |
| R900741512 | H-4WEH16H7X/6EW230N9K4 |
| R901360879 | H-4WEH16H7X/6EW230N9K4/B10P4,5 |
| R900959612 | H-4WEH16H7X/6EW230NEK4/B10P4,5D3 |
| R900954336 | H-4WEH16H7X/6EW230NETK4/B10P4,5D3 |
| R901197917 | H-4WEH16H7X/6EW230NETS2K4/B10P4,5D3V |
| R901389824 | H-4WEH16H7X/6EW230RNXEETZ2/B10D3 |
| R900923825 | H-4WEH16H7X/U |
Contact Person: Mr. Jason
A10VSO18 Series Rexroth Hydraulic Pump , Variable Axial Piston Pump
Variable High Pressure Hydraulic Pump A10VSO45 Series With Long Service Life
Quick Speed Rexroth Hydraulic Pump , A10VSO71 Series Variable Piston Hydraulic Pump
Hydac Pressure Filter Element Replacement 0240D 0260D 0280D Series ISO Approved
Pressure Replacement Filter Element Hydac 0800D 0900D 1320D 1500D Series
Hydac 0240R Series Return Line Elements For Hydraulic Return Line Filter
Parker Denison Hydraulic Piston Pumps Variable Volume PVP16 Series
PVP41 Series Parker Denison Hydraulic Pumps Variable Volume Piston Pumps
PV140 PV180 Series Parker Hydraulic Pumps Axial Piston Pump On Hand
