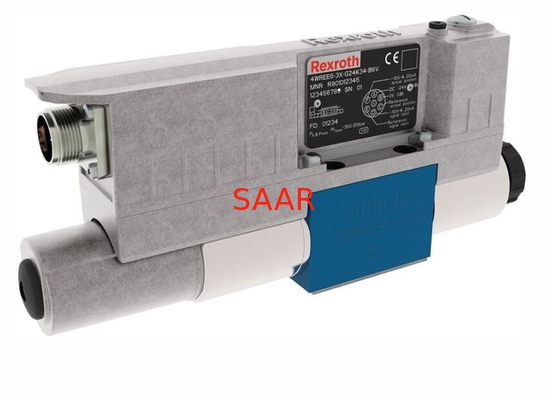

Name: R901496430 4WREE6E32-30/V/24A1 4WREE6E32-3X/V/24A1 Proportional Directional Valve
Brand: Rexroth
SKU: R901496430 4WREE6E32-30/V/24A1 4WREE6E32-3X/V/24A1
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (117 reviews)

Home Products Rexroth Hydraulic Valves

R901496430 4WREE6E32-30/V/24A1 4WREE6E32-3X/V/24A1 Proportional Directional Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901496430 4WREE6E32-30/V/24A1 4WREE6E32-3X/V/24A1
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:	R901496430	Model No.:	4WREE6E32-30/V/24A1 4WREE6E32-3X/V/24A1
Type:	Valves	Material:	Cast Iron
Structure:	Sectional	AppliSAARion:	General,Electrohydraulic Proportional Control System
High Light:	R901496430 Proportional Directional Valve , Cast Iron Proportional Directional Valve , Sectional Rexroth Proportional Valve

Proportional directional valve, direct operated, with electrical position feedback and integrated electronics (OBE)
4WREE-3X

Size 6
Component series 3X
Maximum operating pressure 350 bar
Maximum flow 80 l/min
Nominal flow (Δp = 10 bar) 4 … 32 l/min

Features
4/2 or 4/3 directional design
For subplate mounting
Porting pattern according to ISO 4401-03-02-0-05
Control of flow direction and size
Actuation by proportional solenoids with central thread
Spring-centered control spool
Integrated control electronics (OBE) with voltage or current input ("A1" or "F1")

Type Code:

01	02	03	04	05	06	07		08		09		10	11	12	13
4	WRE	E	6				-	3X	/		/	24

01	4 main ports	4
02	Proportional directional valves, direct operated, with electrical position feedback	WRE
03	With integrated electronics (OBE)	E
04	Size 6	6
05	Symbols; for the possible version, see "Symbols/Circuit diagrams"	e.g. E1-
Rated flow (Δp = 5 bar/control edge)
06	4 l/min	4
	8 l/min	8
	16 l/min	16
	32 l/min	32
07	Without step function	no code
07	Overlap jump (opening point 5 command value with symbols E, W and W1-)	J
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
09	FKM seals	V
09	NBR seals	M
Power supply
10	Direct voltage 24 V	24
Interfaces of the control electronics
11	Command value input ±10 V	A1
11	Command value input 4 ... 20 mA	F1
Special versions
12	Without pressure compensationelement in the OBE	no code
12	With pressure compensationelement in the OBE	-967
13	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Type 4WREE6-3X Proportional Directional Valves on Sale, Short lead time, Best price!!!

R901514051	4WREE6E04-3X/V/24A1
R901514664	4WREE6E08-3X/M/24F1
R901496433	4WREE6E08-3X/V/24A1
R901496434	4WREE6E08-3X/V/24F1
R901514690	4WREE6E1-08-3X/M/24F1
R901524426	4WREE6E1-16-3X/M/24A1
R901514691	4WREE6E1-16-3X/V/24A1
R901514693	4WREE6E1-32-3X/M/24F1
R901496446	4WREE6E1-32-3X/V/24A1
R901496448	4WREE6E1-32-3X/V/24F1
R901524427	4WREE6E16-3X/M/24A1
R901561403	4WREE6E16-3X/-TEST
R901496427	4WREE6E16-3X/V/24A1
R901496443	4WREE6E16-3X/V/24F1
R901561379	4WREE6E16J-3X/V/24A1
R901514694	4WREE6E32-3X/M/24F1
R901496430	4WREE6E32-3X/V/24A1
R901496435	4WREE6E32-3X/V/24F1
R901561400	4WREE6E32J-3X/V/24A1
R901561382	4WREE6E32J-3X/V/24F1
R901513305	4WREE6EA16-3X/V/24A1
R901526577	4WREE6EA32J-3X/M/24A1
R901526575	4WREE6EA32J-3X/V/24A1
R901526177	4WREE6EB08-3X/V/24F1
R901526179	4WREE6EB16-3X/V/24A1
R901526180	4WREE6EB32-3X/V/24A1
R901526184	4WREE6EB32-3X/V/24F1
R901547187	4WREE6Q2-08-3X/V/24A1
R901547189	4WREE6Q2-16-3X/V/24A1
R901547188	4WREE6Q2-32-3X/V/24A1
R901514696	4WREE6V08-3X/M/24F1
R901496436	4WREE6V08-3X/V/24A1
R901546148	4WREE6V1-08-3X/M/24A1
R901546147	4WREE6V1-16-3X/M/24A1
R901524434	4WREE6V1-16-3X/V/24A1
R901553418	4WREE6V1-32-3X/V/24F1
R901530229	4WREE6V16-3X/M/24F1
R901496440	4WREE6V16-3X/V/24A1
R901514698	4WREE6V32-3X/M/24F1
R901496439	4WREE6V32-3X/V/24A1
R901496450	4WREE6V32-3X/V/24F1
R901496445	4WREE6W04-3X/V/24A1
R901555145	4WREE6W04J-3X/M/24A1
R901514699	4WREE6W08-3X/M/24F1
R901523607	4WREE6W08-3X/V/24A1
R901514665	4WREE6W1-08-3X/M/24F1
R901496444	4WREE6W1-08-3X/V/24A1
R901496449	4WREE6W1-08-3X/V/24F1
R901496451	4WREE6W1-16-3X/V/24F1
R901514667	4WREE6W1-32-3X/M/24F1
R901496442	4WREE6W1-32-3X/V/24A1
R901496441	4WREE6W1-32-3X/V/24F1
R901496437	4WREE6W16-3X/V/24A1
R901513306	4WREE6W2-32-3X/V/24A1
R901514666	4WREE6W32-3X/M/24F1
R901496432	4WREE6W32-3X/V/24A1
R901496438	4WREE6W32-3X/V/24F1
R901526164	4WREE6WA08-3X/V/24A1
R901526166	4WREE6WA08-3X/V/24F1
R901497575	4WREE6WA16-3X/V/24A1
R901526158	4WREE6WA16-3X/V/24F1
R901497573	4WREE6WA32-3X/V/24A1
R901526163	4WREE6WA32-3X/V/24F1
R901526168	4WREE6WB32-3X/V/24A1
