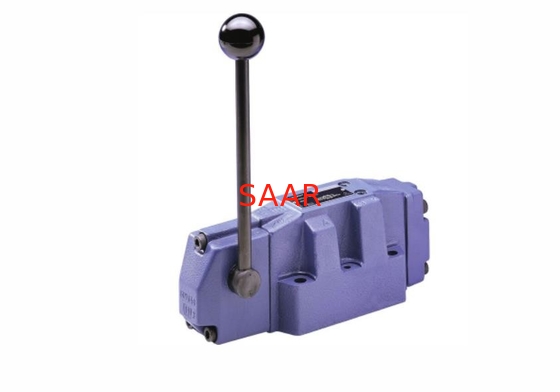

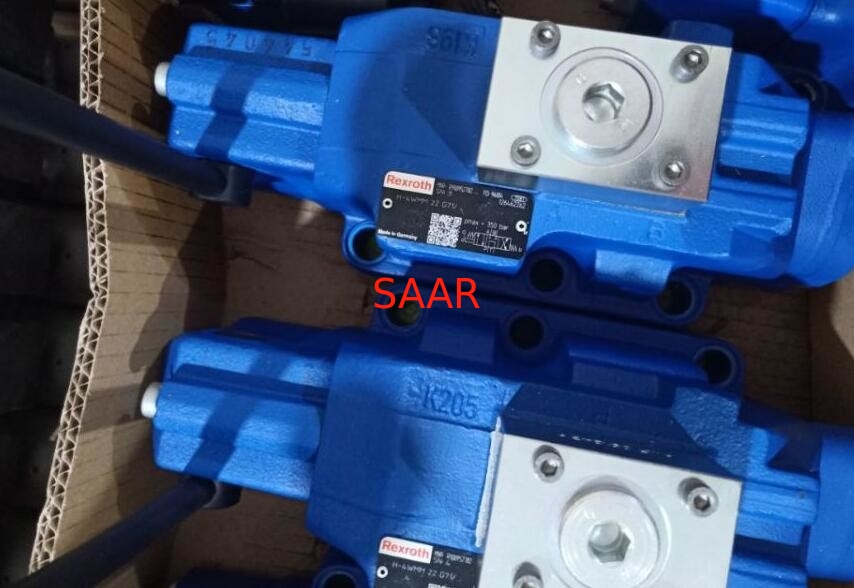

R900952782 H-4WMM22G70/ H-4WMM22G7X/ Directional Valve With Hand Lever Actuation

R900952782 H-4WMM22G70/ H-4WMM22G7X/ Directional Valve With Hand Lever Actuation

  • R900952782 H-4WMM22G70/ H-4WMM22G7X/ Directional Valve With Hand Lever Actuation
  • R900952782 H-4WMM22G70/ H-4WMM22G7X/ Directional Valve With Hand Lever Actuation
R900952782 H-4WMM22G70/ H-4WMM22G7X/ Directional Valve With Hand Lever Actuation
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900952782 H-4WMM22G70/ H-4WMM22G7X/
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900952782 Model No.: H-4WMM22G70/ H-4WMM22G7X/
High Light:

Hand Lever Actuation Rexroth Directional Valve

,

5X Directional Rexroth Pneumatic Solenoid Valve

,

350 Bar Hydraulic Pressure Relief Valve

H-4WMM 4/3 and 4/2 directional valve, with hand lever actuation

Size 16 … 32
Component series 7X, 5X
Maximum operating pressure 350 bar
Maximum flow 1100 l/min

Features
Direct operated directional spool valve with hand lever actuation
Porting pattern according to DIN 24340 form A and ISO 4401
with spring return or detent, optional
Actuation mechanism protected against contamination and humidity ingress
Head end with actuation mechanism exchangeable without disassembly of the valve
Inductive position switch and proximity sensors (contactless)

Type Code:
01

02
03
04
05
06

07
08
09
10
H
4
WMM



/



*
01
Maximum operating pressure 350 bar
H
02
4 main ports
4
Actuation

03
Hand lever
WMM
04
Size 16
16
Size 25
22
Size 32
32
05
Spool symbol, e. g. C, E etc., see Symbols

06
NG16 and 25 – Component series 70 to 79 (70 to 79: unchanged installation and connection dimensions)
7X
NG32 – Component series 30 to 39 (30 to 39: unchanged installation and connection dimensions)
5X
07
With spring return
no code
With detent
F
Spool position monitoring (NG16 and 25 only)

08
Without position switch
no code
Monitored spool position "a"
QMAG24
Monitored spool position "b"
QMBG24
Monitored rest position
QM0G24
Seal material

09
NBR seals
no code
FKM seals (other seals upon request)
Observe compatibility of seals with hydraulic fluid used.
V
10
Further details in the plain text
*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Type H-4WMM22 Serie directional valve with hand lever actuation on Sale, Short lead time, Best price!!!

R901155517 H-4WMM22C7X/
R978915086 H-4WMM22C7X/
R901355967 H-4WMM22C7X//V
R900722769 H-4WMM22C7X/F
R900777428 H-4WMM22C7X/F/43
R978915499 H-4WMM22C7X/F/V
R901225251 H-4WMM22C7X/FJ
R901220541 H-4WMM22C7X/J
R900955339 H-4WMM22D7X/
R900738114 H-4WMM22D7X/F
R900772344 H-4WMM22D7X/F/V
R900955600 H-4WMM22E7X/
R900957897 H-4WMM22E7X//V
R901000219 H-4WMM22E7X//VT12
R900952059 H-4WMM22E7X/F
R900966275 H-4WMM22E7X/F/43V
R900713421 H-4WMM22E7X/F/V
R901040737 H-4WMM22F7X/
R901027622 H-4WMM22F7X/F
R900952782 H-4WMM22G7X/
R900730337 H-4WMM22G7X//43
R900956480 H-4WMM22G7X/F
R900957926 H-4WMM22G7X/F/43
R978917190 H-4WMM22G7X/F/V
R901043375 H-4WMM22G7X/J
R900247210 H-4WMM22H7X/
R901444580 H-4WMM22H7X//V
R900967207 H-4WMM22H7X/F
R900769914 H-4WMM22H7X/FJ
R900746882 H-4WMM22J11-7X/
R900953434 H-4WMM22J7X/
R900959482 H-4WMM22J7X//V
R900953980 H-4WMM22J7X/F
R900948930 H-4WMM22J7X/F/V
R900956935 H-4WMM22J7X/J
R901262839 H-4WMM22L7X/
R900957326 H-4WMM22L7X/F
R901075027 H-4WMM22M7X/
R900709430 H-4WMM22M7X//43V
R901234160 H-4WMM22M7X/F/V
R901037542 H-4WMM22P7X/F
R901039298 H-4WMM22Q7X/
R900976605 H-4WMM22R7X/
R901225263 H-4WMM22R7X/FJ
R901220536 H-4WMM22R7X/J
R900710672 H-4WMM22S11-7X/
R901113719 H-4WMM22S1-7X/
R900752334 H-4WMM22T7X/
R900967006 H-4WMM22T7X/F
R900967728 H-4WMM22W48-7X/
R901164098 H-4WMM22W48-7X//V
R901206568 H-4WMM22W48-7X/J
R900956909 H-4WMM22W7X/F
R900956384 H-4WMM22Y7X//43
