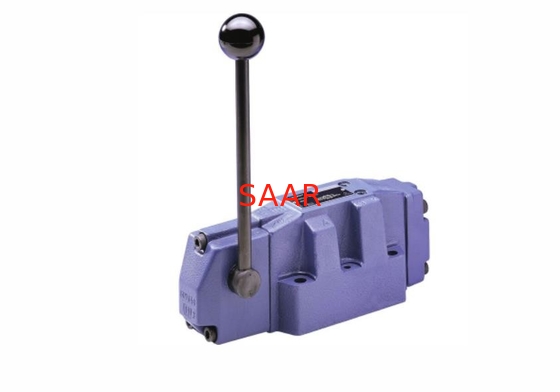

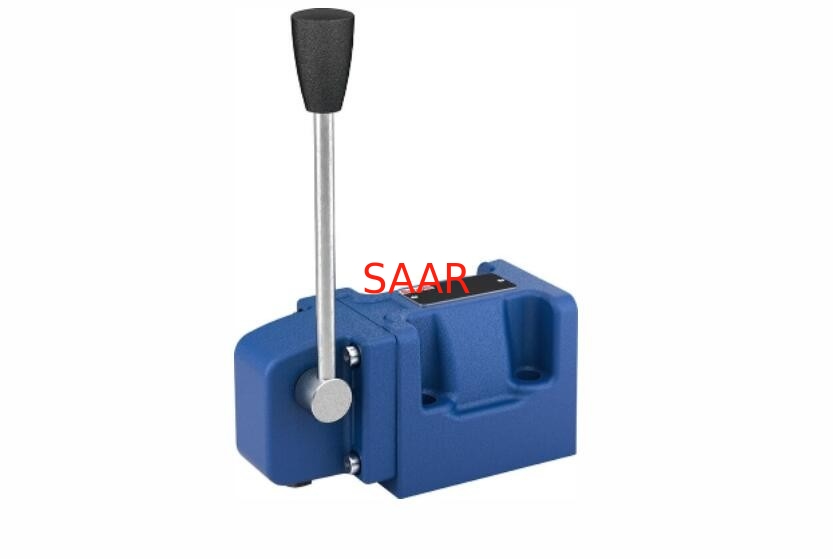

R901401280 4WMM10D5X//V Directional Valve With Hand Lever Actuation

R901401280 4WMM10D5X//V Directional Valve With Hand Lever Actuation

  • R901401280 4WMM10D5X//V Directional Valve With Hand Lever Actuation
  • R901401280 4WMM10D5X//V Directional Valve With Hand Lever Actuation
R901401280 4WMM10D5X//V Directional Valve With Hand Lever Actuation
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R901401280 4WMM10D5X//V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R901401280 Model No.: 4WMM10D50//V 4WMM10D5X//V
High Light:

Hydraulic Rexroth Directional Valve

,

Actuation Hydraulic Directional Valve

,

Hand Lever Directional Valve

Directional spool valves, direct operated, with manual actuation 4WMM10

Size 10
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 160 l/min

Features
4/3-, 4/2- or 3/2-way version
Porting pattern according to ISO 4401-05-04-0-05
Type of actuation: hand lever

Type Code:
01
02
03
04
05

06

07
08
09
10
11

WMM
10

5X
/

/



*
01
3 main ports
3
4 main ports
4
Type of actuation
02
Hand lever
WMM
03
Size 10
10
04
Symbols; for the possible version, see "Symbols/Circuit diagrams"

05
Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)
5X
Control spool return
06
With spring return
no code
With detent
F
Corrosion resistance (outside)
07
None (valve housing primed)
no code
Improved corrosion protection (720 h salt spray test according to EN ISO 9227)
J4
Throttle insert
1)
08
Without throttle insert
no code
With throttle insert:
Connection
Throttle Ø in mm
0,8
1,0
1,2
P
B08
B10
B12
A
H08
H10
H12
B
R08
R10
R12
A and B
N08
N10
N12
T 2)
X08
X10
X12
Further throttle insert diameters upon request.
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
09
NBR seals
M
FKM seals
V
Pilot oil port
10
Whitworth pipe thread G1/4
11
Further details in the plain text
*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Type 4WMM5X Series directional valve with hand lever actuation on Sale, Short lead time, Best price!!!
R901362285 4WMM10C5X//M
R901362287 4WMM10C5X/F/M
R901418361 4WMM10C5X/F/V
R901434151 4WMM10C5X/J5/M
R901350271 4WMM10D5X//M
R901401280 4WMM10D5X//V
R901408284 4WMM10D5X/F/B08M
R901350272 4WMM10D5X/F/M
R901362289 4WMM10D5X/F/V
R901548078 4WMM10D5X/FJ5/V
R901397209 4WMM10D5X/J5/M
R901556041 4WMM10D5X=F/M
R901516896 4WMM10E13-5X/F/M
R901408285 4WMM10E5X//B08M
R901350265 4WMM10E5X//M
R901362290 4WMM10E5X//V
R901408339 4WMM10E5X/F/B12M
R901350266 4WMM10E5X/F/M
R901362292 4WMM10E5X/F/V
R901404263 4WMM10E5X/J5/M
R901362294 4WMM10EA5X//M
R901397277 4WMM10EA5X//V
R901362295 4WMM10EB5X//M
R901403957 4WMM10EB5X//V
R901430400 4WMM10EB5X/F/M
R901383274 4WMM10F5X//M
R901362296 4WMM10G5X//B20M
R901350267 4WMM10G5X//M
R901362297 4WMM10G5X//V
R901350268 4WMM10G5X/F/M
R901362299 4WMM10G5X/F/V
R901445099 4WMM10G5X/J5/M
R901362418 4WMM10GA5X/F/M
R901155474 4WMM10GB5X/F/B08V
R901362300 4WMM10GB5X/F/M
R901362404 4WMM10H5X//M
R901362405 4WMM10H5X/F/M
R901427121 4WMM10H5X/FJ5/M
R901408286 4WMM10J5X//B08M
R901429652 4WMM10J5X//B12V
R901350184 4WMM10J5X//M
R901362407 4WMM10J5X//V
R901432578 4WMM10J5X/F/B12M
R901350264 4WMM10J5X/F/M
R901362408 4WMM10J5X/F/V
R901397208 4WMM10J5X/FJ5/M
R901410278 4WMM10J5X/J5/M
R901158859 4WMM10J5X/J5/V
R901434895 4WMM10J73-5X//M
R901136812 4WMM10JA5X//M
R901362409 4WMM10JB5X//M
R901552643 4WMM10JB5X/J5/M
R901401636 4WMM10M5X//M
R901559332 4WMM10P5X/F/M
R901376690 4WMM10Q5X//M
R901434152 4WMM10Q5X/F/B10V
R901439137 4WMM10Q5X/F/M
R901362410 4WMM10R5X/F/M
R901422527 4WMM10RB5X/F/M
R901362411 4WMM10T5X//M
R901362412 4WMM10T5X/F/M
R901429265 4WMM10T5X/J5/M
R901428996 4WMM10U5X//M
R901407702 4WMM10U5X/F/B12M
R901237179 4WMM10U5X/F/M
R901362413 4WMM10W5X//M
R901362414 4WMM10W5X//V
R901362416 4WMM10Y5X//M
R901376694 4WMM10Y5X/F/M
R901535473 4WMM10Y5X/F/V
R901564167 4WMM10Y5X/FJ5/M
