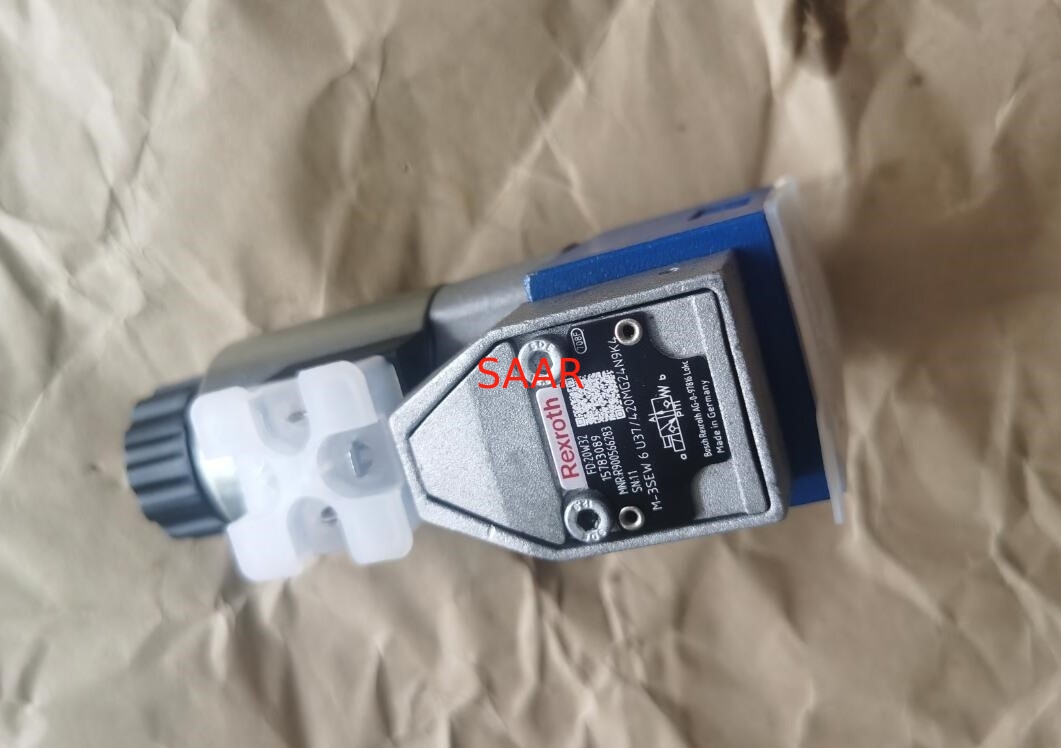

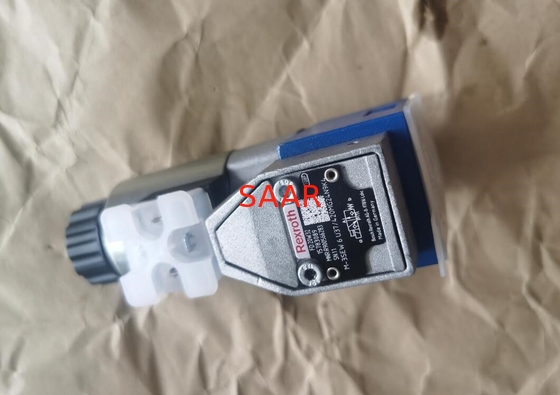

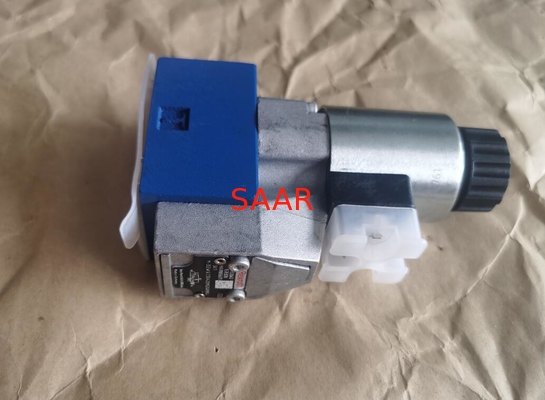

R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves

R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves

  • R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves
  • R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves
R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R9002065563 Model No.: M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4
Type: Valves Material: Casting
Standard Or Nonstandard: Standard Structure: Control
High Light:

Directional Poppet Valves 420MG220N9K4

,

630 Bar Directional Poppet Valves

,

Proportional Hydraulic Valve Directional

Directional poppet valves, directly operated, with solenoid actuation
M-3SEW6

Size 6
Component series 3X
Maximum operating pressure 420 / 630 bar
Maximum flow 25 l/min

Features
2/2-, 3/2- or 4/2-way version
Porting pattern according to DIN 24340 form A
Porting pattern according to ISO 4401-03-02-0-05
Air-gap DC solenoids with detachable coil
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual connection
Optional auxiliary operating device
Inductive position switch and proximity sensors (contactless)

Type Code:
01

02
03
04
05

06
07
08
09
10
11
12
13
14
15
16
M

SEW
6

3X
/

M


K4
/



*

01
Mineral oil
M
02
2 main ports
2
3 main ports
3
4 main ports
4
03
Seat valve, direct operated
SEW
04
Size 6
6
05
Symbols
Main ports
● = available
2
3
4
R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves 0
P
R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves 1
N
R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves 2
U
R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves 3
C
R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves 4
D
R9002065563 M-3SEW6U37/420MG220N9K4 M-3SEW6U3X/420MG220N9K4 Directional Poppet Valves 5
Y
06
Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)
3X
07
Operating pressure 420 bar
420 bar
Operating pressure 630 bar
630 bar
08
High-power solenoid (air-gap) with detachable coil
M
09
Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)
G96
Nominal voltage 110 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V – 50/60 Hz with an admissible voltage tolerance of +/-10 %)
G110
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)
G205
Connection to the AC voltage mains via control with rectifier. Further ordering codes for other voltages are provided in the Technical data
10
With concealed manual override (standard)
N9
Without manual override
no code
Electrical connection
11
Individual connection
Without mating connector; connector DIN EN 175301-803
K41)
Spool position monitoring
12
Without position switch
no code
Inductive position switch type QM
Monitored spool position "a"
QMAG24 2)
Monitored spool position "b"
QMBG25 2)
13
Without check valve insert, without throttle insert
no code
With check valve insert
P
Throttle Ø 1.2 mm
B12
Throttle Ø 1.5 mm
B15
Throttle Ø 1.8 mm
B18
Throttle Ø 2.0 mm
B20
Throttle Ø 2.2 mm
B22
Other orifices on request
Seal material
14
NBR seals
no code
FKM seals
V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
15
Without locating hole
no code
With locating hole and locking pin ISO 8752-3x8-St
/62
16
Further details in the plain text
*

 SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Directional poppet valves, directly operated, with solenoid actuation M-3SEW6 on Sale, Short lead time, Best price!!!

R900218848 M-3SEW6C3X/420MG125N9K4/P
R900220602 M-3SEW6C3X/420MG220N4K4/B12
R900202965 M-3SEW6C3X/420MG24N9K4/B18V
R900227604 M-3SEW6C3X/420MG42N9K4
R900216084 M-3SEW6C3X/420MG60N9K4
R900216903 M-3SEW6C3X/420MG96N9K4/B08/5
R900051638 M-3SEW6C3X/420MG96N9K4/B22
R900222077 M-3SEW6C3X/630MG12N9K4/V
R900203592 M-3SEW6C3X/630MG24N9K4/B22
R900210348 M-3SEW6C3X/630MG48N4K4/B08
R900222269 M-3SEW6C3X/630MG60N9K4
R900241768 M-3SEW6U3X/420MG110N9K4/B10
R900218394 M-3SEW6U3X/420MG110N9K4/B12/5
R900243511 M-3SEW6U3X/420MG205N9K4/B18
R900569709 M-3SEW6U3X/420MG24N9Z5L1
R900227601 M-3SEW6U3X/420MG42N9K4/B10
R900059991 M-3SEW6U3X/420MG48N9K4/B10
R900207615 M-3SEW6U3X/630MG26N9K4K
R900058413 M-3SEW6U3X/630MG48K4
R900059240 M-3SEW6C3X/420MG110N9K4
R900210121 M-3SEW6C3X/420MG110N9K4/B10
R900059239 M-3SEW6C3X/420MG110N9K4/B15
R900229401 M-3SEW6C3X/420MG110N9K4/B15V
R900226188 M-3SEW6C3X/420MG110N9K4/P
R900205805 M-3SEW6C3X/420MG110N9K4/PV
R900210349 M-3SEW6C3X/420MG110N9K4/V
R900225704 M-3SEW6C3X/420MG125N9K4
R900214243 M-3SEW6C3X/420MG125N9K4/V
R900050514 M-3SEW6C3X/420MG205N9K4
R900050124 M-3SEW6C3X/420MG205N9K4/B08
R900211272 M-3SEW6C3X/420MG205N9K4/B12
R900218497 M-3SEW6C3X/420MG205N9K4/B15
R900220610 M-3SEW6C3X/420MG205N9K4/B15V
R900049952 M-3SEW6C3X/420MG205N9K4/B20
R900213542 M-3SEW6C3X/420MG205N9K4/P
R900202434 M-3SEW6C3X/420MG220N9K4
R900214676 M-3SEW6C3X/420MG220N9K4/V
R900053912 M-3SEW6C3X/420MG240N9K4
R900051263 M-3SEW6C3X/420MG240N9K4/B15
R900205012 M-3SEW6C3X/420MG24K4/B08V
R900205014 M-3SEW6C3X/420MG24K4/B12V
R900228211 M-3SEW6C3X/420MG24K4/B20
R900022709 M-3SEW6C3X/420MG24K4/P
R900219228 M-3SEW6C3X/420MG24N4K4
R900242940 M-3SEW6C3X/420MG24N4K4/B20V
R900205777 M-3SEW6C3X/420MG24N4K4/B22
R900031509 M-3SEW6C3X/420MG24N9K4/B07
R900020653 M-3SEW6C3X/420MG24N9K4/B08
R900061683 M-3SEW6C3X/420MG24N9K4/B10
R900029511 M-3SEW6C3X/420MG24N9K4/B12
R900220648 M-3SEW6C3X/420MG24N9K4/B12V
R900070706 M-3SEW6C3X/420MG24N9K4/B15
R900082565 M-3SEW6C3X/420MG24N9K4/B15V
R900203376 M-3SEW6C3X/420MG24N9K4/B18
R900087369 M-3SEW6C3X/420MG24N9K4/B22
R900205144 M-3SEW6C3X/420MG24N9K4/PV
R900049834 M-3SEW6C3X/420MG24N9K4/V
R900214802 M-3SEW6C3X/420MG28N9K4
R900059390 M-3SEW6C3X/420MG42N9K4/V
R900208947 M-3SEW6C3X/420MG48N9K4
R900217500 M-3SEW6C3X/420MG48N9K4/B12
R900021683 M-3SEW6C3X/420MG48N9K4/B22
R900204107 M-3SEW6C3X/420MG48N9K4/V
R900222357 M-3SEW6C3X/420MG96K4
R900051046 M-3SEW6C3X/420MG96N4K4/B12
R900054784 M-3SEW6C3X/420MG96N9K4/B08
R900209518 M-3SEW6C3X/420MG96N9K4/B10V
R900058586 M-3SEW6C3X/420MG96N9K4/B12
R900205053 M-3SEW6C3X/420MG96N9K4/B15
R900049955 M-3SEW6C3X/420MG96N9K4/B15V
R900203310 M-3SEW6C3X/420MG96N9K4/B18V
R900053117 M-3SEW6C3X/420MG96N9K4/B20
R900205050 M-3SEW6C3X/420MG96N9K4/P
R900224246 M-3SEW6C3X/420MG96N9K4/PV
R900206773 M-3SEW6C3X/420MG96N9K4/V
R900218944 M-3SEW6C3X/630MG110N9K4
R900218241 M-3SEW6C3X/630MG110N9K4/B12V
R900218144 M-3SEW6C3X/630MG110N9K4/PV
R900218786 M-3SEW6C3X/630MG125N9K4/P
R900205383 M-3SEW6C3X/630MG12N9K4
R900203759 M-3SEW6C3X/630MG205K4
R900053414 M-3SEW6C3X/630MG205N9K4
R900050768 M-3SEW6C3X/630MG205N9K4/B12
R900216101 M-3SEW6C3X/630MG205N9K4/B15
R900087441 M-3SEW6C3X/630MG205N9K4/P
R900242609 M-3SEW6C3X/630MG220N9K4
R900217551 M-3SEW6C3X/630MG220N9K4/PV
R900224475 M-3SEW6C3X/630MG220N9K4/V
R900213567 M-3SEW6C3X/630MG240N9K4
R900207279 M-3SEW6C3X/630MG24K4
R900201827 M-3SEW6C3X/630MG24N9K4/B08
R900032229 M-3SEW6C3X/630MG24N9K4/B10
R900054123 M-3SEW6C3X/630MG24N9K4/B12
R900020826 M-3SEW6C3X/630MG24N9K4/B20
R900030920 M-3SEW6C3X/630MG24N9K4/P
R900214727 M-3SEW6C3X/630MG24N9K4/PV
R900204628 M-3SEW6C3X/630MG24N9K4/V
R900218368 M-3SEW6C3X/630MG48N9K4
R900225898 M-3SEW6C3X/630MG48N9K4/B12
R900214403 M-3SEW6C3X/630MG48N9K4/PV
R900051045 M-3SEW6C3X/630MG96N9K4
R900054354 M-3SEW6C3X/630MG96N9K4/B08
R900220159 M-3SEW6C3X/630MG96N9K4/B10
R900208838 M-3SEW6C3X/630MG96N9K4/P
R900229814 M-3SEW6C3X/630MG96N9K4/PV
R900206948 M-3SEW6C3X/630MG96N9K4/V
R900079570 M-3SEW6C3X=420MG24N9K4
R900068596 M-3SEW6C3X=420MG24N9K4/P=PL
R900229225 M-3SEW6U3X/420MG110K4
R900205530 M-3SEW6U3X/420MG110N9K4
R900222983 M-3SEW6U3X/420MG110N9K4/B12
R900220093 M-3SEW6U3X/420MG110N9K4/V
R900049473 M-3SEW6U3X/420MG125N9K4
R900219201 M-3SEW6U3X/420MG125N9K4/B12
R900221869 M-3SEW6U3X/420MG205K4/B12
R900227104 M-3SEW6U3X/420MG205N4K4/B12
R900050515 M-3SEW6U3X/420MG205N9K4
R900216413 M-3SEW6U3X/420MG205N9K4/B08
R900208025 M-3SEW6U3X/420MG205N9K4/B12
R900059389 M-3SEW6U3X/420MG205N9K4/B15
R900225379 M-3SEW6U3X/420MG205N9K4/B15V
R900049953 M-3SEW6U3X/420MG205N9K4/B20
R900057541 M-3SEW6U3X/420MG205N9K4/P
R900213405 M-3SEW6U3X/420MG205N9K4/V
R900206563 M-3SEW6U3X/420MG220N9K4
R900206119 M-3SEW6U3X/420MG220N9K4/B15
R900225980 M-3SEW6U3X/420MG220N9K4/V
R900054870 M-3SEW6U3X/420MG240N9K4
R900051264 M-3SEW6U3X/420MG240N9K4/B15
R900569794 M-3SEW6U3X/420MG24K4
R900203463 M-3SEW6U3X/420MG24K4/B12
R900049662 M-3SEW6U3X/420MG24K4/B15
R900049664 M-3SEW6U3X/420MG24K4/B18
R900022708 M-3SEW6U3X/420MG24K4/P
R900207790 M-3SEW6U3X/420MG24N4K4
R900228823 M-3SEW6U3X/420MG24N4K4/V
R900566283 M-3SEW6U3X/420MG24N9K4
R900205382 M-3SEW6U3X/420MG24N9K4/B00
R900049470 M-3SEW6U3X/420MG24N9K4/B07
R900088200 M-3SEW6U3X/420MG24N9K4/B08
R900243436 M-3SEW6U3X/420MG24N9K4/B10V
R900571657 M-3SEW6U3X/420MG24N9K4/B12
R900227753 M-3SEW6U3X/420MG24N9K4/B12V
R900570516 M-3SEW6U3X/420MG24N9K4/B15
R900215185 M-3SEW6U3X/420MG24N9K4/B15V
R900203314 M-3SEW6U3X/420MG24N9K4/B18
R900077153 M-3SEW6U3X/420MG24N9K4/B20
R900206079 M-3SEW6U3X/420MG24N9K4/B22
R900053762 M-3SEW6U3X/420MG24N9K4/PV
R900570174 M-3SEW6U3X/420MG24N9K4/V
R900214804 M-3SEW6U3X/420MG28N9K4
R900088171 M-3SEW6U3X/420MG42N9K4
R900219072 M-3SEW6U3X/420MG48K4
R900059506 M-3SEW6U3X/420MG48N9K4
R900220594 M-3SEW6U3X/420MG48N9K4/B12
R900219074 M-3SEW6U3X/420MG48N9K4/PV
R900211467 M-3SEW6U3X/420MG48N9K4/V
R900216086 M-3SEW6U3X/420MG60N9K4
R900083571 M-3SEW6U3X/420MG96K4
R900570744 M-3SEW6U3X/420MG96N9K4
R900214120 M-3SEW6U3X/420MG96N9K4/B08
R900205048 M-3SEW6U3X/420MG96N9K4/B10
R900209032 M-3SEW6U3X/420MG96N9K4/B10V
R900050697 M-3SEW6U3X/420MG96N9K4/B12
R900204404 M-3SEW6U3X/420MG96N9K4/B12V
R900220499 M-3SEW6U3X/420MG96N9K4/B15
R900208232 M-3SEW6U3X/420MG96N9K4/B18
R900089205 M-3SEW6U3X/420MG96N9K4/B20
R900220907 M-3SEW6U3X/420MG96N9K4/B20V
R900203539 M-3SEW6U3X/420MG96N9K4/P
R900212938 M-3SEW6U3X/420MG96N9K4/PV
R900056442 M-3SEW6U3X/420MG96N9K4/V
R900215048 M-3SEW6U3X/630MG110N9K4
R900050446 M-3SEW6U3X/630MG205N9K4
R900219806 M-3SEW6U3X/630MG205N9K4/B10
R900243814 M-3SEW6U3X/630MG205N9K4/B12
R900087438 M-3SEW6U3X/630MG205N9K4/P
R900215489 M-3SEW6U3X/630MG220N9K4
R900030672 M-3SEW6U3X/630MG24K4
R900032422 M-3SEW6U3X/630MG24K4/P
R900566289 M-3SEW6U3X/630MG24N9K4
R900248430 M-3SEW6U3X/630MG24N9K4/B07
R900572095 M-3SEW6U3X/630MG24N9K4/B10
R900054345 M-3SEW6U3X/630MG24N9K4/B12
R900219798 M-3SEW6U3X/630MG24N9K4/B12V
R900213294 M-3SEW6U3X/630MG24N9K4/B15
R900219617 M-3SEW6U3X/630MG24N9K4/B20
R900203593 M-3SEW6U3X/630MG24N9K4/B22
R900030919 M-3SEW6U3X/630MG24N9K4/P
R900215782 M-3SEW6U3X/630MG24N9K4/PV
R900218867 M-3SEW6U3X/630MG24N9K4/V
R900203754 M-3SEW6U3X/630MG48N9K4
R900089122 M-3SEW6U3X/630MG48N9K4/B10
R900205344 M-3SEW6U3X/630MG96N9K4
R900220158 M-3SEW6U3X/630MG96N9K4/B10
R900219797 M-3SEW6U3X/630MG96N9K4/B12
R900210770 M-3SEW6U3X/630MG96N9K4/P
R900054920 M-3SEW6U3X/630MG96N9K4/V
R900080093 M-3SEW6U3X=420MG24N9K4
R900211316 M-3SEW6U3X=420MG24N9K4/B12=PL

Contact Details
Saar HK Electronic Limited

Contact Person: jason

Tel: +8613918187448

Send your inquiry directly to us (0 / 3000)

Other Products
