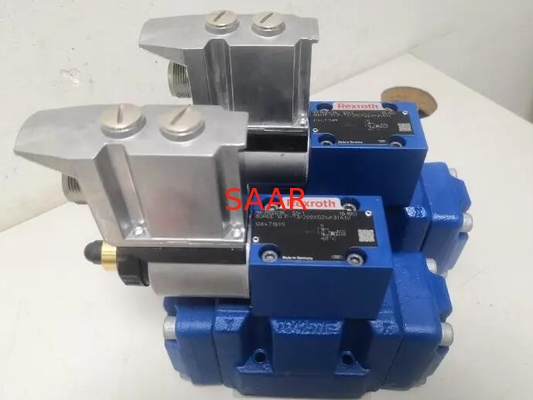

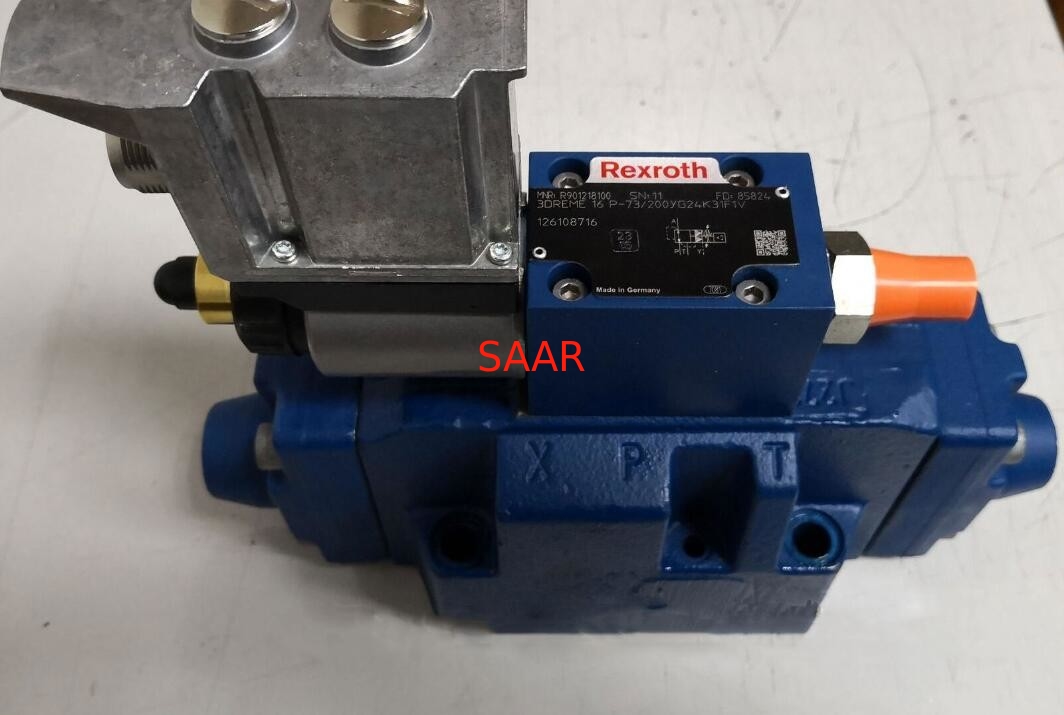

R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V Proportional Pressure Reducing Valve

R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V Proportional Pressure Reducing Valve

  • R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V Proportional Pressure Reducing Valve
  • R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V Proportional Pressure Reducing Valve
R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V Proportional Pressure Reducing Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R901218100 MATERIAL: 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V
Type: Valves Pressure: High Pressure
Structure: Control Power: Hydraulic
High Light:

Reducing Rexroth Proportional Valve

,

Subplate Mounting Proportional Pressure Reducing Valve

,

Hydraulic Proportional Valve 7X

Proportional pressure reducing valve, pilot-operated
3DRE(M)E

Size 10, 16
Component series 7X
Maximum set pressure 315 bar
Maximum flow 300 l/min

Features
3-way version
Operation by means of proportional solenoid with rotatable coil
For subplate mounting
Porting pattern according to ISO 4401
Maximum pressure limitation, optional
Valve and control electronics from a single source
Integrated electronics (OBE) with little manufacturing tolerance of the command value pressure characteristic curve
Linear command value pressure characteristic curve

Type Code :
01 02 03 04 05   06   07 08 09 10 11 12 13
3DRE   E   P - 7X /     G24 K31     *
01 Proportional pressure reducing valve in 3-way version, pilot-operated 3DRE
02 Without maximum pressure limitation no code
With maximum pressure limitation M
03 With integrated electronics (OBE) E
04 Size 10 10
Size 16 16
05 Subplate mounting P
06 Component series 70 … 79 (70 … 79: unchanged installation and mounting dimensions) 7X
Pressure rating
07 Up to 50 bar 50
Up to 100 bar 100
Up to 200 bar 200
Up to 250 bar (NG16 only) 250
Up to 315 bar (NG10 only) 315
08 Internal pilot oil supply, external pilot oil return Y
External pilot oil supply, external pilot oil return XY
Power supply
09 Direct voltage 24 V G24
Electrical connection
10 Without mating connector; connector DIN EN 175201-804 K31
Interfaces of the control electronics
11 Command value input 0 ... +10 V A1
Command value input 4 ... 20 mA F1
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
12 NBR seals M
FKM seals V
13 Further details in the plain text

*


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Proportional pressure reducing valve, pilot-operated 3DRE(M)E on Sale, Short lead time, Best price!!!

R901222173 3DREME 16 P-7X/200YG24K31F1M
R901256689 3DREME10P-7X/100XYG24K31A1V
R901451752 3DREME10P-7X/100XYG24K31F1V
R901242254 3DREME10P-7X/100YG24K31A1V
R901275767 3DREME10P-7X/100YG24K31F1V
R901229977 3DREME10P-7X/200XYG24K31A1V
R901220113 3DREME10P-7X/200YG24K31A1V
R901232078 3DREME10P-7X/200YG24K31F1M
R901218097 3DREME10P-7X/200YG24K31F1V
R901252139 3DREME10P-7X/315XYG24K31A1V
R901240745 3DREME10P-7X/315YG24K31A1V
R901223481 3DREME10P-7X/315YG24K31F1V
R901293211 3DREME10P-7X/50YG24K31A1V
R901222172 3DREME10P-7X/50YG24K31F1M
R901308772 3DREME10P-7X/50YG24K31F1V
R901448411 3DREME16P-7X/100XYG24K31A1V
R901263897 3DREME16P-7X/100XYG24K31F1V
R901261979 3DREME16P-7X/100YG24K31A1V
R901238935 3DREME16P-7X/100YG24K31F1V
R901298776 3DREME16P-7X/200XYG24K31A1V
R901294058 3DREME16P-7X/200XYG24K31F1V
R901231067 3DREME16P-7X/200YG24K31A1V
R901218100 3DREME16P-7X/200YG24K31F1V
R901229466 3DREME16P-7X/250YG24K31A1V
R901309623 3DREME16P-7X/250YG24K31F1V
R901341832 3DREME16P-7X/50YG24K31A1V
