| Place of Origin: | USA |
| Brand Name: | Eaton Vickers |

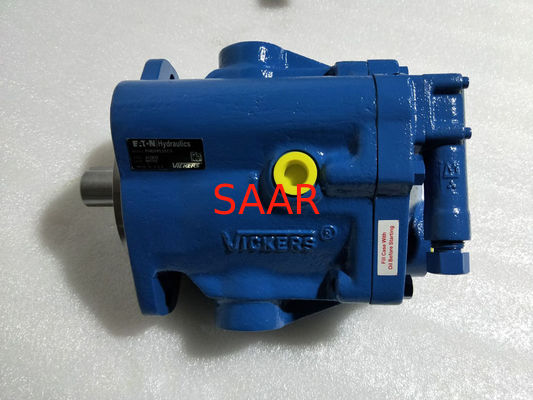

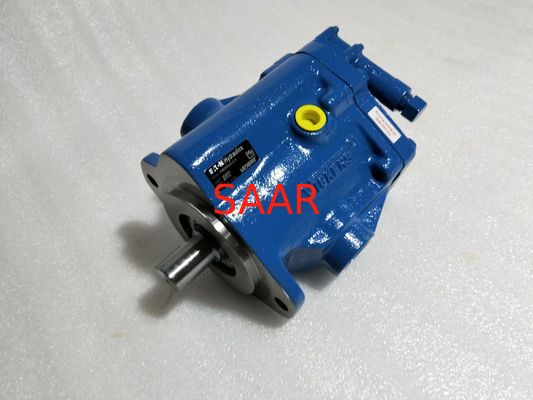

| Model Number: | 380673 PVB20-RS-20-CM-11 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Paper or wooden carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100/Month |
| MODEL: | PVB20-RS-20-CM-11 | ASSY: | 380673 |
|---|---|---|---|
| High Light: | PVB20 Axial Piston Pump,380673 Eaton Vickers Hydraulic Pump,Eaton Vickers Axial Piston Variable Pump |
||
Eaton Vickers PVB5/PFB6/PFB5 Axial Piston Pumps
Fixed and Variable Displacement
PFB 5, PFB 10, PFB 20
PVB 5/6, PVB 10/15, PVB 20/29, PVB 45 and PVB 90 to SAE
PVB 5/6, PVB 10/15, PVB 20/29 to DIN/ISO 3019
Features
Operating pressure up to 210 bar (3000 psi)
Model with compensator control “C” or “CM”
Displacement from 10,5 to 197,5 cm3/r (0.64 to 12 in3/r)
Speed up to 1800 r/min
Variable displacement models make up this range of axial piston pumps. Their high performance ratings and efficiencies are achieved with a variety of hydraulic fluids. PVB pump models can closely match pressure and/or flow demand with a control selected from:
– Pressure compensator with or without a remote control facility.
– Pressure compensator with adjustable displacement control.
– Load sensing compensator.
– Mechanical (lever) control.
– Hand wheel control
Technical Data of Eaton Vickers PVB pump
| Vickers PVB pump | Max. displacement | Output flow | Speed | Max. pressure | Input KW [hp] |
| cm3/r [ in3/rev] | LPM [gpm] @rpm | rpm | Bar [psi] | @high pressure & speed | |
| PVB5 | 10,55[.64] | 18,9[5] | 1800 | 210[3000] | 13,0[17.5] |
| PVB6 | 13,81[.084] | 22,7[6] | 1800 | 140[2000] | 26,1[35] |
| PVB10 | 21,1[1.29] | 37,5[10.0] | 1800 | 210[3000] | 29,4[39.5] |
| PVB15 | 33,0[2.01] | 59,4[15.7] | 1800 | 141[2000] | 29,4[39.5] |
| PVB20 | 42,80[2.61] | 75,7[20.0] | 1800 | 210[3000] | 29,4[39.5] |
| PVB29 | 61,6[3.76] | 109,7[29] | 1800 | 140[2000] | 29,4[39.5] |
| PVB45 | 94,5[5.76] | 170,3[45.0] | 1800 | 210[3000] | 29,4[39.5] |
| PVB90 | 197,5[12.0] | 348[91.9] | 1800 | 210[3000] | 29,4[39.5] |
Axial and radial running clearances, along with lubriSAARing oil film on the rotor and vanes, are optimized over the entire operating pressure range. Excellent cold-start capability and superior resistance to seizure make Vickers VQ pumps highly reliable and efficient.
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Eaton Vickers PVB20 Series Axial Piston Pumps on Sale, Short lead time, Best price!!!
|
404911
|
PVB20-FLSFW-20-CD-11
|
|
411742
|
PVB20 LS 20 CCD 11
|
|
373879
|
PVB20-FLS-20-C-11
|
|
381700
|
PVB20-FLS-20-CC-11
|
|
380199
|
PVB20-FLS-20-CM-11
|
|
374072
|
PVB20-FLSFW-20-C-11
|
|
436722
|
PVB20-FLSFW-20-CD-20
|
|
383608
|
PVB20-FLSFW-20-CM-11
|
|
391881
|
PVB20-FLSFW-20-CMC-11
|
|
415593
|
PVB20-FLSFW-20-CMC-11-S94 4
|
|
877178
|
PVB20-FLSFW-20-CMCD-20-S94 94
|
|
436886
|
PVB20-FLSFW-20-CMD-20
|
|
374063
|
PVB20-FLSFX-20-C-11
|
|
380746
|
PVB20-FLSFX-20-CM-11
|
|
373880
|
PVB-20-FRS-20-C-11
|
|
380736
|
PVB20-FRS-20-CC-11
|
|
451622
|
PVB20-FRS-20-CCD-20
|
|
436725
|
PVB20-FRS-20-CD-20
|
|
426815
|
PVB20-FRS-20-CG-20
|
|
380124
|
PVB20-FRS-20-CM-11
|
|
380723
|
PVB20-FRS-20-CMC-11
|
|
401750
|
PVB20-FRS-20-CMC-11-S94
|
|
864197
|
PVB20-FRS-20-CVP-12
|
|
374062
|
PVB20-FRSFW-20-C-11
|
|
386596
|
PVB20-FRSFW-20-CC-11
|
|
436169
|
PVB20-FRSFW-20-CD-20
|
|
382395
|
PVB20-FRSFW-20-CM-11
|
|
398303
|
PVB20-FRSFW-20-CMC-11
|
|
374060
|
PVB20-FRSFX-20-C-11
|
|
02-348254
|
PVB20-FRSFX-20-CD-20
|
|
567748
|
PVB20-FRSFX-20-CG-20
|
|
380745
|
PVB20-FRSFX-20-CM-11
|
|
362031
|
PVB20-LS-20-C-11
|
|
436837
|
PVB20-LS-20-C-11-S124
|
|
389118
|
PVB20-LS-20-CC-11
|
|
567917
|
PVB20-LS-20-CC-11-S124
|
|
451570
|
PVB20-LS-20-CCD-20
|
|
567749
|
PVB20-LS-20-CCG-20
|
|
679285
|
PVB20-LS-20-CD-20
|
|
475118
|
PVB20-LS-20-CG-20
|
|
380132
|
PVB20-LS-20-CM-11
|
|
414477
|
PVB20-LS-20-CMC-11
|
|
679290
|
PVB20–LS-20-CMG-20
|
|
521951
|
PVB20-LS-20-CVP-12
|
|
02-160026
|
PVB20-LS-20-CVP-12-S124
|
|
385089
|
PVB20-LSFW-20-C-11
|
|
679289
|
PVB20-LSFW-20-CC-11
|
|
02-306360
|
PVB20-LSFW-20-CD-20
|
|
02-102282
|
PVB20-LSFW-20-CG-20
|
|
389649
|
PVB20-LSFW-20-CM-11
|
|
451528
|
PVB20-LSFW-20-CMC-11
|
|
436408
|
PVB20-LSFX-20-C-11
|
|
567933
|
PVB20-LSFX-20-CG-20
|
|
436407
|
PVB20-LSFX-20-CM-11
|
|
362030
|
PVB20-RS-20-C-11
|
|
436836
|
PVB20-RS-20-C-11-S-124
|
|
391893
|
PVB20-RS-20-C-11-S30
|
|
389117
|
PVB20-RS-20-CC-11
|
|
436588
|
PVB20-RS-20-CC-11-S124
|
|
419051
|
PVB20-RS-20-CC-11-S30
|
|
451594
|
PVB20-RS-20-CCD-20
|
|
436917
|
PVB20-RS-20-CCD-20-S124
|
|
430466
|
PVB20-RS-20-CCG-20
|
|
679250
|
PVB20-RS-20-CCG-20-S124
|
|
436859
|
PVB20-RS-20-CD-20
|
|
02-346373
|
PVB20-RS-20-CD-20-S124
|
|
677167
|
PVB20-RS-20-CG-20
|
|
436838
|
PVB20-RS-20-CG-20-S124
|
|
423637
|
PVB20-RS-20-CG-20-S30
|
|
380673
|
PVB20-RS-20-CM-11
|
|
436346
|
PVB20-RS-20-CM-11-S124
|
|
388706
|
PVB20-RS-20-CM-11-S30
|
|
389151
|
PVB-20-RS-20-CMC-11
|
|
451560
|
PVB20-RS-20-CMC-11-S124
|
|
500823
|
PVB20-RS-20-CMCD-20
|
|
436800
|
PVB-20-RS-20-CMD-20
|
|
521950
|
PVB20-RS-20-CVP-12
|
|
02-142878
|
PVB20-RS-20-CVP-12-S124
|
|
383578
|
PVB20-RSFW-20-C-11
|
|
02-143077
|
PVB20-RSFW-20-C-11-S124
|
|
385637
|
PVB20-RSFW-20-CC-11
|
|
436608
|
PVB20-RSFW-20-CCD-20
|
|
567926
|
PVB20-RSFW-20-CCG-20
|
|
436810
|
PVB20-RSFW-20-CD-20
|
|
02-141778
|
PVB20-RSFW-20-CD-20-S124
|
|
451606
|
PVB20-RSFW-20-CG-20
|
|
02-466473
|
PVB20-RSFW-20-CG-20-S124
|
|
417031
|
PVB20-RSFW-20-CM-11
|
|
451790
|
PVB20-RSFW-20-CM-11-S124
|
|
393310
|
PVB20-RSFW-20-CMC-11
|
|
02-152053
|
PVB20-RSFW-20-CMC-11-S124 4
|
|
02-125922
|
PVB20-RSFW-20-CMCD-20
|
|
02-125159
|
PVB20-RSFW-20-CMD-20
|
|
02-151916
|
PVB20-RSFW-20-CVP-12
|
|
02-348757
|
PVB20-RSFX-20-C-11
|
|
394581
|
PVB20-RSFX-20-CM-11
|
|
567908
|
PVB20-RSFX-20-CVP-12
|
|
386170
|
F3-PVB20-FLS-20-CC-11
|
|
02-136750
|
F3-PVB20-FLSFX-20-C-11
|
|
381695
|
F3-PVB20-FRS-20-C-11
|
|
386127
|
F3-PVB20-FRS-20-CC-11
|
|
380153
|
F3-PVB20-FRS-20-CM-11
|
|
451537
|
F3-PVB20-FRSFW-20-CD-20
|
|
436680
|
F3-PVB20-FRSFW-20-CMC-11
|
|
380192
|
F3-PVB20-LS-20-C-11
|
|
418238
|
F3-PVB20-LS-20-CC-11
|
|
567739
|
F3-PVB20-LS-20-CCG-20
|
|
02-142590
|
F3-PVB20-LS-20-CD-20
|
|
408838
|
F3-PVB20-LS-20-CM-11
|
|
475159
|
F3-PVB20-LSFW-20-CM-11
|
|
02-305963
|
F3-PVB20-LSFX-20-CM-11
|
|
380187
|
F3-PVB20-RS-20-C-11
|
|
451725
|
F3-PVB20-RS-20-C-11-S124
|
|
411106
|
F3-PVB20-RS-20-CC-11
|
|
877084
|
F3-PVB20-RS-20-CG-20
|
|
387722
|
F3-PVB20-RS-20-CM-11
|
|
02-125291
|
F3-PVB20-RS-20-CM-11-S124 4
|
|
436961
|
F3-PVB20-RS-20-CMC-11
|
|
02-137587
|
F3-PVB20-RS-20-CVP-C-12
|
|
391238
|
F3-PVB20-RSFW-20-C-11
|
|
02-125284
|
F3-PVB20-RSFW-20-C-11-S124 24
|
|
428926
|
F3-PVB20-RSFW-20-CC-11
|
|
02-345460
|
F3-PVB20-RSFW-20-CD-20-S124 124
|
|
451566
|
F3-PVB20-RSFW-20-CM-11
|
|
451791
|
F3-PVB20-RSFX-20-CM-11
|
