| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R901382330 4WE10D50/OFEG110N9K4/V 4WE10D5X/OFEG110N9K4/V |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| MNR: | R901382330 | Model No.: | 4WE10D50/OFEG110N9K4/V 4WE10D5X/OFEG110N9K4/V |
|---|---|---|---|
| High Light: | 4WE10D5X/OFEG110N9K4/V Directional Spool Valve,4WE10D50/OFEG110N9K4/V,R901382330 Directional Spool Valve |
||

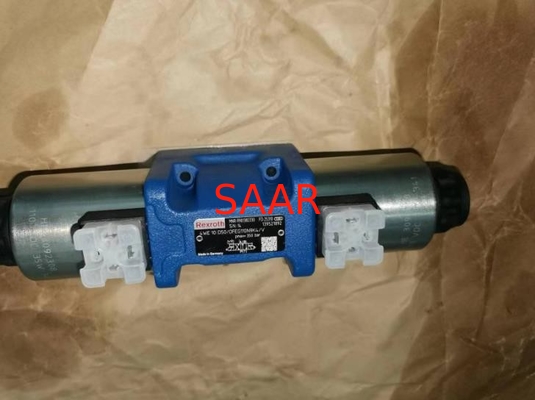

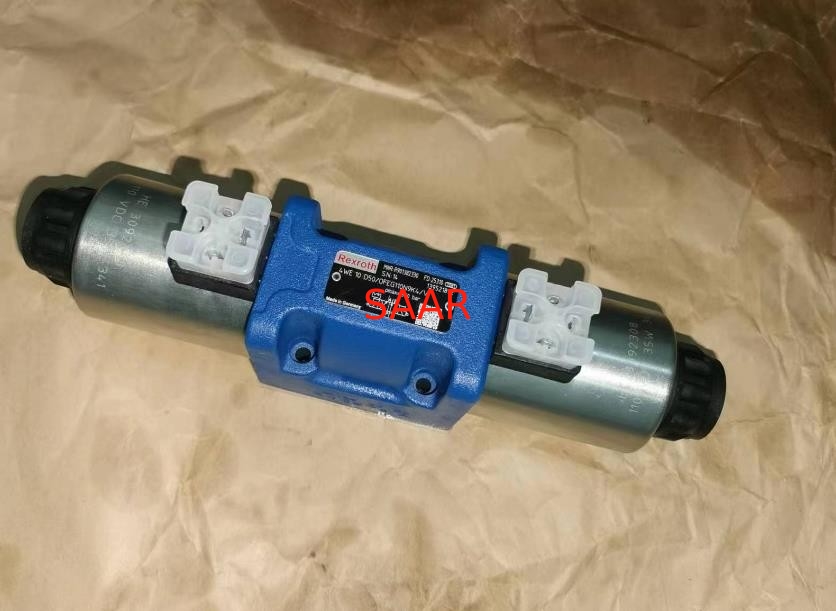

Rexroth 4WE10 Series Directional Spool Valves, Direct Operated, with Solenoid Actuation
Size 10
Component series 3X, 5X
Maximum operating pressure 350 bar
Maximum flow 160 l/min
Features
▶ 4/3-, 4/2- or 3/2-way version
▶ Porting pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05
▶ High-power solenoid, optionally rotatable by 90°
▶ Electrical connection as individual or central connection
▶ Cartridge optionally equipped with PWM connector (fast switching amplifier, energy reduction)
▶ Manual override, optional
▶ CE conformity according to the Low Voltage Directive 2006/95/EC for electrical voltages >50 VAC or > 75 VDC
▶ Solenoid coil with UR approval UL 429
▶ Approval according to CSA C22.2 No. 139-10, optional
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth 4WE10-3X or 5X Series Directional Spool Valves Model List:
|
R900593277
|
4WE10C3X/CG24N9K4
|
|
R901278772
|
4WE10C5X/EG24N9K4/M
|
|
R901391203
|
4WE10C5X/HG24N9K4/M
|
|
R900589933
|
4WE10D3X/CG24N9K4
|
|
R900912496
|
4WE10D3X/CW230N9K4
|
|
R901371153
|
4WE10D50/EG110N9DK6L/V
|
|
R901389626
|
4WE10D55-5X/EG24K4/M SO196
|
|
R901336181
|
4WE10D5X/EG205N9K4/M
|
|
R901339383
|
4WE10D5X/EG220N9K4/M
|
|
R901278760
|
4WE10D5X/EG24N9K4/M
|
|
R901483529
|
4WE10D5X/EW230N9K4/M
|
|
R901391200
|
4WE10D5X/HG24N9K4/M
|
|
R901432612
|
4WE10D5X/HG24N9K4QYBG24/M
|
|
R901344562
|
4WE10D5X/OFEG220N9K4/M
|
|
R901278763
|
4WE10D5X/OFEG24N9K4/M
|
|
R901341857
|
4WE10D73-5X/EG24N9K4/A12M
|
|
R901354559
|
4WE10D73-5X/EG24N9K4/V
|
|
R900911869
|
4WE10E3X/CW230N9K4
|
|
R901278761
|
4WE10E5X/EG24N9K4/M
|
|
R901487113
|
4WE10E5X/EW230N9K4/M
|
|
R901390857
|
4WE10E5X/HG24N9K4/M
|
|
R901341853
|
4WE10E73-5X/EG24N9K4/A12M
|
|
R900594277
|
4WE10G3X/CG24N9K4
|
|
R901278768
|
4WE10G5X/EG24N9K4/M
|
|
R901427832
|
4WE10G5X/HG24N9K4/M
|
|
R900597986
|
4WE10H3X/CG24N9K4
|
|
R900503425
|
4WE10H3X/CW230N9K4
|
|
R901427828
|
4WE10H5X/HG24N9K4/M
|
|
R900589988
|
4WE10J3X/CG24N9K4
|
|
R900911868
|
4WE10J3X/CW230N9K4
|
|
R901278744
|
4WE10J5X/EG24N9K4/M
|
|
R901483526
|
4WE10J5X/EW230N9K4/M
|
|
R901401552
|
4WE10J5X/HG24N9K4/M
|
|
R901341855
|
4WE10J73-5X/EG24N9K4/A12M
|
|
R900599646
|
4WE10L3X/CG24N9K4
|
|
R901391161
|
4WE10L50/HG24N9K4/M
|
|
R901401553
|
4WE10M5X/HG24N9K4/M
|
|
R901391194
|
4WE10U5X/HG24N9K4/M
|
|
R900595531
|
4WE10Y3X/CG24N9K4
|
|
R901278769
|
4WE10Y5X/EG24N9K4/M
|
|
R901391202
|
4WE10Y5X/HG24N9K4/M
|
