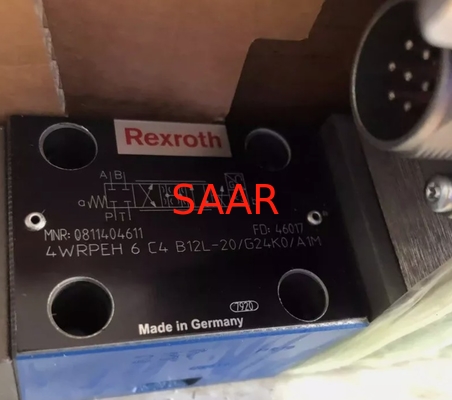

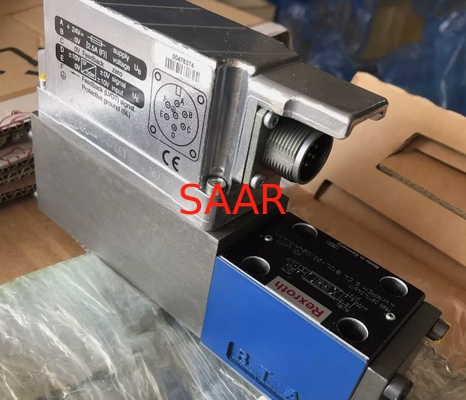

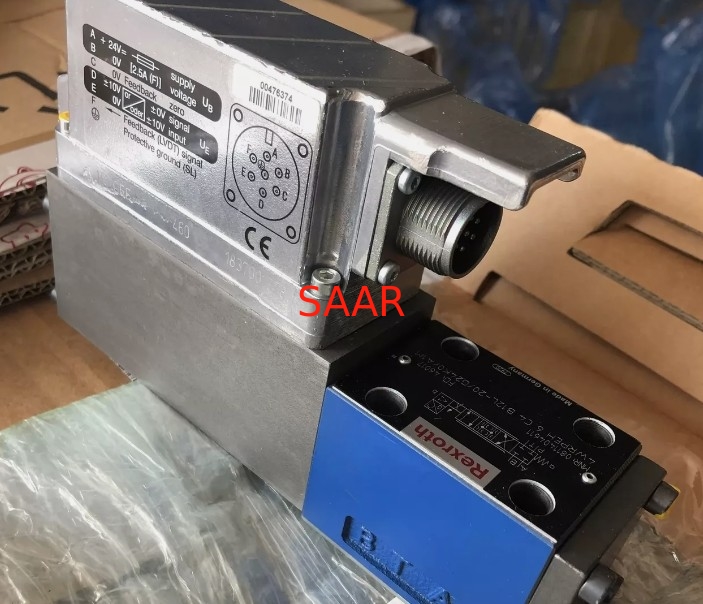

0811404611 4WRPEH6C4B12L-20/G24K0/A1M 4WRPEH6C4B12L-2X/G24K0/A1M 4WRPEH 6 Series Valves

4WRPEH6 and 4WRPEH10 Series Valves
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)

4WRPEH Size 6
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 2 … 40 l/min

4WRPEH Size 10
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 50 … 100 l/min

Features
4/4 directional design
With control spool and sleeve in servo quality
Operated on one side, 4/4 fail-safe position in switched-off condition
Electric position feedback and integrated electronics (OBE), calibrated in the factory
Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
Use for electro-hydraulic controls in production and test systems

Type code

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

4WRPEH6 and 4WRPEH10 Series Valves Model List:
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)
