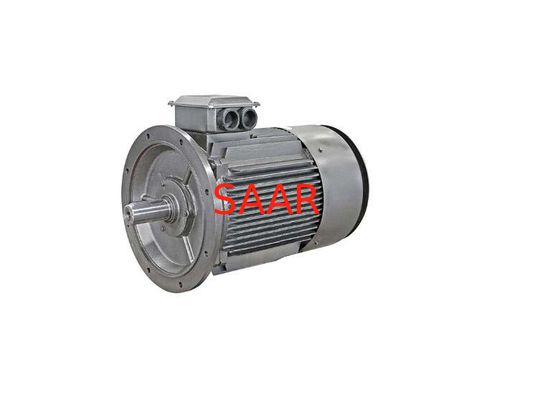

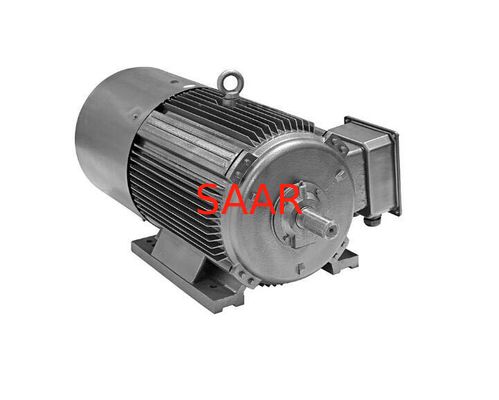

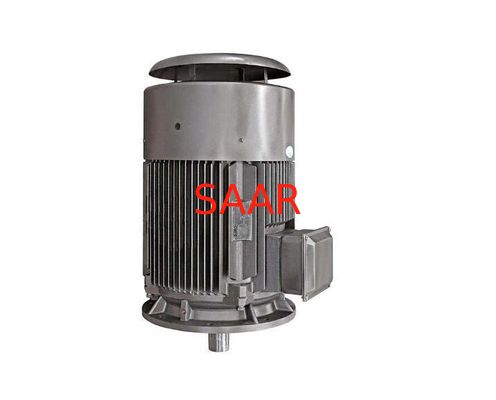

IP55 Ultra High Efficiency Electric Motor , YE4 Series 3 Phase Induction Motor

IP55 Ultra High Efficiency Electric Motor , YE4 Series 3 Phase Induction Motor

    • IP55 Ultra High Efficiency Electric Motor , YE4 Series 3 Phase Induction Motor
    • IP55 Ultra High Efficiency Electric Motor , YE4 Series 3 Phase Induction Motor
    • IP55 Ultra High Efficiency Electric Motor , YE4 Series 3 Phase Induction Motor
    • IP55 Ultra High Efficiency Electric Motor , YE4 Series 3 Phase Induction Motor
  • IP55 Ultra High Efficiency Electric Motor , YE4 Series 3 Phase Induction Motor

    Product Details:

    Place of Origin: China
    Brand Name: China
    Certification: ISO9001
    Model Number: YE4-80M1 YE4-80M2 YE4-90S YE4-90L YE4-100L YE4-112M YE4-132S1 YE4-132S2 YE4-160M1 YE4-160M2 YE4-160L YE4-180M YE4-200L1 YE4-200L2 YE4-225M YE4-250M YE4-280S YE4-280M YE4-315S YE4-315M YE4-315L1 YE4-315L YE4-355L2 YE4-355M1 YE4-355M YE4-355L1 YE4-355L YE4-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: On Request
    Packaging Details: Wooden Carton
    Delivery Time: 5-7days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000/Month
    Contact Now
    Detailed Product Description

    YE4 series of three phase induction motors





    Power: 0.75-375kw
    Voltage: 380v
    Protection level: IP55
    Cooling method: IC411
    Center height: H80-355
    Category: Energy efficient motor

    Application industry: Xima YE4 series (IP55) ultra-high efficiency three-phase asynchronous motor (frame size 80~355), first-class energy-efficient motor, widely used in various fields of national economy, such as machine tools, pumps, fans, compressors, It can also be applied to various power transmission systems such as transmission, mixing, printing, agricultural machinery, food, etc.

    Technical characteristics


    YE4 series (IP55) ultra-high efficiency three-phase asynchronous motor (frame size 80-355) motor rated voltage 380V, rated frequency 50Hz, power range 0.75-375kw, including 2-pole, 4-pole and 6-pole motors. For power below 3kw, the Y connection is used, and other powers are △ connection.
    The altitude at which the motor is operated does not exceed 1000 m; the maximum ambient air temperature varies with the season, but does not exceed 40 ° C; the minimum ambient air temperature is -15 ° C. When the motor is used at an altitude of more than 1000m or the maximum ambient air temperature is higher or lower than -40 °C, it is corrected according to the requirements of the rotating machine standard GB 755.
    The H80-160 frame number is a fully enclosed bearing structure. The H180 and above frame numbers are open bearings, and the front and rear bearings are equipped with a non-stop filling device. The motor has an anti-condensation drain hole. The conventional electric wire box of the motor is the ejector line, and the right side outlet and the left side outlet line can also be made according to the user's request. The junction box can be rotated 90° and 180° to facilitate the user to exit the line at different positions.



    Technical Specification



    Type Rated Power Rated Current Rated Speed YE4 Efficiency YE3 Efficiency YE2 Efficiency Power Factor Stall torque Stall current Max torque Min torque Noise (sound power level) Vibration
    % % % ———— ———— ———— ———— dB(A) Noise speed
    KW A r/min       cosΦ Rated torque Rated current Rated torque Rated torque No load Empty load difference mm/s
    YE4-80M1-2 0.75 1.6 2895 83.5 80.7 77.4 0.83 2.3 7 2.3 1.5 62 2 1.6
    YE4-80M2-2 1.1 2.4 2890 85.2 82.7 79.6 0.83 2.2 7.3 2.3 1.5 62 2 1.6
    YE4-90S-2 1.5 3.1 2900 86.5 84.2 81.3 0.84 2.2 7.6 2.3 1.5 67 2 1.6
    YE4-90L-2 2.2 4.5 2900 88 85.9 83.2 0.85 2.2 7.6 2.3 1.4 67 2 1.6
    YE4-100L-2 3 5.9 2895 89.1 87.1 84.6 0.87 2.2 7.8 2.3 1.4 74 2 1.6
    YE4-112M-2 4 7.7 2915 90 88.1 85.8 0.88 2.2 8.3 2.3 1.4 77 2 1.6
    YE4-132S1-2 5.5 10.4 2945 90.9 89.2 87 0.88 2 8.3 2.3 1.2 79 2 1.6
    YE4-132S2-2 7.5 14.1 2940 91.7 90.1 88.1 0.88 2 7.9 2.3 1.2 79 2 1.6
    YE4-160M1 -2 11 20.3 2950 92.6 91.2 89.4 0.89 2 8.1 2.3 1.2 81 2 2.2
    YE4-160M2-2 15 27.4 2950 93.3 91.9 90.3 0.89 2 8.1 2.3 1.2 81 2 2.2
    YE4-160L-2 18.5 33.7 2950 93.7 92.4 90.9 0.89 2 8.2 2.3 1.1 81 2 2.2
    YE4-180M-2 22 40 2965 94 92.7 91.3 0.89 2 8.2 2.3 1.1 83 2 2.2
    YE4-200L1-2 30 54.2 2970 94.5 93.3 92 0.89 2 7.6 2.3 1.1 84 2 2.2
    YE4-200L2-2 37 66.6 2975 94.8 93.7 92.5 0.89 2 7.6 2.3 1.1 84 2 2.2
    YE4-225M-2 45 80 2975 95 94 92.9 0.9 2 7.7 2.3 1 86 2 2.2
    YE4-250M-2 55 97.4 2980 95.3 94.3 93.2 0.9 2 7.7 2.3 1 89 2 2.2
    YE4-280S-2 75 132 2980 95.6 94.7 93.8 0.9 1.8 7.1 2.3 0.9 91 2 2.2
    YE4-280M-2 90 159 2980 95.8 95 94.1 0.9 1.8 7.1 2.3 0.9 91 2 2.2
    YE4-315S-2 110 193 2980 96 95.2 94.3 0.9 1.8 7.1 2.3 0.9 92 2 2.8
    YE4-315M-2 132 232 2980 96.2 95.4 94.6 0.9 1.8 7.1 2.3 0.9 92 2 2.8
    YE4-315L1-2 160 277 2980 96.3 95.6 94.8 0.91 1.8 7.2 2.3 0.9 92 2 2.8
    YE4-315L-2 185 325 2975 / / 94.9 0.91 1.8 7.1 2.2 0.9 92 2 2.8
    YE4-355L2-2 200 346 2980 96.5 95.8 95 0.91 1.8 7.2 2.2 0.8 100 2 2.8
    YE4-355M1-2 220 386 2980 / / 95 0.91 1.6 7.1 2.2 0.8 100 2 2.8
    YE4-355M -2 250 433 2985 96.5 95.8 95 0.91 1.6 7.2 2.2 0.8 100 2 2.8
    YE4-355L1-2 280 492 2980 / / 95 0.91 1.6 7 2.2 0.8 100 2 2.8
    YE4-355L-2 315 545 2985 96.5 95.8 95 0.91 1.6 7.2 2.2 0.8 104 2 2.8
    YE4-3551-2 355 614 2990 96.5 95.8 95 0.91 1.6 7.2 2.2 0.7 104 2 2.8
    YE4-3552-2 375 649 2985 96.5 95.8 95 0.91 1.6 7.2 2.2 0.7 104 2 2.8



    The above YE4 ultra-high efficiency energy-saving motor (first-class energy efficiency) 2 pole model parameter specifications
    4-pole, 6-pole YE4 motor model parameters and specifications, please call 029-82523966
    Installation method
    YE4 series (IP55) ultra-high efficiency three-phase asynchronous motor (frame size 80-355) motor installation method and power level in line with IEC international standards, consistent with German DIN42673 standard, its enclosure protection grade is IP55, cooling method is IC411 , continuous work system (S1). The F-class insulation structure is adopted, but the full-series temperature rise is evaluated according to the B-class; and the load noise is required to be evaluated.

    download
    (1) Please specify the motor type, power, speed, voltage, frequency, installation type, junction box position, altitude, ambient temperature, transmission type (coupling or pulley) when ordering.
    (2) For 315kw, 2-pole motor and above, the direction of rotation of the motor must also be indicated. Conventional motors are viewed from the end of the shaft and rotate clockwise.
    (3) If the user has special requirements, it is determined by mutual agreement. Other special specification motors are also available;
    a) Special frequency and voltage, such as 60Hz, 415V, 220/380V, etc.
    b) Double shaft extension and other special shaft extension dimensions.
    c) Increase the temperature measuring device. Add the thermistor PTC or Pt100 temperature measuring element thermal resistance in the winding. The front and rear bearings can be increased.
    d) The winding increases the moisture-proof heating belt.
    e) Wet tropical type (TH), outdoor, chemical anti-corrosion type.
    f) Class H insulation.



    SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
