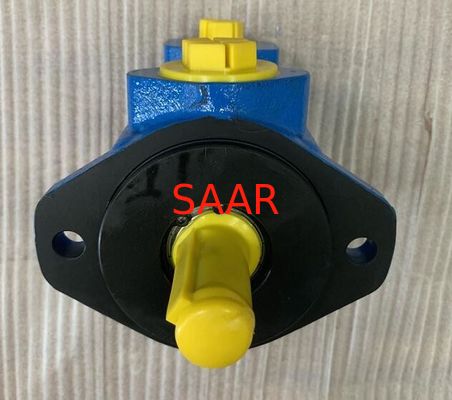

Vickers V10/V20/V2010/V2020 Single and Double Vane Pumps
Introduction
* Series V10, V20, V2010, and V2020 fixed displacement pumps are of Vickers “balanced vane type” construction. V10 and V20 single pumps have rated flow capacities of 1 to 7 USgpm and 6 to 13 USgpm, respectively.
Double pumps provide a single power source capable of serving two separate hydraulic circuits, or of providing greater volume through the combined delivery of both sections. In either type of appliSAARion, two pumps in a single housing result in a more compact,simple installation and can be driven through a single shaft coupling.
* V2010 double pumps have capacities of 6 to 13 USgpm and 1 to 7 USgpm for their shaft-end and cover-end pumps, respectively. V2020 double pumps have capacities of 6 to 13 USgpm and 6 to 11 USgpm for their shaft-end and cover-end pumps, respectively.
All models are designed for use with oil or synthetic fire-resistant fluids. Shaft rotation is either clockwise or counterclockwise, but can be changed by changing the assembly of internal parts. SAE 2-bolt mounting flanges are standard, and foot-mounting brackets are optional. Many electric motor manufacturers can supply drip-proof or totally enclosed, fan cooled motors with end bells on which the pumps can be mounted.
Features and Benefits
* Enhanced Bearing Life
Internal inlet and outlet pressure chambers are diametrically opposed. As a result, pressure-induced radial loads are balanced, and bearings have to carry the external load only.
* High Performance
Low vane tip/ring loading allows high pressure operation. High speeds are possible because the inlet flow paths are designed to give uniform oil acceleration, and thus better filling characteristics, particularly at low inlet pressures.
*Extended Product Life
The superior design of these pumps makes them last longer. They’ve proven they’ll hold up in rugged appliSAARions.
* Low Cost
Vickers’ efficient design produces extra horsepower per dollar of pump investment, providing industry with low pump cost per horsepower capacity.
* Versatility
High flow, pressure and speed capabilities enable these pumps to meet the hydraulic circuit needs of many types of modern machinery.
Technical Data of Vickers pump V10, V20, V2010, V2020
Table of values (theoretical values, without efficiency and tolerances; values rounded)
Single Vickers vane pump:
| Vickers vane pump | Delivery at 1200 r/min & 7 bar (100 psi)USgpm |
Geometric
Displacement cm 3 /r (in 3 /r) |
Delivery
at 1500 r/min & 7 bar (100 psi) L/min (USgpm) |
Maximum
Pressure
bar (psi) |
Maximum
Speed
rpm |
Minimum
Speed
rpm |
Weight
kg (lb) |
|
V10 V10F V10P |
1
2 3 4 5 6 7 |
3.3 (0.20)
6.6 (0.40) 9.8 (0.60) 13.1 (0.80) 16.4 (1.00) 19.5 (1.19) 22.8 (1.39) |
4.70 (1.25)
9.40 (2.50) 14.20 (3.75) 18.90 (5.00) 23.60 (6.25) 28.40 (7.50) 33.10 (8.75) |
172 (2500)
172 (2500) 172 (2500) 172 (2500) 172 (2500) 152 (2200) 138 (2000) |
4800
4500 4000 3400 3200 3000 2800 |
650
650 650 650 650 650 650 |
4.5 – 6.8 (10 – 15) |
|
V20 V20F V20P |
6
7 8 9 11 12 13 |
19.5 (1.19)
22.8 (1.39) 26.5 (1.62) 29.7 (1.81) 36.4 (2.22) 39.0 (2.38) 42.4 (2.59) |
28.39 (7.50)
33.11 (8.75) 37.85 (10.00) 42.57 (11.25) 52.04 (13.75) 56.77 (15.00) 61.50 (16.25) |
172 (2500)
172 (2500) 172 (2500) 172 (2500) 172 (2500) 152 (2200) 152 (2200) |
3400
3000 2800 2800 2500 2400 2400 |
650
650 650 650 650 650 650 |
7.3 – 8.2 (16 – 18) |
Double Vickers vane pump:
|
Model
Series |
Delivery at 1200 r/min & 7 bar (100 psi)USgpm |
Geometric
Displacement cm 3 /r (in 3 /r) |
Delivery
at 1500 r/min & 7 bar (100 psi) L/min (USgpm) |
Maximum
Pressure
bar (psi) |
Maximum
Speed
rpm |
Minimum
Speed
rpm |
Weight
kg (lb) |
|
V2010 |
Shaft End |
7
8 9 11 12 13 |
22.8 (1.39)
26.5 (1.62) 29.7 (1.81) 36.4 (2.22) 39.0 (2.38) 42.4 (2.59) |
33.11 (8.75)
37.85 (10.00) 42.57 (11.25) 52.04 (13.75) 56.77 (15.00) 61.50 (16.25) |
172 (2500)
172 (2500) 172 (2500) 172 (2500) 152 (2200) 152 (2200) |
3000
2800 2800 2500 2400 2400 |
13.6 (30) |
|
Cover End |
1
2 3 4 5 6 7 |
3.3 (0.20)
6.6 (0.40) 9.8 (0.60) 13.1 (0.80) 16.4 (1.00) 19.5 (1.19) 22.8 (1.39) |
4.70 (1.25)
9.40 (2.50) 14.20 (3.75) 18.90 (5.00) 23.60 (6.25) 28.40 (7.50) 33.10 (8.75) |
172 (2500)
172 (2500) 172 (2500) 172 (2500) 172 (2500) 152 (2200) 138 (2000) |
3000
3000 3000 3000 3000 3000 2800 |
||
|
V2020 |
Shaft End |
7
8 9 11 12 13 |
22.8 (1.39)
26.5 (1.62) 29.7 (1.81) 36.4 (2.22) 39.0 (2.38) 42.4 (2.59) |
33.11 (8.75)
37.85 (10.00) 42.57 (11.25) 52.04 (13.75) 56.77 (15.00) 61.50 (16.25) |
172 (2500)
172 (2500) 172 (2500) 172 (2500) 152 (2200) 152 (2200) |
3000
2800 2800 2500 2400 2400 |
15.9 (35) |
|
Cover End |
6
7 8 9 11 |
19.5 (1.19)
22.8 (1.39) 26.5 (1.62) 29.7 (1.81) 36.4 (2.22) |
28.39 (7.50)
33.11 (8.75) 37.85 (10.00) 42.57 (11.25) 52.04 (13.75) |
172 (2500) |
3000
3000 2800 2800 2500 |
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Eaton Vickers V10 V10F V10P Series Vane Pumps on Sale, Short lead time, Best price!!!
| 708783-1 | V10-1B1B-1A20R |
| 708783-3 | V10-1B1B-1C20R |
| 987068-1 | V10-1B2B-11A-20 |
| 708371-1 | V10-1B2B-1A20 |
| 708371-3 | V10-1B2B-1C20 |
| 461593-1 | V10-1B3B-11A20 |
| 708784-1 | V10-1B3B-1A20 |
| 708784-2 | V10-1B3B-1B20 |
| 708784-3 | V10-1B3B-1C20 |
| 813673-1 | V10-1B4B-11A20 |
| 813673-4 | V10-1B4B-11D20 |
| 708785-1 | V10-1B4B-1A20 |
| 708785-3 | V10-1B4B-1C20 |
| 02-142859-6 | V10-1B4B-41B20L-090 |
| 708219-1 | V10-1B5B-1A20 |
| 708219-3 | V10-1B5B-1C20 |
| 708219-4 | V10-1B5B-1D20 |
| 875578-3 | V10-1B5B-38C20* |
| 02-315503-2 | V10-1B5B-41B-20R |
| 02-315503-6 | V10-1B5B-41B20L |
| 02-318820-6 | V10-1B5B-41B20L-090 |
| 02-318820-8 | V10-1B5B-41D20L-090 |
| 708786-1 | V10-1B6B-1A20 |
| 708786-3 | V10-1B6B-1C20 |
| 708787-1 | V10-1B7B-1A20 |
| 708787-2 | V10-1B7B-1B20 |
| 708787-3 | V10-1B7B-1C20 |
| 02-159700-5 | V10-1J2J-0A20-024-LH |
| 02-159700-7 | V10-1J2J-0C20-024L |
| 719AR00012A | V10-1J2J-11C20-L |
| 02-306404-7 | V10-1J3J-0C20-024L |
| 719AR00013A | V10-1J3J-11C20-L |
| 382061-1 | V10-1P1P-11A20 |
| 382061-5 | V10-1P1P-11A20-LH |
| 382061-3 | V10-1P1P-11C20 |
| 382061-8 | V10-1P1P-11D20L |
| 375655-1 | V10-1P1P-1A20 |
| 375655-5 | V10-1P1P-1A20-LH |
| 375655-2 | V10-1P1P-1B20 |
| 375655-3 | V10-1P1P-1C20 |
| 375655-7 | V10-1P1P-1C20-LH |
| 375655-4 | V10-1P1P-1D20 |
| 503171-3 | V10-1P1P-32C20 |
| 382245-1 | V10-1P1S-1A20 |
| 382245-2 | V10-1P1S-1B20 |
| 382245-3 | V10-1P1S-1C20 |
| 390902-1 | V10-1P2P-11A20 |
| 390902-3 | V10-1P2P-11C20 |
| 390902-7 | V10-1P2P-11C20-LH |
| 452099-1 | V10-1P2P-12A20 |
| 452099-3 | V10-1P2P-12C20 |
| 452099-7 | V10-1P2P-12C20-LH |
| 382075-1 | V10-1P2P-1A20 |
| 390102-5 | V10-1P2P-1A20-027 |
| 382075-5 | V10-1P2P-1A20-LH |
| 382075-2 | V10-1P2P-1B20 |
| 382075-3 | V10-1P2P-1C20 |
| 382075-7 | V10-1P2P-1C20-LH |
| 382075-4 | V10-1P2P-1D20 |
| 390102-4 | V10-1P2P-1D20-027 |
| 574736-1 | V10-1P2P-38A20 |
| 574736-5 | V10-1P2P-38A20-LH |
| 574736-3 | V10-1P2P-38C20 |
| 382590-1 | V10-1P2P-6A20 |
| 382590-4 | V10-1P2P-6D20 |
| 393207-1 | V10-1P2S-0A20-024 |
| 393207-2 | V10-1P2S-0B20-024 |
| 591058-1 | V10-1P2S-11A-20 |
| 382076-1 | V10-1P2S-1A20 |
| 382076-2 | V10-1P2S-1B20 |
| 382076-3 | V10-1P2S-1C20 |
| 382076-4 | V10-1P2S-1D20 |
| 382079-1 | V10-1P3P-11A20 |
| 382079-5 | V10-1P3P-11A20-LH |
| 382079-3 | V10-1P3P-11C20 |
| 382089-3 | V10-1P3P-12C20 |
| 382077-1 | V10-1P3P-1A20 |
| 382077-5 | V10-1P3P-1A20-LH |
| 382077-2 | V10-1P3P-1B20 |
| 382077-6 | V10-1P3P-1B20L |
| 382077-3 | V10-1P3P-1C20 |
| 382077-7 | V10-1P3P-1C20-LH |
| 382077-4 | V10-1P3P-1D20 |
| 401070-4 | V10-1P3P-1D20-027 |
| 393720-3 | V10-1P3P-38C20 |
| 382078-3 | V10-1P3P-3C20 |
| 382078-7 | V10-1P3P-3C20-LH |
| 382081-1 | V10-1P3S-11A20 |
| 382081-3 | V10-1P3S-11C20 |
| 382081-4 | V10-1P3S-11D20 |
| 382080-1 | V10-1P3S-1A20 |
| 382080-3 | V10-1P3S-1C20 |
| 382080-4 | V10-1P3S-1D20 |
| 383515-1 | V10-1P4P-11A20 |
| 383515-3 | V10-1P4P-11C20 |
| 383515-7 | V10-1P4P-11C20-LH |
| 401938-3 | V10-1P4P-12C20 |
| 382082-1 | V10-1P4P-1A20 |
| 382082-5 | V10-1P4P-1A20-LH |
| 382082-2 | V10-1P4P-1B20 |
| 382082-6 | V10-1P4P-1B20L |
| 382082-3 | V10-1P4P-1C20 |
| 382082-7 | V10-1P4P-1C20-LH |
| 382082-4 | V10-1P4P-1D20 |
| 02-347049-4 | V10-1P4P-1D20-027 |
| 02-318922-3 | V10-1P4P-2C20 |
| 591059-1 | V10-1P4P-38A20 |
| 591059-3 | V10-1P4P-38C20 |
| 478034-2 | V10-1P4P-4B20 |
| 382083-1 | V10-1P4S-11A20 |
| 382083-3 | V10-1P4S-11C20 |
| 396504-1 | V10-1P4S-1A20 |
| 396504-5 | V10-1P4S-1A20-LH |
| 396504-2 | V10-1P4S-1B20 |
| 396504-3 | V10-1P4S-1C20 |
| 396504-4 | V10-1P4S-1D20 |
| 406546-2 | V10-1P4Y-27B20 |
| 382085-1 | V10-1P5P-11A20 |
| 382085-5 | V10-1P5P-11A20-LH |
| 382085-6 | V10-1P5P-11B20-LH |
| 382085-3 | V10-1P5P-11C20 |
| 382085-7 | V10-1P5P-11C20-LH |
| 401086-3 | V10-1P5P-12C20 |
| 382084-1 | V10-1P5P-1A20 |
| 382084-2 | V10-1P5P-1B20 |
| 382084-6 | V10-1P5P-1B20-LH |
| 382084-3 | V10-1P5P-1C20 |
| 382084-7 | V10-1P5P-1C20-LH |
| 382084-4 | V10-1P5P-1D20 |
| 02-151752-5 | V10-1P5P-2A20-LH |
| 576291-3 | V10-1P5P-38C20 |
| 576291-7 | V10-1P5P-38C20-LH |
| 452232-8 | V10-1P5P-77D20-LH |
| 388276-5 | V10-1P5S-11A20-LH |
| 388276-3 | V10-1P5S-11C20 |
| 382246-1 | V10-1P5S-1A20 |
| 382246-5 | V10-1P5S-1A20-LH |
| 382246-2 | V10-1P5S-1B20 |
| 382246-6 | V10-1P5S-1B20L |
| 382246-3 | V10-1P5S-1C20 |
| 382246-7 | V10-1P5S-1C20-LH |
| 387513-3 | V10-1P5Y-27C20 |
| 386931-3 | V10-1P6P-11C20 |
| 574644-3 | V10-1P6P-12C20 |
| 382086-1 | V10-1P6P-1A20 |
| 382086-3 | V10-1P6P-1C20 |
| 382086-7 | V10-1P6P-1C20-LH |
| 382086-4 | V10-1P6P-1D20 |
| 382086-8 | V10-1P6P-1D20-LH |
| 397945-3 | V10-1P6P-38C20 |
| 399739-3 | V10-1P6P-3C20 |
| 383520-1 | V10-1P6S-11A20 |
| 383520-5 | V10-1P6S-11A20-LH |
| 383520-3 | V10-1P6S-11C20 |
| 395613-1 | V10-1P6S-1A20 |
| 395613-6 | V10-1P6S-1B20L |
| 395613-3 | V10-1P6S-1C20 |
| 395613-7 | V10-1P6S-1C20-LH |
| 395613-4 | V10-1P6S-1D20 |
| 433369-1 | V10-1P6Y-27A20-050 |
| 392684-2 | V10-1P6Y-27B20 |
| 433369-2 | V10-1P6Y-27B20-050 |
| 433369-3 | V10-1P6Y-27C20-050 |
| 382062-1 | V10-1P7P-11A20 |
| 382062-3 | V10-1P7P-11C20 |
| 382062-7 | V10-1P7P-11C20-LH |
| 382062-8 | V10-1P7P-11D20-LH |
| 408629-3 | V10-1P7P-12C20 |
| 408629-7 | V10-1P7P-12C20-LH |
| 382087-1 | V10-1P7P-1A20 |
| 382087-2 | V10-1P7P-1B20 |
| 382087-3 | V10-1P7P-1C20 |
| 382087-7 | V10-1P7P-1C20-LH |
| 382087-4 | V10-1P7P-1D20 |
| 586405-3 | V10-1P7P-38C20 |
| 586405-8 | V10-1P7P-38D20L |
| 407517-3 | V10-1P7P-3C20 |
| 478298-3 | V10-1P7P-4C20 |
| 02-466961-1 | V10-1P7P-8A20 |
| 382088-1 | V10-1P7S-1A20 |
| 382088-2 | V10-1P7S-1B20 |
| 382088-3 | V10-1P7S-1C20 |
| 588681-1 | V10-1S1S-11A20 |
| 588681-3 | V10-1S1S-11C20 |
| 588681-4 | V10-1S1S-11D20 |
| 588681-8 | V10-1S1S-11D20-LH |
| 452506-3 | V10-1S1S-12C20 |
| 386496-1 | V10-1S1S-1A20 |
| 386496-2 | V10-1S1S-1B20 |
| 386496-3 | V10-1S1S-1C20 |
| 386496-4 | V10-1S1S-1D20 |
| 503185-5 | V10-1S1S-38A20-LH |
| 584302-3 | V10-1S2P-1C20 |
| 382065-1 | V10-1S2S-11A20 |
| 382065-5 | V10-1S2S-11A20-LH |
| 382065-3 | V10-1S2S-11C20 |
| 719AR00011A | V10-1S2S-11C20L-122 |
| 382065-4 | V10-1S2S-11D20 |
| 382063-1 | V10-1S2S-1A20 |
| 382063-2 | V10-1S2S-1B20 |
| 382063-3 | V10-1S2S-1C20 |
| 382063-7 | V10-1S2S-1C20-LH |
| 382063-4 | V10-1S2S-1D20 |
| 392699-1 | V10-1S2S-27A20 |
| 588684-3 | V10-1S2S-38C20 |
| 452085-3 | V10-1S2S-3C20-069 |
| 430534-1 | V10-1S2S-41A20 |
| 429913-1 | V10-1S3P-11A20 |
| 429913-5 | V10-1S3P-11A20-LH |
| 429912-5 | V10-1S3P-12A20-LH |
| 382069-1 | V10-1S3S-11A20 |
| 382069-5 | V10-1S3S-11A20-LH |
| 382069-2 | V10-1S3S-11B20 |
| 382069-3 | V10-1S3S-11C20 |
| 382069-7 | V10-1S3S-11C20-LH |
| 382069-4 | V10-1S3S-11D20 |
| 382069-8 | V10-1S3S-11D20L |
| 397926-1 | V10-1S3S-12A20 |
| 397926-5 | V10-1S3S-12A20-LH |
| 397926-3 | V10-1S3S-12C20 |
| 382067-1 | V10-1S3S-1A20 |
| 382067-5 | V10-1S3S-1A20-LH |
| 382067-2 | V10-1S3S-1B20 |
| 382067-6 | V10-1S3S-1B20-LH |
| 382067-3 | V10-1S3S-1C20 |
| 382067-7 | V10-1S3S-1C20-LH |
| 382067-4 | V10-1S3S-1D20 |
| 502495-2 | V10-1S3S-38B20 |
| 502495-6 | V10-1S3S-38B20-LH |
| 502495-3 | V10-1S3S-38C20 |
| 502495-7 | V10-1S3S-38C20-LH |
| 502495-4 | V10-1S3S-38D20 |
| 382068-7 | V10-1S3S-3C20-LH |
| 390099-1 | V10-1S4S-11A20 |
| 390099-2 | V10-1S4S-11B20 |
| 390099-3 | V10-1S4S-11C20 |
| 390099-7 | V10-1S4S-11C20-LH |
| 390099-4 | V10-1S4S-11D20 |
| 390099-8 | V10-1S4S-11D20L |
| 382073-7 | V10-1S4S-12C20-LH |
| 382071-1 | V10-1S4S-1A20 |
| 382071-5 | V10-1S4S-1A20-LH |
| 382071-2 | V10-1S4S-1B20 |
| 382071-3 | V10-1S4S-1C20 |
| 382071-4 | V10-1S4S-1D20 |
| 02-102754-3 | V10-1S4S-32C20 |
| 574699-6 | V10-1S4S-38B20L |
| 574699-3 | V10-1S4S-38C20 |
| 574699-7 | V10-1S4S-38C20-LH |
| 382092-1 | V10-1S5S-11A20 |
| 382092-5 | V10-1S5S-11A20-LH |
| 382092-3 | V10-1S5S-11C20 |
| 382092-7 | V10-1S5S-11C20-LH |
| 382092-4 | V10-1S5S-11D20 |
| 382093-1 | V10-1S5S-12A20 |
| 382093-3 | V10-1S5S-12C20 |
| 382093-7 | V10-1S5S-12C20-LH |
| 382074-1 | V10-1S5S-1A20 |
| 382074-5 | V10-1S5S-1A20-LH |
| 382074-2 | V10-1S5S-1B20 |
| 382074-3 | V10-1S5S-1C20 |
| 382074-7 | V10-1S5S-1C20-LH |
| 382074-4 | V10-1S5S-1D20 |
| 503071-3 | V10-1S5S-38C20 |
| 503071-7 | V10-1S5S-38C20-LH |
| 434720-1 | V10-1S6P-12A20 |
| 588563-8 | V10-1S6R-12D20-LH |
| 382094-1 | V10-1S6S-11A20 |
| 382094-5 | V10-1S6S-11A20-LH |
| 382094-3 | V10-1S6S-11C20 |
| 382094-4 | V10-1S6S-11D20 |
| 387516-1 | V10-1S6S-12A20 |
| 387516-5 | V10-1S6S-12A20-LH |
| 387516-4 | V10-1S6S-12D20 |
| 387500-1 | V10-1S6S-1A20 |
| 387500-3 | V10-1S6S-1C20 |
| 387500-7 | V10-1S6S-1C20-LH |
| 387500-4 | V10-1S6S-1D20 |
| 426648-3 | V10-1S6S-27C20 |
| 579781-3 | V10-1S6S-38C20 |
| 579781-7 | V10-1S6S-38C20-LH |
| 477933-7 | V10-1S6S-3C20-LH |
| 388281-2 | V10-1S7R-12B20 |
| 388281-6 | V10-1S7R-12B20-LH |
| 388281-8 | V10-1S7R-12D20-LH |
| 415702-3 | V10-1S7R-1C20 |
| 385857-1 | V10-1S7S-11A20 |
| 385857-5 | V10-1S7S-11A20-LH |
| 385857-2 | V10-1S7S-11B20 |
| 385857-3 | V10-1S7S-11C20 |
| 385857-7 | V10-1S7S-11C20-LH |
| 385857-4 | V10-1S7S-11D20 |
| 401055-3 | V10-1S7S-12C20 |
| 401055-7 | V10-1S7S-12C20-LH |
| 382095-1 | V10-1S7S-1A20 |
| 382095-3 | V10-1S7S-1C20 |
| 382095-7 | V10-1S7S-1C20-LH |
| 452380-3 | V10-1S7S-38C20 |
| 452380-7 | V10-1S7S-38C20-LH |
| 576983-1 | V10-1S7S-6A20 |
| 576983-4 | V10-1S7S-6D20 |
| 382220-1 | V10-2P1P-1A20 |
| 382223-1 | V10-2P2P-1A20 |
| 382223-3 | V10-2P2P-1C20 |
| 382224-4 | V10-2P2S-1D20 |
| 382225-1 | V10-2P3P-1A20 |
| 382225-3 | V10-2P3P-1C20 |
| 382231-1 | V10-2P4P-1A20 |
| 382231-3 | V10-2P4P-1C20 |
| 382231-4 | V10-2P4P-1D20 |
| 382229-1 | V10-2P5P-1A20 |
| 382229-3 | V10-2P5P-1C20 |
| 382229-4 | V10-2P5P-1D20 |
| 382240-1 | V10-2P7P-1A20 |
| 382240-3 | V10-2P7P-1C20 |
| 382244-3 | V10-2S2S-1C20 |
| 386497-7 | V10-2S3S-1C20-LH |
| 395589-1 | V10-2S6S-1A20 |
| 395588-3 | V10-2S7S-1C20 |
| 719AR00009A | V10-4P5P-2A20L |
| 719AR00008A | V10-4P5P-2A20R |
| 02-348752-7 | V10-6S2S-12C20L |
| 02-347564-1 | V10-6S3S-12A20 |
| 02-335181-5 | V10-6S4S-12A20L |
| 02-335181-3 | V10-6S4S-12C20 |
| 02-346573-3 | V10-6S5S-12C20 |
| 02-346573-7 | V10-6S5S-12C20L |
| 02-347567-1 | V10-6S6S-12A20 |
| 719AR00014A | V10-6S7S-12C20L |
| 02-466810-2 | V10-1P4F-1B20R |
| 402753-3 | V10F-1P1P-1C2D-20 |
| 02-466812-7 | V10F-1P2P-11C2E20L |
| 424850-1 | V10F-1P2P-1A2D-20 |
| 385867-1 | V10F-1P2P-1A3D-20 |
| 02-466449-1 | V10F-1P2P-1A7K20R |
| 02-318929-1 | V10F-1P2P-3A2E-20 |
| 409277-5 | V10F-1P3P-11A3D-20-LH |
| 850266-1 | V10F-1P3P-12A4F-20 |
| 02-159874-1 | V10F-1P3P-12A4K-20 |
| 574502-1 | V10F-1P3P-1A7K-20 |
| 477909-3 | V10F-1P3P-1C2D-20 |
| 591366-3 | V10F-1P3P-1C5E-20 |
| 02-142822-3 | V10F-1P3P-38C2D-20 |
| 02-466787-3 | V10F-1P3P-38C3B-20R |
| 02-160129-1 | V10F-1P4P-11A2E20 |
| 02-306253-1 | V10F-1P4P-11A4D-20 |
| 02-306253-5 | V10F-1P4P-11A4D20L |
| 390922-1 | V10F-1P4P-11A4E-20 |
| 390922-5 | V10F-1P4P-11A4E-20-LH |
| 02-306253-3 | V10F-1P4P-11C4D-20 |
| 02-306253-7 | V10F-1P4P-11C4D-20L |
| 02-345916-7 | V10F-1P4P-11C6H-20L |
| 02-346448-2 | V10F-1P4P-12B4F-20 |
| 591151-1 | V10F-1P4P-1A4D-20 |
| 02-125583-1 | V10F-1P4P-1A4E-20 |
| 02-125583-5 | V10F-1P4P-1A4E-20-LH |
| 404186-1 | V10F-1P4P-1A4F-20 |
| 403520-1 | V10F-1P4P-1A6F-20 |
| 452409-3 | V10F-1P4P-1C2D-20 |
| 591151-3 | V10F-1P4P-1C4D-20 |
| 404186-3 | V10F-1P4P-1C4F-20 |
| 875471-3 | V10F-1P4P-1C7E-20 |
| 02-466601-1 | V10F-1P4P-38A2E20R |
| 02-143430-1 | V10F-1P4P-38A4D-20 |
| 02-143430-5 | V10F-1P4P-38A4D-20-LH |
| 02-318928-1 | V10F-1P4P-38A4E-20 |
| 452525-2 | V10F-1P4P-38B4F-20 |
| 502898-3 | V10F-1P5P-12C5K-20 |
| 02-141744-1 | V10F-1P5P-1A5H-20 |
| 576217-3 | V10F-1P5P-1C2D-20 |
| 02-346052-3 | V10F-1P5P-1C5B-20 |
| 398458-3 | V10F-1P5P-1C7J-20 |
| 02-136971-6 | V10F-1P5P-38B6G-20L |
| 850258-3 | V10F-1P5P-38C5D-20 |
| 591030-3 | V10F-1P5P-38C5H-20 |
| 591030-4 | V10F-1P5P-38D5H-20 |
| 431800-2 | V10F-1P5P-3B5H-20 |
| 02-346256-1 | V10F-1P6P-11A4D-20 |
| 591303-1 | V10F-1P6P-11A6E-20 |
| 591303-5 | V10F-1P6P-11A6E-20-LH |
| 396985-7 | V10F-1P6P-11C6D-20-LH |
| 502598-3 | V10F-1P6P-11C6G-20 |
| 502598-7 | V10F-1P6P-11C6G-20-LH |
| 477569-6 | V10F-1P6P-12B5K-20-LH |
| 719AR00010A | V10F-1P6P-12C6H20R |
| 02-346257-1 | V10F-1P6P-1A4D-20 |
| 392700-3 | V10F-1P6P-1C3F-20 |
| 573217-3 | V10F-1P6P-1C6E-20 |
| 579893-3 | V10F-1P6P-1C6G-20 |
| 430517-6 | V10F-1P6P-32B6G-20-LH |
| 424876-3 | V10F-1P6P-34C7G-20 |
| 02-466830-1 | V10F-1P6P-38A4D-20 |
| 452254-1 | V10F-1P6P-38A6E-20 |
| 452254-5 | V10F-1P6P-38A6E-20-LH |
| 574597-2 | V10F-1P6P-38B5H-20 |
| 860055-3 | V10F-1P6P-38C2G-20 |
| 588731-3 | V10F-1P6P-38C4F-20 |
| 574447-3 | V10F-1P6P-38C4H-20 |
| 02-347635-3 | V10F-1P6P-38C6D-20 |
| 430507-3 | V10F-1P6P-38C6G-20 |
| 02-466830-4 | V10F-1P6P-38D4D-20 |
| 574597-4 | V10F-1P6P-38D5H-20 |
| 574597-8 | V10F-1P6P-38D5H-20-LH |
| 391762-1 | V10F-1P6T-11A7F-20 |
| 396966-7 | V10F-1P6T-38C4G-20-LH |
| 391753-3 | V10F-1P6T-38C7F-20 |
| 381230-7 | V10F-1P6T-3C7F-20-LH |
| 409292-1 | V10F-1P7P-11A7D-20 |
| 409292-5 | V10F-1P7P-11A7D-20-LH |
| 477908-5 | V10F-1P7P-1A2D-20-LH |
| 477908-1 | V10F-1P7P-1A2D-20 |
| 397934-5 | V10F-1P7P-1A2H-20-LH |
| 397934-1 | V10F-1P7P-1A2H-20 |
| 477908-2 | V10F-1P7P-1B2D-20 |
| 397934-2 | V10F-1P7P-1B2H-20 |
| 860052-3 | V10F-1P7P-1C10F-20 |
| 860052-7 | V10F-1P7P-1C10F-20-LH |
| 477908-7 | V10F-1P7P-1C2D-20-LH |
| 477908-3 | V10F-1P7P-1C2D-20 |
| 397934-7 | V10F-1P7P-1C2H-20-LH |
| 397934-3 | V10F-1P7P-1C2H-20 |
| 572021-3 | V10F-1P7P-1C4G-20 |
| 477908-4 | V10F-1P7P-1D2D-20 |
| 397934-4 | V10F-1P7P-1D2H-20 |
| 430518-6 | V10F-1P7P-32B6G-20-LH |
| 818110-5 | V10F-1P7P-38A2E-20-LH |
| 818110-1 | V10F-1P7P-38A2E-20 |
| 02-142789-5 | V10F-1P7P-38A2G-20-LH |
| 02-142789-1 | V10F-1P7P-38A2G-20 |
| 434673-5 | V10F-1P7P-38A5H-20-LH |
| 588619-1 | V10F-1P7P-38A6F-20 |
| 818110-2 | V10F-1P7P-38B2E-20 |
| 02-142789-2 | V10F-1P7P-38B2G-20 |
| 588610-2 | V10F-1P7P-38B4F-20 |
| 434673-2 | V10F-1P7P-38B5H-20 |
| 818110-7 | V10F-1P7P-38C2E-20-LH |
| 818110-3 | V10F-1P7P-38C2E-20 |
| 02-142789-7 | V10F-1P7P-38C2G-20-LH |
| 02-142789-3 | V10F-1P7P-38C2G-20 |
| 588610-3 | V10F-1P7P-38C4F-20 |
| 574739-7 | V10F-1P7P-38C4H-20-LH |
| 390926-3 | V10F-1P7P-38C5E-20 |
| 434673-7 | V10F-1P7P-38C5H-20-LH |
| 588619-3 | V10F-1P7P-38C6F-20 |
| 586357-3 | V10F-1P7P-38C6G-20 |
| 452601-3 | V10F-1P7P-38C6H-20 |
| 818110-4 | V10F-1P7P-38D2E-20 |
| 02-142789-4 | V10F-1P7P-38D2G-20 |
| 574739-4 | V10F-1P7P-38D4H-20 |
| 390926-4 | V10F-1P7P-38D5E-20 |
| 390927-4 | V10F-1P7P-38D5F-20 |
| 387490-4 | V10F-1P7P-38D5G-20 |
| 434673-4 | V10F-1P7P-38D5H-20 |
| 434673-8 | V10F-1P7P-38D5H-20-LH |
| 453258-1 | V10F-1P7P-3A6G-20 |
| 418936-2 | V10F-1P7P-3B5F-20 |
| 578216-2 | V10F-1P7P-3B5H-20 |
| 876099-5 | V10F-1P7T-1A2G-20-LH |
| 876099-1 | V10F-1P7T-1A2G-20 |
| 876099-2 | V10F-1P7T-1B2G-20 |
| 876099-7 | V10F-1P7T-1C2G-20-LH |
| 876099-3 | V10F-1P7T-1C2G-20 |
| 876099-4 | V10F-1P7T-1D2G-20 |
| 02-346442-3 | V10F-1S2T-1C2H-20 |
| 592501-2 | V10F-1S3T-11B3H-20 |
| 502814-3 | V10F-1S3T-1C2G-20 |
| 02-466182-6 | V10F-1S4P-11B4D20L |
| 02-466554-1 | V10F-1S4T-11A4E-20 |
| 02-466554-5 | V10F-1S4T-11A4E-20L |
| 719AR00007A | V10F-1S4T-11B5K20R-120 |
| 02-466554-3 | V10F-1S4T-11C4E-20 |
| 02-466574-3 | V10F-1S4T-11C4E20R-109 |
| 02-466769-3 | V10F-1S4T-11C4F-20 |
| 393200-3 | V10F-1S4T-11C5E-20 |
| 02-466580-1 | V10F-1S4T-1A4E20R |
| 430562-3 | V10F-1S4T-1C2G-20 |
| 02-143260-1 | V10F-1S4T-38A4E-20 |
| 02-143260-5 | V10F-1S4T-38A4E-20-LH |
| 02-151568-1 | V10F-1S4T-38A5H-20 |
| 02-143260-3 | V10F-1S4T-38C4E-20 |
| 02-143260-7 | V10F-1S4T-38C4E-20-LH |
| 394936-1 | V10F-1S4T-3A2G-20 |
| 385515-2 | V10F-1S4T-4B2G-20 |
| 02-322519-7 | V10F-1S4T-4C5K-20L |
| 02-142719-3 | V10F-1S5T-1C2F-20 |
| 875852-3 | V10F-1S6T-11C4G-20 |
| 875852-7 | V10F-1S6T-11C4G-20-LH |
| 591270-8 | V10F-1S6T-11D8H20L |
| 860154-1 | V10F-1S6T-38A5H-20 |
| 860154-5 | V10F-1S6T-38A5H-20-LH |
| 503164-2 | V10F-1S6T-38B8E-20 |
| 875849-3 | V10F-1S6T-38C6E-20 |
| 02-159751-4 | V10F-1S6T-38D5K-20 |
| 388840-1 | V10F-1S6T-3A8H-20 |
| 388840-6 | V10F-1S6T-3B8H-20-LH |
| 388840-8 | V10F-1S6T-3D8H-20L |
| 02-143620-3 | V10F-1S6T-4C0K-20-073 |
| 02-143620-7 | V10F-1S6T-4C0K-20-073-LH |
| 452857-1 | V10F-1S7T-11A5H-20 |
| 502319-2 | V10F-1S7T-11B70-20-075 |
| 423771-3 | V10F-1S7T-11C7H-20 |
| 452857-4 | V10F-1S7T-11D5H-20 |
| 02-466802-2 | V10F-1S7T-1B8G-20 |
| 502750-1 | V10F-1S7T-38A5H-20 |
| 428651-3 | V10F-1S7T-38C4F-20 |
| 02-160189-3 | V10F-1S7T-38C4G-20 |
| 02-347558-3 | V10F-1S7T-38C5J-20 |
| 452335-3 | V10F-1S7T-38C6G-20 |
| 588557-3 | V10F-1S7T-38C7F-20 |
| 02-152218-4 | V10F-1S7T-38D5G-20 |
| 502750-4 | V10F-1S7T-38D5H-20 |
| 502750-8 | V10F-1S7T-38D5H-20-LH |
| 849820-5 | V10F-1S7T-3A2G-20-LH |
| 849820-1 | V10F-1S7T-3A2G-20 |
| 849820-2 | V10F-1S7T-3B2G-20 |
| 849820-7 | V10F-1S7T-3C2G-20-LH |
| 849820-3 | V10F-1S7T-3C2G-20 |
| 02-143222-2 | V10F-2S4T-1B5H-20 |
| 02-466965-6 | V10F-6S2T-12B4D-20 |
| 02-466965-8 | V10F-6S2T-12D4D-20 |
| 02-466552-3 | V10F-6S4T-12C4E-20-R |
| 02-341786-3 | V10F-6S6P-12C6D-20 |
| 452747-3 | V10F-1P2T-38*2A-20 |
| 02-466601-5 | V10F-1P4P-38A2E20L |
| 431890-3 | V10F-1P6P-12C6E-20 |
| 02-466739-7 | V10F-1S7T-38C4J20L |
| 02-318919-4 | V10F-6S2T-12D2D-20 |
| 502230-7 | V10NF-1P6T-38C4G-20-LH |
| 502230-3 | V10NF-1P6T-38C4G-20 |
| 02-151662-3 | V10NF-1P7T-38C5H-20 |
| 02-466930-6 | V10NF-1S3T-11B6G-20L |
| 587577-3 | V10NF-1S5T-38C5G-20 |
| 02-466239-2 | V10NF-1S6T-38B3J20R |
| 591301-2 | V10NF-1S6T-38B5G-20 |
| 02-346798-6 | V10NF-1S6T-38B5J-20L |
| 02-143590-6 | V10NF-1S6T-38B5O-20-079 |
| 591301-3 | V10NF-1S6T-38C5G-20 |
| 02-143429-4 | V10NF-1S6T-38D50-20-091 |
| 850741-4 | V10NF-1S6T-38D5H-20 |
| 850741-8 | V10NF-1S6T-38D5H20L |
| 02-341887-8 | V10NF-1S6T-3D5J20L |
| 02-466303-6 | V10NF-1S7T-38B-4J-20L |
| 02-466303-2 | V10NF-1S7T-38B-4J-20R |
| 02-341888-7 | V10NF-6S5T-12C4H20L |
| 02-322899-4 | V10NF-6S5T-75D4J-20 |
| 02-322900-4 | V10NF-6S6T-75D5020-091 |
| 453420 | V10P-1P2K-11*2E-10 |
| 453420-1 | V10P-1P2K-11A2E-10 |
| 390116-1 | V10P-1P4K-1A4F-10 |
| 02-151953-1 | V10P-1P4K-1A4K-10 |
| 477938-1 | V10P-1P5K-1A4D-10 |
| 453490-6 | V10P-1P7K-11B4G-10L |
| 452036-4 | V10P-1P7K-11D4C-10 |
| 452036-8 | V10P-1P7K-11D4C-10L |
| 02-159845-3 | V10P-1P7K-12C2F-10 |
| 502705-1 | V10P-1S3K-1A1C-10 |
| 02-152309-3 | V10P-1S4K-11C2F-10 |
| 02-152047-1 | V10P-1S4K-1A4K-10 |
| 02-142717-3 | V10P-1S4K-1C2F-10 |
| 02-466234-1 | V10P-1S5K-1A1K-10R |
| 502351-4 | V10P-1S6K-11D2D-10 |
| 860317-4 | V10P-1S6K-11D2G-10 |
| 452279-3 | V10P-1S6K-38C1H-10 |
| 452279-4 | V10P-1S6K-38D1H-10 |
| 849909-2 | V10P-1S7K-11B60-10-075 |
| 574760-2 | V10P-1S7K-11B7F-10-055 |
| 574818-3 | V10P-1S7K-11C7D-10 |
| 584266-3 | V10P-1S7K-11C7D-10-055 |
| 584266-4 | V10P-1S7K-11D7D-10-055 |
| 574760-4 | V10P-1S7K-11D7F-10-055 |
| 591103-7 | V10P-1S7K-12C2F-10LH |
| 02-347972-4 | V10P-1S7K-38D3F-10 |
| 02-466544-2 | V10P-1P5K-38B4H-10 |
Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448
Contact Person: Mr. Jason
A10VSO18 Series Rexroth Hydraulic Pump , Variable Axial Piston Pump
Variable High Pressure Hydraulic Pump A10VSO45 Series With Long Service Life
Quick Speed Rexroth Hydraulic Pump , A10VSO71 Series Variable Piston Hydraulic Pump
Hydac Pressure Filter Element Replacement 0240D 0260D 0280D Series ISO Approved
Pressure Replacement Filter Element Hydac 0800D 0900D 1320D 1500D Series
Hydac 0240R Series Return Line Elements For Hydraulic Return Line Filter
Parker Denison Hydraulic Piston Pumps Variable Volume PVP16 Series
PVP41 Series Parker Denison Hydraulic Pumps Variable Volume Piston Pumps
PV140 PV180 Series Parker Hydraulic Pumps Axial Piston Pump On Hand
