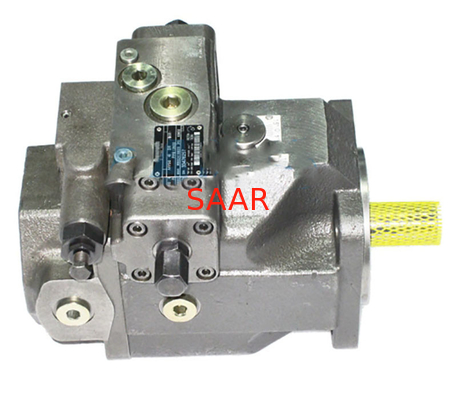

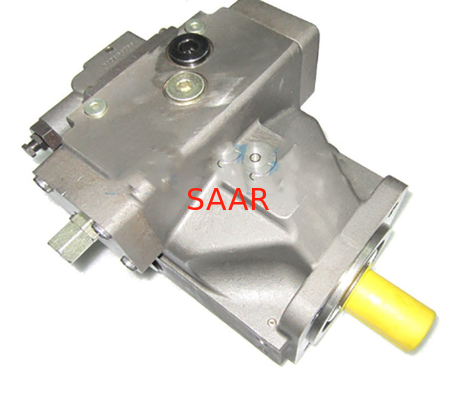

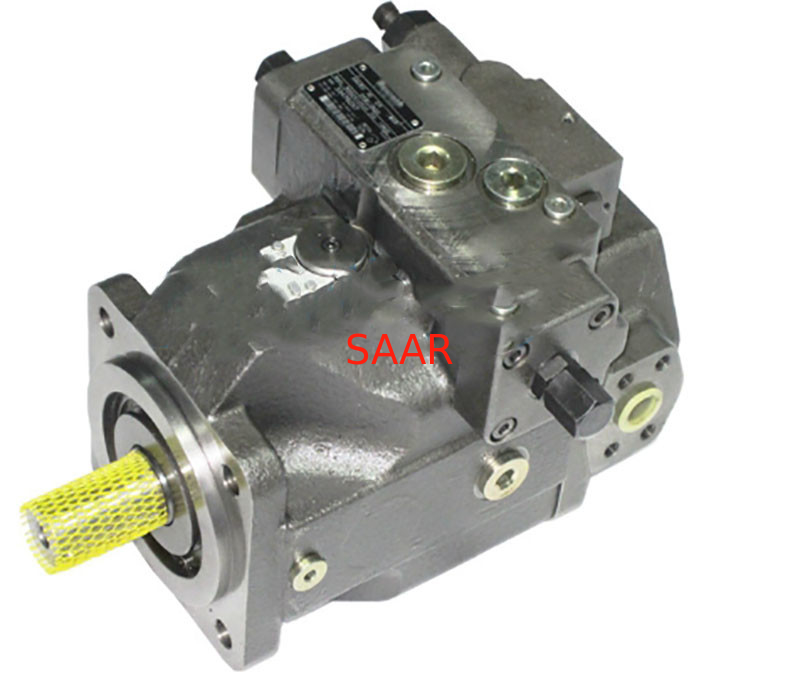

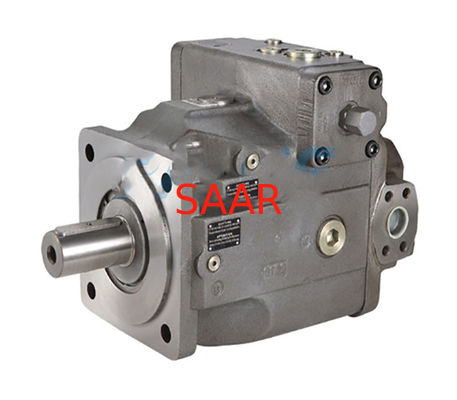

R910939487 AA4VSO250DP/22R-PZB13K35 A4VSO Series Axial Piston Variable Pump

R910939487 AA4VSO250DP/22R-PZB13K35 A4VSO Series Axial Piston Variable Pump

  • R910939487 AA4VSO250DP/22R-PZB13K35 A4VSO Series Axial Piston Variable Pump
  • R910939487 AA4VSO250DP/22R-PZB13K35 A4VSO Series Axial Piston Variable Pump
  • R910939487 AA4VSO250DP/22R-PZB13K35 A4VSO Series Axial Piston Variable Pump
  • R910939487 AA4VSO250DP/22R-PZB13K35 A4VSO Series Axial Piston Variable Pump
R910939487 AA4VSO250DP/22R-PZB13K35 A4VSO Series Axial Piston Variable Pump
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R910939487 AA4VSO250DP/22R-PZB13K35
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On Request
Packaging Details: Standard Wooden Box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 1000/Month
Contact Now
Detailed Product Description
MNR: R910939487 Model No.: AA4VSO250DP/22R-PZB13K35
High Light:

Rexroth Piston Pump

,

Piston Rexroth Hydraulic Pump

,

Rexroth Axial Piston Variable Pump

Rexroth A4VSO Series Axial Piston Variable Pump



Hydraulic axial piston pump A4VSO71, A4VSO125, A4VSO180, A4VSO250
Robust high pressure pump for industrial applications
Size 40 … 1000
Nominal pressure 350 bar
Maximum pressure 400 bar
Open circuit
Metric version


Features
Robust pump with very long service life
Low operating noise
Short control response times
Excellent suction characteristics
Through drive for mounting of further pumps up to same nominal size
Swashplate design



Technical Data

Table of values (theoretical values, without efficiency and tolerances; values rounded)

Nominal size A4VSO71 A4VSO125 A4VSO180 A4VSO250
Nominal pressure p N bar 350 350 350 350
Maximum pressure pmax bar 450 450 450 450
Displacement Vg max cm³ 71 125 180 250
Speed Max. speed n max rpm 2200 1800 1800 1500
Flow at n max q V max l/min 156 225 324 375
Power Δ p = 350 bar P max kW 91 131 189 219
Torque Δ p = 350 bar Tmax Nm 395 696 1002 1391
Weight (approx.) m kg 53 88 102 184

Nominal size A4VSO355 A4VSO500 A4VSO750 A4VSO1000
Nominal pressure p N bar 350 350 350 350
Maximum pressure pmax bar 450 450 450 450
Displacement Vg max cm³ 355 500 750 1000
Speed Max. speed n max rpm 1500 1320   1000
Flow at n max q V max l/min 533 660   1000
Power Δ p = 350 bar P max kW 311 385 525 583
Torque Δ p = 350 bar Tmax Nm 1976 2783 4174 5565
Weight (approx.) m kg 207 320 460 605



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth A4VSO250DP Piston Pumps on Sale, Short lead time, Best price!!!

R910917027 AA4VSO250DP/10R-PPB13N00-SO173
R910930122 AA4VSO250DP/10R-PPB13N00-SO231
R910941620 AA4VSO250DP/10R-PPB13N00-SO501
R910961037 AA4VSO250DP/10R-PPB13N00-SO534
R910964530 AA4VSO250DP/10R-VPB13N00-SO534
R910945394 AA4VSO250DP/22L-PPB13K34
R910937287 AA4VSO250DP/22L-PPB13K35
R910938142 AA4VSO250DP/22L-PPB13N00
R910945555 AA4VSO250DP/22L-PZB13K34
R910937284 AA4VSO250DP/22L-PZB13K35
R910937288 AA4VSO250DP/22L-PZB13N00
R910963241 AA4VSO250DP/22L-PZB13N00-SO585
R910946430 AA4VSO250DP/22R-PPB13K27
R910944518 AA4VSO250DP/22R-PPB13K34
R910946429 AA4VSO250DP/22R-PPB13K35
R910975971 AA4VSO250DP/22R-PPB13K68
R910935408 AA4VSO250DP/22R-PPB13N00
R902427585 AA4VSO250DP/22R-PPB13N00-S1374
R910949462 AA4VSO250DP/22R-PPB13N00-SO318
R910947421 AA4VSO250DP/22R-PPB13N00-SO544
R910969773 AA4VSO250DP/22R-PPB13N00-SO696
R910942439 AA4VSO250DP/22R-PPB13T00-SO318
R910942678 AA4VSO250DP/22R-PZB13K27
R910968423 AA4VSO250DP/22R-PZB13K34
R910939487 AA4VSO250DP/22R-PZB13K35
R910939486 AA4VSO250DP/22R-PZB13K99
R910966659 AA4VSO250DP/22R-PZB13L60
R910945360 AA4VSO250DP/22R-PZB13N00
R910974076 AA4VSO250DP/22R-PZB13N00-SO769
R902490084 AA4VSO250DP/30L-FPB13N00
R902402311 AA4VSO250DP/30L-PZB13K35
R902433264 AA4VSO250DP/30L-VPB13K31
R902448217 AA4VSO250DP/30R-FPB13N00
R902572935 AA4VSO250DP/30R-FPB25N00-SO680
R910998934 AA4VSO250DP/30R-KPB13N00
R902464718 AA4VSO250DP/30R-PPB13K07-SO318
R902476829 AA4VSO250DP/30R-PPB13K31
R902420907 AA4VSO250DP/30R-PPB13K35
R910991959 AA4VSO250DP/30R-PPB13K35-SO19
R902443480 AA4VSO250DP/30R-PPB13KB4
R910976951 AA4VSO250DP/30R-PPB13N00
R910997228 AA4VSO250DP/30R-PPB13N00-S1015
R910997563 AA4VSO250DP/30R-PPB13N00-S1018
R910999674 AA4VSO250DP/30R-PPB13N00-S1043
R902420505 AA4VSO250DP/30R-PPB13N00-S1642
R902494370 AA4VSO250DP/30R-PPB13N00-S1942
R902575253 AA4VSO250DP/30R-PPB13N00-S2107
R910989802 AA4VSO250DP/30R-PPB13N00-SO19
R910978855 AA4VSO250DP/30R-PPB13N00-SO171
R902573691 AA4VSO250DP/30R-PPB13N00-SO318
R902432286 AA4VSO250DP/30R-PPB13N00-SO344
R902436988 AA4VSO250DP/30R-PPB13N00-SO527
R902403671 AA4VSO250DP/30R-PPB13N00-SO646
R902427389 AA4VSO250DP/30R-PPB13N00-SO680
R902415297 AA4VSO250DP/30R-PPB13T99-SO366
R902452941 AA4VSO250DP/30R-PPB25K35
R902493707 AA4VSO250DP/30R-PPB25N00
R902465625 AA4VSO250DP/30R-PPB25N00-SO527
R902534578 AA4VSO250DP/30R-PPB25U35
R902483019 AA4VSO250DP/30R-PPB25U35-SO69
R902517449 AA4VSO250DP/30R-PPB25U99
R902424146 AA4VSO250DP/30R-PZB13K27
R910998040 AA4VSO250DP/30R-PZB13K35
R902472104 AA4VSO250DP/30R-PZB13K99
R910994684 AA4VSO250DP/30R-PZB13N00
R902467956 AA4VSO250DP/30R-PZB13N00
R910991964 AA4VSO250DP/30R-PZB13N00-SO19
R902426497 AA4VSO250DP/30R-PZB13N00-SO680
R902452938 AA4VSO250DP/30R-PZB25N00
R902513843 AA4VSO250DP/30R-PZB25N00-S2015
R902427011 AA4VSO250DP/30R-PZB25N00-SO680
R902496838 AA4VSO250DP/30R-PZB25U35
R910988390 AA4VSO250DP/30R-VPB13N00
R910999714 AA4VSO250DP/30R-VPB13N00-SO171
R902477335 AA4VSO250DP/30R-VPB25N00-SO527
R902542220 AA4VSO250DP/30R-VPB25U07-SO318
R902533706 AA4VSO250DP/30R-VZB25U35
R902548848 AA4VSO250DP/30R-VZB25U99
R910974597 AA4VSO250DPF/22R-PPB13N00
R910940839 AA4VSO250DPF/22R-PZB13P64
R902414521 AA4VSO250DPF/30L-PZB13K01
R902460701 AA4VSO250DPF/30R-PPB13N00
R902482911 AA4VSO250DPF/30R-PPB25N00
R902414523 AA4VSO250DPF/30R-PZB13K01
R902418145 AA4VSO250DPF/30R-PZB13K02
R902411438 AA4VSO250DPF/30R-PZB13P64
R902466299 AA4VSO250DPF/30R-VPB13N00
R987180990 AA4VSO250DP/10L-PPB13N00
R910917689 AAA4VSO250DP/10X-PKD63N00
R910936954 AAA4VSO250DP/22R-PKD63N00
R910967597 AAA4VSO250DP/22R-PSD63N00
R910985090 AAA4VSO250DP/30L-PSD63N00
R902439624 AAA4VSO250DP/30R-PKD63K07
R902408286 AAA4VSO250DP/30R-PKD63N00
R902406510 AAA4VSO250DP/30R-PKD63N00E
R902436686 AAA4VSO250DP/30R-PKD63N00-S1406
R902406370 AAA4VSO250DP/30R-PKD63N00ES1406
R902489427 AAA4VSO250DP/30R-VKD75U99E
R902513881 AAA4VSO250DPF/30R-VSD75U99E
R900058625 A4VSO250DP/30L-PPB13N00
R900573507 A4VSO250DP/30L-PZB13N00
R900985609 A4VSO250DP/30R-PPB13N00SO646
R900219528 A4VSO250DP/30R-PZB13N00S019
R987269538 A4VSO250DP/30R-PZB13K99
R902475535 A4VSO250DP/30R+A4VSO250DP/30R
R902426794 A4VSO250DP/30R+A4VSO250DP/30R
R902534576 A4VSO250DP/30R+A4VSO250DP/30R
R409011013 A4VSO250DP/30R-PZB13K35+250
R910966890 AEA4VSO250DP/10R-VPB13N00-SO534
R910926739 AEA4VSO250DP/10X-PPB13N00
R910937626 AEA4VSO250DP/22L-PPB13N00
R910969252 AEA4VSO250DP/22R-PPB13N00
R910966944 AEA4VSO250DP/22R-VPB13N00
R910999363 AEA4VSO250DP/30R-KPB13N00-SO171
R910983725 AEA4VSO250DP/30R-PPB13N00
R902417948 AEA4VSO250DP/30R-PPB13N00-S1427
R902409712 AEA4VSO250DP/30R-PPB13N00-SO875
R910985304 AEA4VSO250DP/30R-VPB13N00
R902435814 AEAA4VSO250DP/30R-PKD63N00
R902409037 AEAA4VSO250DP/30R-PKD63N00-SO890
R910965805 AHA4VSO250DP/22L-PPB13N00-SO585
R910963204 AHA4VSO250DP/22L-PZB13N00-SO585
R910963860 AHA4VSO250DP/22R-PPB13N00
R910976921 AHA4VSO250DP/22R-PPB13N00-SO585
R910974168 AHA4VSO250DP/22R-PZB13K35
R910974172 AHA4VSO250DP/22R-PZB13K99
R910976683 AHA4VSO250DP/22R-PZB13N00-SO585
R902424286 AHA4VSO250DP/30L-PPB13N00-SO585
R910995213 AHA4VSO250DP/30L-PPB13N00-SO890
R902448119 AHA4VSO250DP/30L-PPB25N00-SO585
R910976972 AHA4VSO250DP/30L-PZB13N00-SO585
R902448149 AHA4VSO250DP/30L-PZB25N00-SO585
R910993105 AHA4VSO250DP/30R-PPB13K35
R902408553 AHA4VSO250DP/30R-PPB13N00
R910991747 AHA4VSO250DP/30R-PPB13N00-SO171
R910984838 AHA4VSO250DP/30R-PPB13N00-SO585
R902461849 AHA4VSO250DP/30R-PPB13N00-SO680
R910995190 AHA4VSO250DP/30R-PPB13N00-SO890
R902548511 AHA4VSO250DP/30R-PPB13N00CSO585
R902501078 AHA4VSO250DP/30R-PPB13N00E
R902538261 AHA4VSO250DP/30R-PPB13N00-S1356
R902491567 AHA4VSO250DP/30R-PPB25N00
R902472625 AHA4VSO250DP/30R-PPB25N00
R902545041 AHA4VSO250DP/30R-PPB25N00-S1742
R902436668 AHA4VSO250DP/30R-PPB25N00-S1743
R902512200 AHA4VSO250DP/30R-PPB25N00-S2022
R902512380 AHA4VSO250DP/30R-PPB25N00-S2025
R902468007 AHA4VSO250DP/30R-PPB25N00-SO680
R902431587 AHA4VSO250DP/30R-PPB25N00CS1742
R902543492 AHA4VSO250DP/30R-PPB25N00CS2025
R902510269 AHA4VSO250DP/30R-PPB25U34-S1942
R902403190 AHA4VSO250DP/30R-PZB13K35
R910993104 AHA4VSO250DP/30R-PZB13N00
R902486812 AHA4VSO250DP/30R-PZB25N00
R902454736 AHA4VSO250DP/30R-PZB25N00-SO680
R902567533 AHA4VSO250DP/30R-PZB25N00C
R902448116 AHA4VSO250DP/30R-PZB25N00-SO585
R902511198 AHA4VSO250DP/30R-PZB25U34
R902567560 AHA4VSO250DP/30R-PZB25U34C
R902486811 AHA4VSO250DP/30R-PZB25U35
R902567554 AHA4VSO250DP/30R-PZB25U35C
R902456831 AHA4VSO250DP/30R-VPB13N00
R902511022 AHA4VSO250DP/30R-VPB25N00
R902494334 AHA4VSO250DP/30R-VZB13N00-S1942
R902555205 AHA4VSO250DP/30R-VZB25U35
R902494333 AHA4VSO250DP/30R-VZB25U35-S1942
R902473275 AHA4VSO250DP/30R-VZB25U99
R902467234 AHA4VSO250DP/30R-VZB25U99E
R902566890 AHA4VSO250DP/33R-VZB25N00
R910963843 AHA4VSO250DPF/22R-PZB13N00
R910992675 AHA4VSO250DPF/30R-PPB13K35
R910992812 AHA4VSO250DPF/30R-PZB13N00
R902409036 AHAA4VSO250DP/30R-PKD63N00
R902406290 AHAA4VSO250DP/30R-PKD63N00E
R902562207 AHAA4VSO250DP/30R-VKD75U99E
R910968530 ALA4VSO250DP/22L-PPB13N00
R902554310 ALA4VSO250DP/30R-APB25N00
R902464717 ALA4VSO250DP/30R-PPB13K07-SO318
R910998904 ALA4VSO250DP/30R-PZB13K35
R902555899 ALA4VSO250DP/30R-PZB25U35
R902542221 ALA4VSO250DP/30R-VPB25U07-SO318
R902543201 ALA4VSO250DPF/30R-AZB25N00
R902424127 APA4VSO250DP/30R-PPB13N00
R902538262 APA4VSO250DP/30R-PPB13N00-S2184
R902490286 APA4VSO250DP/30R-PPB25N00
R902403191 APA4VSO250DP/30R-PZB13K35
R902555206 APA4VSO250DP/30R-VZB25U35
R902567186 APA4VSO250DP/33R-VZB25N00
R902566889 APA4VSO250DP/33R-VZB25N00C
