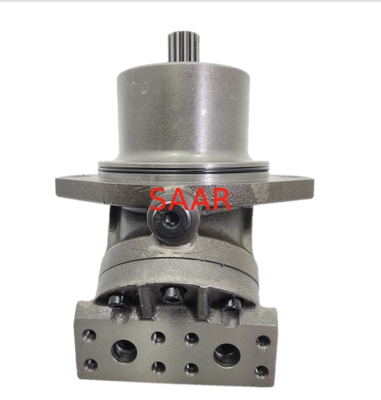

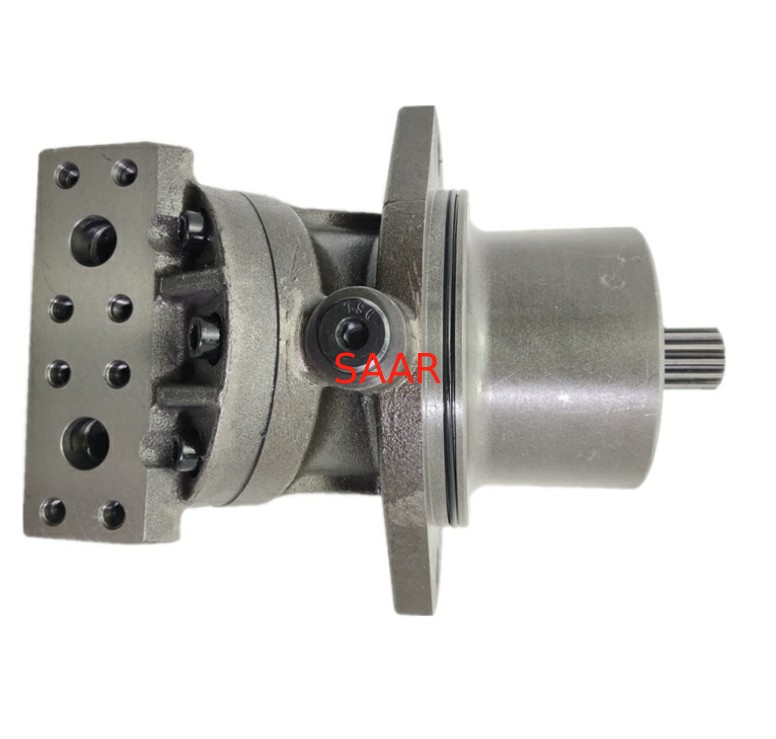

R986004611 AA2FE107/61W-VUX080-S REMAN Rexroth Fixed Plug In Motor

Rexroth Fixed Plug-In Motor Type A2FE

Hydraulic fixed motor A2FE28, A2FE32, A2FE45, A2FE56, A2FE63, A2FE80, A2FE90, A2FE107, A2FE125, A2FE160, A2FE180,A2FE250, A2FE355

Open and closed circuits
Series 61 and 60
Pressure:
Size 28 to180 Nominal pressure 5800 psi (400 bar)/ Peak pressure 6500 psi (450 bar)
Size 250 to 355 Nominal pressure 5100 psi (350 bar)/ Peak pressure 5800 psi (400 bar)

Features:
The A2FE fixed plug-in motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits
– Far-reaching integration in mechanical gearbox due to recessed mounting flange loSAARed in the center of the case (extremely space-saving construction)
– The output speed is dependent on the flow of the pump and the displacement of the motor.
– The output torque increases with the pressure differential between the high-pressure and the low-pressure side.
– Small dimensions.
– High total efficiency.
– Complete unit, ready-assembled and tested.
– Easy to install, simply plug into the mechanical gearbox.
– No configuration specifiSAARions to be observed when installing.

Technical Data

Table of values (theoretical values, without efficiency and tolerances; values rounded)
