| Place of Origin: | Germany |
| Brand Name: | Rexroth |

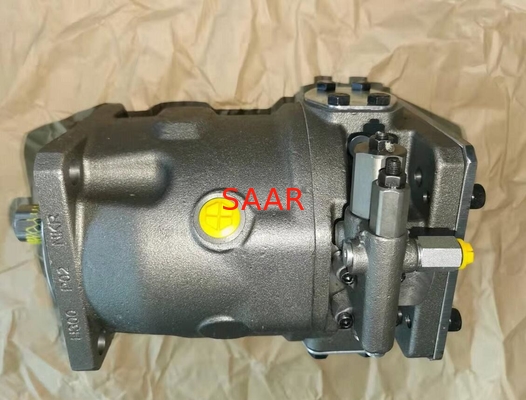

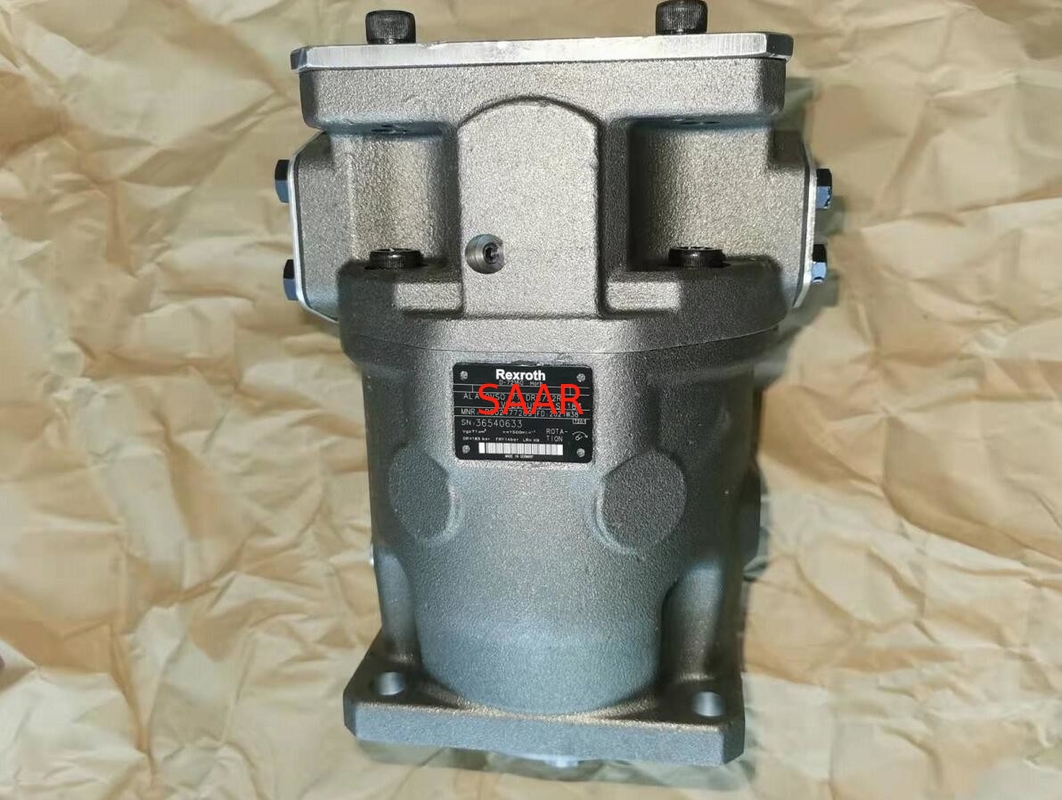

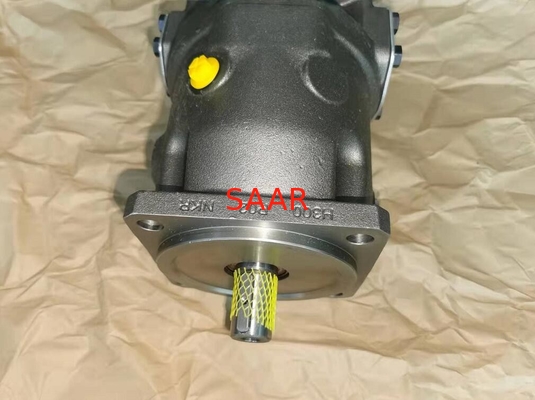

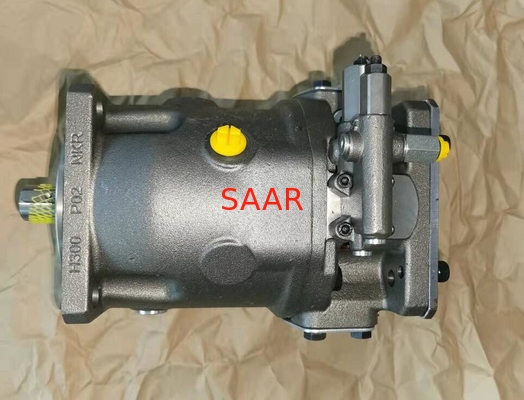

| Model Number: | ALA10VSO71DRS/32R-VPB22U99-S2183 R902477269 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton, Wooden box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10PCS in 7-10days |
| MNR: | R902477269 | Model No.: | ALA10VSO71DRS/32R-VPB22U99-S2183 |
|---|---|---|---|
| High Light: | ALA10VSO71DRS Rexroth Hydraulic Gear Pump,High Power Axial Piston Hydraulic Motor,Swashplate Variable Piston Pump |
||
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Axial Piston Variable Pump A10VSO Series 32
Optimized medium pressure pump for high power machines
Size 45 … 180
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit
Features
Through drive for mounting of further pumps up to same nominal size
Approved for high speeds
Increased functional reliability
Hydrostatically relieved swashplate bearing
Large variety of controls
Low operating noise
Swashplate design
| A10VSO Size | 45 | 71 | 100 | 140 | 180 | |||
| Displacement geometric, per revolution |
Vg max | cm³ | 45 | 71 | 100 | 140 | 180 | |
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed | at Vg max | nnom | rpm | 1800 | 1800 | 1800 | 1800 | 1800 |
| Flow | at Vg max and nnom | qV nom | l/min | 81 | 128 | 180 | 252 | 324 |
| at Vg max and n = 1500 rpm | qV 1500 | l/min | 67.5 | 106.7 | 150 | 210 | 270 | |
| Power | at qV nom and pnom | P | kW | 38 | 59.7 | 84 | 118 | 151 |
| at qV 1500 and pnom | P 1500 | kW | 67.5 | 106.7 | 150 | 210 | 270 | |
| Torque | at Vg max and pnom | M | Nm | 200 | 317 | 446 | 624 | 802 |
| Weight (approx.) | m | kg | 30 | 47 | 69 | 73 | 78 | |
Rexroth Axial Piston Variable Pump A10VSO71DRS Series 32 Model List:
| R902472438 | AA10VSO71DRS/32R-VSB22U99-SO32 |
| R902488548 | AA10VSO71DRS/32R-VPB22U99ES2183 |
| R902481943 | AA10VSO71DRS/32L-VSB22U15-SO157 |
| R902464810 | AA10VSO71DRS/32R-CPB12N00 |
| R902511339 | AA10VSO71DRS/32R-VKD72U00EE |
| R902464522 | AA10VSO71DRS/32R-VKD72U99 |
| R902465283 | AA10VSO71DRS/32R-VKD72U99E |
| R902544740 | AA10VSO71DRS/32R-VPB12N00 |
| R902448221 | AA10VSO71DRS/32R-VPB12N00 |
| R902448900 | AA10VSO71DRS/32R-VPB12N00-S1439 |
| R902448899 | AA10VSO71DRS/32R-VPB12N00-S1648 |
| R902460522 | AA10VSO71DRS/32R-VPB12N00-S2183 |
| R902490821 | AA10VSO71DRS/32R-VPB22G40 |
| R902520809 | AA10VSO71DRS/32R-VPB22U00E-S2183 |
| R902569100 | AA10VSO71DRS/32R-VPB22U00E-S2184 |
| R902520810 | AA10VSO71DRS/32R-VPB22U00E-S2184 |
| R902537537 | AA10VSO71DRS/32R-VPB22U00E-SO52 |
| R902547996 | AA10VSO71DRS/32R-VPB22U00ECS2184 |
| R902570769 | AA10VSO71DRS/32R-VPB22U01E |
| R902489528 | AA10VSO71DRS/32R-VPB22U52-S2888 |
| R902551181 | AA10VSO71DRS/32R-VPB22U52ECS2513 |
| R902452789 | AA10VSO71DRS/32R-VPB22U99 |
| R902452029 | AA10VSO71DRS/32R-VPB22U99-S1439 |
| R902452429 | AA10VSO71DRS/32R-VPB22U99-S2183 |
| R902544743 | AA10VSO71DRS/32R-VPB22U99-S2184 |
| R902452431 | AA10VSO71DRS/32R-VPB22U99-S2184 |
| R902521472 | AA10VSO71DRS/32R-VPB22U99-S2184 |
| R902489815 | AA10VSO71DRS/32R-VPB22U99ESO413 |
| R902448180 | AA10VSO71DRS/32R-VPB22U99*UNGUEL*** |
| R902465510 | AA10VSO71DRS/32R-VPB22UB2 |
| R902466682 | AA10VSO71DRS/32R-VPB22UB2-S2183 |
| R902464524 | AA10VSO71DRS/32R-VPB22UB2-SO32 |
| R902501803 | AA10VSO71DRS/32R-VPB22UB2-SO52 |
| R902501844 | AA10VSO71DRS/32R-VPB22UB8 |
| R902532332 | AA10VSO71DRS/32R-VPB32L40E-SO52 |
| R902537562 | AA10VSO71DRS/32R-VPB32U00E-S2709 |
| R902540890 | AA10VSO71DRS/32R-VPB32U00E-SO52 |
| R902555423 | AA10VSO71DRS/32R-VPB32U99 |
| R902448836 | AA10VSO71DRS/32R-VPB32U99-S2026 |
| R902494805 | AA10VSO71DRS/32R-VPB32U99-S2709 |
| R902448179 | AA10VSO71DRS/32R-VPB32U99-SO52 |
| R902473246 | AA10VSO71DRS/32R-VPB32UB2-S2026 |
| R902570799 | AA10VSO71DRS/32R-VPB32UB2E-S2026 |
| R902538516 | AA10VSO71DRS/32R-VPB32UB2E-S2026 |
| R902570744 | AA10VSO71DRS/32R-VRB22U01E |
| R902486410 | AA10VSO71DRS/32R-VRB32U01-SO52 |
| R902486409 | AA10VSO71DRS/32R-VRB32U68-SO52 |
| R902450319 | AA10VSO71DRS/32R-VSB12N00-S1439 |
| R902512367 | AA10VSO71DRS/32R-VSB22U00E |
| R902575708 | AA10VSO71DRS/32R-VSB22U00E-SO52 |
| R902510280 | AA10VSO71DRS/32R-VSB22U00E-SO52 |
| R902501798 | AA10VSO71DRS/32R-VSB22U99 |
| R902512433 | AA10VSO71DRS/32R-VSB22UB3E-SO52 |
| R902513631 | AA10VSO71DRS/32R-VSB32U00E |
| R902532478 | AA10VSO71DRS/32R-VSB32U00E*GO2EU* |
| R902566713 | AA10VSO71DRS/32R-VSB32U00E*QDP1* |
| R902477584 | AA10VSO71DRS/32R-VSB32U99 |
| R902488292 | AA10VSO71DRS/32R-VSD62N00ES2709 |
| R902514122 | AA10VSO71DRS/32R-VSD72U00E |
| R902478168 | AA10VSO71DRS/32R-VSD72U99 |
| R902501796 | A10VSO100DRS/32R+A10VSO71DRS/32R |
| R902501820 | A10VSO140DRS/32R+A10VSO71DRS/32R |
| R902449007 | A10VSO71DRS/32R-VPB12N00S1439BR-BEIJ-1 |
| R902449026 | A10VSO71DRS/32R-VPB12N00S1439BR-BEIJ-3 |
| R902449006 | A10VSO71DRS/32R-VPB12N00S1648BR-BEIJ-1 |
| R902449025 | A10VSO71DRS/32R-VPB12N00S1648BR-BEIJ-3 |
| R902449039 | A10VSO71DRS/32R-VPB22U99S2183BR-BEIJ-1 |
| R902449052 | A10VSO71DRS/32R-VPB22U99S2183BR-BEIJ-3 |
| R902470528 | A10VSO71DRS/32R-VPB22U99S2183BR-BEIJ-4 |
| R902449040 | A10VSO71DRS/32R-VPB22U99S2184BR-BEIJ-1 |
| R902449053 | A10VSO71DRS/32R-VPB22U99S2184BR-BEIJ-3 |
| R902470530 | A10VSO71DRS/32R-VPB22U99S2184BR-BEIJ-4 |
| R902463949 | A10VSO71DRS/32R-VSB12N00S1439BR-BEIJ-3 |
| R902501807 | A10VSO71DRS/32R+A10VSO18DFR1/31R |
| R902501835 | A10VSO71DRS/32R+A10VSO18DFR1/31R |
| R902501842 | A10VSO71DRS/32R+A10VSO71DRS/32R |
| R902449010 | A10VSO71DRS/32R-VPB12N00BR-BEIJ-1 |
| R902449030 | A10VSO71DRS/32R-VPB12N00BR-BEIJ-3 |
| R902449042 | A10VSO71DRS/32R-VPB22U99BR-BEIJ-1 |
| R902449050 | A10VSO71DRS/32R-VPB22U99BR-BEIJ-3 |
| R902472567 | A10VSO71DRS/32R-VSB22U99SO32BR-BEIJ-1 |
| R902564316 | ALA10VSO71DRS/32L-VPB32U00E-S1550 |
| R902481940 | ALA10VSO71DRS/32L-VSB22U15-SO157 |
| R902520693 | ALA10VSO71DRS/32R-CPB22U00-S2184 |
| R902477570 | ALA10VSO71DRS/32R-VPB12N00-S1439 |
| R902563195 | ALA10VSO71DRS/32R-VPB22U00E-S2183 |
| R902520811 | ALA10VSO71DRS/32R-VPB22U00E-S2184 |
| R902477571 | ALA10VSO71DRS/32R-VPB22U99 |
| R902477269 | ALA10VSO71DRS/32R-VPB22U99-S2183 |
| R902477274 | ALA10VSO71DRS/32R-VPB22U99-S2184 |
| R902564314 | ALA10VSO71DRS/32R-VPB32U00E-S1550 |
