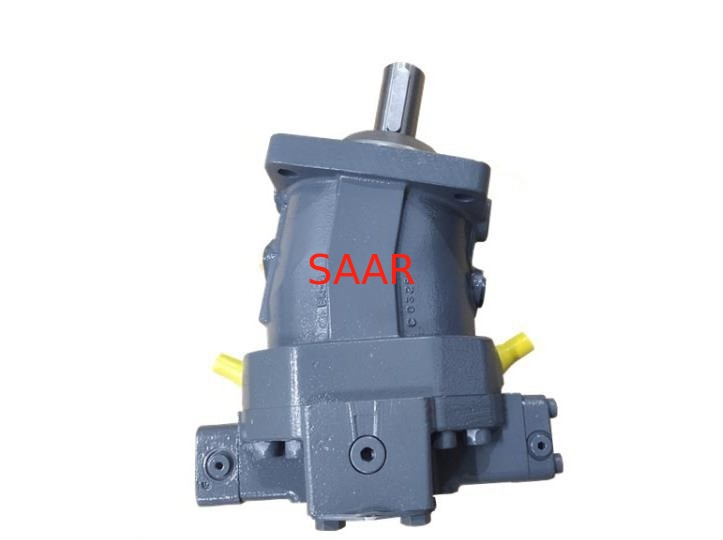

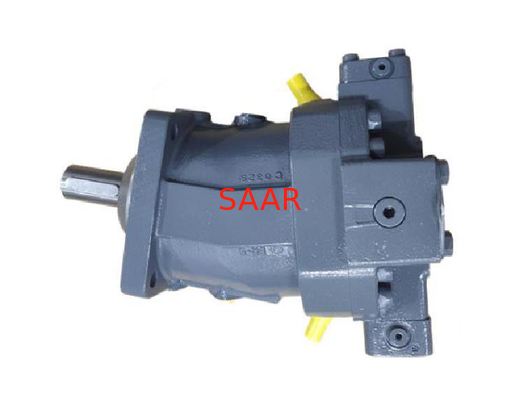

Rexroth R909610709 A6VM55DA2/63W-VAB020B A6VM55 Series Axial Piston Variable Motor

Rexroth R909610709 A6VM55DA2/63W-VAB020B A6VM55 Series Axial Piston Variable Motor

  • Rexroth R909610709 A6VM55DA2/63W-VAB020B A6VM55 Series Axial Piston Variable Motor
  • Rexroth R909610709 A6VM55DA2/63W-VAB020B A6VM55 Series Axial Piston Variable Motor
Rexroth R909610709 A6VM55DA2/63W-VAB020B A6VM55 Series Axial Piston Variable Motor
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R909610709 A6VM55DA2/63W-VAB020B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Carton, Wooden box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 10PCS in 7-10days
Contact Now
Detailed Product Description
MNR: R909610709 MODEL: A6VM55DA2/63W-VAB020B
High Light:

Axial Rexroth Piston Pumps

,

Variable Rexroth Hydraulic Piston Pump

,

Hydraulic Rexroth Variable Pump

Axial piston variable motor A6VM series 6X

All-purpose high pressure motor
Series 65: size 55 … 200
series 63: size 28, 250 … 1000
Nominal pressure up to 400 bar
Maximum pressure up to 450 bar
Open and closed circuits
Metric version

Features
Robust motor with long service life
Approved for very high speeds
Wide control range (can be swiveled to zero)
High torque
Large variety of controls
Optional with attached flushing and boost-pressure valve
Optional with integrated or attached counterbalance valve
Bent-axis design

Table of values
Size
28
55
80
107
140
160
200
250
355
500
1000
Series
63
65
65
65
65
65
65
63
63
63
63
Displacement

Vg max
cm³
28.1
54.8
80
107
140
1260
200
250
355
500
1000
Vg x
cm³
18
35
51
68
88
61
76
205
300
417
1000
Vg min
cm³
0
0
0
0
0
0
0
0
0
0
0
Nominal pressure

pnom
bar
400
400
400
400
400
400
400
350
350
350
350
Maximum pressure

pmax
bar
450
450
450
450
450
450
450
400
400
400
400
Maximum speed
at Vg max 1)
nnom
rpm
5550
4450
3900
3550
3250
3100
2900
2700
2240
2000
1600
at Vg < Vg x
nmax
rpm
8750
7000
6150
5600
5150
4900
4600
3300
2650
2400
1600
at Vg min
nmax 0
rpm
10450
8350
7350
6300
5750
5500
5100
3300
2650
2400
1600
Inlet flow 2)
at Vg max and nnom
qV nom
l/min
156
244
312
380
455
496
580
675
795
1000
1600
Torque
at Vg max and pnom
M
Nm
179
349
509
681
891
1019
1273
1391
1978
2785
5571
Weight (approx.)

m
kg
16
28
36
46
61
62
78
100
170
210
430


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Axial piston variable motor A6VM55 series 6X on Sale, Short lead time, Best price!!!



R909438586
A6VM55DA/60W-PAB010B
R909438994
A6VM55DA/60W-PAB010B
R909421854
A6VM55DA/60W-PAB020B
R909447294
A6VM55DA/60W-PAB026B
R909420852
A6VM55DA/60W-PZB020B
R909429594
A6VM55DA/60W-PZB026B
R909421031
A6VM55DA/60W-PZB027B
R902218821
A6VM55DA1/63W-VAB01700B
R902194072
A6VM55DA1/63W-VAB017B
R902218895
A6VM55DA1/63W-VAB02000B
R909610708
A6VM55DA1/63W-VAB020B
R902211639
A6VM55DA1/63W-VAB02700B
R902237373
A6VM55DA1/63W-VAB02700B
R902011813
A6VM55DA1/63W-VAB027B
R902218917
A6VM55DA1/63W-VAB02X00B-S
R902218937
A6VM55DA1/63W-VAB02X00B-S
R902016507
A6VM55DA1/63W-VAB02XB-S
R902075162
A6VM55DA1/63W-VSB020B-S
R909604130
A6VM55DA1/63W-VZB010B
R909604294
A6VM55DA1/63W-VZB017B
R902207979
A6VM55DA1/63W-VZB02000B
R902218935
A6VM55DA1/63W-VZB02000B
R909604017
A6VM55DA1/63W-VZB020B
R902207982
A6VM55DA1/63W-VZB02700B
R902227614
A6VM55DA1/63W-VZB02700B
R902237372
A6VM55DA1/63W-VZB02700B
R909605492
A6VM55DA1/63W-VZB027B
R902223171
A6VM55DA1X/63W-VAB02700B-S
R902065573
A6VM55DA1X/63W-VSB010B-S
R902218855
A6VM55DA1X/63W-VZB02700B-S
R902218903
A6VM55DA1X/63W-VZB02700B-S
R902277294
A6VM55DA1X/63W-VZB02700B-S
R902016713
A6VM55DA1X/63W-VZB027B-S
R902119697
A6VM55DA2/63W-VAB017DHB
R902119696
A6VM55DA2/63W-VAB017DHB-K
R909610709
A6VM55DA2/63W-VAB020B
R902054300
A6VM55DA2/63W-VAB020HB
R909605069
A6VM55DA2/63W-VAB027B
R902054303
A6VM55DA2/63W-VAB027HB
R902078932
A6VM55DA2/63W-VSB020CB-S
R902075310
A6VM55DA2/63W-VSB020HB-S
R909604131
A6VM55DA2/63W-VZB010B
R902054290
A6VM55DA2/63W-VZB010HB
R902218822
A6VM55DA2/63W-VZB0170HB
R909604295
A6VM55DA2/63W-VZB017B
R902054293
A6VM55DA2/63W-VZB017HB
R992000097
A6VM55DA2/63W-VZB017HB
R902218851
A6VM55DA2/63W-VZB0200HB
R909604018
A6VM55DA2/63W-VZB020B
R902054287
A6VM55DA2/63W-VZB020HB
R909605617
A6VM55DA2/63W-VZB027B
R902054295
A6VM55DA2/63W-VZB027HB
R902218976
A6VM55DA2X/63W-VAB0100HB-S
R902200196
A6VM55DA2X/63W-VAB010HB-S
R902218849
A6VM55DA2X/63W-VZB0100HB-S
R902218850
A6VM55DA2X/63W-VZB0100HB-S
R902218981
A6VM55DA2X/63W-VZB0100HB-S
R902006689
A6VM55DA2X/63W-VZB010B-S
R902054280
A6VM55DA2X/63W-VZB010HB-S
R992000096
A6VM55DA2X/63W-VZB010HB-S
R902239882
A6VM55DA2X/63W-VZB0170HB-S
R902052323
A6VM55DA2X/63W-VZB017B-S
R902054283
A6VM55DA2X/63W-VZB017HB-S
R902119774
A6VM55DA4/63W-VZB020B
R902237380
A6VM55DA4/63W-VZB02700B
R902107866
A6VM55DA4/63W-VZB027B
R909605165
A6VM55DA5/63W-VZB010B
R902054437
A6VM55DA5/63W-VZB010HB
R909610084
A6VM55DA5/63W-VZB017B
R902054439
A6VM55DA5/63W-VZB017HB
R902028631
A6VM55DA5/63W-VZB020B
R902054435
A6VM55DA5/63W-VZB020HB
R909605155
A6VM55DA7/60W-PZB020B
R902004186
A6VM55DA7/63W-VZB010B-S
R909610935
A6VM55DA7/63W-VZB027B
R902209043
A6VM55DAX/63W-VAB0100PB-S
R902217683
A6VM55DAX/63W-VAB02700B-S
R902218946
A6VM55DAX/63W-VAB02700B-S
R902021858
A6VM55DAX/63W-VAB027B-S
R902162265
A6VM55DAX/63W-VAB027B-S
R902084372
A6VM55DAX/63W-VSB020HB-S
R902218813
A6VM55DAX/63W-VZB01700B-S
R902042275
A6VM55DAX/63W-VZB017B-S
R992000060
A6VM55DAX/63W-VZB017B-S
R902218730
A6VM55DAX/63W-VZB02700B-S
R902231094
A6VM55DAX/63W-VZB02700B-S
R902033403
A6VM55DAX/63W-VZB027B-S
R902036889
A6VM55DAX/63W-VZB027B-S
R992000058
A6VM55DAX/63W-VZB027B-S
