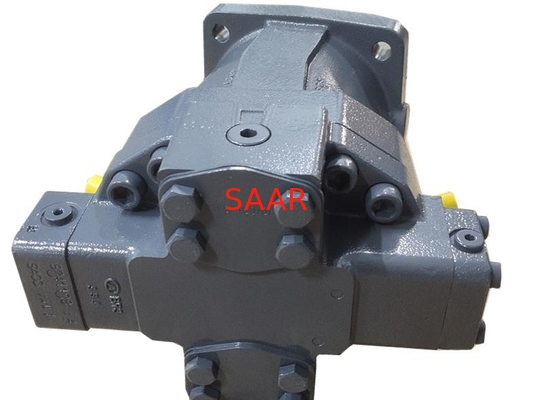

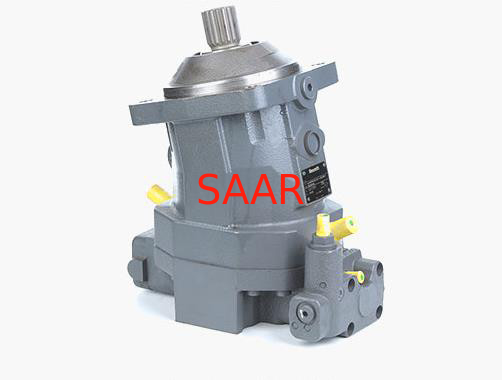

R902030848 A6VM80EP2D/63W-VPB020B Axial Piston Variable Motor A6VM Series

R902030848 A6VM80EP2D/63W-VPB020B Axial Piston Variable Motor A6VM Series

  • R902030848 A6VM80EP2D/63W-VPB020B Axial Piston Variable Motor A6VM Series
  • R902030848 A6VM80EP2D/63W-VPB020B Axial Piston Variable Motor A6VM Series
R902030848 A6VM80EP2D/63W-VPB020B Axial Piston Variable Motor A6VM Series
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R902030848 A6VM80EP2D/63W-VPB020B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Carton, Wooden box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 10PCS in 7-10days
Contact Now
Detailed Product Description
MNR: R902030848 Model NO.: A6VM80EP2D/63W-VPB020B
High Light:

VPB020B Hydraulic Rexroth Radial Piston Pump

,

Variable Rexroth Radial Piston Pump

,

A6VM Series Rexroth Piston Pumps

Axial piston variable motor A6VM series 6W

All-purpose high pressure motor
Series 65: size 55 … 200
series 63: size 28, 250 … 1000
Nominal pressure up to 400 bar
Maximum pressure up to 450 bar
Open and closed circuits
Metric version

Features
Robust motor with long service life
Approved for very high speeds
Wide control range (can be swiveled to zero)
High torque
Large variety of controls
Optional with attached flushing and boost-pressure valve
Optional with integrated or attached counterbalance valve
Bent-axis design

Table of values
Size
28
55
80
107
140
160
200
250
355
500
1000
Series
63
65
65
65
65
65
65
63
63
63
63
Displacement

Vg max
cm³
28.1
54.8
80
107
140
1260
200
250
355
500
1000
Vg x
cm³
18
35
51
68
88
61
76
205
300
417
1000
Vg min
cm³
0
0
0
0
0
0
0
0
0
0
0
Nominal pressure

pnom
bar
400
400
400
400
400
400
400
350
350
350
350
Maximum pressure

pmax
bar
450
450
450
450
450
450
450
400
400
400
400
Maximum speed
at Vg max 1)
nnom
rpm
5550
4450
3900
3550
3250
3100
2900
2700
2240
2000
1600
at Vg < Vg x
nmax
rpm
8750
7000
6150
5600
5150
4900
4600
3300
2650
2400
1600
at Vg min
nmax 0
rpm
10450
8350
7350
6300
5750
5500
5100
3300
2650
2400
1600
Inlet flow 2)
at Vg max and nnom
qV nom
l/min
156
244
312
380
455
496
580
675
795
1000
1600
Torque
at Vg max and pnom
M
Nm
179
349
509
681
891
1019
1273
1391
1978
2785
5571
Weight (approx.)

m
kg
16
28
36
46
61
62
78
100
170
210
430


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Axial piston variable motor A6VM80 series 6W on Sale, Short lead time, Best price!!!

R902027477 A6VM80EP1/63W-VAB010DA
R902011721 A6VM80EP1/63W-VAB010DA-K
R902027476 A6VM80EP1/63W-VAB010DA-K
R902030691 A6VM80EP1/63W-VAB010DA-K
R902054731 A6VM80EP1/63W-VAB010DHA
R902054734 A6VM80EP1/63W-VAB010DHB
R902043855 A6VM80EP1/63W-VAB017DA
R902043854 A6VM80EP1/63W-VAB017DA-K
R902054738 A6VM80EP1/63W-VAB017DHA
R902027085 A6VM80EP1/63W-VAB020DB
R902027083 A6VM80EP1/63W-VAB020DB-K
R902054728 A6VM80EP1/63W-VAB020DHB
R902054777 A6VM80EP1/63W-VAB020HB
R902063816 A6VM80EP1/63W-VAB027DHA
R902063814 A6VM80EP1/63W-VAB027DHA-K
R902054789 A6VM80EP1/63W-VAB027HB
R902042289 A6VM80EP1/63W-VXB027FXB-S
R902033336 A6VM80EP1/63W-VZB010A
R902018279 A6VM80EP1/63W-VZB010DA
R902018085 A6VM80EP1/63W-VZB010DA-K
R902054720 A6VM80EP1/63W-VZB010DHB
R902054760 A6VM80EP1/63W-VZB010HA
R902049246 A6VM80EP1/63W-VZB020DB
R902054716 A6VM80EP1/63W-VZB020DHB
R902063721 A6VM80EP1/63W-VZB020FHB
R902063782 A6VM80EP1/63W-VZB020HA
R902054749 A6VM80EP1/63W-VZB020HB
R902050644 A6VM80EP1/63W-VZB027DA
R902050785 A6VM80EP1/63W-VZB027DA-K
R902042435 A6VM80EP1/63W-VZB027DB
R902042433 A6VM80EP1/63W-VZB027DB-K
R902054723 A6VM80EP1/63W-VZB027DHA
R902054726 A6VM80EP1/63W-VZB027DHB
R902063663 A6VM80EP1/63W-VZB027FTB-S
R902065778 A6VM80EP1/63W-VZB027HB
R902035144 A6VM80EP1D/63W-VZB017B
R902054133 A6VM80EP1D/63W-VZB020B
R902006505 A6VM80EP2/63W-VAB010B
R902000110 A6VM80EP2/63W-VAB010DB
R902057194 A6VM80EP2/63W-VAB010DB-K
R902054736 A6VM80EP2/63W-VAB010DHB
R902054786 A6VM80EP2/63W-VAB010HB
R902038814 A6VM80EP2/63W-VAB017DB
R902054741 A6VM80EP2/63W-VAB017DHB
R902028649 A6VM80EP2/63W-VAB020A
R902057196 A6VM80EP2/63W-VAB020DB
R902057195 A6VM80EP2/63W-VAB020DB-K
R902054782 A6VM80EP2/63W-VAB020HA
R902054784 A6VM80EP2/63W-VAB020HB
R902028652 A6VM80EP2/63W-VAB027DA
R902028650 A6VM80EP2/63W-VAB027DA-K
R902054743 A6VM80EP2/63W-VAB027DHA
R902054792 A6VM80EP2/63W-VAB027HB
R902031980 A6VM80EP2/63W-VPB020B
R902054774 A6VM80EP2/63W-VPB020HB
R902028824 A6VM80EP2/63W-VZB010A
R902011970 A6VM80EP2/63W-VZB010B-S
R902038953 A6VM80EP2/63W-VZB010B-S
R902054763 A6VM80EP2/63W-VZB010HA
R902060182 A6VM80EP2/63W-VZB010HB
R902054710 A6VM80EP2/63W-VZB010HB-S
R902057234 A6VM80EP2/63W-VZB010TA
R902027274 A6VM80EP2/63W-VZB017A
R902054765 A6VM80EP2/63W-VZB017HA
R902035312 A6VM80EP2/63W-VZB01XA-S
R902054713 A6VM80EP2/63W-VZB01XHA-S
R902038957 A6VM80EP2/63W-VZB01XTA-S
R902054753 A6VM80EP2/63W-VZB020HB
R902043843 A6VM80EP2/63W-VZB027A
R902054771 A6VM80EP2/63W-VZB027HA
R902036810 A6VM80EP2D/63W-VAB010B
R902021955 A6VM80EP2D/63W-VAB020DB
R902030848 A6VM80EP2D/63W-VPB020B
R902028504 A6VM80EP2E/63W-VAB020B
R902031725 A6VM80EP2E/63W-VAB020B-S
R902018054 A6VM80EP2E/63W-VZB020B
R902054746 A6VM80EP6/63W-VAB027DHA-S
R902009821 A6VM80EP7/63W-VAB02XDA-S
R902036924 A6VM80EP7/63W-VAB02XDA-S
R902034291 A6VM80EP7/63W-VZB020B
R902054755 A6VM80EP7/63W-VZB020HB
R902052440 A6VM80EZ1/63W-VAB020HB
R902060031 A6VM80EZ1/63W-VAB027B
R902006975 A6VM80EZ1/63W-VZB020B
R902052437 A6VM80EZ1/63W-VZB020HB
R902031569 A6VM80EZ1/63W-VZB027B
R902063509 A6VM80EZ2/63W-VZB020HB
R902033285 A6VM80EZ3/63W-VAB017B
R902031853 A6VM80EZ3/63W-VAB027A
R902006829 A6VM80EZ3/63W-VAB027HB
R902049086 A6VM80EZ3/63W-VZB017B
R902038560 A6VM80EZ3/63W-VZB020A
R902043513 A6VM80EZ4/63W-VAB017B
R902024964 A6VM80EZ4/63W-VAB020DB
R902060068 A6VM80EZ4/63W-VAB027DB
R902060078 A6VM80EZ4/63W-VAB027DB-K
R902047209 A6VM80EZ4/63W-VAB027HB
R902035299 A6VM80EZ4/63W-VPB020B
R902054804 A6VM80EZ4/63W-VZB010B
R902011757 A6VM80EZ4/63W-VZB027B
R902214659 A6VM80EP2/63W-VAB0200PB
R987034582 A6VM80EP2/63W-VAB020WB-S
R902214677 A6VM80EP2/63W-VAB0270HB-Y
R902077487 A6VM80EP2/63W-VAB027FPB
R902077485 A6VM80EP2/63W-VAB027FPB-K
R902214660 A6VM80EP2/63W-VXB0100TA-S
R902070606 A6VM80EP2/63W-VXB010HA-S
R902214662 A6VM80EP2/63W-VZB027HPB-S
R902214658 A6VM80EP2/63W-VZB027HPB-S
R902121638 A6VM80EP6/63W-VZB017PB
R902101416 A6VM80EPX/63W-VAB017FXB-S
R902070517 A6VM80EZ2/63W-VAB020WB
R902214676 A6VM80EZ4/63W-VAB0270HB-Y
R902214680 AA6VM80EP1/63W-VSC017HPA-S
R902214524 AA6VM80EP1/63W-VSC5100HB-S
R902049479 AA6VM80EP1/63W-VSC527B-S
R902130518 AA6VM80EP1/63W-VSC527HB-E
R902070542 AA6VM80EZ3/63W-VSC520DB-S
R902067798 AA6VM80EZ3/63W-VSC520DB-SK
R902101433 AA6VM80EZ4/63W-VSC520TB-ES
