| RM 1902, EASEY BLDG., 253-261 HENNESSY ROAD, WANCHAI, HONGKONG | jason@hydraulicpumpvalve.com |
 |
| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R910938362 AA4VSO125HD1/22R-PZB13N00 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On Request |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/Month |
| MNR: | R910938362 | Model No.: | AA4VSO125HD1/22R-PZB13N00 |
|---|---|---|---|
| High Light: | Hydraulic Axial Piston Pump A4VSO,Hydraulic Rexroth Piston Pumps,Control Rexroth Piston Pumps |
||

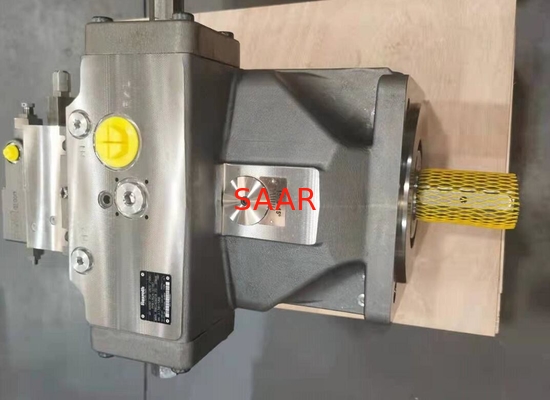

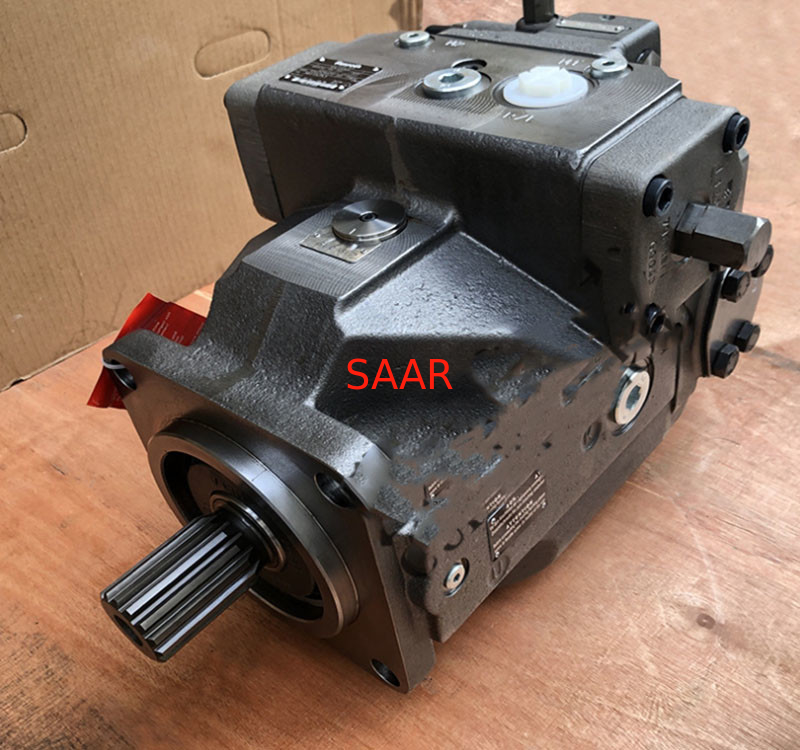

Rexroth A4VSO Series Axial Piston Variable Pump
Hydraulic axial piston pump A4VSO71, A4VSO125, A4VSO180, A4VSO250
Robust high pressure pump for industrial appliSAARions
Size 40 … 1000
Nominal pressure 350 bar
Maximum pressure 400 bar
Open circuit
Metric version
Features
Robust pump with very long service life
Low operating noise
Short control response times
Excellent suction characteristics
Through drive for mounting of further pumps up to same nominal size
Swashplate design
Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)
| Nominal size | A4VSO71 | A4VSO125 | A4VSO180 | A4VSO250 | |||
| Nominal pressure | p N | bar | 350 | 350 | 350 | 350 | |
| Maximum pressure | pmax | bar | 450 | 450 | 450 | 450 | |
| Displacement | Vg max | cm³ | 71 | 125 | 180 | 250 | |
| Speed | Max. speed | n max | rpm | 2200 | 1800 | 1800 | 1500 |
| Flow | at n max | q V max | l/min | 156 | 225 | 324 | 375 |
| Power | Δ p = 350 bar | P max | kW | 91 | 131 | 189 | 219 |
| Torque | Δ p = 350 bar | Tmax | Nm | 395 | 696 | 1002 | 1391 |
| Weight (approx.) | m | kg | 53 | 88 | 102 | 184 | |
| R910935758 | AA4VSO125HD1/11L-PPB13K27 |
| R910935756 | AA4VSO125HD1/11L-PPB13N00 |
| R910931570 | AA4VSO125HD1/11L-PZB25K33-SO374 |
| R910937222 | AA4VSO125HD1/11R-PPB13K01 |
| R910933921 | AA4VSO125HD1/11R-PPB13K25 |
| R910926861 | AA4VSO125HD1/11R-PPB13K25-SO166 |
| R910940344 | AA4VSO125HD1/11R-PPB13K31-SO61 |
| R910922786 | AA4VSO125HD1/11R-PPB13N00 |
| R910922034 | AA4VSO125HD1/11R-PZB13N00 |
| R910948685 | AA4VSO125HD1/22L-PPB13N00 |
| R910966863 | AA4VSO125HD1/22L-PZB13K33 |
| R910941443 | AA4VSO125HD1/22L-PZB13N00 |
| R910978471 | AA4VSO125HD1/22L-PZB25K33-SO374 |
| R910970776 | AA4VSO125HD1/22R-PPB13G10 |
| R910973716 | AA4VSO125HD1/22R-PPB13G83 |
| R910976572 | AA4VSO125HD1/22R-PPB13K00-SO25 |
| R910978389 | AA4VSO125HD1/22R-PPB13K25 |
| R910992096 | AA4VSO125HD1/22R-PPB13K25-SO139 |
| R910963949 | AA4VSO125HD1/22R-PPB13K27 |
| R910940500 | AA4VSO125HD1/22R-PPB13K31-SO61 |
| R910938364 | AA4VSO125HD1/22R-PPB13K34 |
| R910940351 | AA4VSO125HD1/22R-PPB13K34-SO61 |
| R910964349 | AA4VSO125HD1/22R-PPB13K37 |
| R910939107 | AA4VSO125HD1/22R-PPB13N00 |
| R910985051 | AA4VSO125HD1/22R-PPB13N00-SO97 |
| R910942364 | AA4VSO125HD1/22R-PZB13H00 |
| R910946361 | AA4VSO125HD1/22R-PZB13K02 |
| R910968040 | AA4VSO125HD1/22R-PZB13K24 |
| R910964070 | AA4VSO125HD1/22R-PZB13K51 |
| R910943477 | AA4VSO125HD1/22R-PZB13K56 |
| R910938362 | AA4VSO125HD1/22R-PZB13N00 |
| R910960175 | AA4VSO125HD1/22R-VZB13K01-SO568 |
| R910985496 | AA4VSO125HD1/22W-VZB13K01-SO587 |
| R910979131 | AA4VSO180HD1/22R-PPB13K01 |
| R910935377 | AA4VSO180HD1/22R-PPB13N00 |
| R910946536 | AA4VSO180HD1/22R-PZB13K02 |
| R910943104 | AA4VSO180HD1/22R-PZB13K56 |
| R910948448 | AA4VSO250HD1/22R-PPB13K01 |
| R910935946 | AA4VSO250HD1/22R-PPB13K25-SO166 |
| R910945325 | AA4VSO250HD1/22R-PPB13K26 |
| R910937007 | AA4VSO250HD1/22R-PPB13K26-SO166 |
| R910937979 | AA4VSO250HD1/22R-PPB13K31-SO61 |
| R910945787 | AA4VSO250HD1/22R-PPB13K31-SO522 |
| R910942506 | AA4VSO250HD1/22R-PPB13K34 |
| R910943385 | AA4VSO250HD1/22R-PPB13K35 |
| R910989595 | AA4VSO250HD1/22R-PPB13N00-SO19 |
| R910961339 | AA4VSO250HD1/22R-PPB13N00-SO61 |
| R910963827 | AA4VSO250HD1/22R-PPB13N00-SO402 |
| R910961301 | AA4VSO250HD1/22R-PZB13K04 |
| R910961270 | AA4VSO250HD1/22R-PZB13K27 |
| R910935390 | AA4VSO250HD1/22R-PZB13K99 |
| R902426882 | AA4VSO40HD1/11L-PPB13K99 |
| R910929200 | AA4VSO40HD1/11L-PZB13K01 |
| R910939628 | AA4VSO40HD1/11L-PZB13K01-SO30 |
| R902446006 | AA4VSO40HD1/11L-VPB13N00 |
| R910966987 | AA4VSO40HD1/11R-PPB13K01 |
| R910944141 | AA4VSO40HD1/11R-PPB13K51 |
| R910932391 | AA4VSO40HD1/11R-PPB13N00 |
| R910966474 | AA4VSO40HD1/11R-PZB13G10 |
| R902433020 | AA4VSO40HD1/11R-PZB13K01-SO97 |
| R910921183 | AA4VSO40HD1/11R-PZB13K31 |
| R902438872 | AA4VSO40HD1/11R-PZB13K52-SO97 |
| R902451196 | AA4VSO40HD1/11R-PZB13K68-SO97 |
| R902518490 | AA4VSO40HD1/11R-PZB13KB3-SO97 |
| R902494511 | AA4VSO40HD1/11R-PZB13N00-SO97 |
| R902401939 | AA4VSO40HD1/11R-PZB13O72-SO97 |
| R902491420 | AA4VSO40HD1/11R-PZB13P54-SO97 |
| R902578828 | AA4VSO40HD1/11R-VPB13K31 |
| R902578827 | AA4VSO40HD1/11R-VZB13N00 |
| R902550052 | AA4VSO71HD1/11L-PPB13K33 |
| R910995468 | AA4VSO71HD1/11L-PPB13N00 |
| R910939630 | AA4VSO71HD1/11L-PZB13G33 |
| R910966865 | AA4VSO71HD1/11L-PZB13G66 |
| R910929205 | AA4VSO71HD1/11L-PZB13K01 |
| R910929202 | AA4VSO71HD1/11L-PZB13K31 |
| R902550053 | AA4VSO71HD1/11L-PZB13N00 |
| R902410793 | AA4VSO71HD1/11L-PZB25G66-SO374 |
| R910946223 | AA4VSO71HD1/11L-PZB25G81-SO374 |
| R910946224 | AA4VSO71HD1/11L-PZB25G86-SO374 |
| R910943030 | AA4VSO71HD1/11L-VPB13K33 |
| R910960158 | AA4VSO71HD1/11L-VZB13K01-SO568 |
| R902493278 | AA4VSO71HD1/11R-FZB13N00 |
| R910944295 | AA4VSO71HD1/11R-PPB13G20 |
| R910979778 | AA4VSO71HD1/11R-PPB13K01 |
| R910923817 | AA4VSO71HD1/11R-PPB13N00 |
| R902422496 | AA4VSO71HD1/11R-PZB13G64 |
| R902481115 | AA4VSO71HD1/11R-PZB13K01-SO97 |
| R910987471 | AA4VSO71HD1/11R-PZB13K31 |
| R902424093 | AA4VSO71HD1/11R-PZB13K33 |
| R902445616 | AA4VSO71HD1/11R-PZB13KB3-SO97 |
| R902448493 | AA4VSO71HD1/11R-PZB13N00-SO97 |
| R902539224 | AA4VSO71HD1/11R-VZB13N00-SO97 |
| R910989173 | AA4VSO250HD1/22L-PPB13N00 |
| R910941724 | AA4VSO250HD1/22R-PPB13N00 |
| R910945009 | AA4VSO250HD1/22R-PZB13N00 |
| R910963345 | AA4VSO250HD1/22W-PZB13N00-SO587 |
