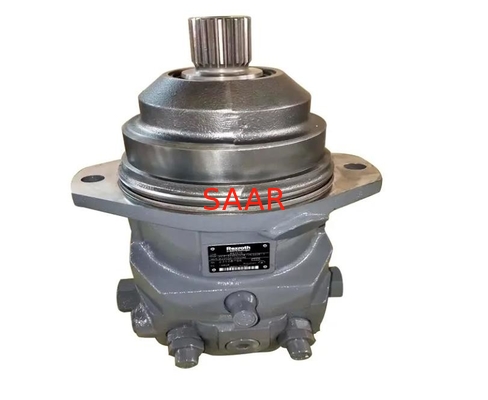

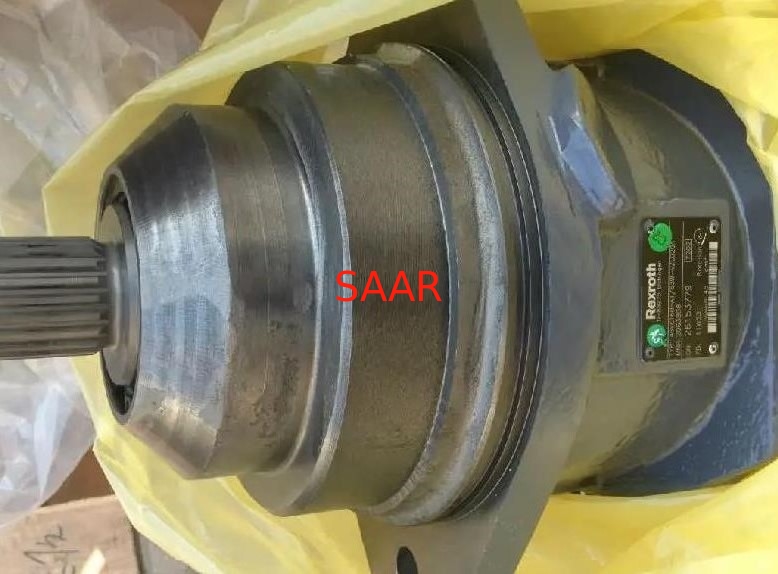

A6VE Variable Plug-In Motor R902218662 A6VE28EZ1/63W-VAL0270HB

A6VE Variable Plug-In Motor R902218662 A6VE28EZ1/63W-VAL0270HB

  • A6VE Variable Plug-In Motor R902218662 A6VE28EZ1/63W-VAL0270HB
  • A6VE Variable Plug-In Motor R902218662 A6VE28EZ1/63W-VAL0270HB
A6VE Variable Plug-In Motor R902218662 A6VE28EZ1/63W-VAL0270HB
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R902218662 A6VE28EZ1/63W-VAL0270HB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On Request
Packaging Details: Standard Wooden Box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 1000/Month
Contact Now
Detailed Product Description
MNR: R902218662 Model No.: A6VE28EZ1/63W-VAL0270HB
High Light:

A6VE High Pressure Motor

,

Variable Plug-In Motor Recessed

,

Plug-In Rexroth Hydraulic Motor Parts

Axial piston variable motor A6VE series 6X

High pressure motor for integration in mechanical gearboxes
Series 65: size 55 … 200
series 63: size 28, 250
Nominal pressure up to 400 bar
Maximum pressure up to 450 bar
Open and closed circuits

Features
Space-saving construction due to recessed mounting flange
Easy to install, simply slide into the mechanical gearbox
Wide control range (can be swiveled to zero)
Approved for very high speeds
High torque
Optional with attached flushing and boost-pressure valve
Optional with integrated or attached counterbalance valve
Bent-axis design

Table of values
Size
28
55
80
107
160
200
250
Series
63
65
65
65
65
65
63
Displacement

Vg max
cm³
28.1
54.8
80
107
160
200
250
Vg x
cm³
18
35
51
68
61
76
188
Vg min
cm³
0
0
0
0
0
0
0
Nominal pressure

pnom
bar
400
400
400
400
400
400
350
Maximum pressure

pmax
bar
450
450
450
450
450
450
400
Maximum speed
at Vg max 1)
nnom
rpm
5550
4450
3900
3550
3100
2900
2700
at Vg < Vg x
nmax
rpm
8750
7000
6150
5600
4900
4600
3300
at Vg min
nmax 0
rpm
10450
8350
7350
6300
5500
5100
3300
Inlet flow 2)
at Vg max and nnom
qV nom
l/min
156
244
312
380
496
580
675
Torque
at Vg max and pnom
M
Nm
179
349
509
681
1019
1273
1391
Weight (approx.)

m
kg
16
28
36
46
62
78
110

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Axial piston variable motor A6VE28 series 6X on Sale, Short lead time, Best price!!!

R902042452 A6VE28EP1/63W-VAL020DB-S
R902042450 A6VE28EP1/63W-VAL020DB-SK
R902057345 A6VE28EP1/63W-VAL020HB
R902049244 A6VE28EP1/63W-VAL027DB-S
R902057343 A6VE28EP1/63W-VAL027DHB-S
R902182465 A6VE28EP1/63W-VAL027FPA-S
R902182463 A6VE28EP1/63W-VAL027FPA-SK
R902222232 A6VE28EP1/63W-VAL027HPA
R902155106 A6VE28EP1/63W-VAL027UPB
R902218661 A6VE28EP1/63W-VAL027UPB
R902202480 A6VE28EP1/63W-VAL027UPB-S
R902202478 A6VE28EP1/63W-VAL027UPB-SK
R902115579 A6VE28EP2/63W-VAL010FHB-S
R902115573 A6VE28EP2/63W-VAL010FHB-SK
R902204923 A6VE28EP2/63W-VAL010VPB
R902218673 A6VE28EP2/63W-VAL017FHB
R902094970 A6VE28EP2/63W-VAL017FHB-S
R902126727 A6VE28EP2/63W-VAL017FHB-SK
R902101585 A6VE28EP2/63W-VAL017FPB-ES
R902163562 A6VE28EP2/63W-VAL017FTB-S
R902163560 A6VE28EP2/63W-VAL017FTB-SK
R902139534 A6VE28EP2/63W-VAL017FWB-S
R902139532 A6VE28EP2/63W-VAL017FWB-SK
R902101628 A6VE28EP2/63W-VAL017HPB
R902218710 A6VE28EP2/63W-VAL017HPB
R902218719 A6VE28EP2/63W-VAL017HTB-S
R902151722 A6VE28EP2/63W-VAL017UPB-S
R902151720 A6VE28EP2/63W-VAL017VPB-SK
R902208910 A6VE28EP2/63W-VAL0200PB
R902218671 A6VE28EP2/63W-VAL0200PB
R902060352 A6VE28EP2/63W-VAL020DHB-S
R902063516 A6VE28EP2/63W-VAL020DHB-SK
R902065838 A6VE28EP2/63W-VAL020DHB-SK
R902078740 A6VE28EP2/63W-VAL020FHB-S
R902078738 A6VE28EP2/63W-VAL020FHB-SK
R902084347 A6VE28EP2/63W-VAL020FHB-SK
R902139972 A6VE28EP2/63W-VAL020FHB-SK
R902170363 A6VE28EP2/63W-VAL020FPB
R902191522 A6VE28EP2/63W-VAL020FPB-S
R902191520 A6VE28EP2/63W-VAL020FPB-SK
R902057347 A6VE28EP2/63W-VAL020HB
R902218720 A6VE28EP2/63W-VAL020HHB
R902165619 A6VE28EP2/63W-VAL020HPB
R902196061 A6VE28EP2/63W-VAL020HPB-S
R902163538 A6VE28EP2/63W-VAL020PB
R902215115 A6VE28EP2/63W-VAL020VPB
R902217893 A6VE28EP2/63W-VAL020VPB
R902208753 A6VE28EP2/63W-VAL020VTB
R902068579 A6VE28EP2/63W-VAL027DHB-S
R902068577 A6VE28EP2/63W-VAL027DHB-SK
R902101739 A6VE28EP2/63W-VAL027FHB-S
R902101737 A6VE28EP2/63W-VAL027FHB-SK
R902151620 A6VE28EP2/63W-VAL027FHB-SK
R902132023 A6VE28EP2/63W-VAL027FPB-S
R902194400 A6VE28EP2/63W-VAL027FPB-S
R902132021 A6VE28EP2/63W-VAL027FPB-SK
R902155077 A6VE28EP2/63W-VAL027FPB-SK
R902194398 A6VE28EP2/63W-VAL027FPB-SK
R902202154 A6VE28EP2/63W-VAL027FPB-SK
R902170463 A6VE28EP2/63W-VAL027HHB
R902218672 A6VE28EP2/63W-VAL027HHB
R902218679 A6VE28EP2/63W-VAL027HHB
R902224092 A6VE28EP2/63W-VAL027HHB
R902165209 A6VE28EP2/63W-VAL027HPB
R902225712 A6VE28EP2/63W-VAL027HPB
R902203493 A6VE28EP2/63W-VAL027HPB-S
R902200217 A6VE28EPX/63W-VAL027FPB-S
R902204605 A6VE28EPX/63W-VAL027FPB-S
R902218711 A6VE28EPX/63W-VAL027FPB-S
R902200215 A6VE28EPX/63W-VAL027FPB-SK
R902052423 A6VE28EZ1/63W-VAL020HB
R902218662 A6VE28EZ1/63W-VAL0270HB
R902040080 A6VE28EZ1/63W-VAL027DB-S
R902052421 A6VE28EZ1/63W-VAL027DHB-S
R902149101 A6VE28EZ1/63W-VAL027FPB-S
R902149099 A6VE28EZ1/63W-VAL027FPB-SK
R902153501 A6VE28EZ1/63W-VAL027FPB-SK
R902052426 A6VE28EZ1/63W-VAL027HB
R902162166 A6VE28EZ1/63W-VAL027HB-E
R902212060 A6VE28EZ1/63W-VAL027HPB
R902218707 A6VE28EZ2/63W-VAL0100HB
R902153790 A6VE28EZ2/63W-VAL010FHB-S
R902153788 A6VE28EZ2/63W-VAL010FHB-SK
R902153786 A6VE28EZ2/63W-VAL010HB
R902218706 A6VE28EZ2/63W-VAL010HHB
R902215107 A6VE28EZ2/63W-VAL0200HB
R902165301 A6VE28EZ2/63W-VAL0200PB
R902073592 A6VE28EZ2/63W-VAL020DHB-S
R902073590 A6VE28EZ2/63W-VAL020DHB-SK
R902138337 A6VE28EZ2/63W-VAL020FHB-S
R902138335 A6VE28EZ2/63W-VAL020FHB-SK
R902102571 A6VE28EZ2/63W-VAL020FPB-S
R902102569 A6VE28EZ2/63W-VAL020FPB-SK
R902052425 A6VE28EZ2/63W-VAL020HB
R902189074 A6VE28EZ2/63W-VAL020HB-S
R902092396 A6VE28EZ2/63W-VAL027FHB-ES
R902075415 A6VE28EZ2/63W-VAL027FHB-S
R902075413 A6VE28EZ2/63W-VAL027FHB-SK
R902086987 A6VE28EZ2/63W-VAL027FHB-SK
R902165303 A6VE28EZ2/63W-VAL027FPB-SK
R902207323 A6VE28HA1/63W-VAL02000A-Y
R902204546 A6VE28HA1T/63W-VAL02700A
R902011766 A6VE28HA1U1/63W-VAL020A
R902024898 A6VE28HA2/63W-VAL027A
R902009605 A6VE28HA2T/61W-PAL020DA-SK
R902155150 A6VE28HA2T/63W-VAL02000A
R902207173 A6VE28HA2T/63W-VAL02000A
R902218683 A6VE28HA2T/63W-VAL02000A
R902218702 A6VE28HA2T/63W-VAL02000A
R902218666 A6VE28HA2T/63W-VAL02000A-Y
R902218686 A6VE28HA2T/63W-VAL02000A-Y
R902218687 A6VE28HA2T/63W-VAL02000A-Y
R902031765 A6VE28HA2T/63W-VAL020A-S
R902031789 A6VE28HA2T/63W-VAL020DA-S
R902047212 A6VE28HA2T/63W-VAL020DA-S
R902132270 A6VE28HA2T/63W-VAL020DA-SK
R902088979 A6VE28HA2T/63W-VAL020FA-S
R902088977 A6VE28HA2T/63W-VAL020FA-SK
R902196083 A6VE28HA2T/63W-VAL020H0A
R902207172 A6VE28HA2T/63W-VAL020H0A-S
R902027109 A6VE28HA2T/63W-VAL027A
R902060116 A6VE28HA2T/63W-VAL027DA-S
R902018087 A6VE28HA2U1/63W-VAL027A
R902027189 A6VE28HA2U1X/63W-VAL027A-S
R902156418 A6VE28HA2U2/63W-VAL020PA
R902202204 A6VE28HA2U2/63W-VAL027FPA-S
R902202202 A6VE28HA2U2/63W-VAL027FPA-SK
R902040251 A6VE28HA2X/63W-VAL020A-S
R902096982 A6VE28HATX/63W-VAL020DA-S
R902042285 A6VE28HAX/63W-VAL020A-S
R902191799 A6VE28HAXT/63W-VAL010A-S
R902208979 A6VE28HAXT/63W-VAL02000A-S
R902208980 A6VE28HAXT/63W-VAL02000A-S
R902218704 A6VE28HAXT/63W-VAL02000A-S
R902004238 A6VE28HAXT/63W-VAL020A-S
R902065710 A6VE28HAXT/63W-VAL020A-S
R902030618 A6VE28HAXT/63W-VAL020DA-S
R902162059 A6VE28HAXT/63W-VAL020FA-S
R902162057 A6VE28HAXT/63W-VAL020FA-SK
R902065506 A6VE28HD1/63W-VAL010B
R902092711 A6VE28HD1/63W-VAL020B-E
R902151706 A6VE28HD1/63W-VAL020B-E
R902218676 A6VE28HD1/63W-VAL020D0B-S
R902068612 A6VE28HD1/63W-VAL020DB-S
R902110073 A6VE28HD1/63W-VAL020DB-S
R902115926 A6VE28HD1/63W-VAL020DB-S
R902155035 A6VE28HD1/63W-VAL020F0B
R902207980 A6VE28HD1/63W-VAL020F0B
R902110357 A6VE28HD1/63W-VAL020FB-S
R902182017 A6VE28HD1/63W-VAL020FB-S
R902110355 A6VE28HD1/63W-VAL020FB-SK
R902182008 A6VE28HD1/63W-VAL020FB-SK
R902217846 A6VE28HD1/63W-VAL020U0B
R902033334 A6VE28HD1/63W-VAL027B
R902060125 A6VE28HD1D/63W-VAL017B
R902212072 A6VE28HD2/63W-VAL02000B
R902036752 A6VE28HD2/63W-VAL020B
R902036753 A6VE28HD2/63W-VAL020DB-S
R902107756 A6VE28HD2/63W-VAL020DB-S
R902086500 A6VE28HD2/63W-VAL020FB-S
R902101353 A6VE28HD2/63W-VAL020FB-SK
R902214683 A6VE28HD2/63W-VAL020H0B
R902205982 A6VE28HD2/63W-VAL027V0B
R902040016 A6VE28HD2D/63W-VAL020B
R902047430 A6VE28HD2DX/63W-VAL020B-S
R902045318 A6VE28HD6/63W-VAL020B
R902150388 A6VE28HD6/63W-VAL020D0B-S
R902150344 A6VE28HD6/63W-VAL020U0B-S
R902155054 A6VE28HD7/63W-VAL020U0B-Y
R902186365 A6VE28HD7/63W-VAL020UB-S
R902186363 A6VE28HD7/63W-VAL020UB-SK
R902063668 A6VE28HZ1/63W-VAL010FA-S
R902060377 A6VE28HZ1/63W-VAL010FA-SK
R902150200 A6VE28HZ1/63W-VAL02000B
R902207976 A6VE28HZ1/63W-VAL02000B
R902212089 A6VE28HZ1/63W-VAL02000B
R902212092 A6VE28HZ1/63W-VAL02000B
R902186016 A6VE28HZ1/63W-VAL020B-S
R902207981 A6VE28HZ1/63W-VAL020D0B
R902092611 A6VE28HZ1/63W-VAL020DB-ES
R902011509 A6VE28HZ1/63W-VAL020DB-S
R902186017 A6VE28HZ1/63W-VAL020DB-S
R902090417 A6VE28HZ1/63W-VAL020DB-SK
R902218678 A6VE28HZ1/63W-VAL020F0B-Y
R902218682 A6VE28HZ1/63W-VAL020F0B-Y
R902090135 A6VE28HZ1/63W-VAL020FB-S
R902090133 A6VE28HZ1/63W-VAL020FB-SK
R902096959 A6VE28HZ1/63W-VAL020FB-SK
R902215096 A6VE28HZ1/63W-VAL020H0B
R902212111 A6VE28HZ1/63W-VAL020H0B-Y
R902212112 A6VE28HZ1/63W-VAL020H0B-Y
R902150397 A6VE28HZ1/63W-VAL020V0B
R902075134 A6VE28HZ1/63W-VAL027B
R902211543 A6VE28HZ1/63W-VAL027F0B
R902092437 A6VE28HZ1/63W-VAL027FB-ESK
R902082386 A6VE28HZ1/63W-VAL027FB-S
R902082367 A6VE28HZ1/63W-VAL027FB-SK
R902101445 A6VE28HZ1/63W-VAL027FB-SK
R902212098 A6VE28HZ1/63W-VAL027H0B
R902218684 A6VE28HZ1/63W-VAL027H0B
