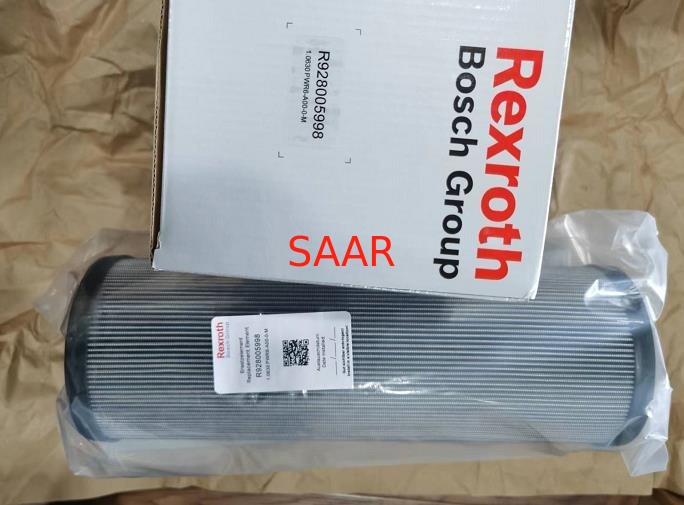

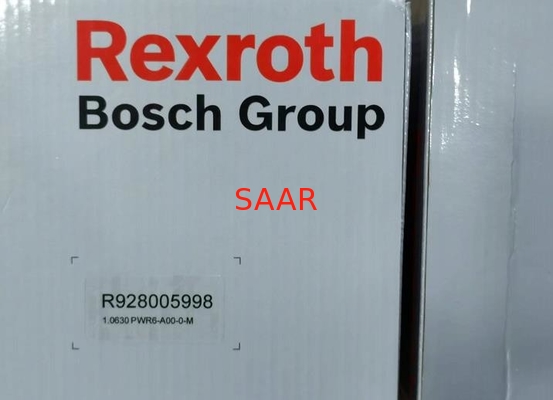

R928005998 1.0630PWR6-A00-0-M Rexroth Type 1.0630PWR6 Filter Elements

R928005998 1.0630PWR6-A00-0-M Rexroth Type 1.0630PWR6 Filter Elements

  • R928005998 1.0630PWR6-A00-0-M Rexroth Type 1.0630PWR6 Filter Elements
  • R928005998 1.0630PWR6-A00-0-M Rexroth Type 1.0630PWR6 Filter Elements
R928005998 1.0630PWR6-A00-0-M Rexroth Type 1.0630PWR6 Filter Elements
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R928005998 1.0630PWR6-A00-0-M
CertifiSAARion: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R928005998 MATERIAL: 1.0630PWR6-A00-0-M
High Light:

Rexroth Filter Element Pressure Differential

,

330 Bar Rexroth Return Line Filter

,

Rexroth Replacement Filter Element

Rexroth Type 1.0 Filter Elements

Size 0040 … 2500
Pressure differential 330 bar
Filter rating 1 µm
Filter area 4.8 m²
Operating temperature range -10 … +100 °C


Features
▶▶ Filter media for numerous appliSAARion ranges made of
glass fiber material, filter paper, wire mesh, fleece
material and metal fiber fleece
▶▶ Cleanable wire mesh filter media
▶▶ Attainable oil cleanliness up to ISO 12/8/3 (ISO 4406)
▶▶ High dirt holding capacity and filtration performance
due to multi-layer glass fiber technology and simultaneously
a low initial pressure differential (ISO 3968)
▶▶ Extended product range for non-mineral oil
based fluids
▶▶ Filter elements with high pressure differential stability

Technical data
General
Type
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
Size
0040
0063
0100
0160
0250
0400
0630
1000
0045
0055
0120
0130
0150
0200
0270
2000
2500
Weight 1)
m
0.16 kg
0.24 kg
0.38 kg
0.74 kg
1.07 kg
1.48 kg
2.42 kg
3.44 kg

0.59 kg
0.67 kg

4.8 kg
9.14 kg
Filter rating / mesh size
1 µm
Filter area
4.8 m²
Ambient temperature range
-10 … +65 °C
Operating temperature range
-10 … +100 °C
Storage temperature range 2)
NBR
-40 ... +65 °C
Storage temperature range 2)
FKM
-20 ... +65 °C
Material
Cover of the filter element
Polyamide or tin-coated steel or tin-coated aluminum
Base of the filter element
Polyamide or tin-coated steel or tin-coated aluminum
Support tube of the filter element
Tin-coated steel
Seals
NBR / FKM

General
Type
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
Size
0040
0063
0100
0160
0250
0400
0630
1000
0045
0055
0120
0130
0150
0200
0270
2000
2500
Weight 1)
m
0.16 kg
0.24 kg
0.38 kg
0.74 kg
1.07 kg
1.48 kg
2.42 kg
3.44 kg

0.59 kg
0.67 kg

4.8 kg
9.14 kg
Filter rating / mesh size
1 µm
Filter area
4.8 m²
Ambient temperature range
-10 … +65 °C
Operating temperature range
-10 … +100 °C
Storage temperature range 2)
NBR
-40 ... +65 °C
Storage temperature range 2)
FKM
-20 ... +65 °C
Material
Cover of the filter element
Polyamide or tin-coated steel or tin-coated aluminum
Base of the filter element
Polyamide or tin-coated steel or tin-coated aluminum
Support tube of the filter element
Tin-coated steel
Seals
NBR / FKM
1)
refers to non-woven glass fiber media
2)
max. relative air humidity 65 %
1)
refers to non-woven glass fiber media
2)
max. relative air humidity 65 %
Hydraulic
Size
0040
0063
0100
0160
0250
0400
0630
1000
0045
0055
0120
0130
0150
0200
0270
2000
2500
Filtration direction
From the outside to the inside
Maximum pressure differential
330 bar
Minimum conductivity of the medium
300 pS/m
Hydraulic fluid temperature range
-10 … +100 °C

Hydraulic
Size
0040
0063
0100
0160
0250
0400
0630
1000
0045
0055
0120
0130
0150
0200
0270
2000
2500
Filtration direction
From the outside to the inside
Maximum pressure differential
330 bar
Minimum conductivity of the medium
300 pS/m
Hydraulic fluid temperature range
-10 … +100 °C
Important information on hydraulic fluids!
For more information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us!

Flame-resistant – containing water: Due to possible chemical reactions with materials or surface coatings of machine and system components, the service life with these hydraulic fluids may be less than expected. Filter materials made of filter paper P must not be used, filter elements with glass fiber material have to be used instead.

Bio-degradable: If filter materials made of filter paper are used, the filter life may be shorter than expected due to material incompatibility and swelling.

For appliSAARions outside these parameters, please consult us!

Hydraulic fluid
ClassifiSAARion
Suitable sealing materials
Suitable adhesive
Standards
Mineral oil
HLP
NBR
Standard
DIN 51424
Bio-degradable
Insoluble in water
HETG
NBR
VDMA 24568
HEES
FKM
Soluble in water
HEPG
FKM
VDMA 24568
Flame-resistant
Water-free
HFDU, HFDR
FKM
VDMA 24317
Containing water
HFAS
NBR
DIN 24320
HFAE
NBR
HFC
NBR
VDMA 24317
Skydrol
EPDM
Special “H”

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Type 1.0270 1.0400 1.0630 Size Filter Elements on Sale, Short lead time, Best price!!!

R928005999 1.0630PWR10-A00-0-M
R928055672 1.0630PWR10-A00-0-M/DN
R928006017 1.0630PWR10-A00-0-V
R928007855 1.0630PWR10-AH0-0-M
R928007873 1.0630PWR10-AH0-0-V
R928006008 1.0630PWR10-C00-0-M
R928006026 1.0630PWR10-C00-0-V
R928007864 1.0630PWR10-CH0-0-M
R928007882 1.0630PWR10-CH0-0-V
R928056885 1.0630PWR10-T00-0-M
R928006000 1.0630PWR20-A00-0-M
R928055670 1.0630PWR20-A00-0-M/DN
R928006018 1.0630PWR20-A00-0-V
R928007856 1.0630PWR20-AH0-0-M
R928007874 1.0630PWR20-AH0-0-V
R928006009 1.0630PWR20-C00-0-M
R928006027 1.0630PWR20-C00-0-V
R928007865 1.0630PWR20-CH0-0-M
R928007883 1.0630PWR20-CH0-0-V
R928056902 1.0630PWR20-T00-0-M
R928005997 1.0630PWR3-A00-0-M
R928036012 1.0630PWR3-A00-0-M/HY
R928006015 1.0630PWR3-A00-0-V
R928007853 1.0630PWR3-AH0-0-M
R928007871 1.0630PWR3-AH0-0-V
R928006006 1.0630PWR3-C00-0-M
R928006024 1.0630PWR3-C00-0-V
R928007862 1.0630PWR3-CH0-0-M
R928007880 1.0630PWR3-CH0-0-V
R928056903 1.0630PWR3-T00-0-M
R928005998 1.0630PWR6-A00-0-M
R928055671 1.0630PWR6-A00-0-M/DN
R928006016 1.0630PWR6-A00-0-V
R928007854 1.0630PWR6-AH0-0-M
R928007872 1.0630PWR6-AH0-0-V
R928006007 1.0630PWR6-C00-0-M
R928006025 1.0630PWR6-C00-0-V
R928007863 1.0630PWR6-CH0-0-M
R928007881 1.0630PWR6-CH0-0-V
R928056904 1.0630PWR6-T00-0-M
