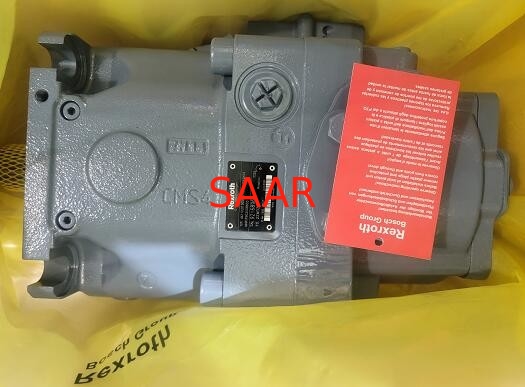

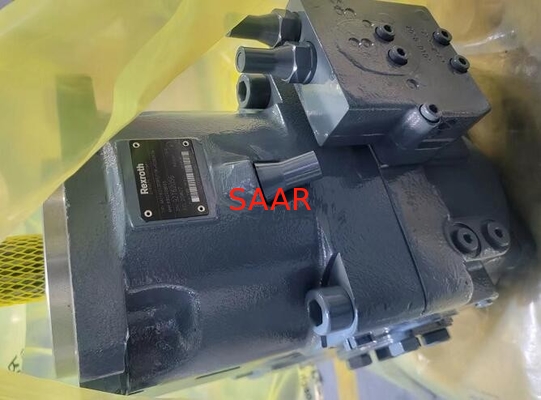

R909609230 AA11VLO130DRS/10R-NSD62N00 Rexroth A11VLO130DRS Series Axial Piston Variable Pump

R909609230 AA11VLO130DRS/10R-NSD62N00 Rexroth A11VLO130DRS Series Axial Piston Variable Pump

  • R909609230 AA11VLO130DRS/10R-NSD62N00 Rexroth A11VLO130DRS Series Axial Piston Variable Pump
  • R909609230 AA11VLO130DRS/10R-NSD62N00 Rexroth A11VLO130DRS Series Axial Piston Variable Pump
R909609230 AA11VLO130DRS/10R-NSD62N00 Rexroth A11VLO130DRS Series Axial Piston Variable Pump
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R909609230 AA11VLO130DRS/10R-NSD62N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On Request
Packaging Details: Standard Wooden Box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 1000/Month
Contact Now
Detailed Product Description
MNR: R909609230 Model: AA11VLO130DRS/10R-NSD62N00
High Light:

Impeller Rexroth Axial Piston Pump

,

A11VLO130DRS Axial Piston Variable Pump

,

Swashplate Piston Rexroth Variable Pump

Rexroth A11VO Series Axial Piston Variable Pump



Features
Through drive for mounting of further pumps up to same nominal size
Optional with charge pump for the nominal sizes 130…260
Particularly high speeds are possible with impeller pump version (A11VLO)
Large variety of controls
Swashplate design

Table of values

Size 40 60 75 95 130 145 190 260 130 145 190 260
Version Standard With charge pump
Displacement
geometric, per revolution
  Vg max cm³ 42 58.5 74 93.5 130 145 193 260 130 145 193 260
Nominal pressure   pnom bar 350 350 350 350 350 350 350 350 350 350 350 350
Maximum pressure   pmax bar 400 400 400 400 400 400 400 400 400 400 400 400
Maximum speed at Vg max nnom rpm 3000 1) 2700 1) 2550 1) 2350 1) 2100 1) 2200 1) 2100 1) 1800 1) 2500 2) 2500 2) 2500 2) 2300 2)
Flow at Vg max and nnom qV nom l/min 126 158 189 220 273 319 405 468 325 363 483 598
Power at qV nom and pnom P kW 74 92 110 128 159 186 236 273 190 211 281 349
Torque at Vg max and pnom M Nm 234 326 412 521 724 808 1075 1448 724 808 1075 1448
Weight (approx.)   m kg 32 40 45 53 66 76 95 125 72 73 104 138

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth A11VLO130 Series Axial Piston Variable Pumps on Sale, Short lead time, Best price!!!

R902012401 A11VLO130DRS+A11VLO130DRS
R902076949 A11VLO130DRS+A11VLO130DRS
R902061280 A11VLO130DRS+A11VO60DRS
R902196050 A11VLO130DRS+LA10VO71DRF+LA10VO28DR
R902042675 A11VLO130DRS/10L-NPD12N00
R902032788 A11VLO130DRS/10L-NSD12K01
R902089798 A11VLO130DRS/10L-NSD12K01-K
R902186852 A11VLO130DRS/10L-NSD12K01-S
R902251709 A11VLO130DRS/10L-NSD12K02
R902011235 A11VLO130DRS/10L-NSD12K02
R902129462 A11VLO130DRS/10L-NSD12K02-S
R902235163 A11VLO130DRS/10L-NSD12K02-S
R902041111 A11VLO130DRS/10L-NSD12K02-S
R992001611 A11VLO130DRS/10L-NSD12K02-S
R902251811 A11VLO130DRS/10L-NSD12K02-S
R902208981 A11VLO130DRS/10L-NSD12K02-Y
R902227574 A11VLO130DRS/10L-NSD12K04
R902257928 A11VLO130DRS/10L-NSD12K04
R902034912 A11VLO130DRS/10L-NSD12K04
R902220559 A11VLO130DRS/10L-NSD12K04
R902048239 A11VLO130DRS/10L-NSD12K04-S
R902245792 A11VLO130DRS/10L-NSD12K04-Y
R902030417 A11VLO130DRS/10L-NSD12K07
R902237253 A11VLO130DRS/10L-NSD12K07
R902085866 A11VLO130DRS/10L-NSD12K07-S
R902076947 A11VLO130DRS/10L-NSD12K17
R902220560 A11VLO130DRS/10L-NSD12K17
R902129460 A11VLO130DRS/10L-NSD12K17-S
R902237400 A11VLO130DRS/10L-NSD12K86
R902028119 A11VLO130DRS/10L-NSD12N00
R902204693 A11VLO130DRS/10L-NSD12N00
R902211977 A11VLO130DRS/10L-NSD12N00
R902239798 A11VLO130DRS/10L-NSD12N00
R902076948 A11VLO130DRS/10L-NSD12N00
R902237126 A11VLO130DRS/10L-NSD12N00
R902233548 A11VLO130DRS/10L-NSD12N00
R902071682 A11VLO130DRS/10L-NSD12N00-S
R902051098 A11VLO130DRS/10L-NZD12K01
R902100630 A11VLO130DRS/10L-NZD12K02
R902012405 A11VLO130DRS/10L-NZD12K83
R902248379 A11VLO130DRS/10L-NZD12N00
R902012409 A11VLO130DRS/10L-NZD12N00
R902009188 A11VLO130DRS/10L-NZD12N00-S
R902014982 A11VLO130DRS/10R-NPD12N00
R902235326 A11VLO130DRS/10R-NSD12K01
R902170396 A11VLO130DRS/10R-NSD12K01
R902013875 A11VLO130DRS/10R-NSD12K01
R902118170 A11VLO130DRS/10R-NSD12K01V
R902255663 A11VLO130DRS/10R-NSD12K01V
R909608299 A11VLO130DRS/10R-NSD12K02
R902100962 A11VLO130DRS/10R-NSD12K02V
R902220503 A11VLO130DRS/10R-NSD12K04
R902042666 A11VLO130DRS/10R-NSD12K04
R902018924 A11VLO130DRS/10R-NSD12K07
R902165469 A11VLO130DRS/10R-NSD12K07
R902220504 A11VLO130DRS/10R-NSD12K17
R902019778 A11VLO130DRS/10R-NSD12K17
R902041112 A11VLO130DRS/10R-NSD12K17-S
R902194891 A11VLO130DRS/10R-NSD12K86
R902233921 A11VLO130DRS/10R-NSD12K86
R909608217 A11VLO130DRS/10R-NSD12N00
R902197867 A11VLO130DRS/10R-NSD12N00
R902046584 A11VLO130DRS/10R-NSD12N00-S
R902066278 A11VLO130DRS/10R-NSD12N00-S
R902204854 A11VLO130DRS/10R-NZD12K01
R902080449 A11VLO130DRS/10R-NZD12K01
R902235165 A11VLO130DRS/10R-NZD12K02
R902138967 A11VLO130DRS/10R-NZD12K02
R902277289 A11VLO130DRS/10R-NZD12K02
R902138965 A11VLO130DRS/10R-NZD12K02-K
R902062586 A11VLO130DRS/10R-NZD12K04
R902008059 A11VLO130DRS/10R-NZD12K07
R902233473 A11VLO130DRS/10R-NZD12K17
R902170303 A11VLO130DRS/10R-NZD12K17
R902067107 A11VLO130DRS/10R-NZD12K17
R902233760 A11VLO130DRS/10R-NZD12N00
R902170593 A11VLO130DRS/10R-NZD12N00
R909447910 A11VLO130DRS/10R-NZD12N00
R902092524 A11VLO130DRS/10R-NZD12N00-E
R902105352 AA11VLO130DRS+AA11VLO130DRS
R902198846 AA11VLO130DRS/10L-NSD62K01
R902046546 AA11VLO130DRS/10L-NSD62K02
R902046954 AA11VLO130DRS/10L-NSD62K04
R902103928 AA11VLO130DRS/10L-NSD62K04-S
R902018580 AA11VLO130DRS/10L-NSD62K07
R902235477 AA11VLO130DRS/10L-NSD62K07
R909606879 AA11VLO130DRS/10L-NSD62N00
R902092077 AA11VLO130DRS/10L-NSD62N00-E
R902092221 AA11VLO130DRS/10L-NSD62N00-ES
R902092349 AA11VLO130DRS/10L-NSD62N00-ES
R902066212 AA11VLO130DRS/10L-NSD62N00-S
R902205934 AA11VLO130DRS/10L-NSD62N00-S
R902205696 AA11VLO130DRS/10L-NSD62N00-S
R902081074 AA11VLO130DRS/10L-NSD62N00-S
R902037874 AA11VLO130DRS/10L-NSD62N00-S
R902237133 AA11VLO130DRS/10R-NSD07K02
R902062566 AA11VLO130DRS/10R-NSD62K02
R902092333 AA11VLO130DRS/10R-NSD62K02-ES
R902062615 AA11VLO130DRS/10R-NSD62K02-S
R902032046 AA11VLO130DRS/10R-NSD62K02-S
R902064183 AA11VLO130DRS/10R-NSD62K02-S
R902235329 AA11VLO130DRS/10R-NSD62K04
R902008603 AA11VLO130DRS/10R-NSD62K04
R902005936 AA11VLO130DRS/10R-NSD62K07
R902239559 AA11VLO130DRS/10R-NSD62K07
R902232927 AA11VLO130DRS/10R-NSD62K07
R902205693 AA11VLO130DRS/10R-NSD62K17
R902070267 AA11VLO130DRS/10R-NSD62K17
R902205730 AA11VLO130DRS/10R-NSD62K17
R902205731 AA11VLO130DRS/10R-NSD62K86
R902208128 AA11VLO130DRS/10R-NSD62K86
R902205506 AA11VLO130DRS/10R-NSD62N00
R902205732 AA11VLO130DRS/10R-NSD62N00
R909609230 AA11VLO130DRS/10R-NSD62N00
R902205507 AA11VLO130DRS/10R-NSD62N00
R902232618 AA11VLO130DRS/10R-NSD62N00
R902092081 AA11VLO130DRS/10R-NSD62N00-E
R902092080 AA11VLO130DRS/10R-NSD62N00-E
R902092079 AA11VLO130DRS/10R-NSD62N00-E
R902067193 AA11VLO130DRS/10R-NSD62N00-S
R902034864 AA11VLO130DRS/10R-NSD62N00-S
R902092508 AA11VLO130DRS/10R-NSD62N00-S
