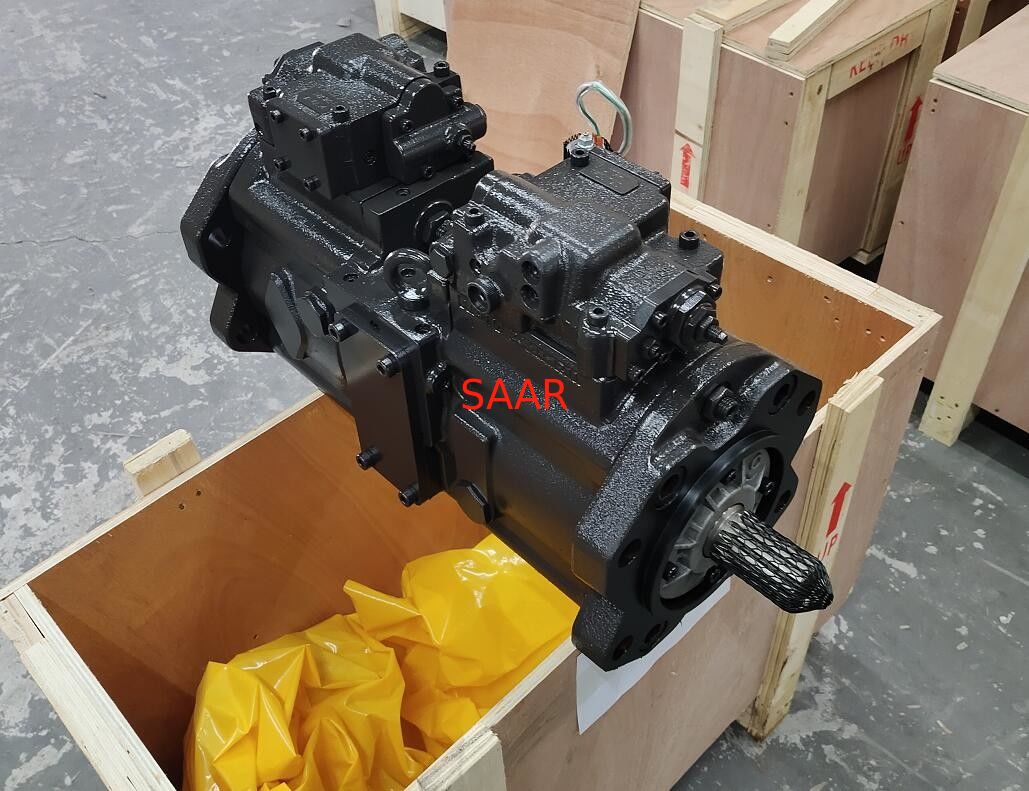

Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240

Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240

  • Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240
  • Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240
  • Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240
Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240
Product Details:
Place of Origin: Japan/Korea
Brand Name: Kawasaki
Model Number: K3V112DTP-1M9R-9CA9+F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Paper box or wooden carton
Delivery Time: 5-7days
Payment Terms: T/T, Western Union
Supply Ability: 100/Month
Contact Now
Detailed Product Description
Model: K3V112DTP-1M9R-9CA9+F Material: Cast Iron
High Light:

Kawasaki Pump For Excavator

,

K3V112DTP-1M9R-9CA9+F JCB

,

JS240 Kawasaki Pump

K3V Series Swash-plate Type Axial Piston Pumps for Open Circuits in Industrial Vehicles

Thorough Function Desigh Enabled Such Atractive Features
1. High Power Density
A lighter and more compact machine with higher pressure rating and increased power density (output power/mass) was obtained by adopting a half log type swash plate. In particular, the double pump with its tandem arrangement, has eliminated a power divider, has an increased transmission efficiency, and is lighter.

2. High Efficiency and Large Self-Priming Capability
The spherical valve plate and improved hydraulic balance provide stable cylinder rotation, thus achieving high efficiency even in a low-pressure and low-speed operating range.

3. Long Life
A long life is obtained by adopting main bearings of large capacity and the piston-return mechanism that compensates for the wear of the shoe.

4. Low Noise
Even less noise has been achieved because of the optimum design of the valve plate and the casing rigidity.

5. Wide Range of Controls
The pump can be controlled in various kinds of control methods and is capable of responding to either mechanical, hydraulic or electrical input.


K3V Series Pump Odering Code:

Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240 0


K5V Series Pump Odering Code:

Kawasaki Pump For Excavator K3V112DTP-1M9R-9CA9+F JCB JS240 1
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.


K3V K5V Series Oil pump for excavators:

Excavator Make Model of Excavator Main Pump Type
KOBELCO SK150LC K3V63DT-120R-9C1B-1
KOBELCO SK160 MARK IV K3V63DT-120R-9C1B-2
KOBELCO SK210 MARK IV K3V112DT-123R-9COR
KOBELCO SK250LC MARK IV K3V112DT-173R-9C29-1
KOBELCO SK270LC K3V112DT-1T3R-9C29-1
KOBELCO SK310 K3V180DT-112R-9C15
KOBELCO SK200LC-6 K3V112DTP17LR-9TDL
KOBELCO SK210LC-6 K3V112DTP17LR-9TDL
KOBELCO SK230LC-6 K3V112DTP17LR-9TDL
KOBELCO SK250LC-6 K3V112DT-1RAR-9TOL
KOBELCO SK250NLC-6 K3V112DTP17LR-9TCL
KOBELCO SK250NLC-6 K3V112DTP1RLR-9TCL
KOBELCO SK330LC-6 K3V112DT-1RPR-9TOS
KOBELCO SK330LC-6 K3V112DTP18LR-9TBS
KOBELCO SK200LC-6E K3V112DTP1A9R-9TEL-V
KOBELCO SK210LC-6E K3V112DTP1A9R-9TEL-V
KOBELCO SK230LC-6E K3V112DTP1A9R-9TGL-V
KOBELCO SK250LC-6E K3V112DTP1A9R-9TEL-V
KOBELCO SK250NLC-6E K3V112DTP1ALR-9TGL
KOBELCO SK250LC-6ES K3V112DTP1AMR-9TGL-V
KOBELCO SK290LC-6E K3V112DTP1C9R-9THL-V
KOBELCO SK330LC-6E K3V112DTP189R-9TBR-V
KOBELCO SK330LC-6E K5V140DTP18MR-9TBR-V
KOBELCO SK200LC-8 K3V112DTP1K9R-YT6K-V
KOBELCO SK210LC-8 K3V112DTP1K9R-YT6K-V
KOBELCO SK250LC-8 K3V112DTP1K9R-YT6K-V
KOBELCO SK260LC-8 K3V112DTP1K9R-YT6K-V
KOBELCO SK350LC-8 K5V140DTP1K9R-YTOK-HV
NEW HOLLAND E215 K3V112DTP1TMR-9TFL-AV
NEW HOLLAND E215 K3V112DTP1TLR-9TFL-V
NEW HOLLAND E215B K3V112DTP1K9R-YTOK-HV
NEW HOLLAND E215B K3V112DTP1KMR-YTOK-HV
NEW HOLLAND E235BSR-2 K3V112DTP1KLR-0E01-V
NEW HOLLAND E225BSR K3V112DTP1KLR-0E01-V
NEW HOLLAND E245 K3V112DTP1TLR-9TFL-V
NEW HOLLAND E245 K3V112DTP1TMR-9TFL-V
NEW HOLLAND E265 K3V112DTP1AMR-9TGL-FV
NEW HOLLAND E265 K3V112DTP1AMR-9TGL-V
NEW HOLLAND E265B K3V112DTP1L9R-YT1K-HV
NEW HOLLAND E265B K3V112DTP1LLR-YT1K-HV
NEW HOLLAND E265B K3V112DTP1LLR-YT3K-V
NEW HOLLAND E305 K3V112DTP1CMR-9THL-AV
NEW HOLLAND E385 K5V140DTP1SLR-9TAS-FV
NEW HOLLAND E385 K5V140DTP1DMR-9TAS-V
NEW HOLLAND E385B K5V140DTP101R-YTOK-HV
Doosan(Daewoo) Solar 130LC-V K3V63DT-1Q0R-HN0V
Doosan(Daewoo) Solar 150LC-V K3V63DT-1Q0R-HN0V
Doosan(Daewoo) Solar 155LC-V K3V63DT-1Q0R-HN0V
Doosan(Daewoo) DH220LC-V K3V112DT-11GR-HNOP
Doosan(Daewoo) Daewoo SL 220N-V K3V112DTP166R-HN0F
Doosan(Daewoo) Solar 225NLC-V K3V112DTP166R-HN0F
Doosan(Daewoo) DX225LC K3V112DTP1Q9R-9N1T
Doosan(Daewoo) DH225LC-V K3V112DT-115R-HNOM
Doosan(Daewoo) DX255LC-3 K3V112DTP1T9R-9NF9-V
Doosan(Daewoo) Solar 250LC-V K3V112DTP-1A5R-HN1V
Doosan(Daewoo) S255LC-V K3V112DTP-HN
Doosan(Daewoo) S300LC-V K5V140DTP1D9R-9N01
Doosan(Daewoo) DH280LC K3V140DT-1A2R-9N09
Doosan(Daewoo) Solar 290LC-V K3V140DT-1A5R-HN0V
Doosan(Daewoo) SOLAR 300LC-V K5V140DTP1C9R-9N01
Doosan(Daewoo) DX300LC K5V140DTP1N9R-9N07-V
Doosan(Daewoo) S330LC-III K3V180DT-11GR-HN1P
Doosan(Daewoo) S330LC-V K3V180DT-11GR-HNIV
Doosan(Daewoo) S360-V K3V180DT-1PGR-HN07
Hyundai R110-7 K3V63DT-1R0R-9N1S-1C
Hyundai R130LC-3 K3V63DT-1R0R-9N01-2A
Hyundai R140LC-7 K3V63DT-1R0R-9C0S-1D
Hyundai R160LC-3 K3V63DT-1R0R-9N1S-B
Hyundai R210LC-3 K3V112DT-1RER-9C39-1
Hyundai R210LC-7 K3V112DT-1CER-9C32-1
Hyundai R210LC-7A K3V112DT-1LHR-9C32
Hyundai R220LC-9S K3V112DT-1DFR-9N62
Hyundai R250LC K3V112DT-1RER-9C39-1
Hyundai R250LC-7 K3V112DT-1CER-9C32-2B
Hyundai R250LC-7A K3V112DT-1LHR-9C52
Hyundai R290LC-3 K3V140DT-1R2R-9N29-A
Hyundai R290LC-7 K3V140DT-1CER-9C12-D
Hyundai R290LC-7 K5V140DTP1K9R-9C12-L
Hyundai R290LC-7A K5V140DTP1J9R-9C12-1AL
Hyundai R290NLC-7A K5V140DTP1J9R-9C12-1AL
Hyundai R300LC-9 K5V140DTP1E9R-9N02-1
Hyundai R300LC-9A K5V140DTP1E9R-9N02-1
Hyundai R305LC-7 K5V140DTP1J9R-9C12-AL
Hyundai R320LC-7 K3V180DT-1RER-9C69-DL
Hyundai R320LC-7A K3V180DT-1RER-9C69-DL
Hyundai R350 K3V180DTH1H1R-9N4S-1T
Hyundai R360LC-7 K3V180DTH1P0R-9C0S
Hyundai R360LC-7A K3V180DTH1P0R-9C0S-1AL
Hyundai R450LC-7 K5V200DTH10JR-9C0Z-VT
Hyundai R500LC-7 K5V200DTH10JR-9C0Z-VT
Hyundai R3000LC-7 K5V140DTP1H9R-9C12
Volvo (Samsung) MX132 K3V63DT-1RCR-9N03-1
Volvo (Samsung) SE130LCM-2 K3V63DT-1RCR-9N03-1
Volvo (Samsung) EW130 K3V63DT-1Y0R-9N0Q
Volvo (Samsung) EC140BLC K3V63DT-1ZDR-9N0T-ZV
Volvo (Samsung) EC140BLC K3V63DT-1ZDR-9N0T
Volvo (Samsung) EC210BLC K3V112DT-1XER-9N24-2
Volvo (Samsung) EC210BLC K3V112DT-1XDR-9N24-ZV
Volvo (Samsung) SE210LC K3V112DT-1G4R-9C12-1
Volvo (Samsung) SE240LC-3 K3V112DT-1XER-9N2A-1
Volvo (Samsung) EC240B K3V112DT-1XJR-9N2A-ZV
Volvo (Samsung) EC240B K3V112DT-1XDR-9N2A-AZV
Volvo (Samsung) EC240BLC K5V140DT-151R-9N29-AHV
Volvo (Samsung) EC240BNLC K3V112DT-1XER-9N24
Volvo (Samsung) EC240CLR K5V140DT-151R-9N29-AHV
Volvo (Samsung) SE280LC K3V140DT-11CR-9N19
Volvo (Samsung) MX292LC K3V140DT-1RCR-9N19
Volvo (Samsung) EC290 K3V140DT-1JER-9N04-1
Volvo (Samsung) EC290BLC K3V140DT-1JER-9N04-1
Volvo (Samsung) EC290CL K3V140DT-151R-9NE9-AHV
Volvo (Samsung) EC290CLR K3V140DT-151R-9NE9-AHV
Volvo (Samsung) EC460CL K5V200DTH10DR-9N0B-AV
Volvo (Samsung) EC460B K5V200DTH10YR-9N0B-V
Volvo (Samsung) EC460BLC K5V200DTH10DR-9N0B-AV
Sumitomo SH200-5 K3V112DTP1F9R-9Y14-HV
Sumitomo SH200LC A3 K3V112DTP16AR-9N49-1Z
Sumitomo SH210LC-5 K3V112DTP1F9R-9Y14-HV
Sumitomo SH240LC-5 K3V112DTP1F9R-9Y14-HV
CASE CX210 K3V112DTP16AR-9N49-1Z
CASE CX210 K3V112DTP16VR-9N49-Z
CASE CX210LC K3V112DTP16FR-9N49
CASE CX240 K3V112DTP16AR-9N49-1Z
CASE CX210B K3V112DTP1F9R-9Y14-HV
CASE CX210BLR K3V112DTP1F9R-9Y14-HV
CASE CX240B K3V112DTP1F9R-9Y14-HV
CASE CX9021 K3V112DT-1G4R-9C12-1
JCB JS130LC K3V63DT-1R0R-9COH-1+F
JCB JS160NL K3V63DT-1R0R-9COH-2+F
JCB JS200LC K3V112DT-1GMR-9C79+F
JCB JS200LC K3V112DTP1M9R-9CA9+F
JCB JS215LC K3V112DT-1GMR-9C79+F
JCB JS235 K3V112DT-1GMR-9C79+F
JCB JS240LC K3V112DT-1GMR-9C79+F
JCB JS220LC K3V112DT-1G4R-9C12-1
JCB JS220LC K3V112DTP1M9R-9C79+F/P
JCB JS220LC K3V112DTP1M9R-9CB9+1F
JCB JS220SC K3V112DTP1M9R-9C79+F
JCB JS260 K3V112DT-1G4R-9C22
JCB JS260LC K3V112DTP1M9R-9CA9+F/P
KATO HD512 III K3V63DT-1X2R-9N04-A
KATO HD1430 K3V180DT-1H2R-9N15-A
LONGKING CDM6225 K3V112DT-1XTR-9NC9-3
LIUGONG CLG920D K3V112DT-1XHR-9N64-2V
LOVOL FR200E K3V112DTP1N9R-9TML-V
LOVOL FR220E K3V112DTP1N9R-9TML-V
LOVOL FR330E-HD K5V160DTH1X4R-0E50-V
LOVOL FR370E-HD K5V160DTH1X4R-0E50-V
XCMG XE470D K5V200DTH1X4R-9NOH-AV
XCMG XE490 K5V200DTH1X4R-9NOH-AV
XCMG XE370CA K5V160DTH1X4R-9N4A-5AV
XCMG XE335C K5V160DTH1X4R-9N4A-5AV
XCMG XE370DK K5V160DTH1X4R-9N4A-26AV
XCMG XE335 K5V160DTH1X4R-9N4A-26AV
XCMG XE370G K5V160DTH1X4R-9N4A-25AV
XCMG XE360UA K5V160DTH1X4R-9N4A-23AV
XCMG XE335 K5V160DTH1X4R-9N4A-23AV
XCMG XE370 K5V160DTH1X4R-9N4A-23AV
XCMG XE335 K5V160DTH1X4R-9N4A-13AV
XCMG XE370 K5V160DTH1X4R-9N4A-13AV
XCMG XE265C K5V140DTP1Q9R-9N25-2AV
XCMG XE260 K5V140DTP1Q9R-9N25-2AV
XCMG XE305D K5V140DTP1Q9R-9N25-10AV
XCMG XE270DK K5V140DTP1Q9R-9N25-10AV
XCMG XE215 K5V140DTP1Q9R-9N25-10AV
XCMG XE300 K5V140DTP1Q9R-9N25-10AV
XCMG XE200GA K3V112DTP1N9R-9TJL-AV
XCMG XE200C K3V112DT-9NC9
XCMG XE210C K3V112DT-9NC9
XCMG XE215CLL K3V112DT-9NC9
XCMG XE215C K3V112DT-1X7R-9NC9-14AV
XCMG XE200 K3V112DT-1X7R-9NC9-14AV
XCMG XE250 K3V112DT-1X7R-9NC9-14AV
XCMG XE210C K3V112DT-1X7R-9NC9-12AV
XCMG XE215C K3V112DT-1X7R-9NC9-12AV
XCMG XE150 T5V63DP-110R-HN1C
XCMG XE200DA T5V112DP-1KDR-9N5X
XCMG XE135D T5V63DP-110R-HN4X (MBFB4080)
XCMG XE220C K3V112DT-1X8R-9NS9-8AV
XCMG 230CA K3V112DT-1X8R-9NS9-8AV
XCMG 250CLL K3V112DT-1X8R-9NS9-8AV
LIUGONG CLG922D K3V112DT-1XHR-9N64-2V
LIUGONG CLG922E K3V112DTP1Y9R-9NE4-V
LIUGONG CLG925D K3V112DT-1XHR-9NE4-2V
LIUGONG CLG925E K5V140DTP1Q9R-9N25-8AV
LIUGONG CLG936D K3V140DT-1X7R-9N34-V
LIUGONG CLG936E K5V146DTH1X4R-9N4A-28AV
SANY SY135 K3V63DT-9P0H
SANY SY155 K3V63DT-9P0H
SANY SY215-8 K3V112DTP-9T8L
SANY SY205-8 K3V112DTP-9T8L
SANY SY215-8S K3V112DTP-0E11
SANY SY215-9 K3V112DTP-0E11
SANY SY235-8 K5V140DTP-9T1L
SANY SY235-8S K5V140DTP-OE01
SANY SY385 K5V200DTH1X4R-9N4H
SANY SY465 K5V200DTH1X4R-9N4H
SANY SY305 K5V160DTH1X4R-9T16-AV
SANY SY335 K5V160DTH1X4R-9T16-AV
SANY SY365 K5V160DTH1X4R-9T16-AV
SANY SY285 K3V140DTR-9T1L
SANY SY305 K3V140DTR-9T1L
