| RM 1902, EASEY BLDG., 253-261 HENNESSY ROAD, WANCHAI, HONGKONG | jason@hydraulicpumpvalve.com |
 |
| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R902160734 AA2FM56/61W-VSD510 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| MNR: | R902160734 | Model No.: | AA2FM56/61W-VSD510 |
|---|---|---|---|
| High Light: | AA2FM63/61W-VSD527 Piston Fixed Motor,R909422024 Piston Fixed Motor,6X Series Axial Piston Fixed Motor |
||

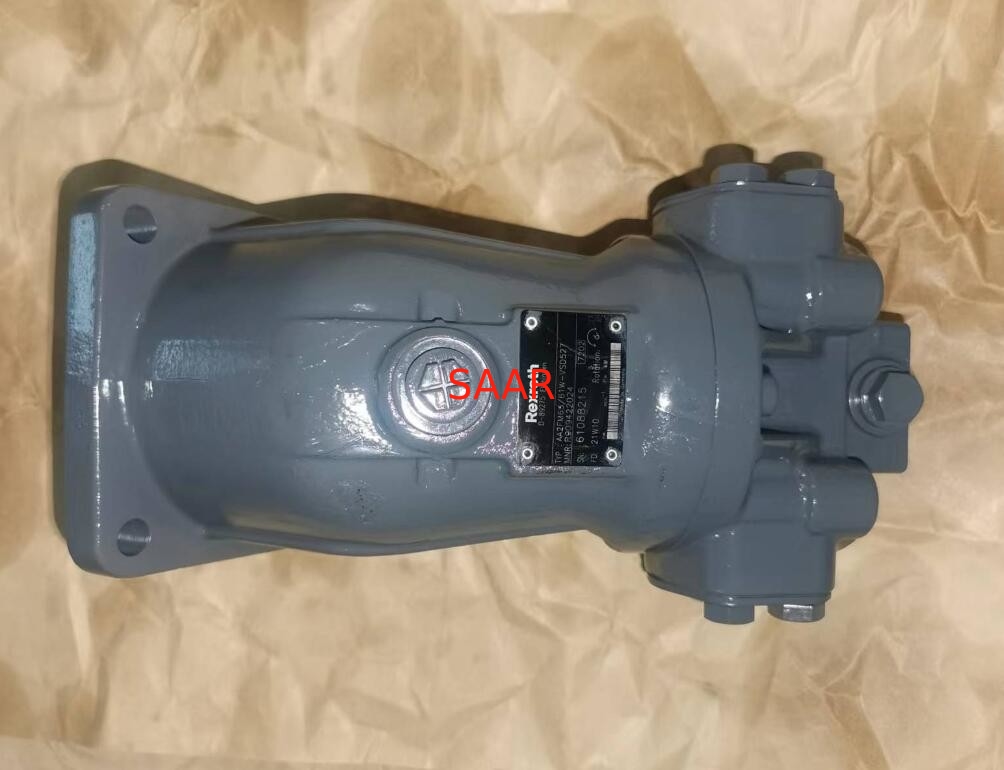

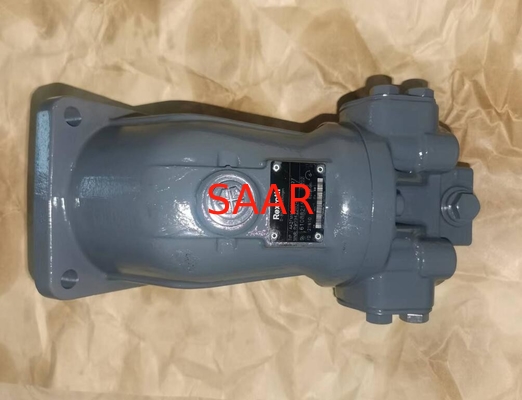

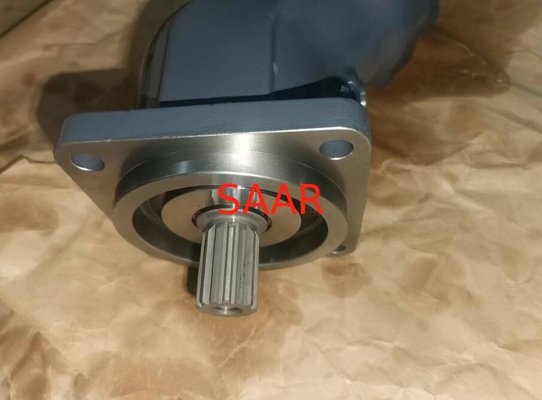

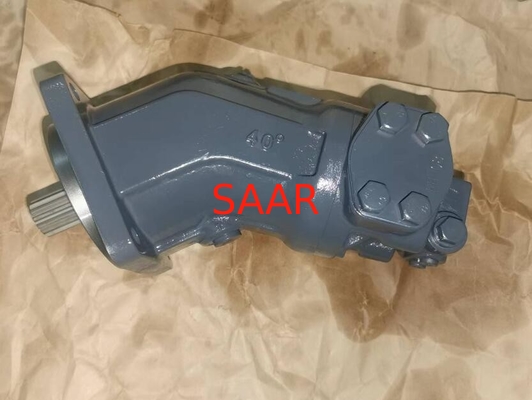

AA2FM 6X Series Axial Piston Fixed Motor
All-purpose high pressure motor
Size 5 … 1000
Nominal pressure up to 400 bar
Maximum pressure up 450 bar
Open and closed circuit
Metric version
Features
Large variety of available nominal sizes allows exact adjustment to the appliSAARion
High power density
Very high total efficiency
High starting efficiency
Working ports SAE flange or thread
Optional with integrated pressure relief valve
Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushingand boost-pressure valve
Bent-axis design
| Size | 5 | 10 | 12 | 16 | 23 | 28 | 32 | 107 | 125 | 160 | 180 | 200 | 250 | 355 | 500 | |||
| Displacement geometric, per revolution |
Vg | cm³ | 4.93 | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 106.7 | 125 | 160.4 | 180 | 200 | 250 | 355 | 500 | |
| Nominal pressure | pnom | bar | 315 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 350 | 350 | 350 | |
| Maximum pressure | pmax | bar | 350 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 400 | 400 | 400 | |
| Maximum speed | nnom 1) | rpm | 10000 | 8000 | 8000 | 8000 | 6300 | 6300 | 6300 | 4000 | 4000 | 3600 | 3600 | 2750 | 2700 | 2240 | 2000 | |
| nmax 2) | rpm | 11000 | 8800 | 8800 | 8800 | 6900 | 6900 | 6900 | 4400 | 4400 | 4000 | 4000 | 3000 | |||||
| Inlet flow 3) | at nnom | qV | l/min | 49 | 82 | 96 | 128 | 144 | 177 | 202 | 427 | 500 | 577 | 648 | 550 | 675 | 795 | 1000 |
| Torque 4) | at pnom | M | Nm | 24.7 | 66 | 76 | 102 | 146 | 179 | 204 | 679 | 796 | 1021 | 1146 | 1273 | 1393 | 1978 | 2785 |
| Rotary stiffness | c | kNm/rad | 0.63 | 0.92 | 1.25 | 1.59 | 2.56 | 2.93 | 3.12 | 11.2 | 11.9 | 17.4 | 18.2 | 57.3 | 73.1 | 96.1 | 144 | |
| Moment of inertia for rotary group | JTW | kg·m² | 0.00006 | 0.0004 | 0.0004 | 0.0004 | 0.0012 | 0.0012 | 0.0012 | 0.0116 | 0.0116 | 0.022 | 0.022 | 0.0353 | 0.061 | 0.102 | 0.178 | |
| Maximum angular acceleration | ɑ | rad/s² | 5000 | 5000 | 5000 | 5000 | 6500 | 6500 | 6500 | 4500 | 4500 | 3500 | 3500 | 11000 | 10000 | 8300 | 5500 | |
| Case volume | V | l | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.8 | 0.8 | 1.1 | 1.1 | 2.7 | 2.5 | 3.5 | 4.2 | ||
| Weight (approx.) | m | kg | 2.5 | 5.4 | 5.4 | 5.4 | 9.5 | 9.5 | 9.5 | 32 | 32 | 45 | 45 | 66 | 73 | 110 | 155 | |
| R902232600 | AA2FM63/61W-VAD510 |
| R902160743 | AA2FM63/61W-VBD510 |
| R902232713 | AA2FM63/61W-VBD510 |
| R909428729 | AA2FM63/61W-VBD510 |
| R902045338 | AA2FM63/61W-VBD510D |
| R902203851 | AA2FM63/61W-VBD520 |
| R909417127 | AA2FM63/61W-VBD520 |
| R902040035 | AA2FM63/61W-VBD520D |
| R902232553 | AA2FM63/61W-VBD520D |
| R902092231 | AA2FM63/61W-VBD520D-E |
| R902021798 | AA2FM63/61W-VBD527 |
| R902206513 | AA2FM63/61W-VBD527 |
| R902092567 | AA2FM63/61W-VBD527-E |
| R902249606 | AA2FM63/61W-VBD527U |
| R902284120 | AA2FM63/61W-VSD010-S |
| R909604525 | AA2FM63/61W-VSD027 |
| R902119870 | AA2FM63/61W-VSD027BR-BEIJ-1 |
| R902193826 | AA2FM63/61W-VSD027F-S |
| R902035441 | AA2FM63/61W-VSD027-S |
| R902193291 | AA2FM63/61W-VSD027-S |
| R902245997 | AA2FM63/61W-VSD027U-S |
| R902038767 | AA2FM63/61W-VSD180-S |
| R902038769 | AA2FM63/61W-VSD181-SK |
| R902088658 | AA2FM63/61W-VSD190FJ |
| R902045189 | AA2FM63/61W-VSD190J |
| R902088638 | AA2FM63/61W-VSD191FJ-K |
| R902045191 | AA2FM63/61W-VSD191J-K |
| R902014047 | AA2FM63/61W-VSD510 |
| R902035438 | AA2FM63/61W-VSD510 |
| R902160540 | AA2FM63/61W-VSD510 |
| R902160541 | AA2FM63/61W-VSD510 |
| R902161211 | AA2FM63/61W-VSD510 |
| R902161224 | AA2FM63/61W-VSD510 |
| R902193025 | AA2FM63/61W-VSD510 |
| R902193185 | AA2FM63/61W-VSD510 |
| R902196022 | AA2FM63/61W-VSD510 |
| R902198016 | AA2FM63/61W-VSD510 |
| R902206721 | AA2FM63/61W-VSD510 |
| R902208971 | AA2FM63/61W-VSD510 |
| R902229060 | AA2FM63/61W-VSD510 |
| R909409746 | AA2FM63/61W-VSD510 |
| R992000053 | AA2FM63/61W-VSD510 |
| R902132385 | AA2FM63/61W-VSD510D |
| R902160041 | AA2FM63/61W-VSD510D |
| R902092216 | AA2FM63/61W-VSD510-E |
| R902092217 | AA2FM63/61W-VSD510-E |
| R902115713 | AA2FM63/61W-VSD510F-E |
| R902115715 | AA2FM63/61W-VSD510F-EK |
| R902227912 | AA2FM63/61W-VSD510H |
| R902232648 | AA2FM63/61W-VSD510H-Y |
| R902077020 | AA2FM63/61W-VSD510J |
| R902028669 | AA2FM63/61W-VSD510-S |
| R902160055 | AA2FM63/61W-VSD520 |
| R902160653 | AA2FM63/61W-VSD520 |
| R902160654 | AA2FM63/61W-VSD520 |
| R902161132 | AA2FM63/61W-VSD520 |
| R902161209 | AA2FM63/61W-VSD520 |
| R902161499 | AA2FM63/61W-VSD520 |
| R902182282 | AA2FM63/61W-VSD520 |
| R909408971 | AA2FM63/61W-VSD520 |
| R902065829 | AA2FM63/61W-VSD520D |
| R902182347 | AA2FM63/61W-VSD520D |
| R902084067 | AA2FM63/61W-VSD520F |
| R902160924 | AA2FM63/61W-VSD520F |
| R902253822 | AA2FM63/61W-VSD520-S |
| R902243443 | AA2FM63/61W-VSD520V |
| R902035171 | AA2FM63/61W-VSD526 |
| R902161086 | AA2FM63/61W-VSD526 |
| R909433190 | AA2FM63/61W-VSD526 |
| R992000052 | AA2FM63/61W-VSD526 |
| R992000611 | AA2FM63/61W-VSD526 |
| R902096817 | AA2FM63/61W-VSD526D |
| R902160048 | AA2FM63/61W-VSD527 |
| R902160056 | AA2FM63/61W-VSD527 |
| R902161119 | AA2FM63/61W-VSD527 |
| R902193289 | AA2FM63/61W-VSD527 |
| R902205946 | AA2FM63/61W-VSD527 |
| R909422024 | AA2FM63/61W-VSD527 |
| R902034473 | AA2FM63/61W-VSD527D |
| R909611083 | AA2FM63/61W-VSD527D |
| R902043538 | AA2FM63/61W-VSD527D-K |
| R902047015 | AA2FM63/61W-VSD527D-K |
| R902065785 | AA2FM63/61W-VSD527D-K |
| R902043536 | AA2FM63/61W-VSD527D-S |
| R902092030 | AA2FM63/61W-VSD527-E |
| R902092031 | AA2FM63/61W-VSD527-E |
| R902115798 | AA2FM63/61W-VSD527F |
| R902217528 | AA2FM63/61W-VSD527F |
| R992002063 | AA2FM63/61W-VSD527F |
| R902115800 | AA2FM63/61W-VSD527F-K |
| R902043849 | AA2FM63/61W-VSD527I |
| R902249583 | AA2FM63/61W-VSD527I |
| R909426249 | AA2FM63/61W-VSDXXX-S |
