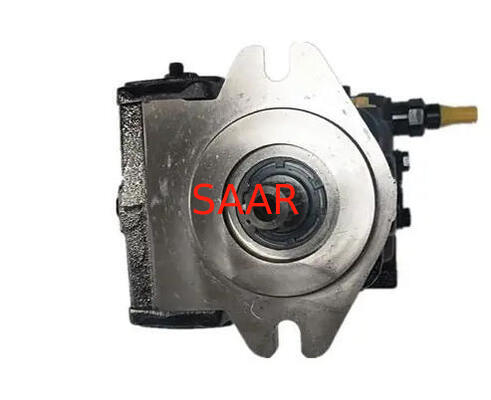

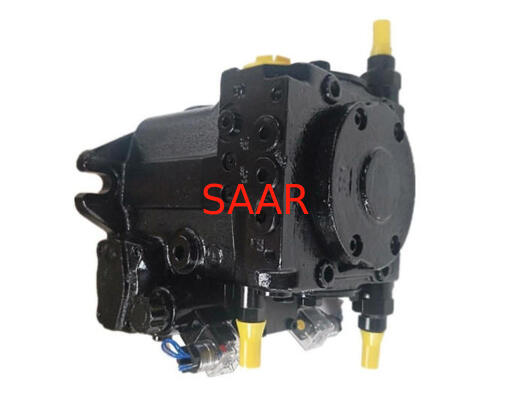

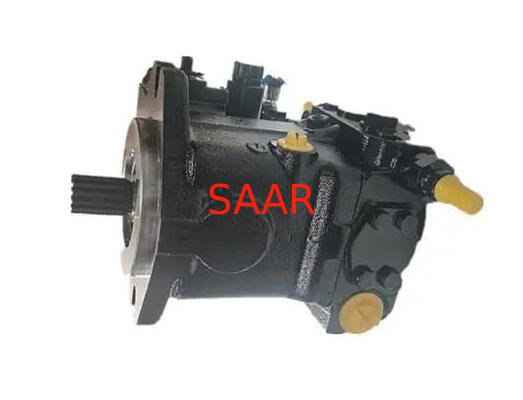

Name: R902033808 A4VTG56HWD1/32L-NTC02F003S-S Axial Piston Variable Pump A4VTG Series 32
Brand: Saar HK Electronic Limited
SKU: R902033808 A4VTG56HWD1/32L-NTC02F003S-S
Price: 1,075.00 USD
Availability: InStock

Home Products Rexroth Hydraulic Pump

R902033808 A4VTG56HWD1/32L-NTC02F003S-S Axial Piston Variable Pump A4VTG Series 32

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R902033808 A4VTG56HWD1/32L-NTC02F003S-S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On Request
Packaging Details:	Standard Wooden Box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/Month

Contact Now

Detailed Product Description

MNR:	R902033808	MODEL:	A4VTG56HWD1/32L-NTC02F003S-S32R-NZC02F015S-S

Axial piston variable pump A4VTG series 32

High pressure pump for appliSAARions in closed circuits
Size 56… 125
Nominal pressure 400 bar
Maximum pressure 450 bar
Closed circuit
SAE version (for the US market)

Features
Integrated boost pump for boost and pilot oil supply
Flow direction changes when the swashplate is moved through the neutral position
High-pressure relief valves with integrated boost function
With adjustable pressure cut-off as standard
Boost-pressure relief valve
Through drive for mounting of further pumps up to same nominal size
Large variety of controls
Swashplate design

Table of values

Size				28	40	56	71	90	125
Displacement geometric, per revolution		V_g max	cm³	28	40	56	71	90	125
Nominal pressure		p_nom	bar	400	400	400	400	400	400
Maximum pressure		p_max	bar	450	450	450	450	450	450
Maximum speed	at V_g max	n_nom	rpm	4250	4000	3600	3300	3050	2850
Maximum speed	Intermittent ¹⁾	n_max	rpm	5000	5000	4500	4100	3800	3450
Flow	at V_g max and n_nom	q_V nom	l/min	119	160	202	234	275	356
Power	at q_{V nom} and Δp_nom ²⁾	P	kW	79	107	134	156	183	238
Torque	at V_g max and Δp_nom	M	Nm	178	255	357	452	573	796
Weight (approx.)		m	kg	29	31	38	50	60	80

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Axial piston variable pump A4VTG56 series 32

R902027665	A4VTG56EP2/32+A4VG56EP2/32
R902056845	A4VTG56EP2/32+A4VG56EP2/32
R902056744	A4VTG56EP2D1/32R-NTC02F075SH-S
R902024441	A4VTG56EP2D1/32R-NTC02F075S-S
R902113495	A4VTG56EP4/32+A4VG56EP4/32
R902111557	A4VTG56EP4D1/32R-NTC02F075SH-S
R902033808	A4VTG56HWD1/32L-NTC02F003S-S
R902008987	A4VTG56HWD1/32R-NSC02F023S-S
R902022247	A4VTG56HWD1/32R-NTC02F003S-S
R902068268	A4VTG56HWD1/32R-NTC02F003S-S
R909609395	A4VTG56HWD1/32R-NTC02F003S-S
R902068407	A4VTG56HWDM1/32L-NSC02F003S-S
R902003480	A4VTG56HWDM1/32R-NTC02F003S-S
R902022246	A4VTG56HWDM1/32R-NTC02F003S-S
R902050379	A4VTG56HWDM1/32R-NTC02F003S-S
R902022244	A4VTG56HWDT1/32R-NZC02F015S-S
R909609750	A4VTG56HWDT1/32R-NZC02F015S-S
