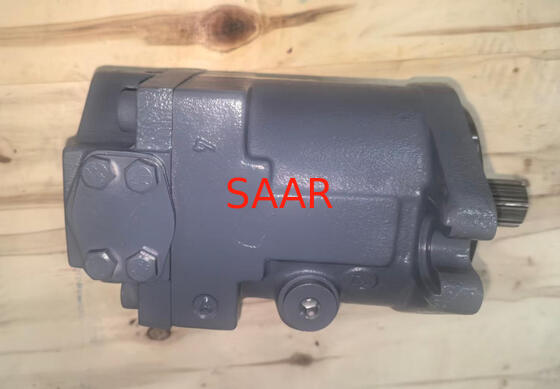

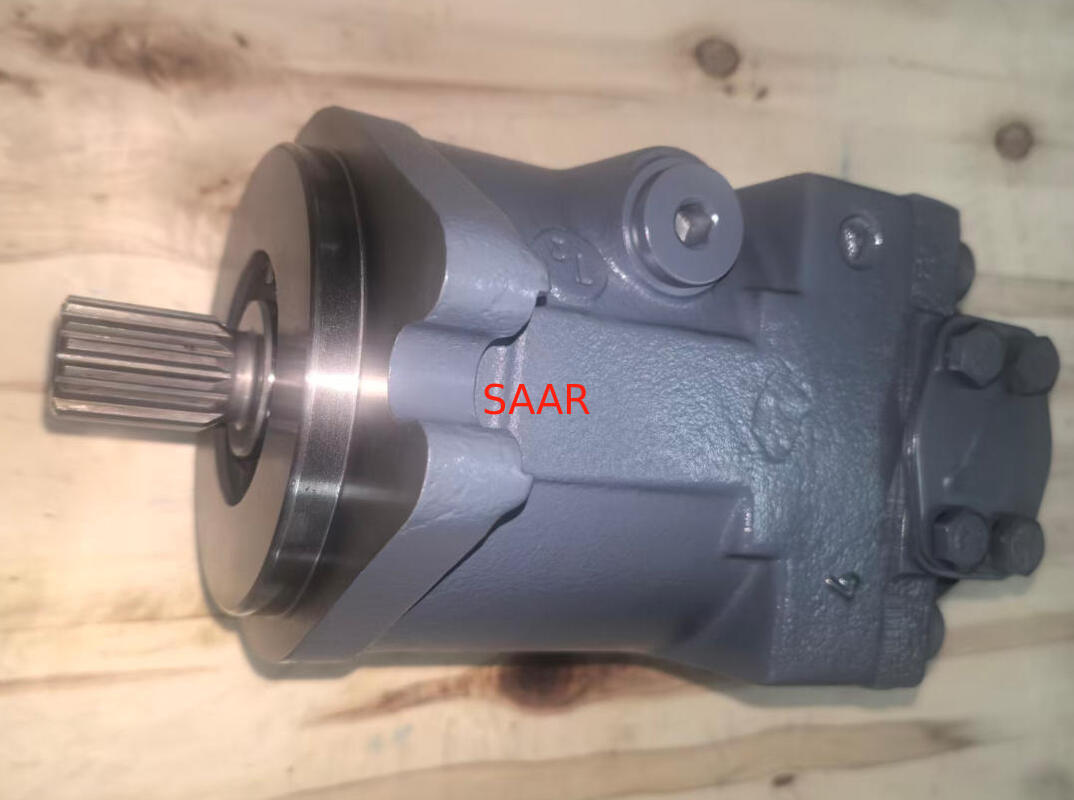

Name: R902568260 AA4FO180/30R-PZB25N00 Rexroth Axial Piston Fixed Pump A4FO
Brand: Saar HK Electronic Limited
SKU: R902568260 AA4FO180/30R-PZB25N00
Price: 1,075.00 USD
Availability: InStock

Home Products Rexroth Hydraulic Pump

R902568260 AA4FO180/30R-PZB25N00 Rexroth Axial Piston Fixed Pump A4FO

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R902568260 AA4FO180/30R-PZB25N00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Carton, Wooden box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	10PCS in 7-10days

Contact Now

Detailed Product Description

MNR:

R902568260

MODEL NO.:

AA4FO180/30R-PZB25N00

Highlight:

Rexroth axial piston fixed pump

A4FO hydraulic pump with warranty

Rexroth fixed pump PZB25N00

Rexroth A4FO Series Axial Piston Fixed Pumps

All-purpose high pressure pump with through drive

Size 22 … 500

Nominal pressure up to 400 bar

Maximum pressure up 450 bar

Open circuit

Features

Through drive for mounting of further pumps up to same nominal size
Low operating noise
Very long service life at high pressures
Excellent suction characteristics
Working ports SAE flange
High total efficiency
Swashplate design

Table of values

Size				22	28	71	125	180	250	500	250	500
Version				Standard							High speed
Displacement geometric, per revolution		V_g	cm³	22	28	71	125	180	250	500	250	500
Nominal pressure		p_nom	bar	400	400	350	350	350	350	350	350	350
Maximum pressure		p_max	bar	450	450	400	400	450	400	400	400	400
Maximum speed ¹⁾		n_nom	rpm	3600	3000	2200	1800	1800	1500	1320	1900	1500
Flow	at n_nom	q_V	l/min	79	84	156	225	324	375	660	475	750
Power	at n_nom and p_nom	P	kW	53	56	91	131	189	219	385	277	438
Torque	at p_nom	M	Nm	140	178	396	696	1003	1393	2785	1393	2785
Weight (approx.)		m	kg	13.5	13.5	34	61	76	120	220	120	220

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth A4FO series pumps on Sale, Short lead time, Best price!!!

R902474137	AA4FO180/30L-PPB25N00
R902513374	AA4FO180/30L-PPB25U01
R902518246	AA4FO180/30L-PPB25U01-S2075
R902474136	AA4FO180/30R-PPB25N00
R902486858	AA4FO180/30R-PZB25KB5
R902568260	AA4FO180/30R-PZB25N00
R902586079	AA4FO180/30R-VPB25U07
R902570202	AA4FO180/30R-VZB25U34
R902567261	AA4FO180/30R-VZB25U99
R902570201	A4FO180/30R+A4FO180/30R
