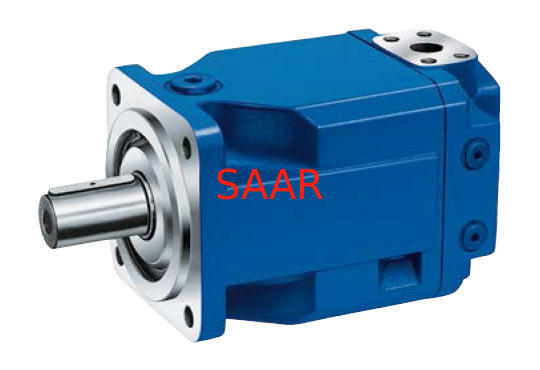

R910921260 AA4FM250/10W-PPB01 Rexroth Fixed Displacement Motor A4FM Series

Fixed Displacement Motor A4FM

Sizes 22...500
Series 1, Series 3
Nominal pressure up to 400 bar
Peak pressure up to 450 bar

Features
– Axial Piston Fixed Displacement Motor A4FM of swashplate design is used in open and closed loop circuits for hydrostatic drives.
– Output speed is proportional to input flow and inversely proportional to motor displacement.
– Output torque increases with the pressure drop across the motor between the high and low pressure sides.
– Long service life, optimum efficiencies
– Compact design for special applications where A2FM cannot be applied
– Proven rotary group in swashplate-technology
